Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Matrix 4WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft Assembly
>>

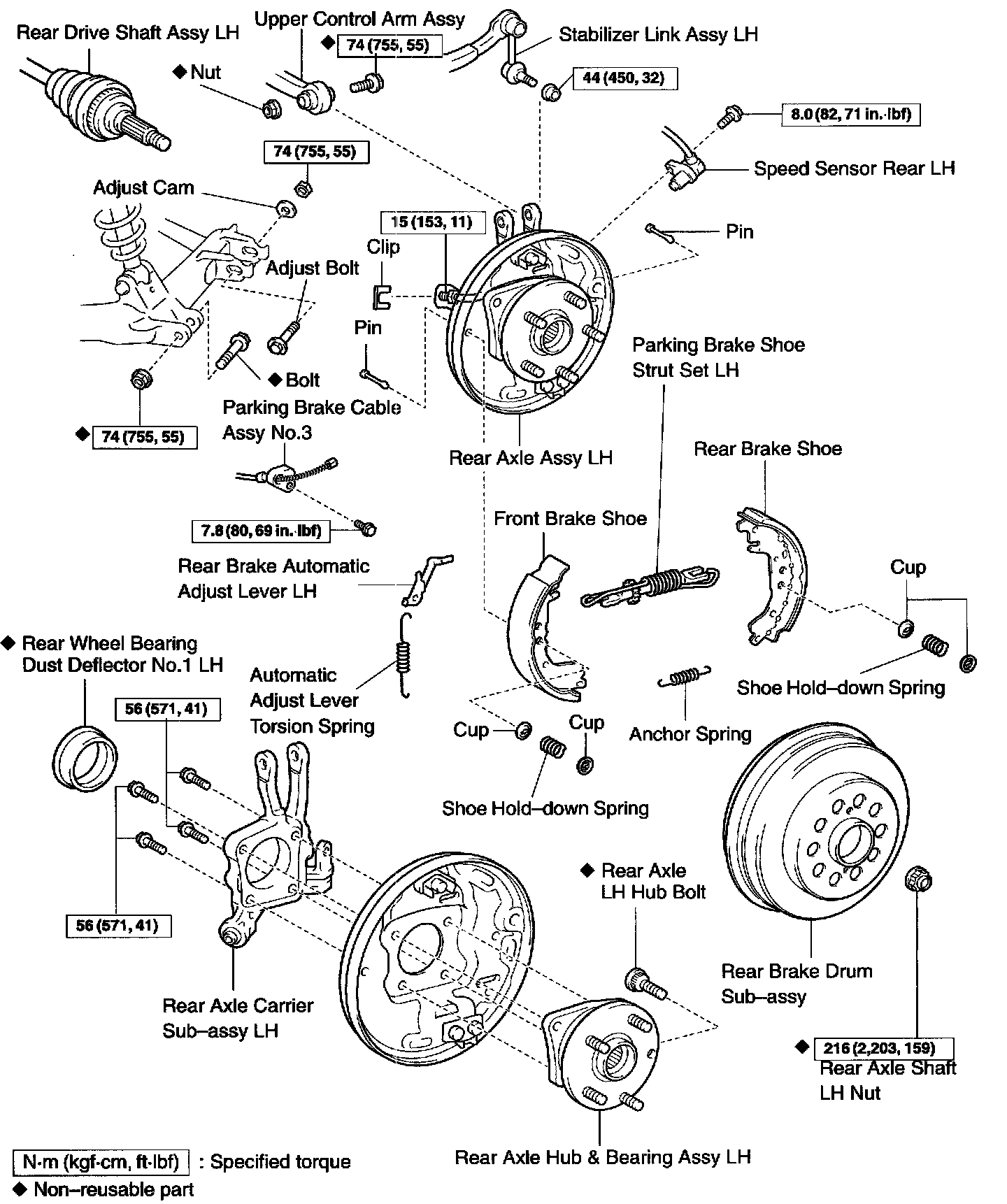

Rear Axle Carrier LH
Rear Axle Carrier LH
