Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Matrix 4WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust Pipe
Exhaust Pipe

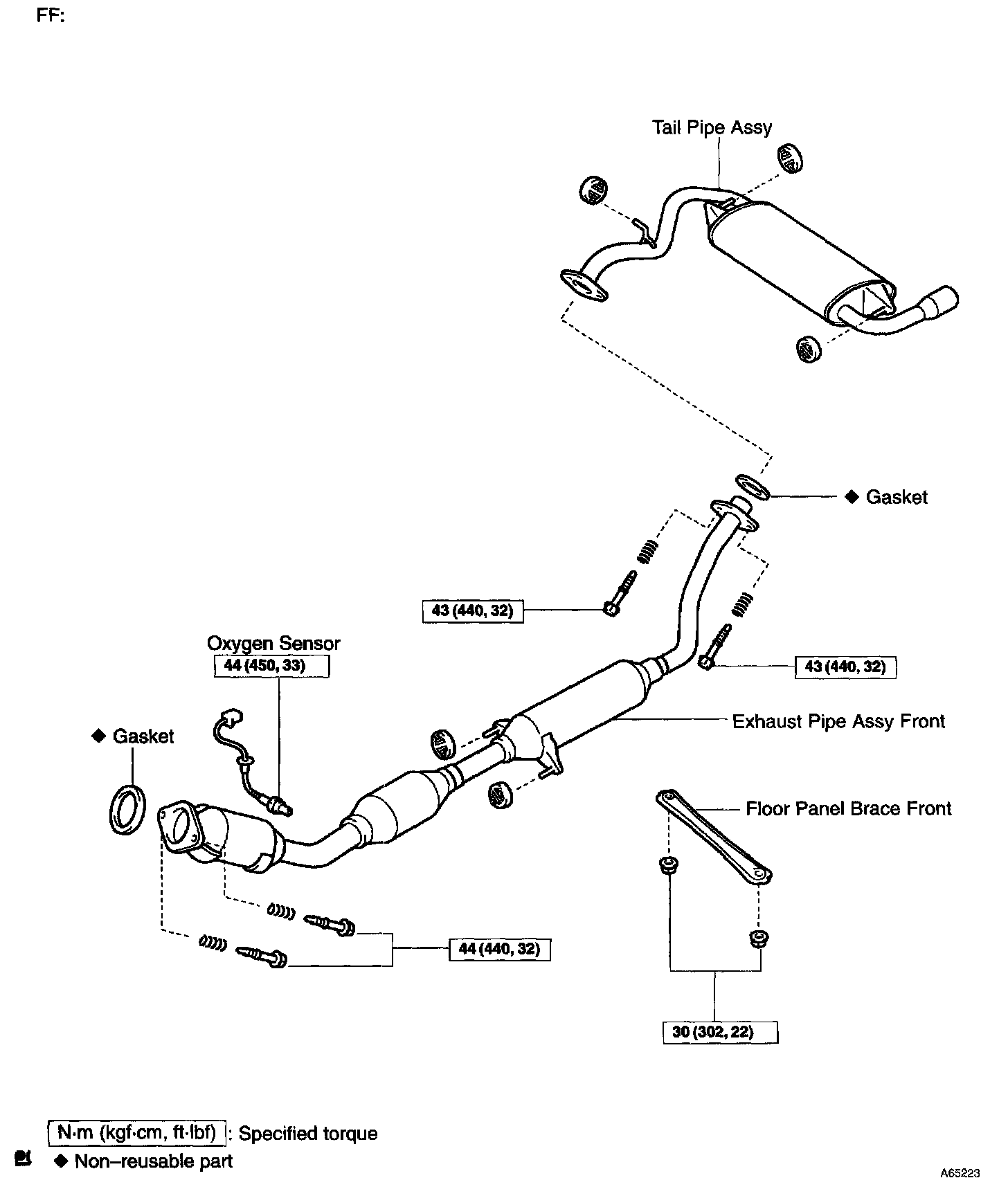

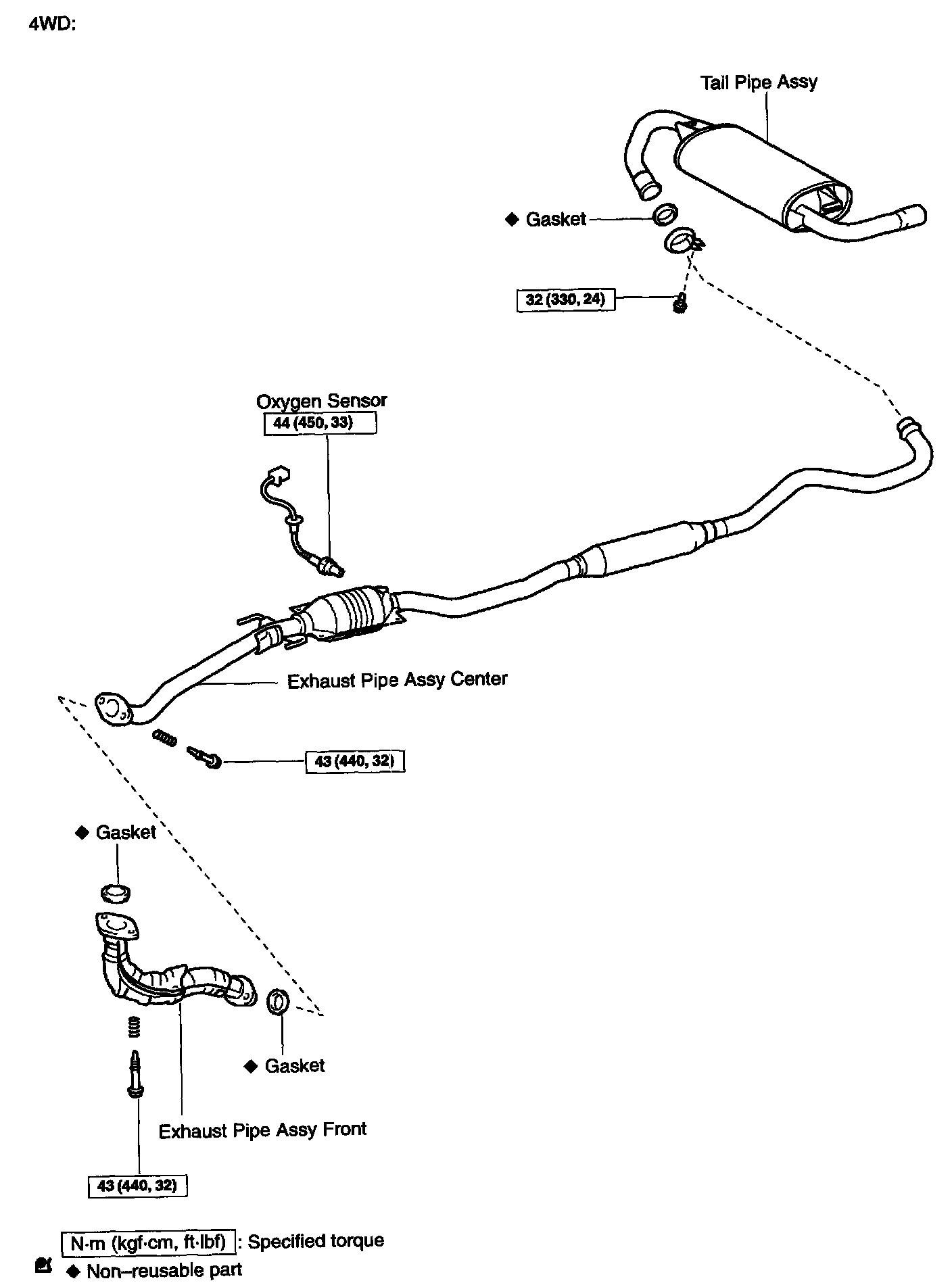

EXHAUST PIPE
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
