Seat Belt Systems: Locations

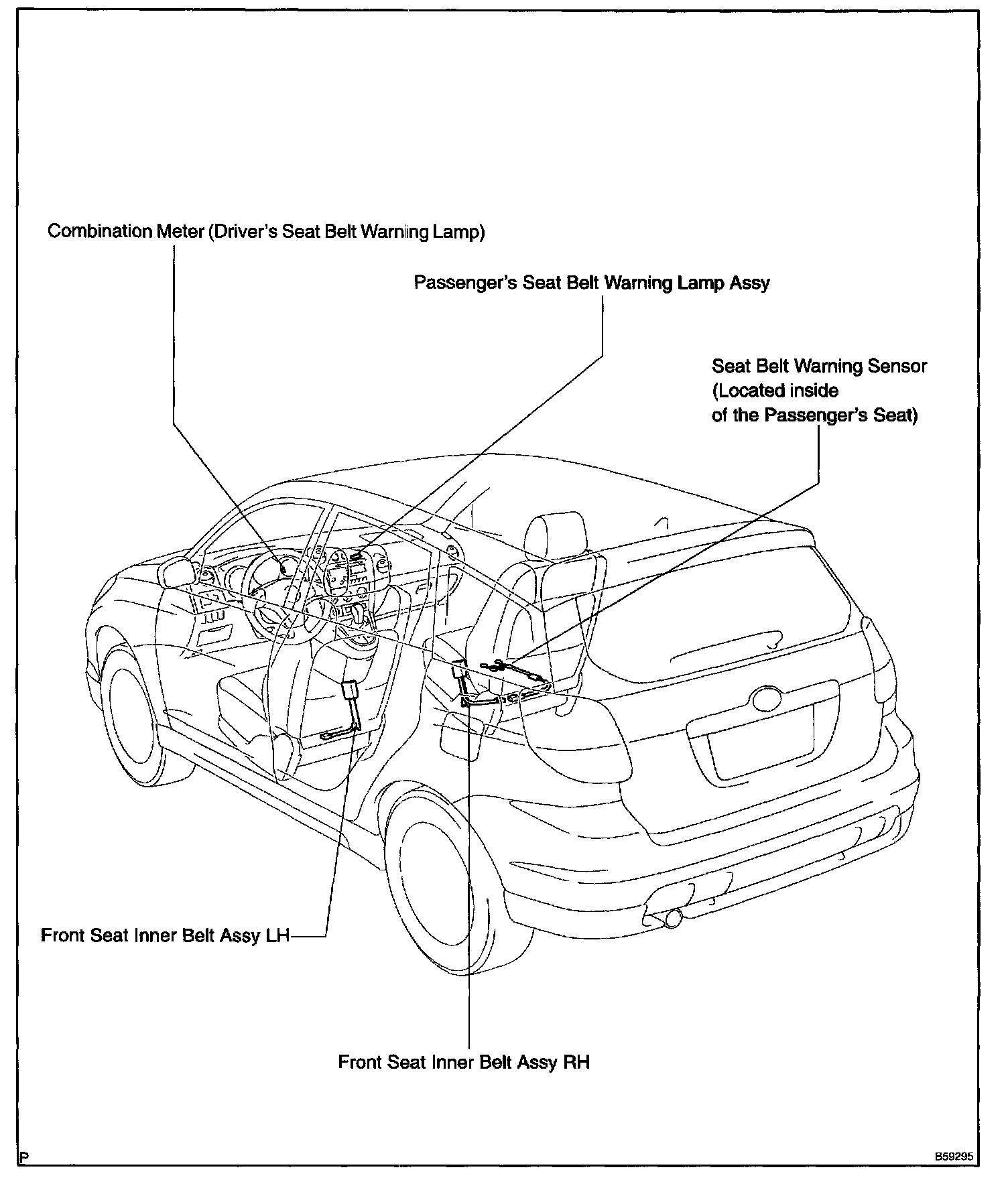

Seat Belt Warning System Components:

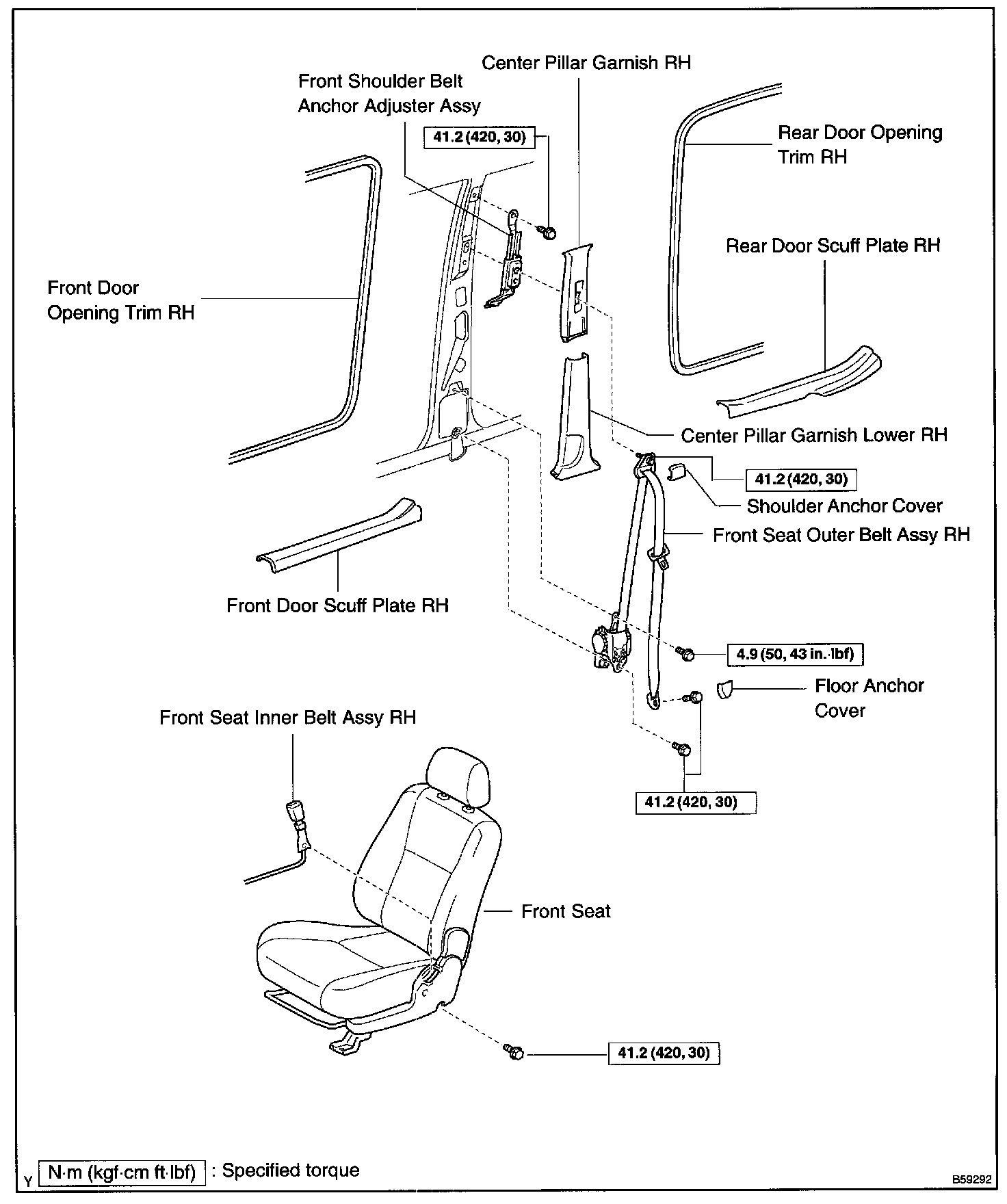

Front Seat Belt Components:

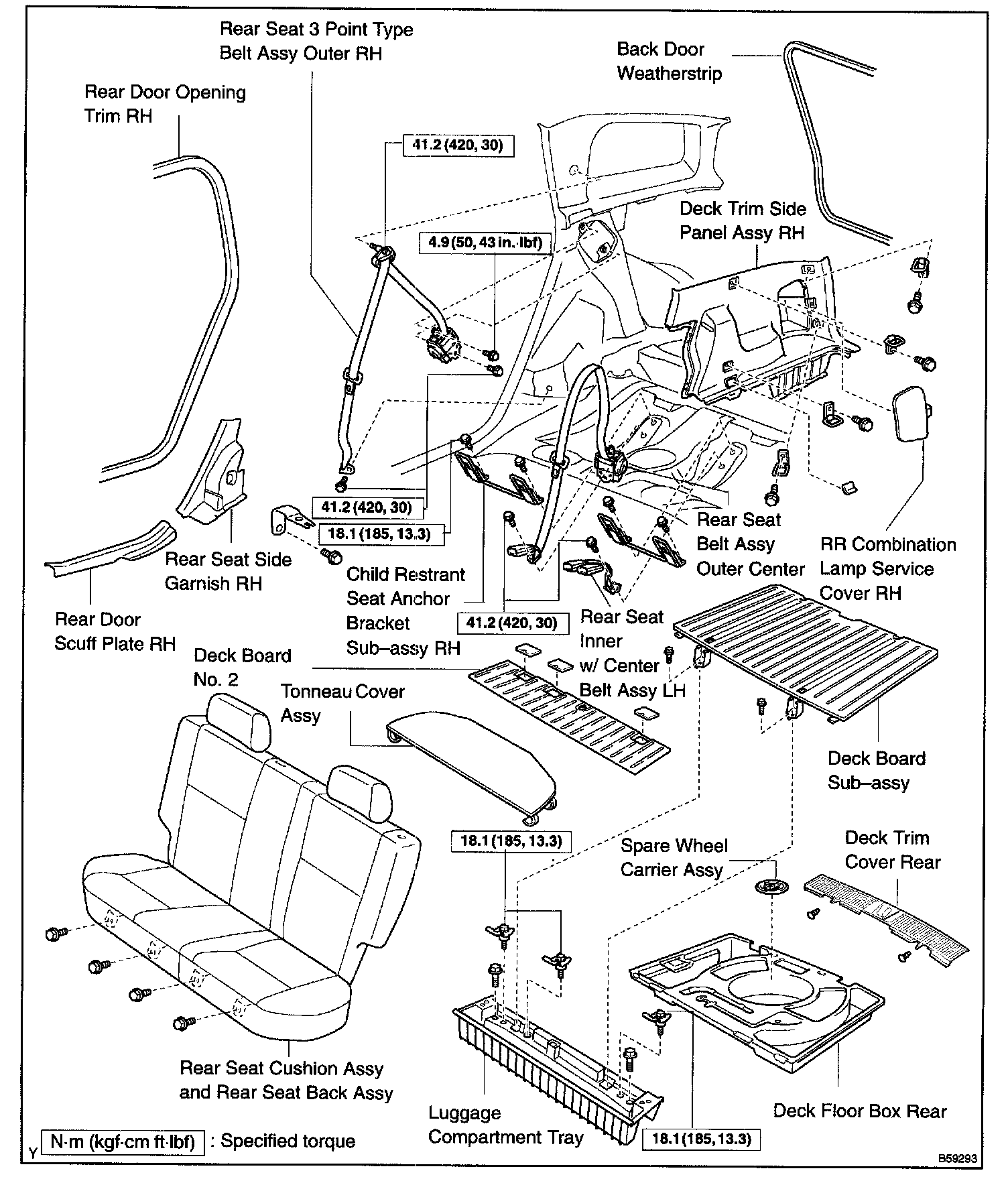

Rear Seat Belt Components:
