Wiring Harness: Service and Repair

REPLACEMENT
1. REMOVE TRANSMISSION VALVE BODY ASSY

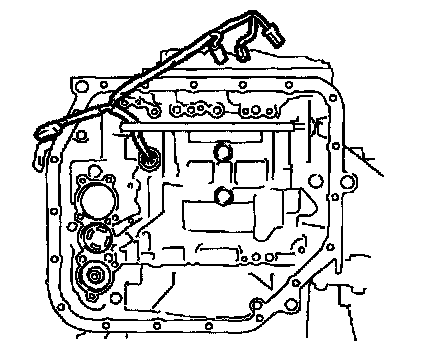

2. REMOVE TRANSMISSION WIRE

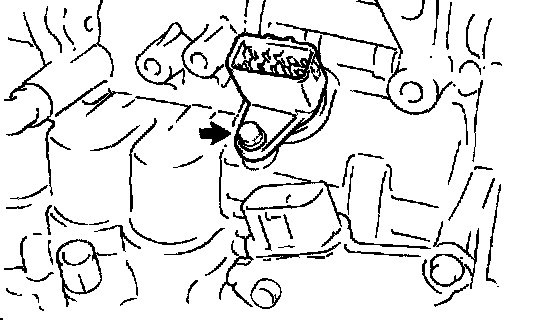

a. Removal the bolt and transmission wire.
3. INSTALL TRANSMISSION WIRE





a. Coat an O-ring with ATF.

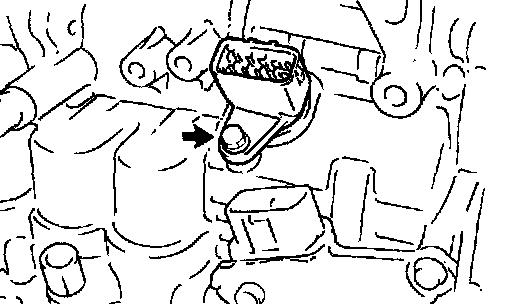

b. Install the transmission wire.





c. Install the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
4. INSTALL TRANSMISSION VALVE BODY ASSY
