Rear Axle Carrier LH Replacement






REPLACEMENT
1. REMOVE REAR WHEEL





2. SEPARATE REAR STABILIZER LINK ASSY LH

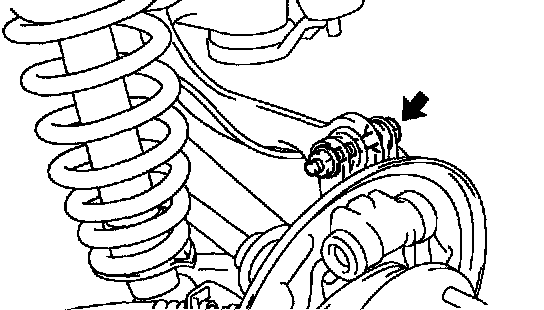

a. Remove the nut, separate the rear stabilizer link assy LH.

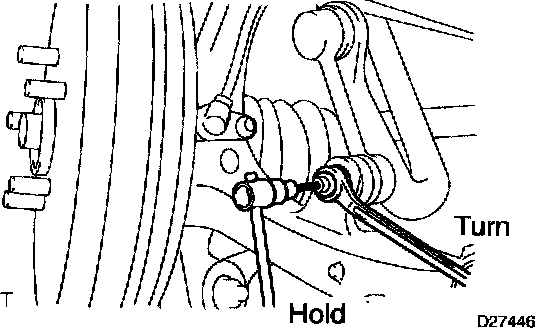

HINT: If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud.





3. REMOVE REAR AXLE SHAFT LH NUT

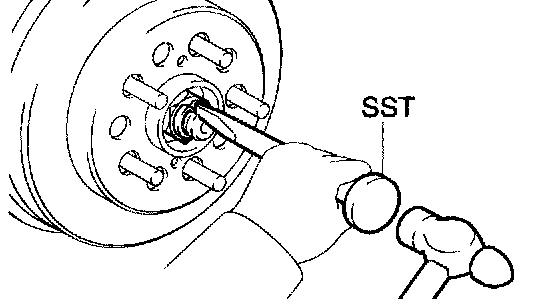

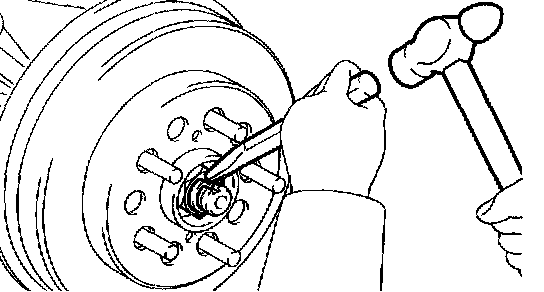

a. Using SST and a hammer, unstake the staked part of the rear axle shaft LH nut.
SST 09930-00010
b. Using a socket wrench (30 mm), remove the rear axle shaft LH nut.

NOTICE: Loosen the staked part of the nut completely, otherwise the screw of the drive shaft may be damaged.

4. REMOVE REAR BRAKE DRUM SUB-ASSY
5. SEPARATE SPEED SENSOR REAR LH
a. Remove the bolt, separate the speed sensor rear LH.
6. REMOVE PARKING BRAKE SHOE STRUT SET LH
SST 09700-30010
7. REMOVE FRONT BRAKE SHOE
SST 09718-00010
8. REMOVE REAR BRAKE AUTOMATIC ADJUST LEVER LH
SST 09718-00010
9. REMOVE REAR BRAKE SHOE
SST 09718-00010
10. SEPARATE PARKING BRAKE CABLE ASSY No. 3





11. SEPARATE REAR BRAKE TUBE No. 4

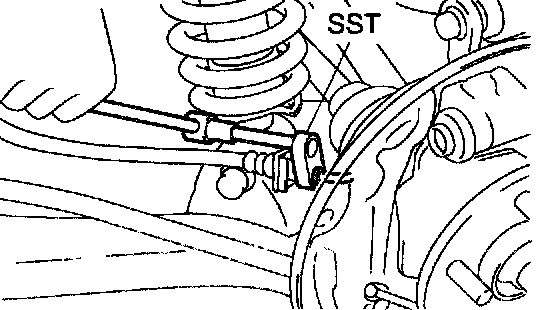

a. Using SST, separate the rear brake tube No. 4.
SST 09023-00100

HINT: Use a container to catch the brake fluid.

b. Remove the clip, separate the flexible hose.
12. SEPARATE REAR SUSPENSION ARM ASSY No. 1 LH

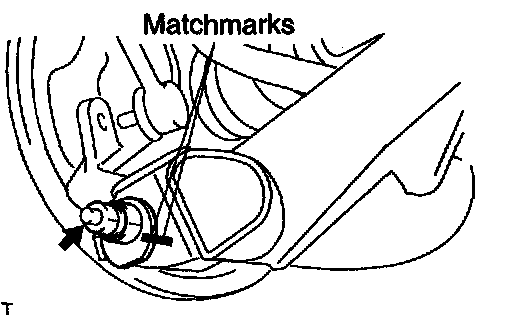

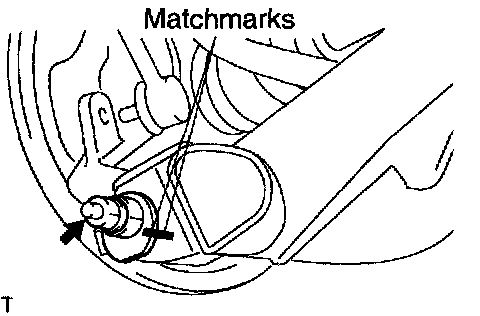

a. Place matchmarks on the camber adjust cam.
b. Remove the nut, bolt and camber adjust cam.





c. Remove the nut and bolt, separate the rear suspension arm assy No. 1 LH.





13. SEPARATE UPPER CONTROL ARM ASSY
a. Remove the nut and bolt, separate the upper control arm assy.

HINT: Keep the nut fixed while loosening and removing the bolt.

14. REMOVE REAR AXLE ASSY LH
a. Using a plastic hammer, separate the axle assy RR LH from the drive shaft, then remove it.

NOTICE: Be careful not to damage the boot and speed sensor rotor.





15. REMOVE REAR WHEEL BEARING DUST DEFLECTOR No. 1 LH

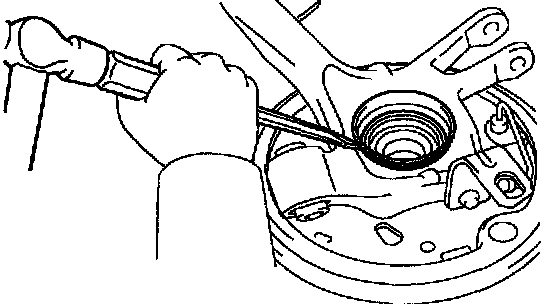

a. Using a screwdriver and a hammer, remove the dust deflector No. 1 LH.

NOTICE: Be careful not to damage the axle carrier.





16. REMOVE REAR AXLE CARRIER SUB-ASSY LH

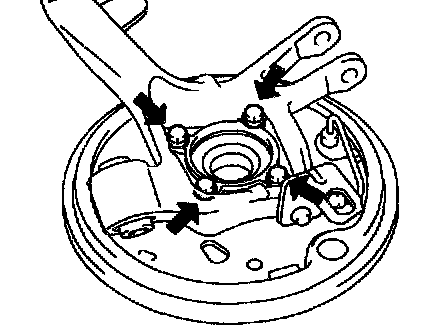

a. Remove the 4 bolts, hub & bearing assy LH and carrier sub-assy LH.





17. INSTALL REAR AXLE CARRIER SUB-ASSY LH
a. Install the hub & bearing assy LH and carrier sub-assy LH with 4 bolts.
Torque: 56 Nm (571 kgf-cm, 41 ft. lbs.)





18. INSTALL REAR WHEEL BEARING DUST DEFLECTOR No. 1 LH

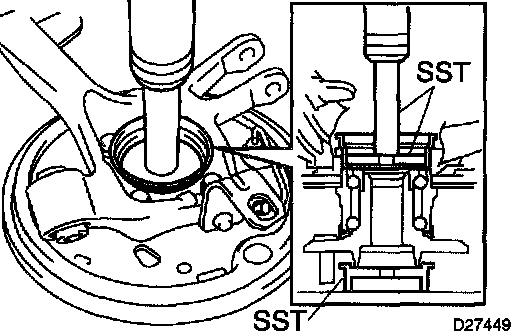

a. Using SST and a press, install a new dust deflector No. 1.
SST 09608-10010, 09950-60020 (09951-00680), 09950-70010 (09951-07100)





19. TEMPORARY TIGHTEN UPPER CONTROL ARM ASSY
a. Temporarily tighten the upper control arm assy with a new bolt and nut.
20. INSTALL REAR AXLE ASSY LH
a. Fit the splines, insert the front drive shaft assy LH into the axle assy RR LH.

NOTICE: Be careful not to damage the boot and speed sensor rotor.

21. TEMPORARY TIGHTEN REAR SUSPENSION ARM ASSY No. 1 LH





a. Temporarily tighten the rear suspension arm assy No 1 LH with a new bolt and nut.





b. Temporarily tighten the adjust cam and adjust bolt with nut.





22. INSTALL REAR BRAKE TUBE No. 4
a. Install the flexible hose with clip
b. Using SST, install the rear brake tube No 4.
SST 09023-00100
Torque: 15 Nm (153 kgf-cm, 11 ft. lbs.)
23. CONNECT PARKING BRAKE CABLE ASSY No. 3
24. APPLICATION HIGH TEMPERATURE GREASE)
25. INSTALL REAR BRAKE SHOE
SST 09718-00010
26. INSTALL REAR BRAKE AUTOMATIC ADJUST LEVER LH
27. INSTALL FRONT BRAKE SHOE
SST 09718-000010
28. INSTALL PARKING BRAKE SHOE STRUT SET LH
29. INSTALL SPEED SENSOR REAR LH
Torque: 8.0 Nm (82 kgf-cm, 71 ft. lbs.)

NOTICE:
^ Be careful not to damage the speed sensor.
^ Keep the speed sensor clean.
^ Do not twist the sensor wire when installing the sensor.

30. CHECK REAR DRUM BRAKE INSTALLATION
31. INSTALL REAR BRAKE DRUM SUB-ASSY
32. INSTALL REAR AXLE SHAFT LH NUT
a. Using a socket wrench (30 mm), install a new rear axle shaft LH nut
Torque: 216 Nm (2,203 kgf-cm, 159 ft. lbs.)
33. REMOVE REAR BRAKE DRUM SUB-ASSY





34. INSPECT BEARING BACKLASH

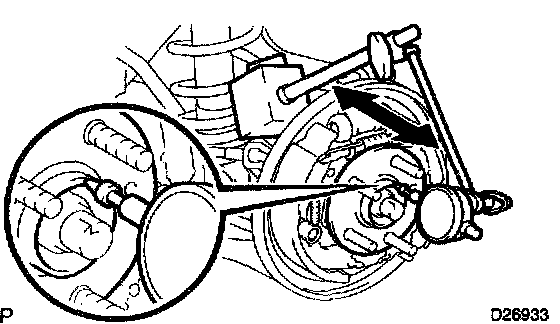

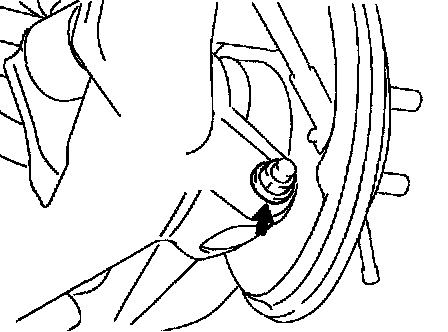

a. Using a dial indicator, check the backlash near the center of the hub & bearing assy.
Maximum: 0.05 mm (0.0020 inch)
If the backlash exceeds the maximum, replace the hub & bearing assy.





35. INSPECT AXLE HUB DEVIATION
a. Using a dial indicator, check the deviation at the surface of the hub & bearing assy outside the hub bolt.
Maximum: 0.07 mm (0.0028 inch)
If the deviation exceeds the maximum, replace the hub & bearing assy.
36. INSTALL REAR BRAKE DRUM SUB-ASSY
37. ADJUST REAR DRUM BRAKE SHOE CLEARANCE





38. INSTALL REAR AXLE SHAFT LH NUT
a. Using a chisel and a hammer, stake the rear axle shaft LH nut.





39. INSTALL REAR STABILIZER LINK ASSY LH
a. Install the rear stabilizer link assy LH with the nut.
Torque: 44 Nm (450 kgf-cm, 32 ft. lbs.)

HINT: If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud.

40. BLEED BRAKE LINE
41. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
42. STABILIZE SUSPENSION
43. FULLY TIGHTEN UPPER CONTROL ARM ASSY
44. FULLY TIGHTEN REAR SUSPENSION ARM ASSY No. 1 LH
45. CHECK FLUID LEVEL IN RESERVOIR
46. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
47. CHECK ABS SPEED SENSOR SIGNAL
