Floor Shift Cable Transmission Control Shift Replacement

REPLACEMENT
1. PRECAUTION

NOTICE: Do not open the cover or the case of the ECU and various electrical devices unless absolutely necessary (If the IC terminals are touched, the IC may be destroyed by static electricity.).

2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSY
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR
5. REMOVE INSTRUMENT PANEL BOX
6. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
7. REMOVE AIR BAG SENSOR ASSY CENTER
8. REMOVE FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT

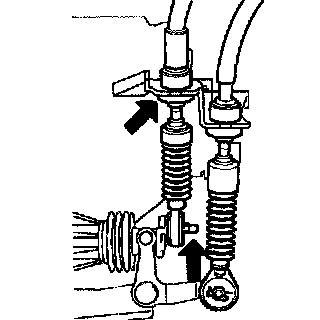

a. Remove the clip, washer and disconnect the cable end of the shift cable from the transaxle.
b. Remove the clip and disconnect the shift cable from the bracket.





c. Remove the 2 nuts and disconnect the shift cable.
d. Disconnect the shift cable from the clamp.

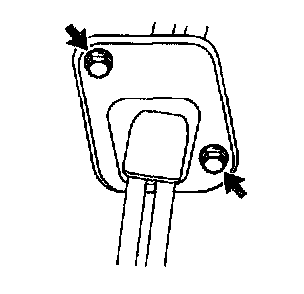

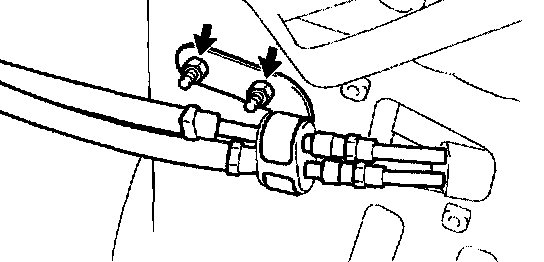

e. Remove the 2 bolts and shift cable grommet retainer.

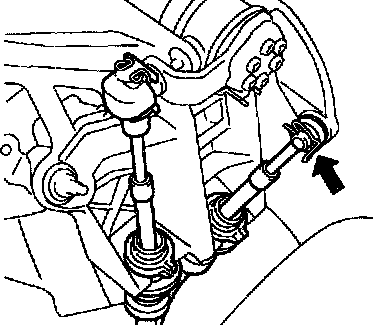

f. Remove the clip, washer and disconnect the cable end of the shift cable from the shift lever assy.

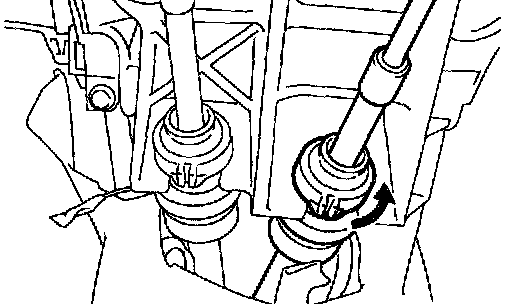

g. Turn the lock and disconnect the shift cable from the shift lever assy.
h. Pull out the shift cable from the floor.
9. INSTALL FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
a. Pull in the shift cable to the floor.

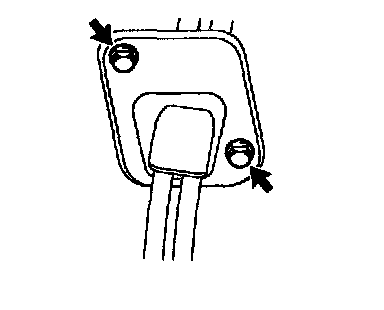

b. Install the shift cable grommet retainer with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)

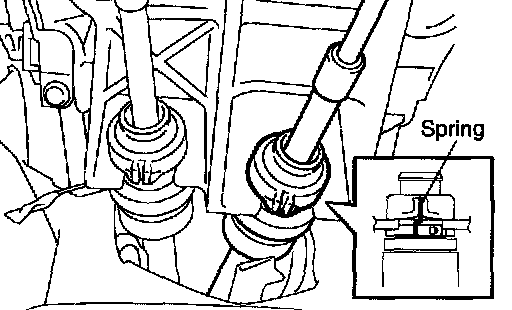

c. Connect the shift cable to the shift lever assy.

NOTICE:
^ The projecting part of the cable outer should face upward when the shift cable is installed.
^ Make sure that after installation the cable outer spring is moved to the place shown in the illustration.

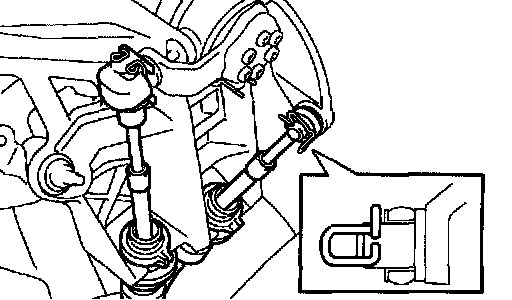

d. Connect the shift cable end as shown in the illustration.
e. Install the washer and clip.
f. Connect the shift cable to the clamp.





g. Connect the shift cable with the 2 nuts.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)





h. Connect the shift cable with the clip from the bracket.

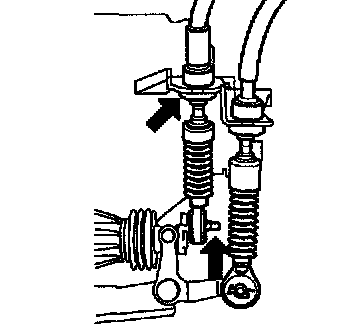

i. Connect the shift cable end of the shift cable with the washer and clip to the transaxle.
10. INSTALL AIR BAG SENSOR ASSY CENTER
SST 09249-63010
11. INSPECT SRS WARNING LIGHT
