Mechanical Specifications

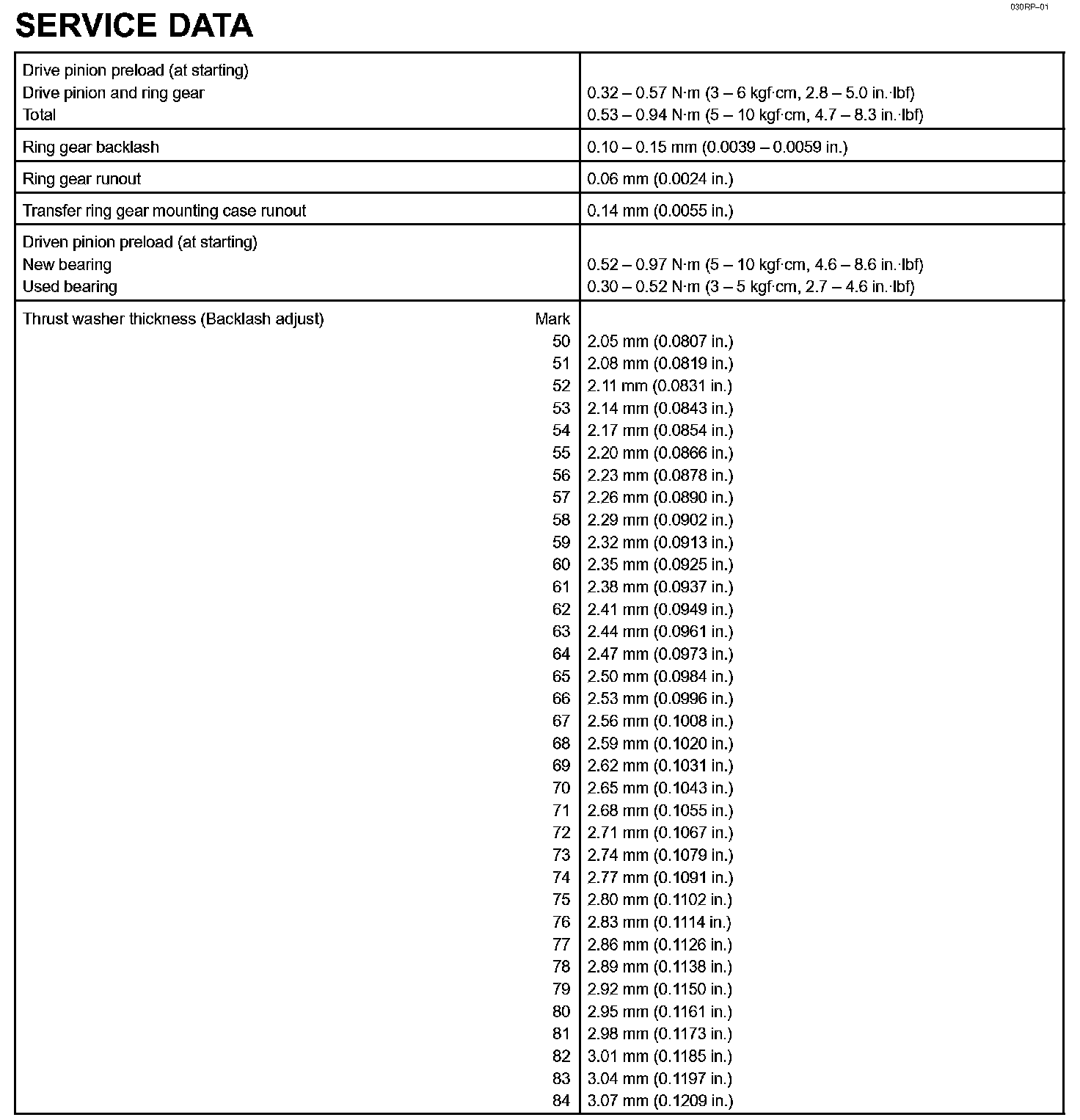

Transfer Assy - Service Data Part 1:

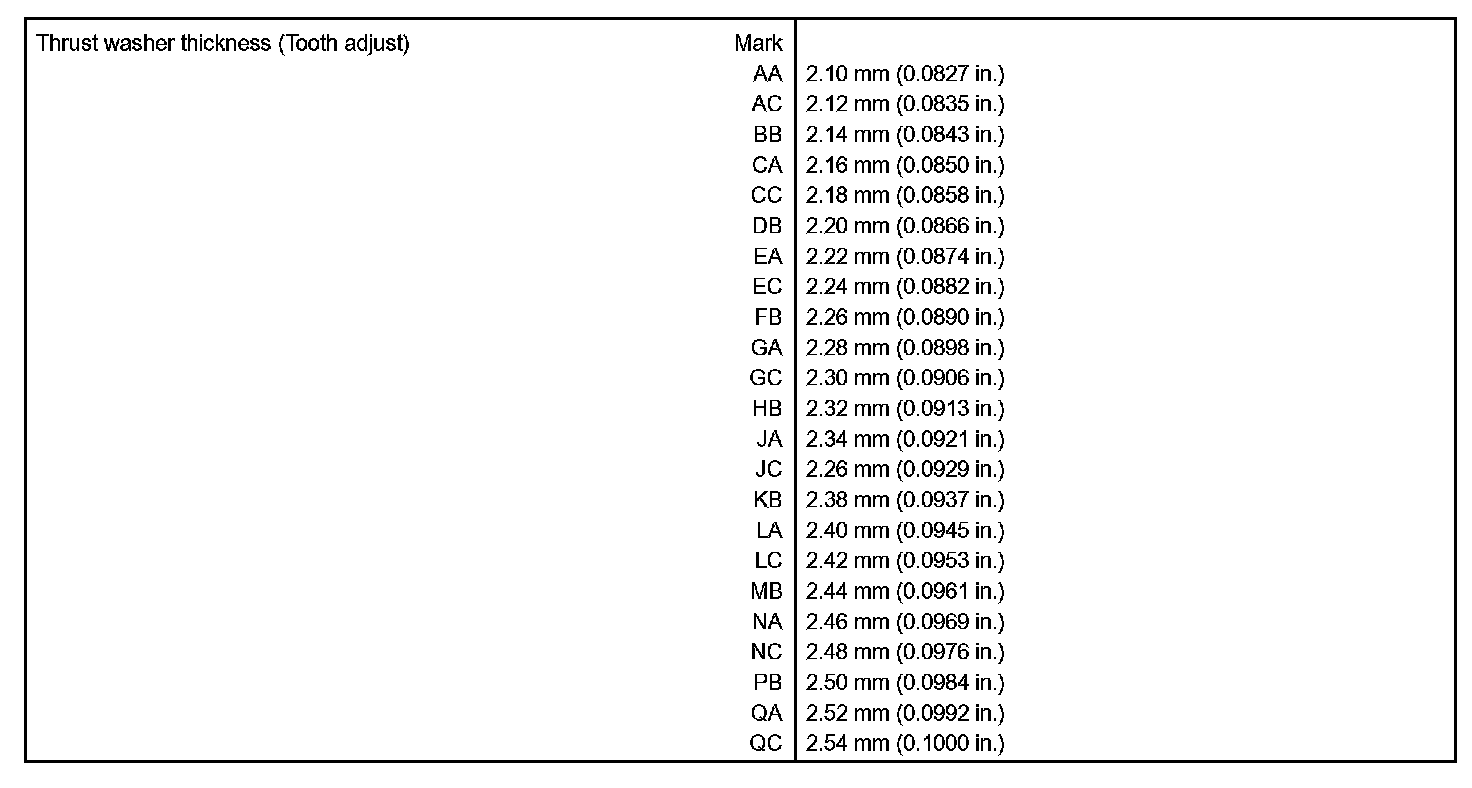

Transfer Assy - Service Data Part 2:

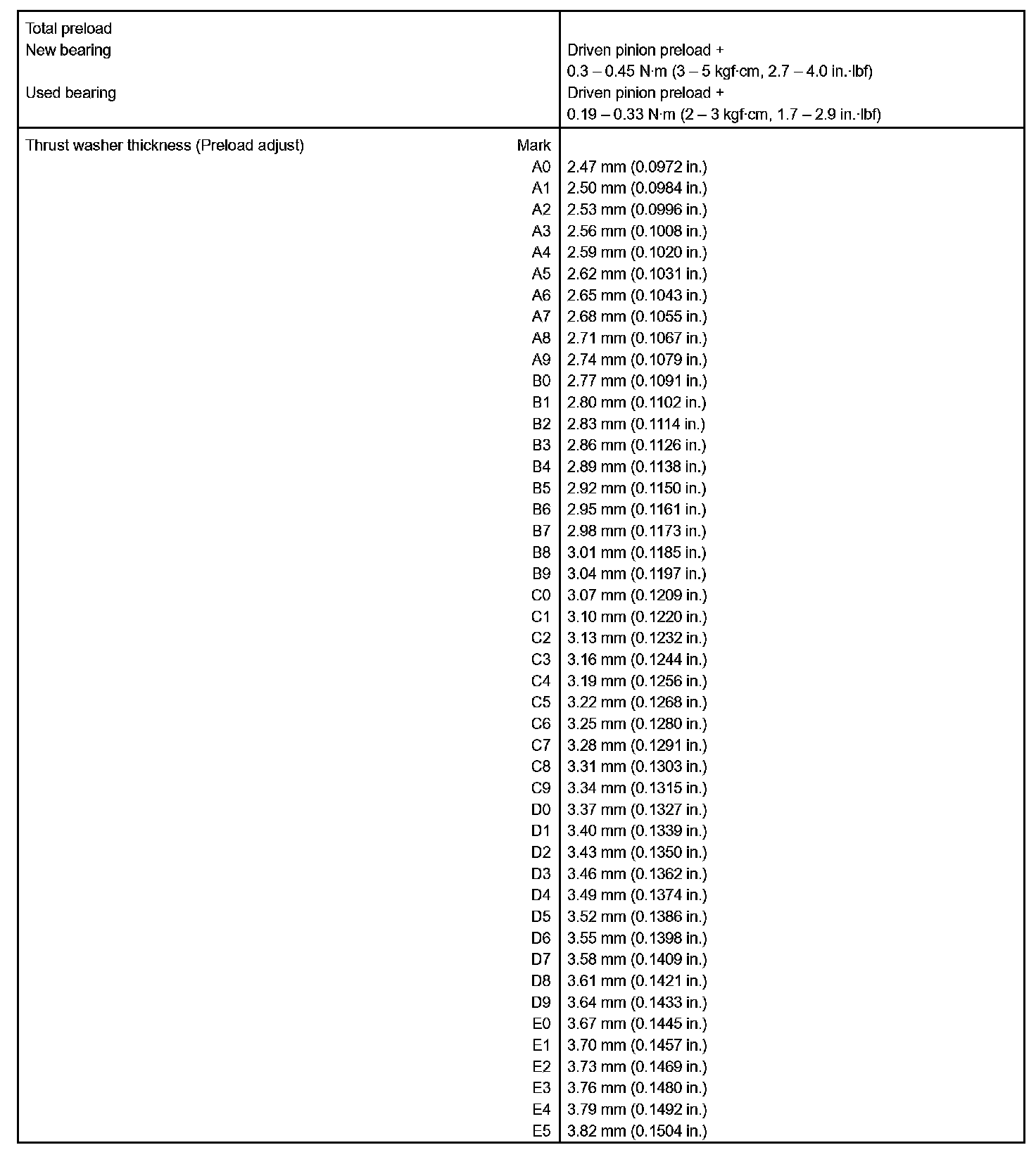

Transfer Assy - Service Data Part 3:

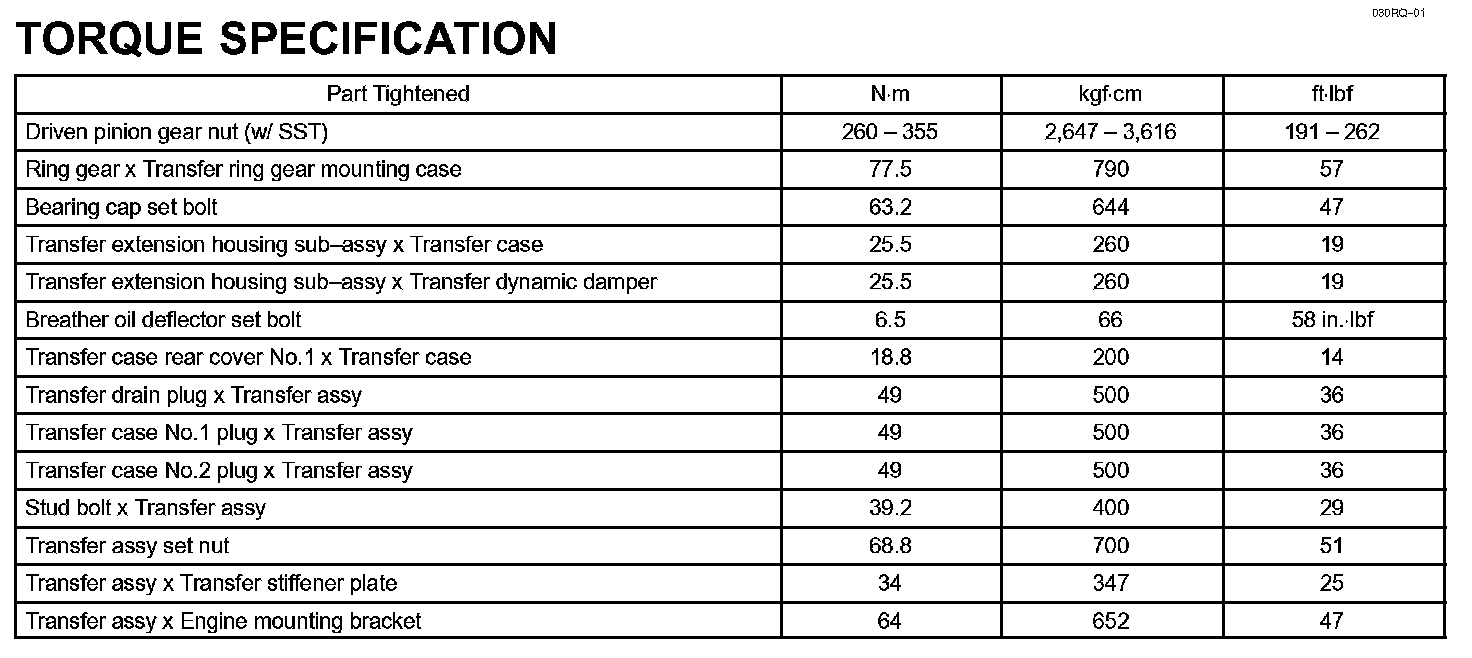

Transfer Assy - Torque Specification:
