Rear Wiper Rubber

REAR WIPER RUBBER

REPLACEMENT




1. REMOVE RR WIPER BLADE

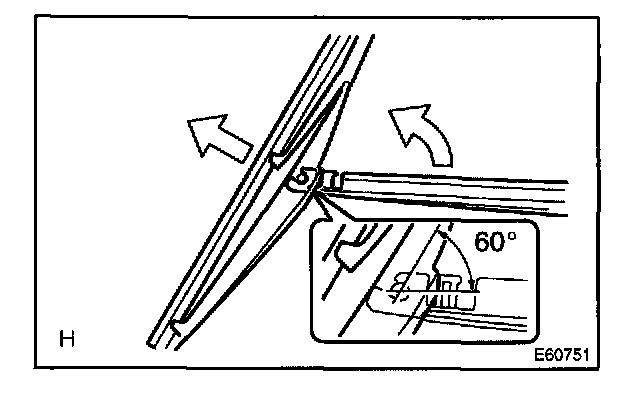

a. Raise the rear wiper blade to the position as shown in the illustration, to the extent that the meshing of the claw is disengaged with the click sound.

NOTE: Be careful not to break the claw.

b. Pull straight the rear wiper blade to vehicle's left from the wiper arm.

NOTE: Do not fold the rear wiper arm with the rear wiper blade being removed from it.




2. REMOVE REAR WIPER RUBBER

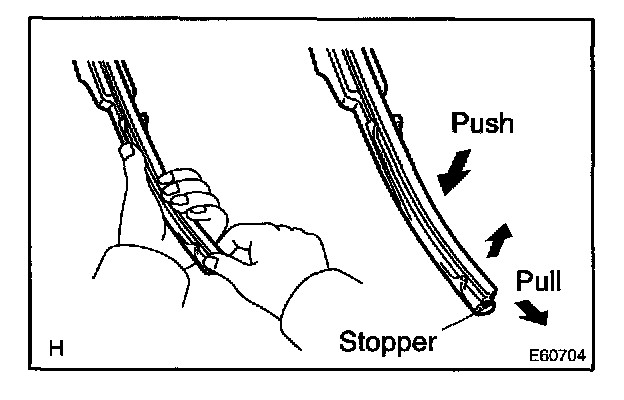

a. Place the rear wiper with the rear end of the rubber protruded from the blade stopper as shown in the illustration.

NOTE: Do not pull out the wiper rubber forcibly. Otherwise the backing plates are deformed or brade claw is damaged

HINT: Pussing the position close to the middle of the blade will raise the rubber, which could be easier to pull it out.

3. INSTALL REAR WIPER RUBBER

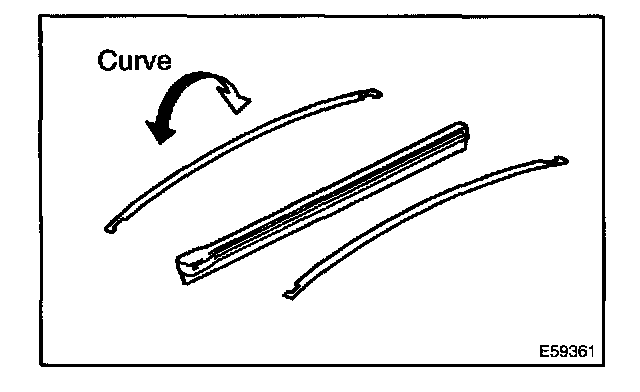

a. Install the 2 wiper rubber backing plates to the rear wiper rubber.

NOTE: Be careful to observe and keep direction of curvature for correct replacement.

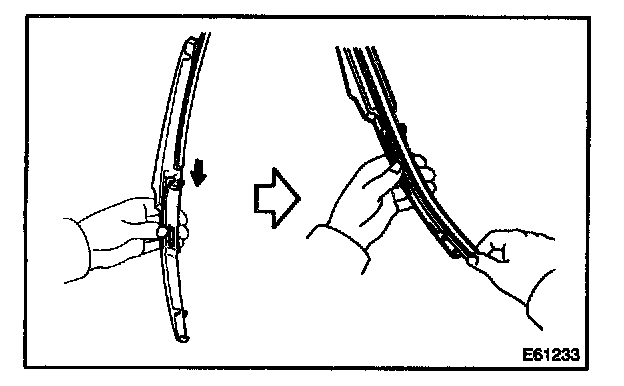

b. Insert the rear wiper rubber from the claw of the middle of the rear wiper blade into the rear end position.

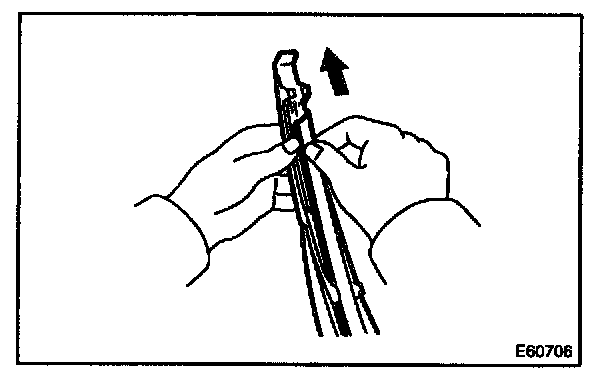

c. After passing the rear wiper rubber through the rear end side claw, protrude it from the rear end stopper and pass it through the front tip side claw.
