B1244

DTC B1244 LIGHT SENSOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

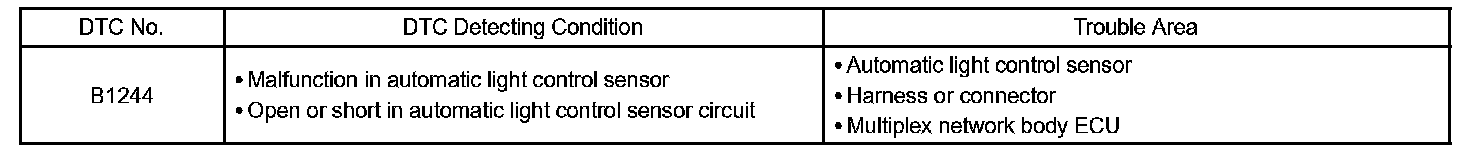

DTC Detecting Condition:

This DTC is output when a failure in the light sensor circuit is detected.

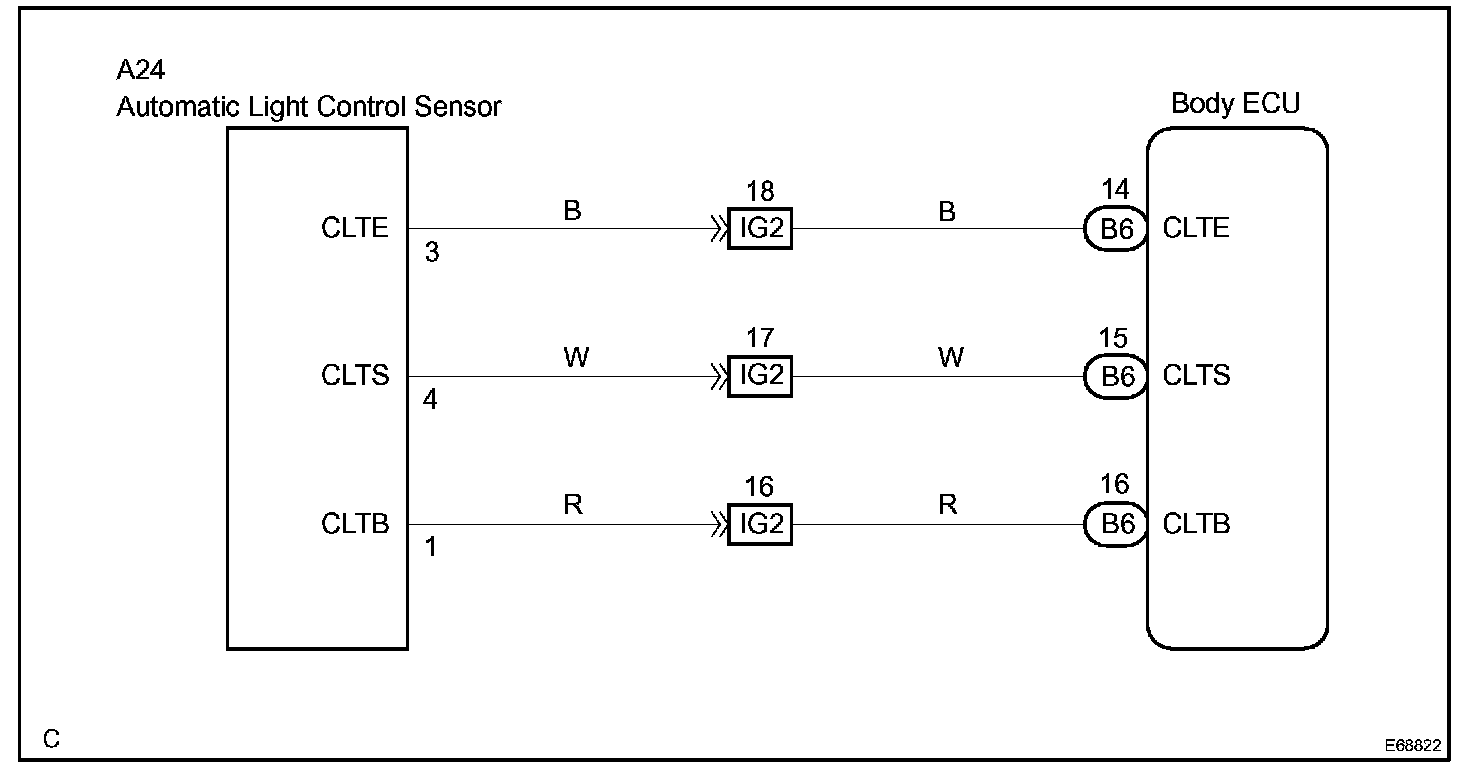

Wiring Diagram:

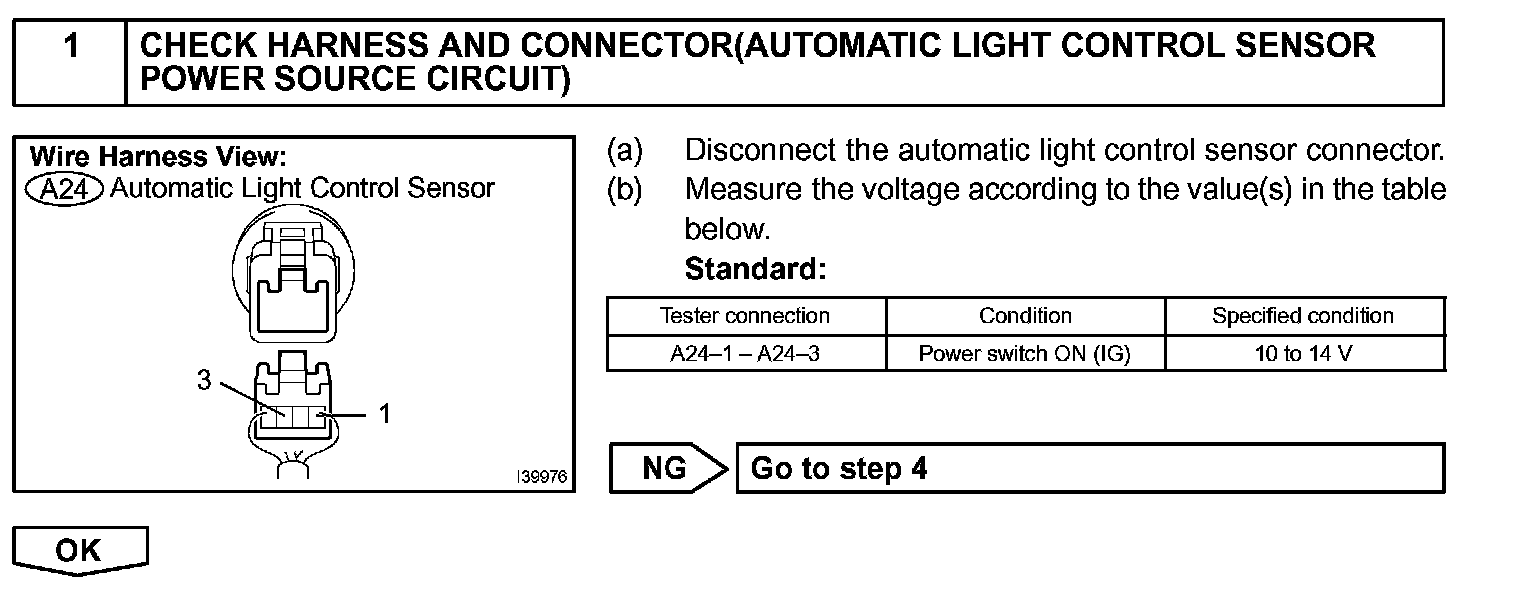

Step 1:

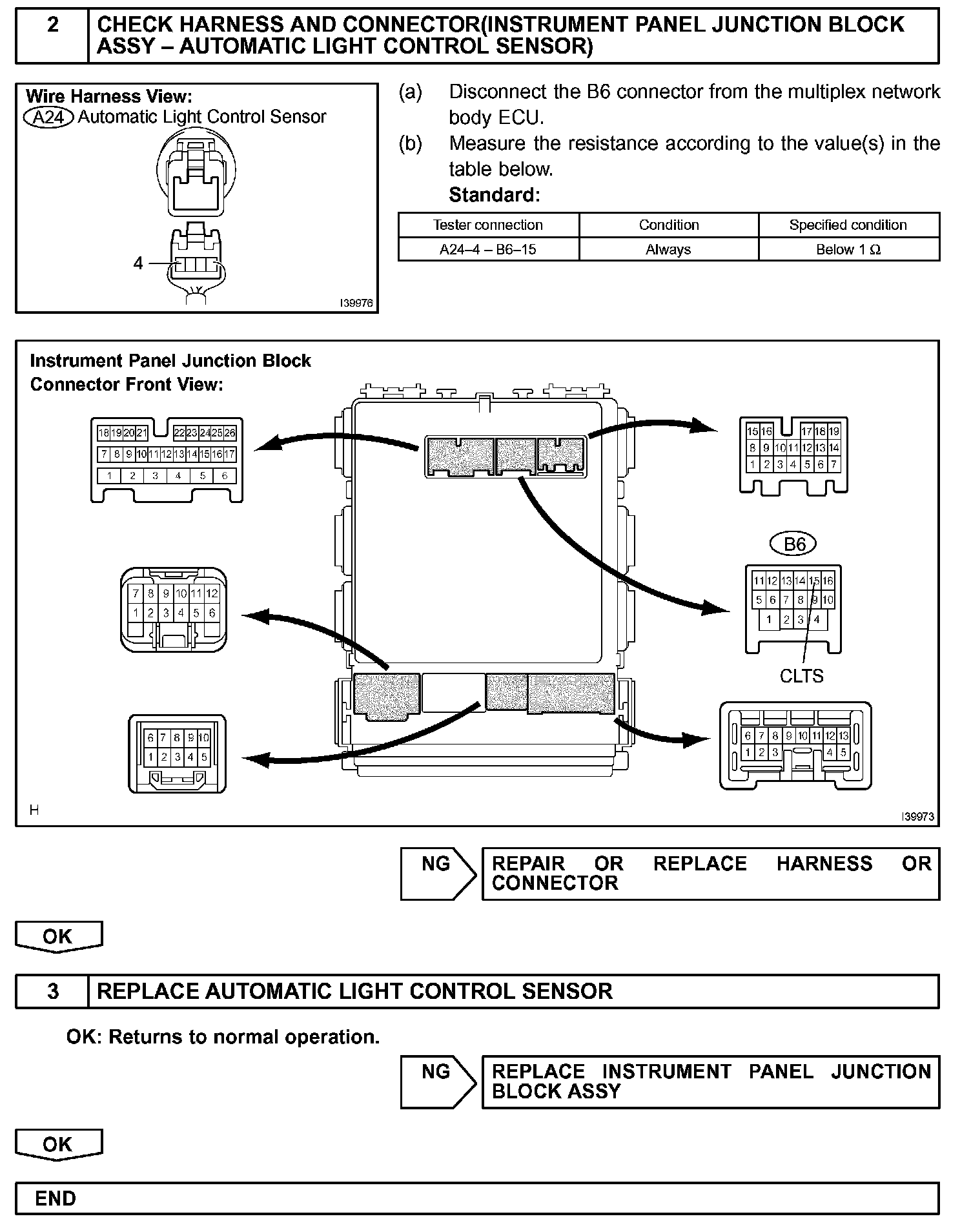

Step 2 - 3:

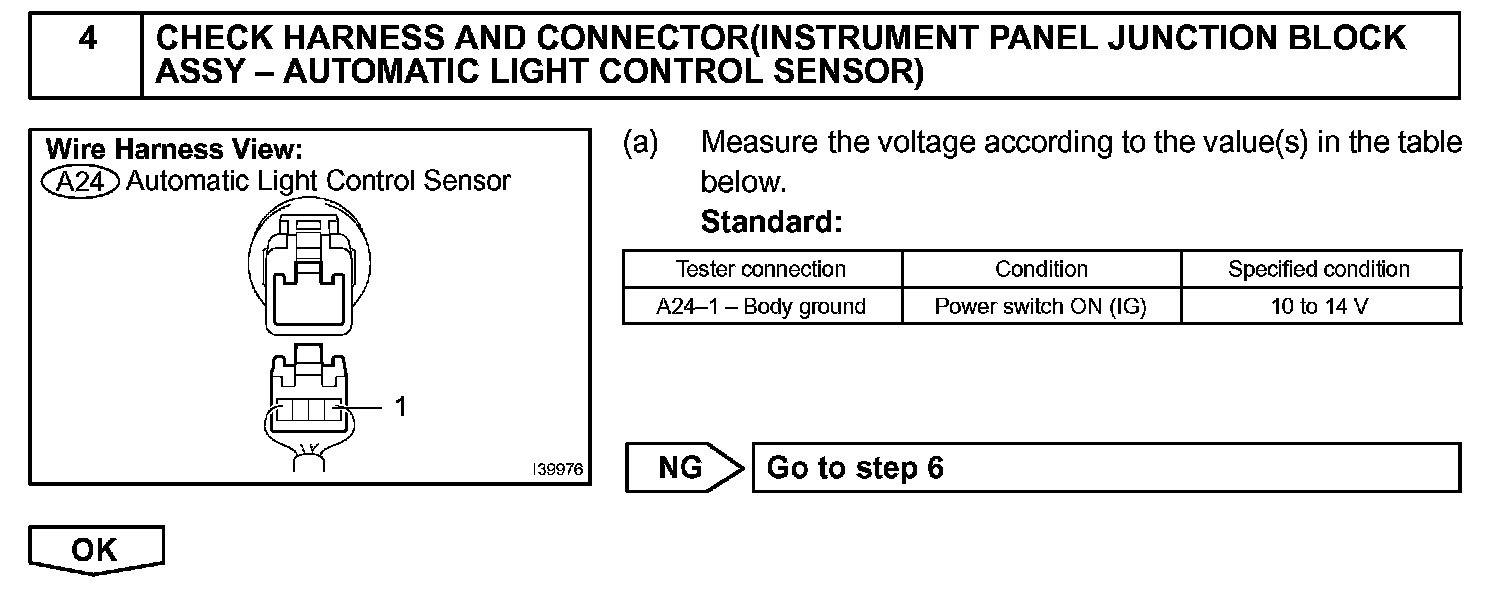

Step 4:

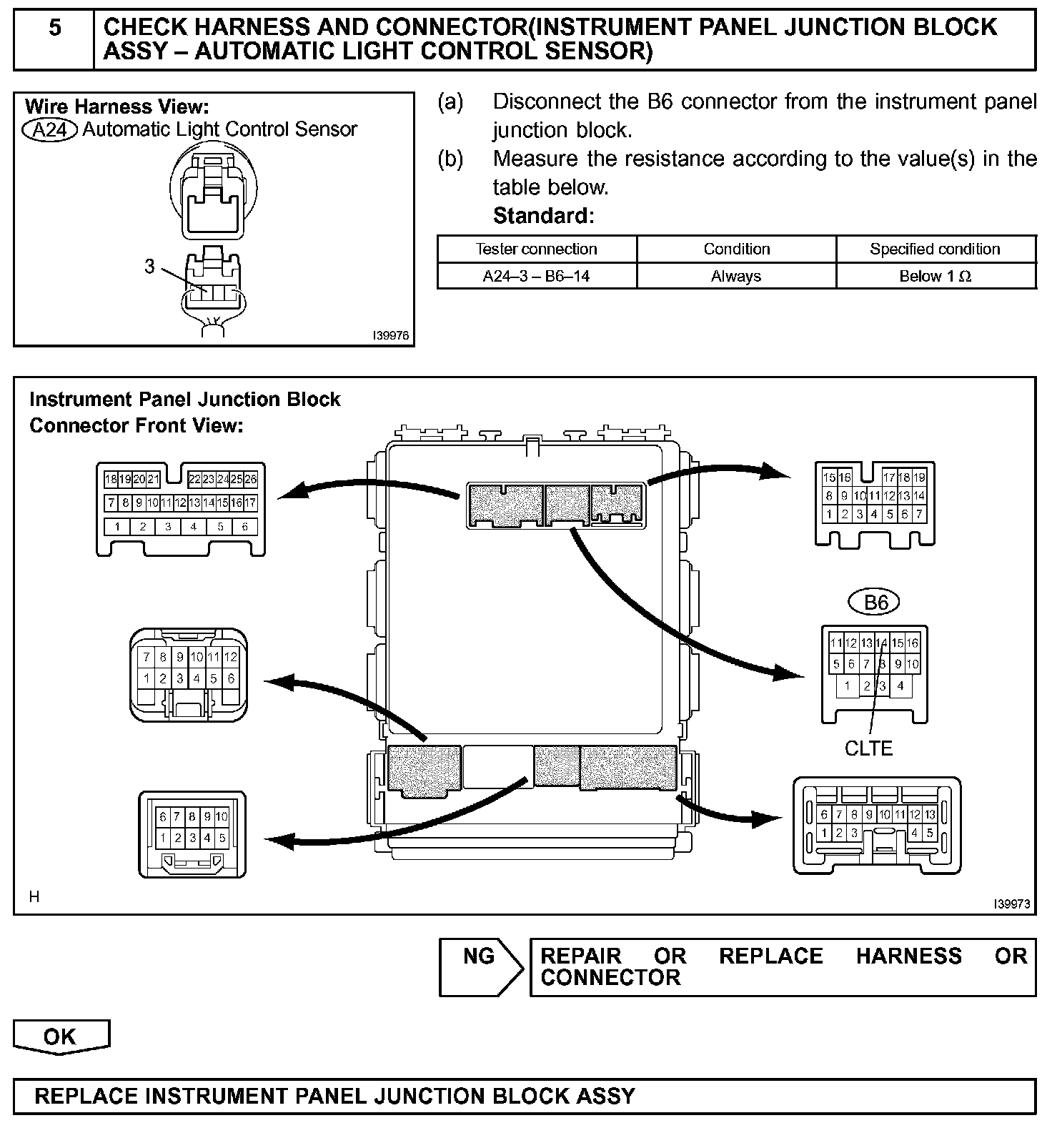

Step 5:

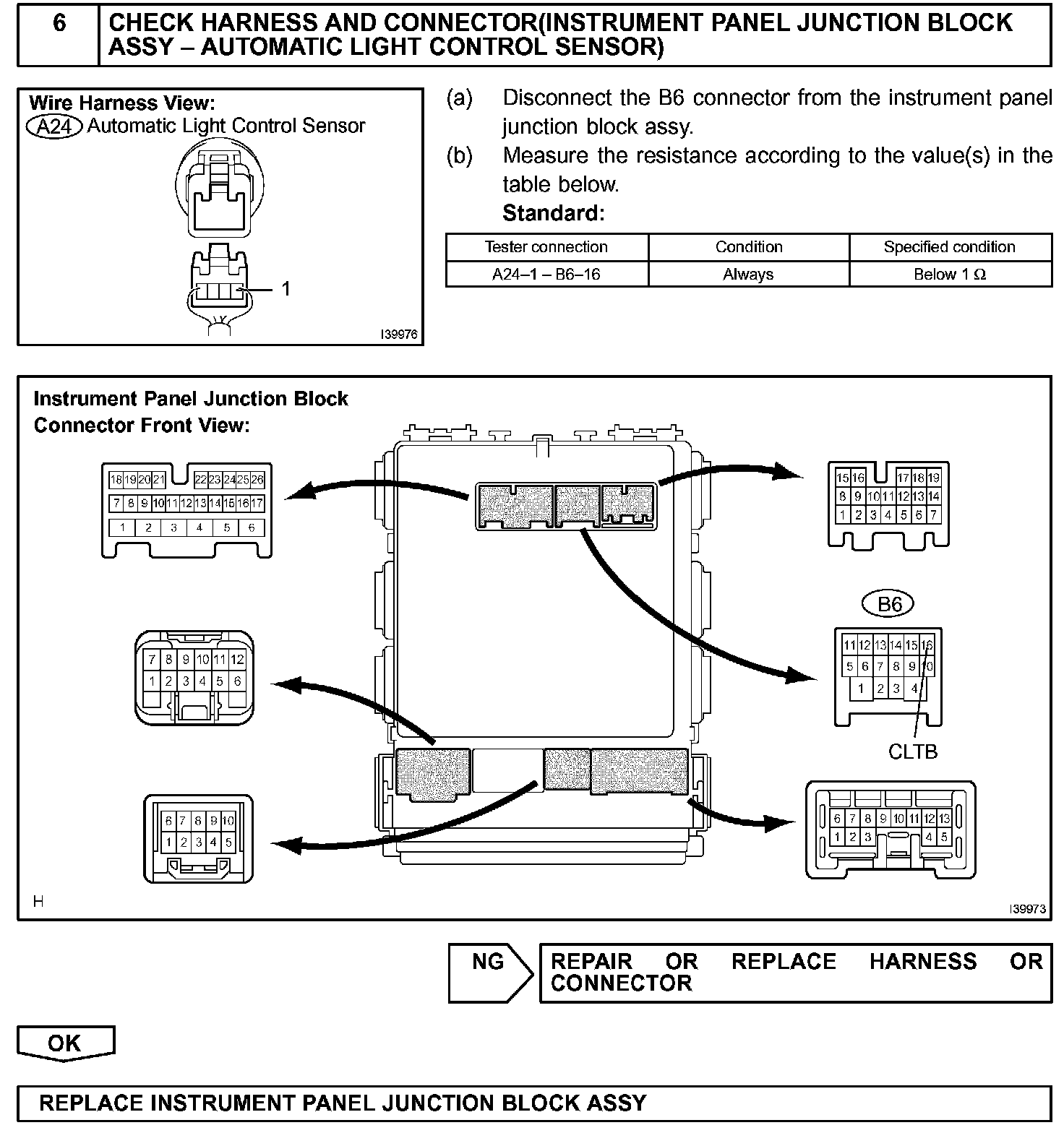

Step 6:

INSPECTION PROCEDURE
