B2271

DTC B2271 IGNITION HOLD MONITOR MALFUNCTION

CIRCUIT DESCRIPTION

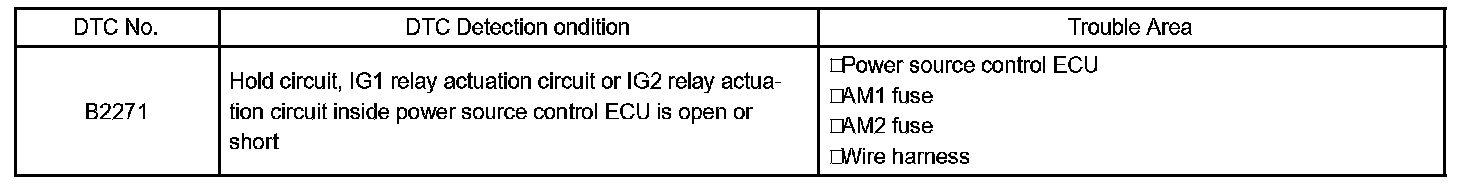

DTC Detection Condition:

This DTC is output when the IG output circuits inside the power source control ECU are open or short.

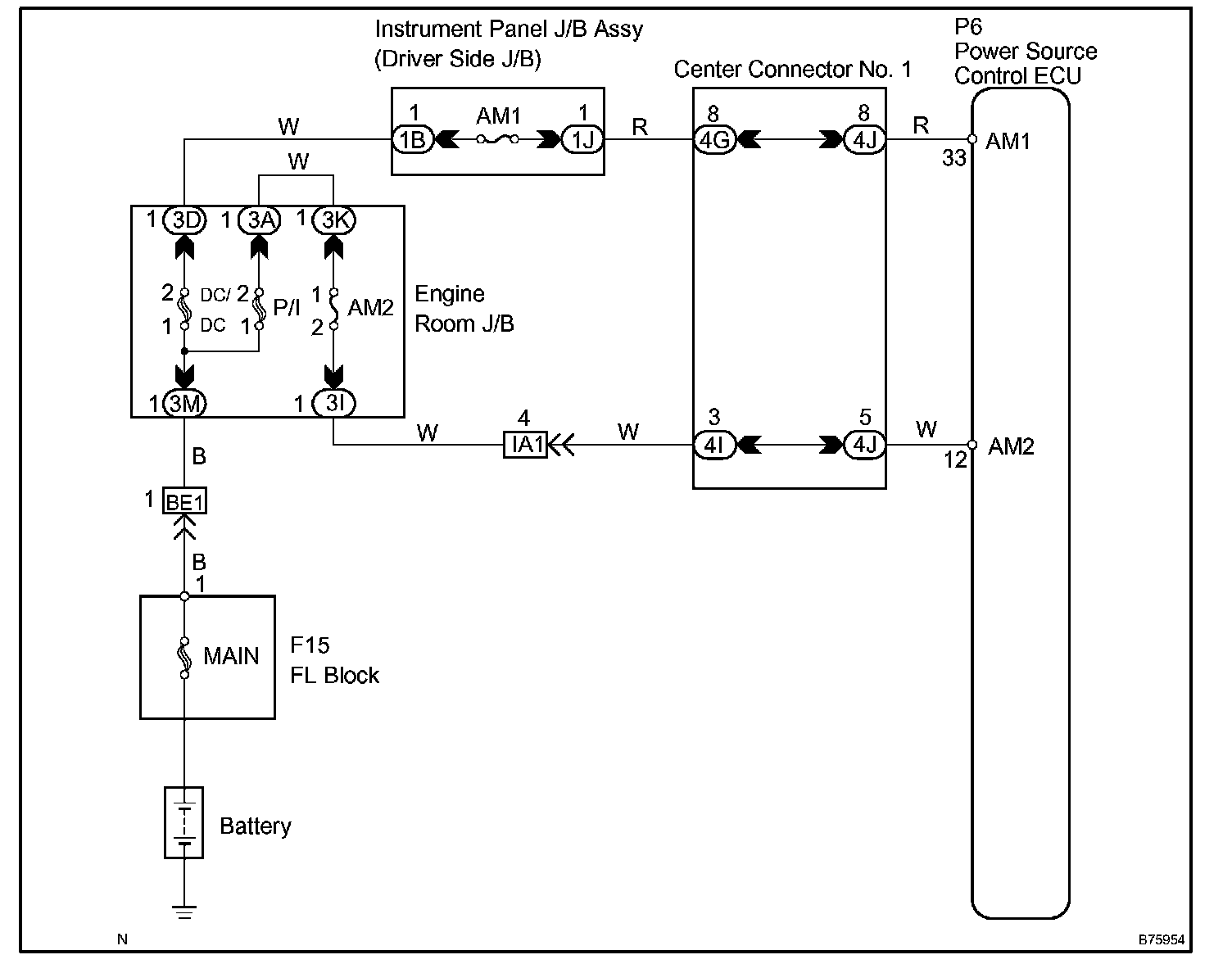

Wiring Diagram:

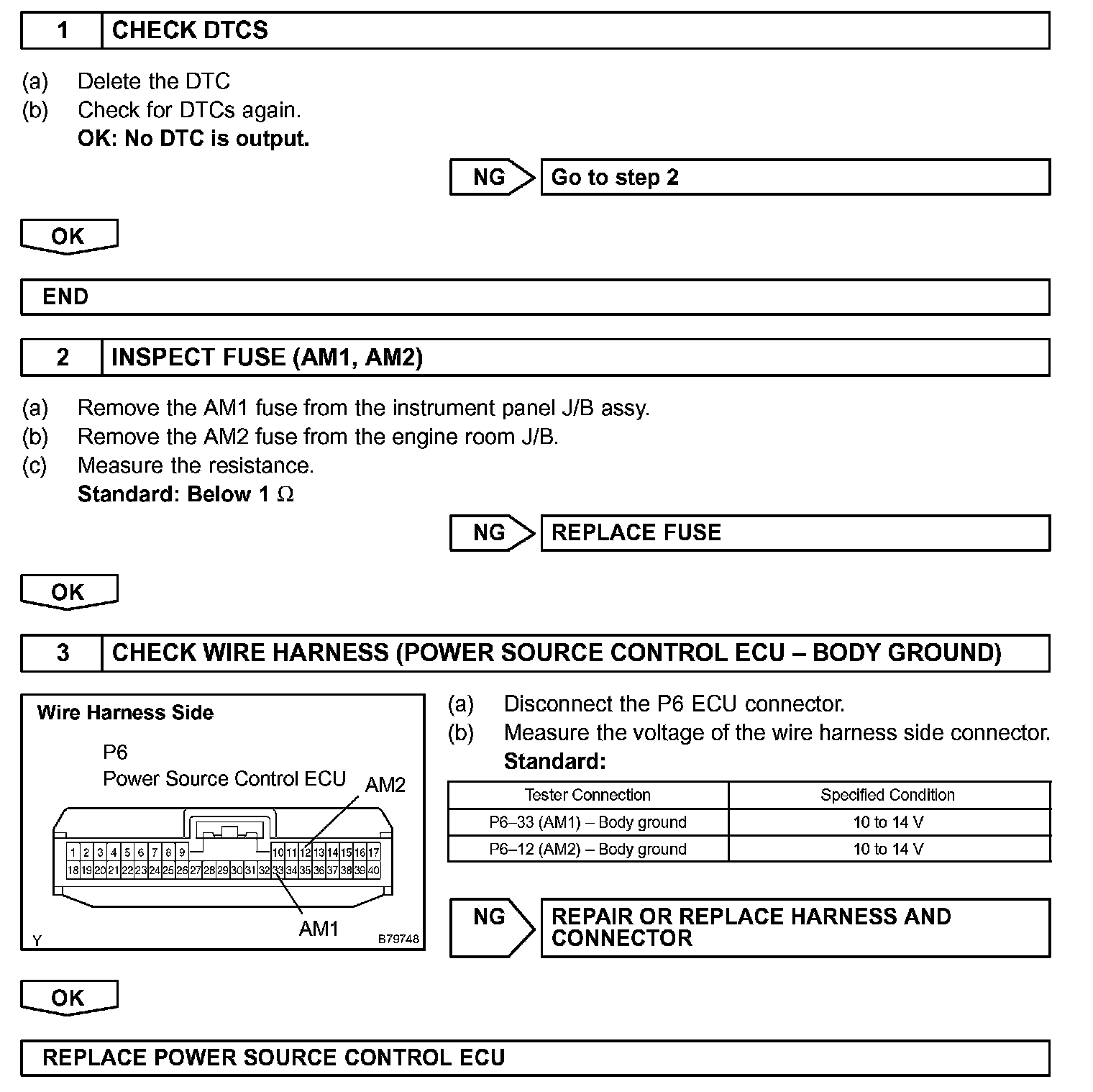

Step 1 - 3:

INSPECTION PROCEDURE
