B2272

DTC B2272 IGNITION 1 MONITOR MALFUNCTION

CIRCUIT DESCRIPTION

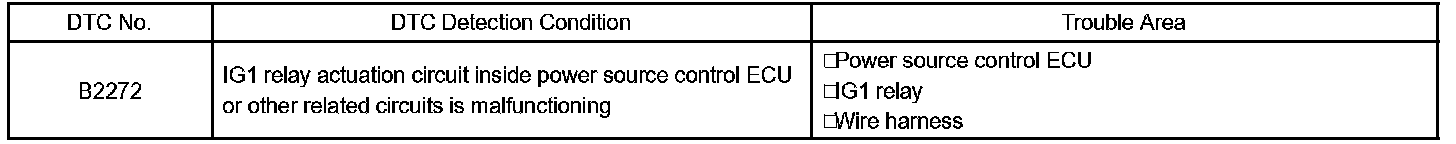

DTC Detection Condition:

This DTC is output when the IG output circuit from the inside of the power source control ECU to the IG1 relay is malfunctioning.

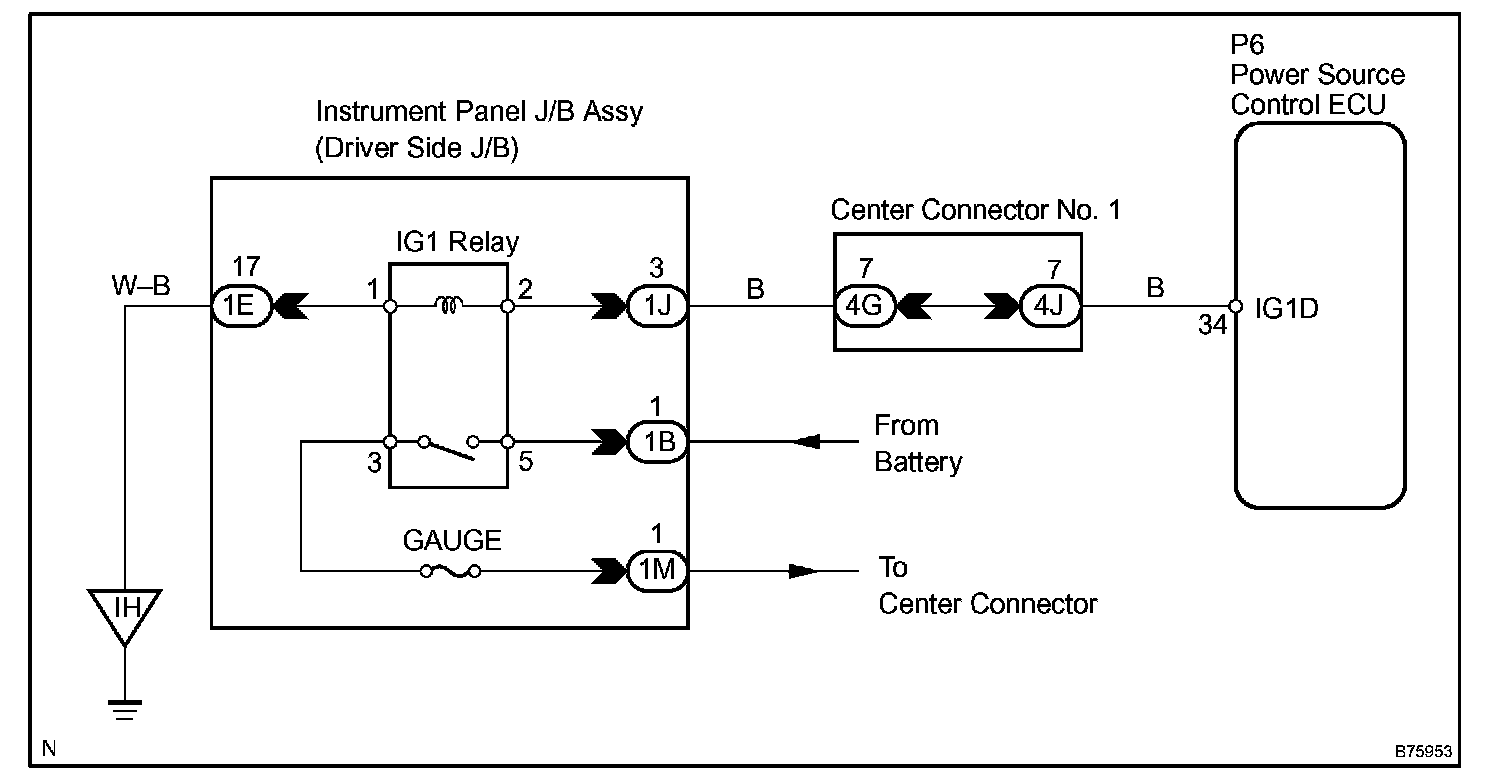

Wiring Diagram:

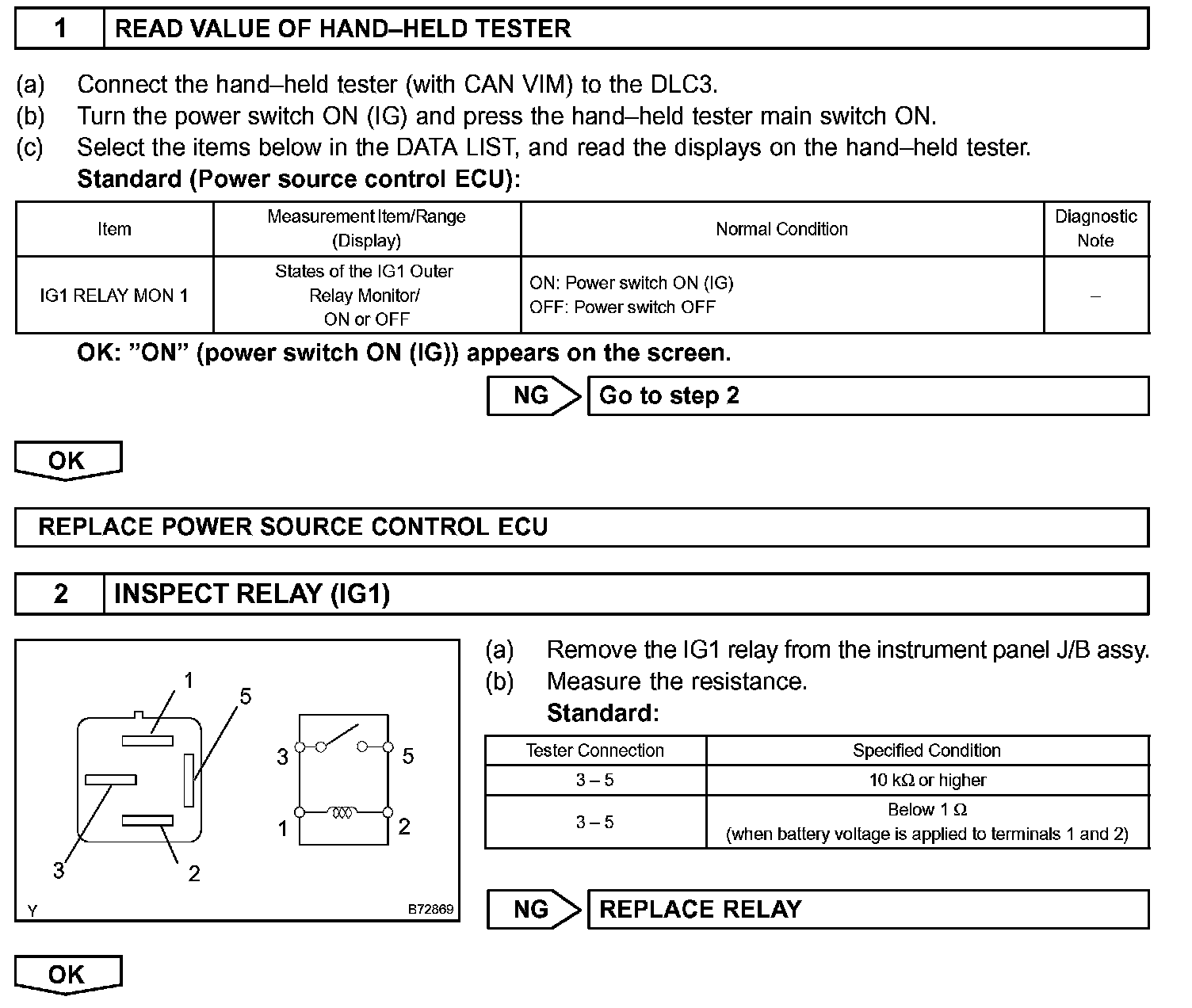

Step 1 - 2:

Step 3:

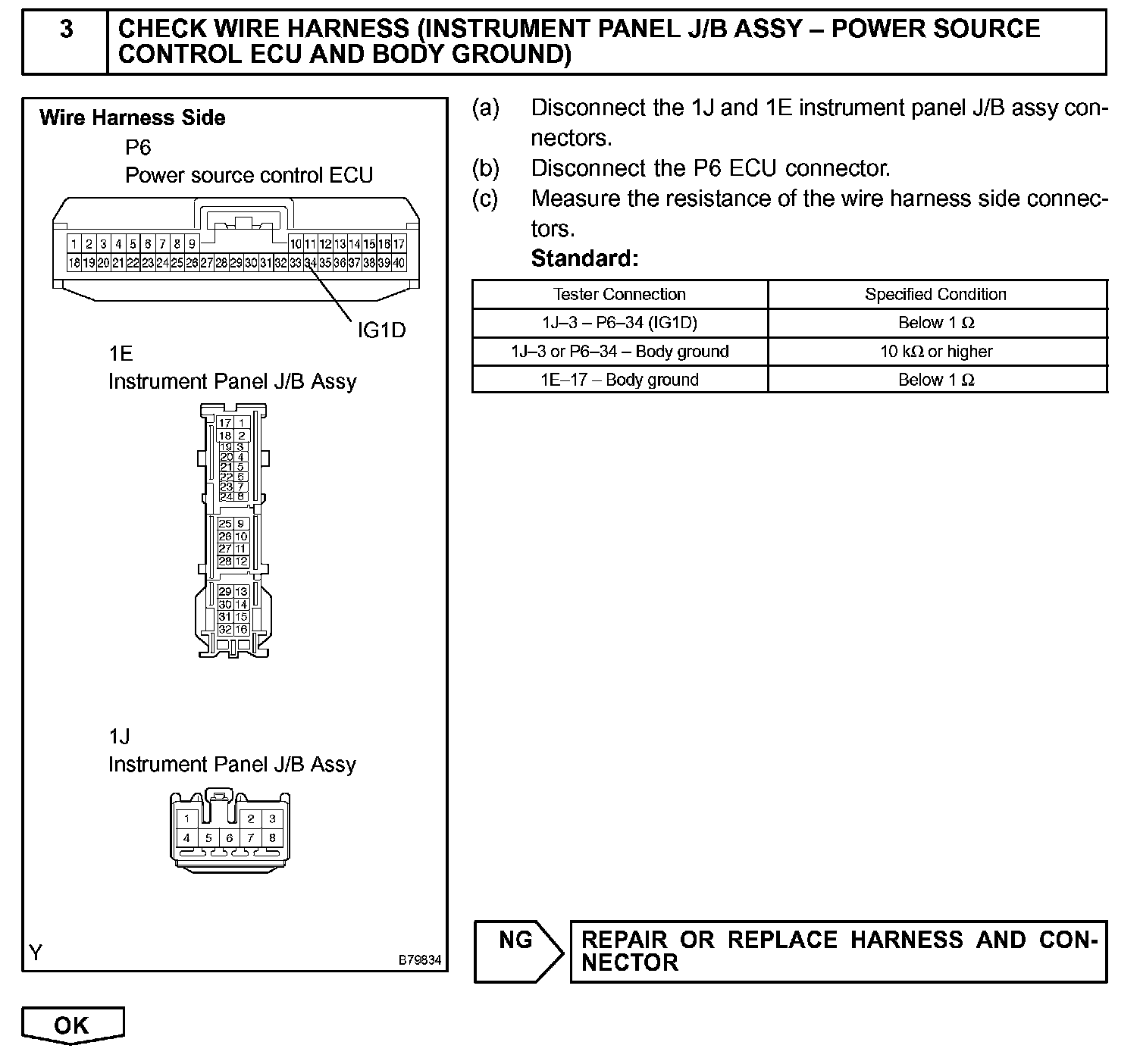

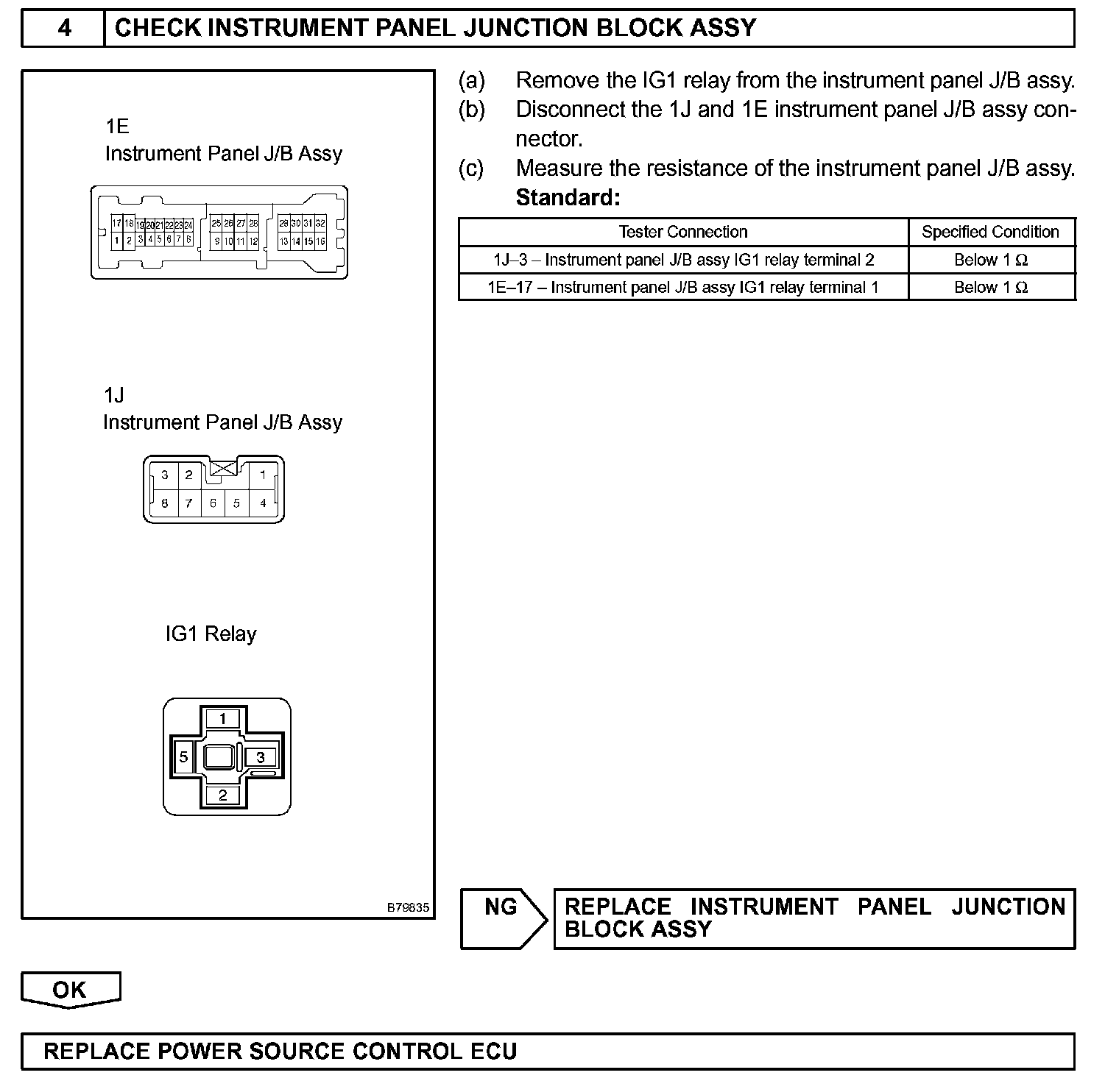

Step 4:

INSPECTION PROCEDURE
