B2274

DTC B2274 ACC MONITOR MALFUNCTION

CIRCUIT DESCRIPTION

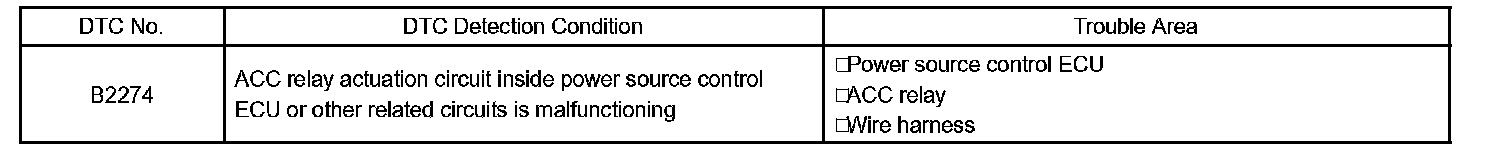

DTC Detection Condition:

This DTC is output when the ACC output circuit from the inside of the power source control ECU to the ACC relay is malfunctioning.

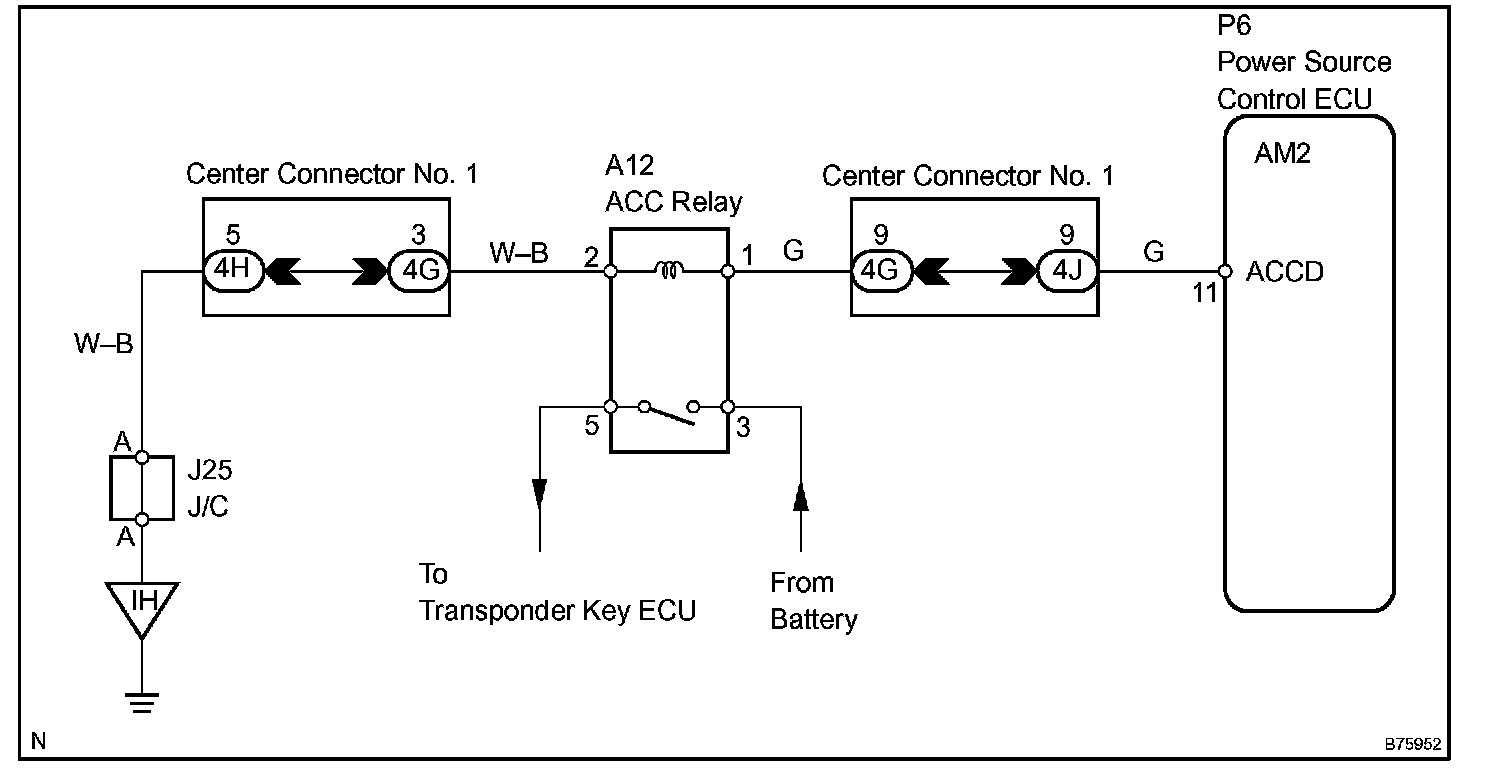

Wiring Diagram:

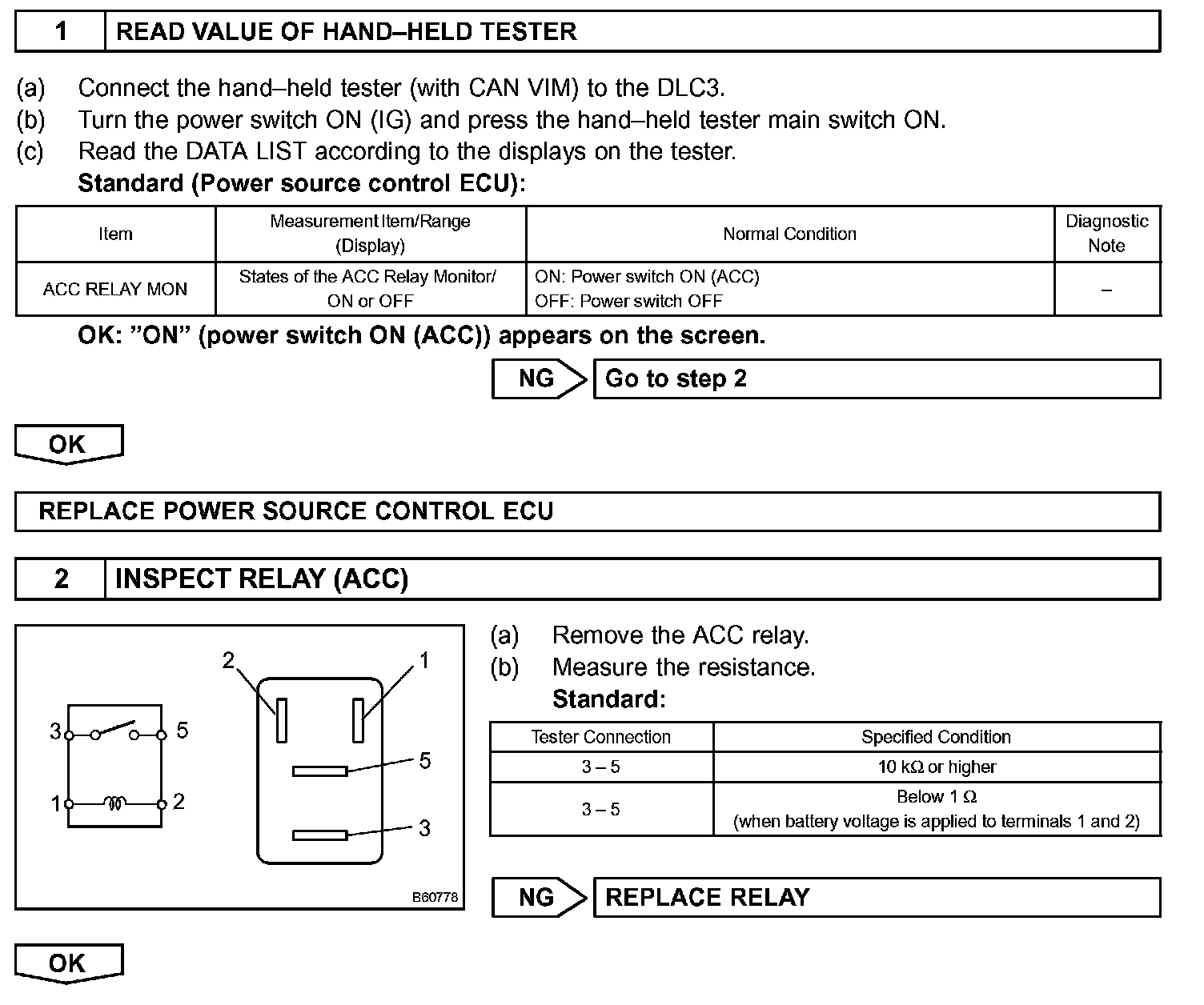

Step 1 - 2:

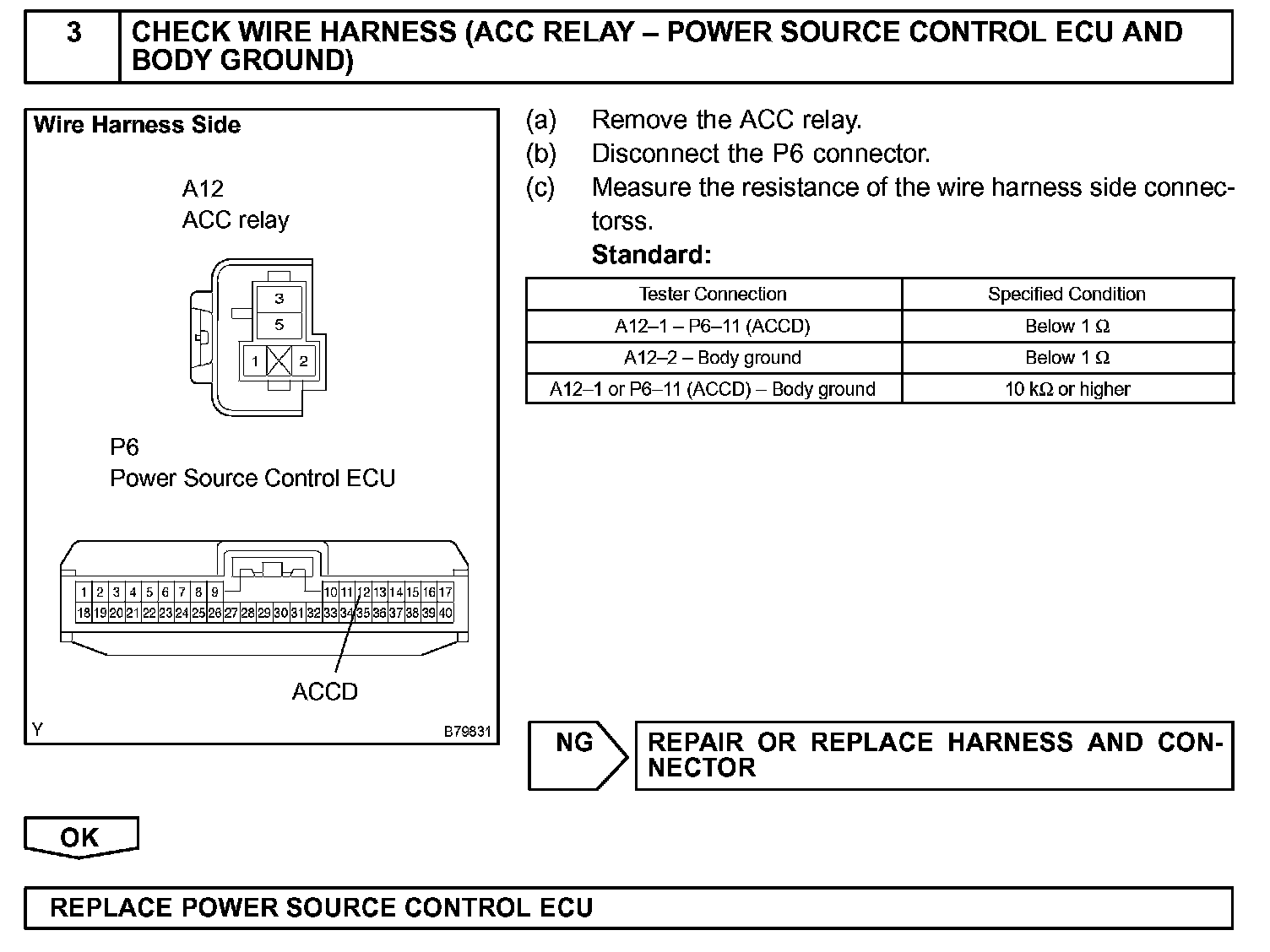

Step 3:

INSPECTION PROCEDURE
