B2275

DTC B2275 STSW MONITOR MALFUNCTION

CIRCUIT DESCRIPTION

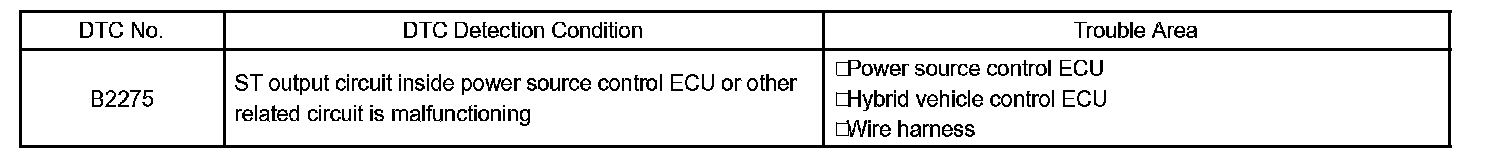

DTC Detection Condition:

This DTC is output when the ST output circuits inside the power source control ECU is open or short.

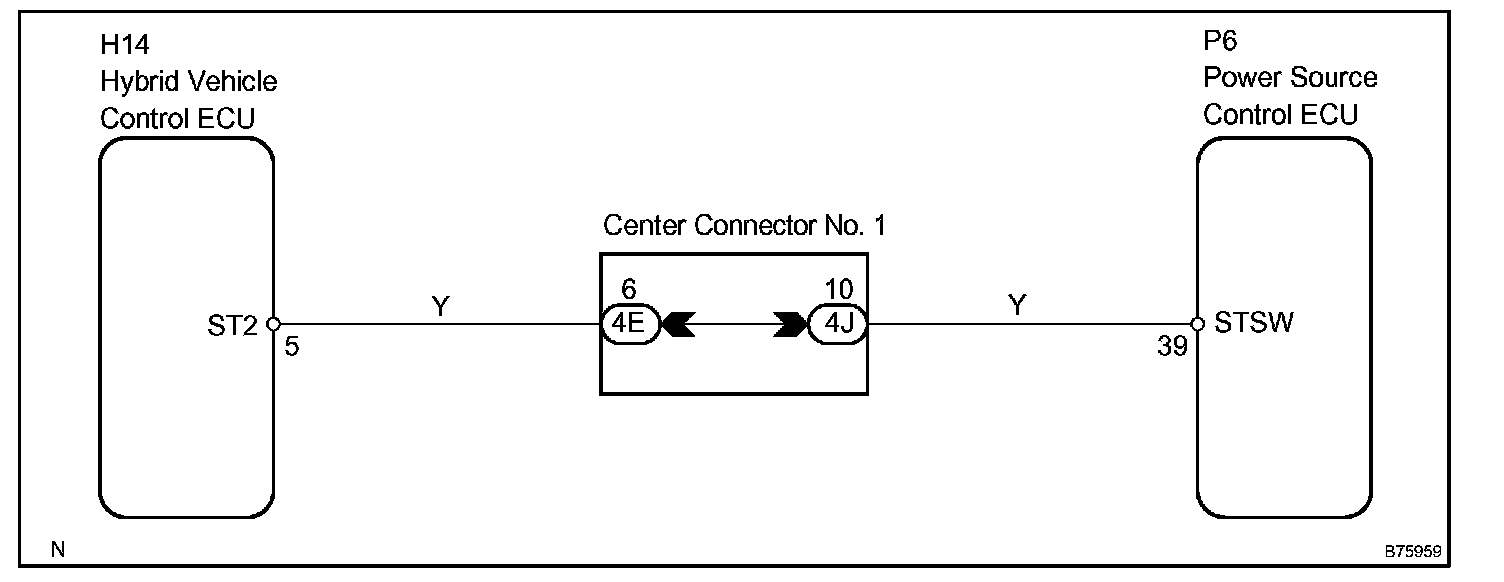

Wiring Diagram:

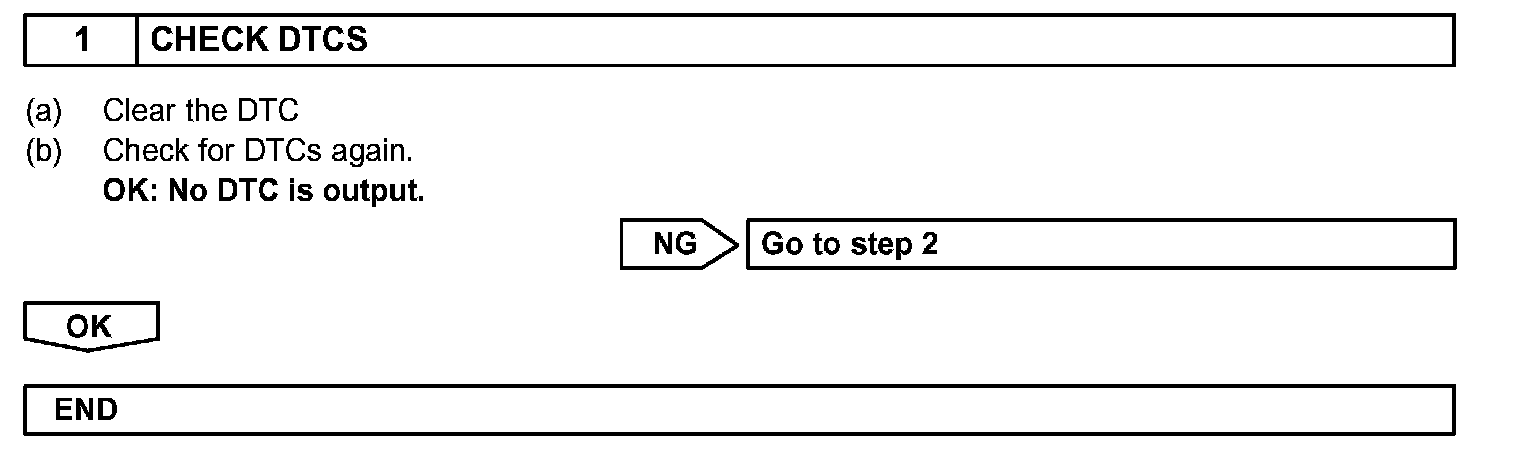

Step 1:

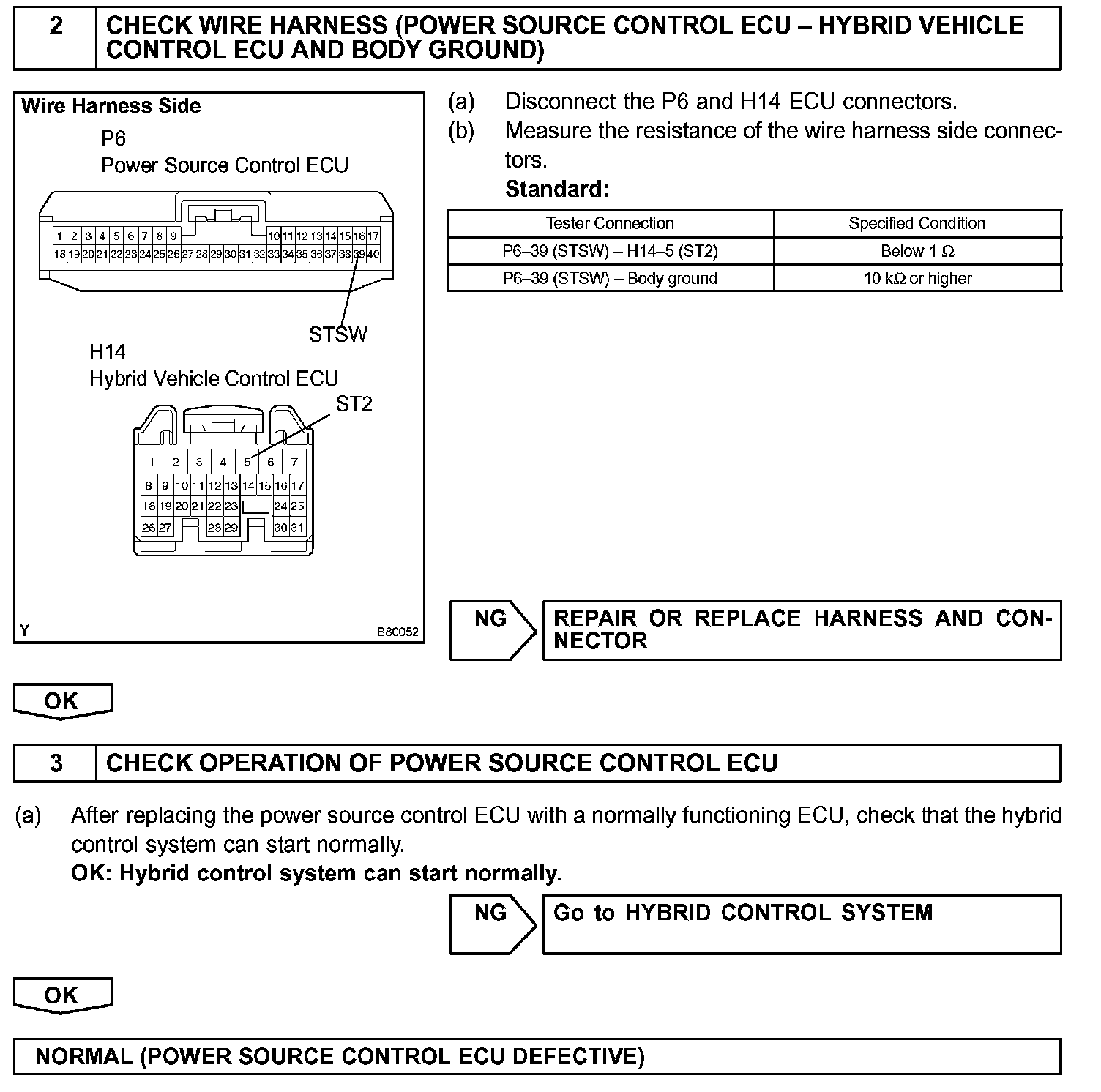

Step 2 - 3:

INSPECTION PROCEDURE
