B2286

DTC B2286 READY SIGNAL MALFUNCTION

CIRCUIT DESCRIPTION

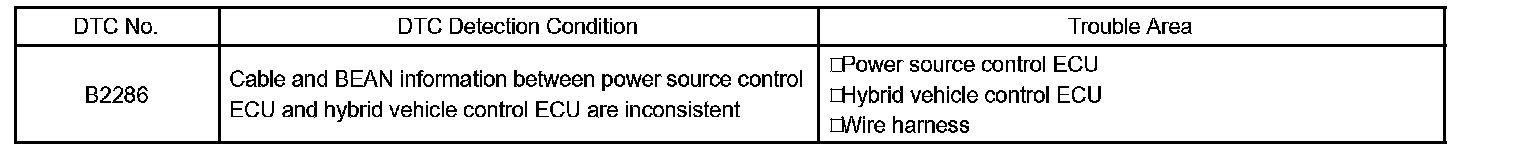

DTC Detection Condition:

The power source control ECU and the hybrid vehicle control ECU are connected by the cable and BEAN.
If the cable information and BEAN information are inconsistent, this DTC will be output.

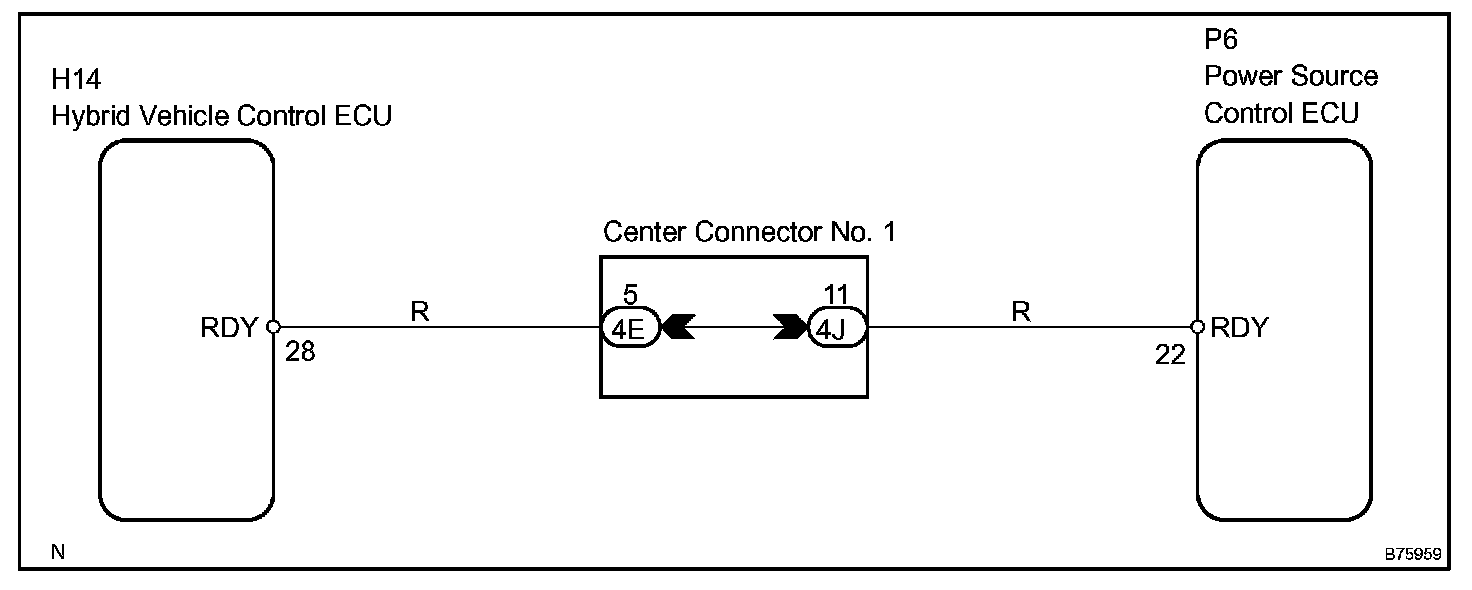

Wiring Diagram:

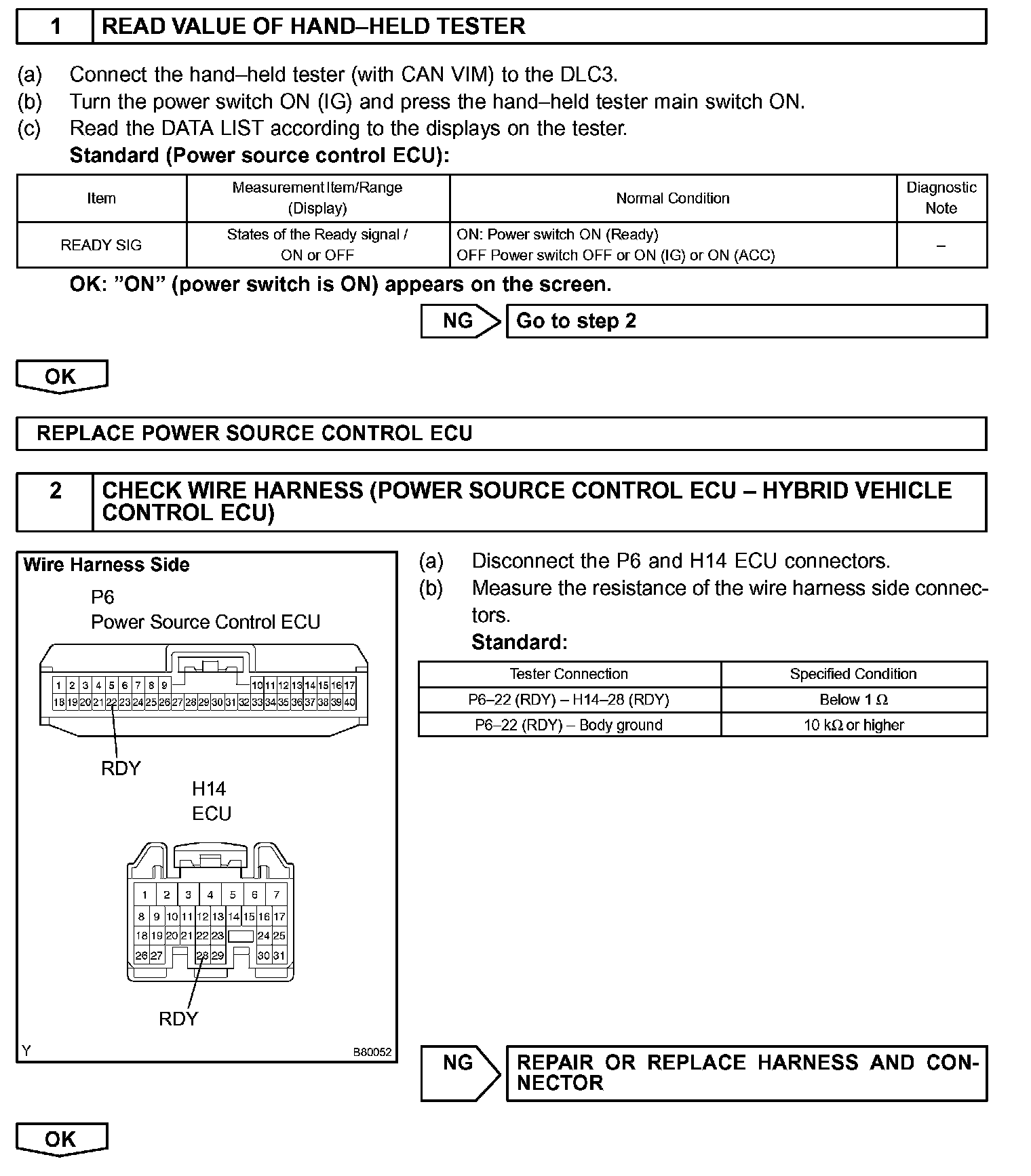

Step 1 - 2:

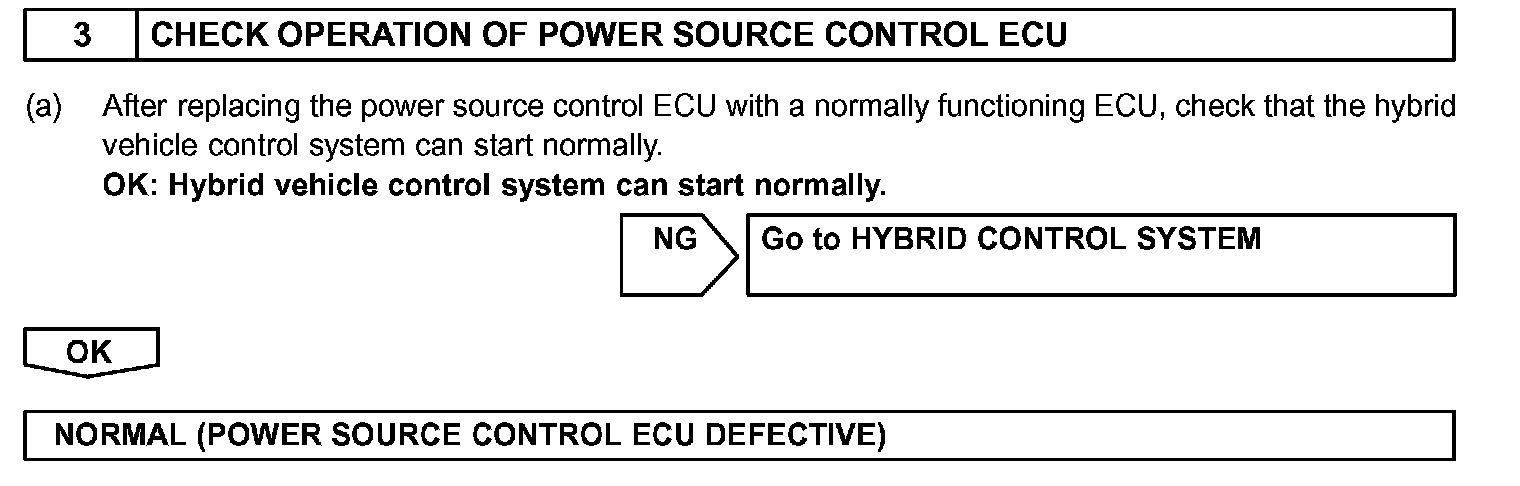

Step 3:

INSPECTION PROCEDURE
