B2289

DTC B2289 KEY COLLATION WAITING TIME OVER

CIRCUIT DESCRIPTION

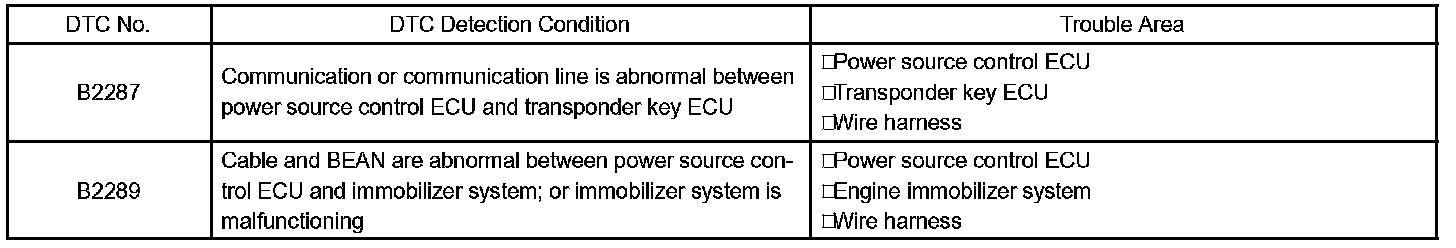

DTC Detection Condition:

This DTC is output when: 1) any other DTC is set in the power source control ECU; or 2) the wire harness between the power source control ECU and the transponder key ECU is open or short.

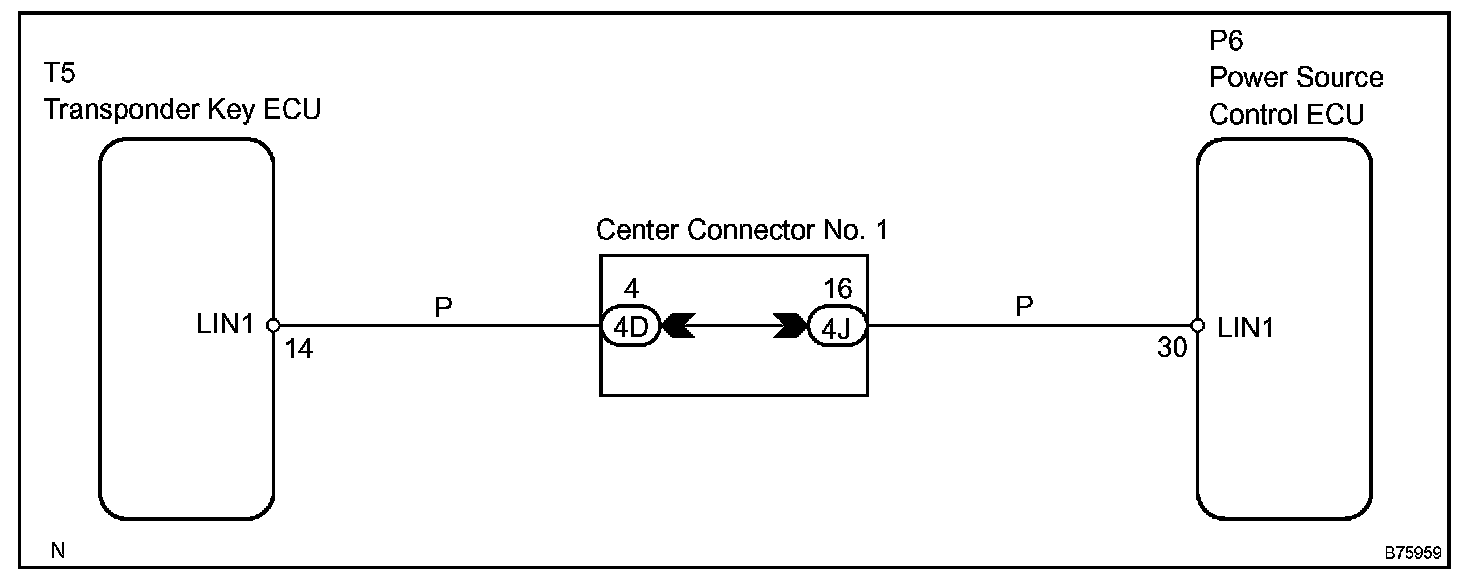

Wiring Diagram:

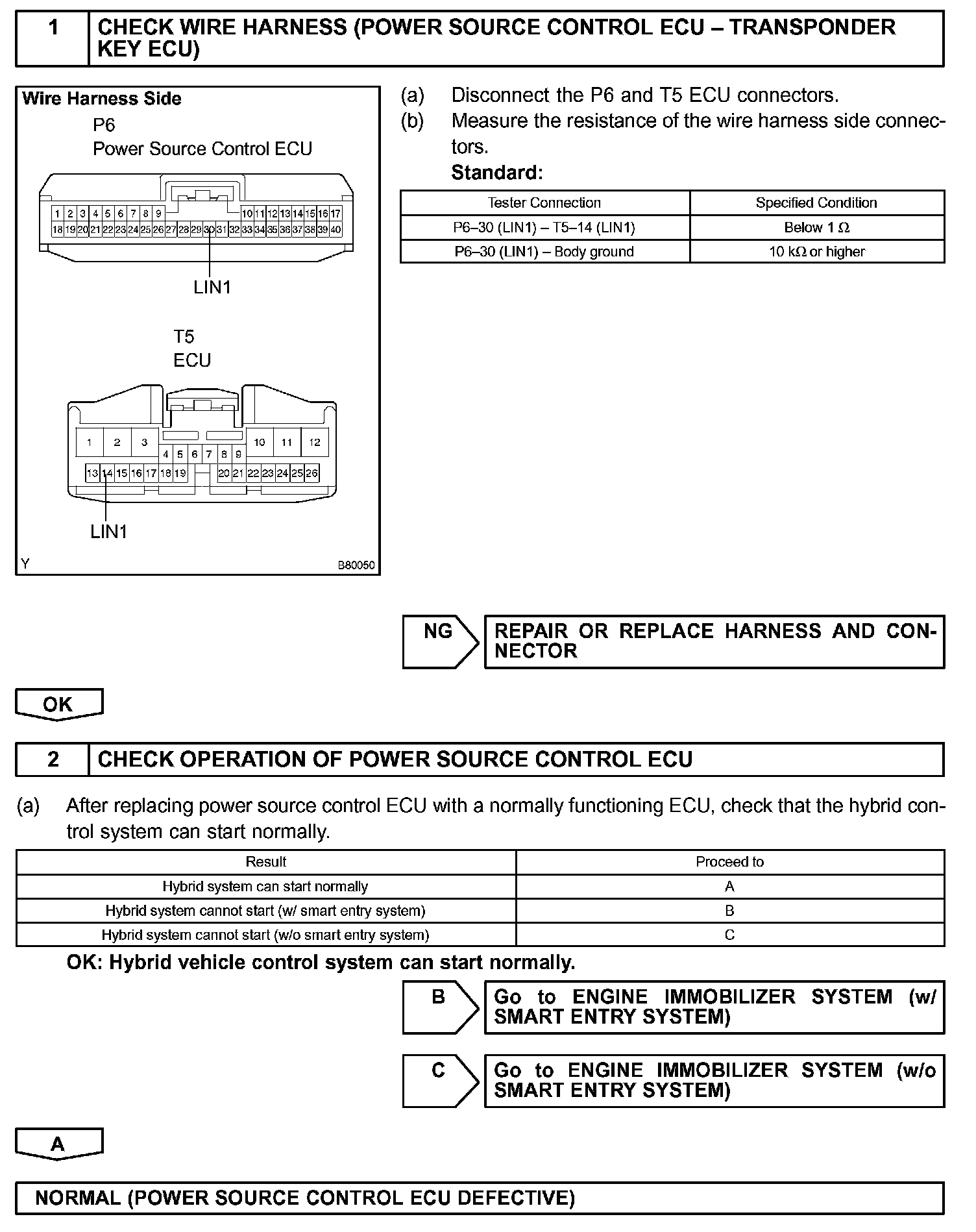

Step 1 - 2:

INSPECTION PROCEDURE
