B2775

DTC B2775 INTERIOR VERIFICATION ABNORMAL (TO THEFT DETERRENT ECU)

CIRCUIT DESCRIPTION

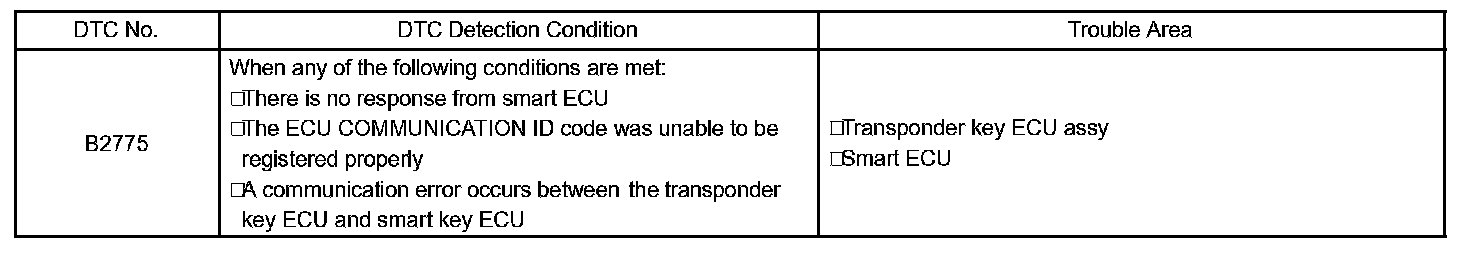

DTC Detection Condition:

This DTC is output when: 1) there is no response from the smart ECU, 2) the ECU COMMUNICATION ID code was unable to be registered properly, or 3) a communication error occurs between the transponder key ECU and smart key ECU.

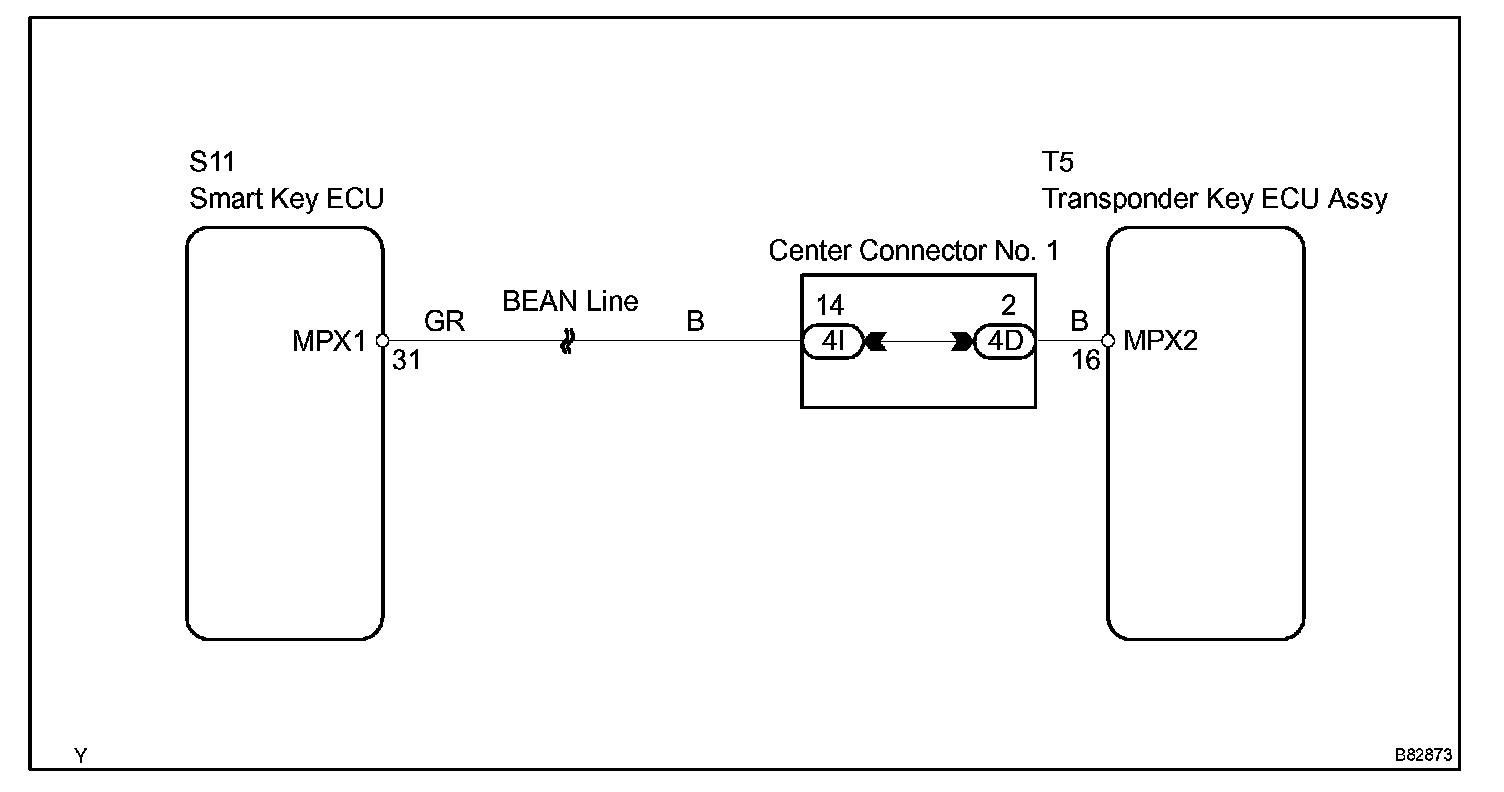

Wiring Diagram:

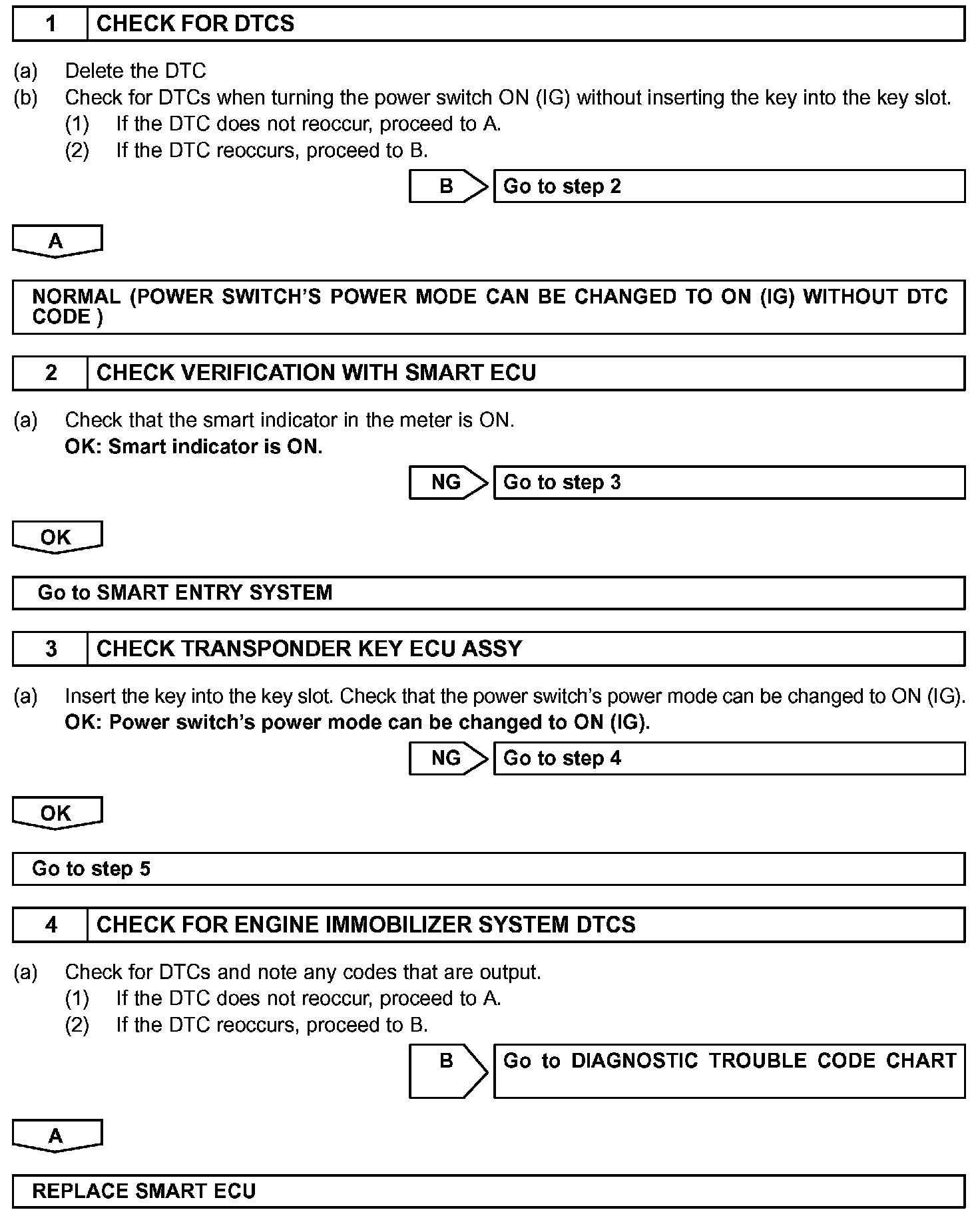

Step 1 - 4:

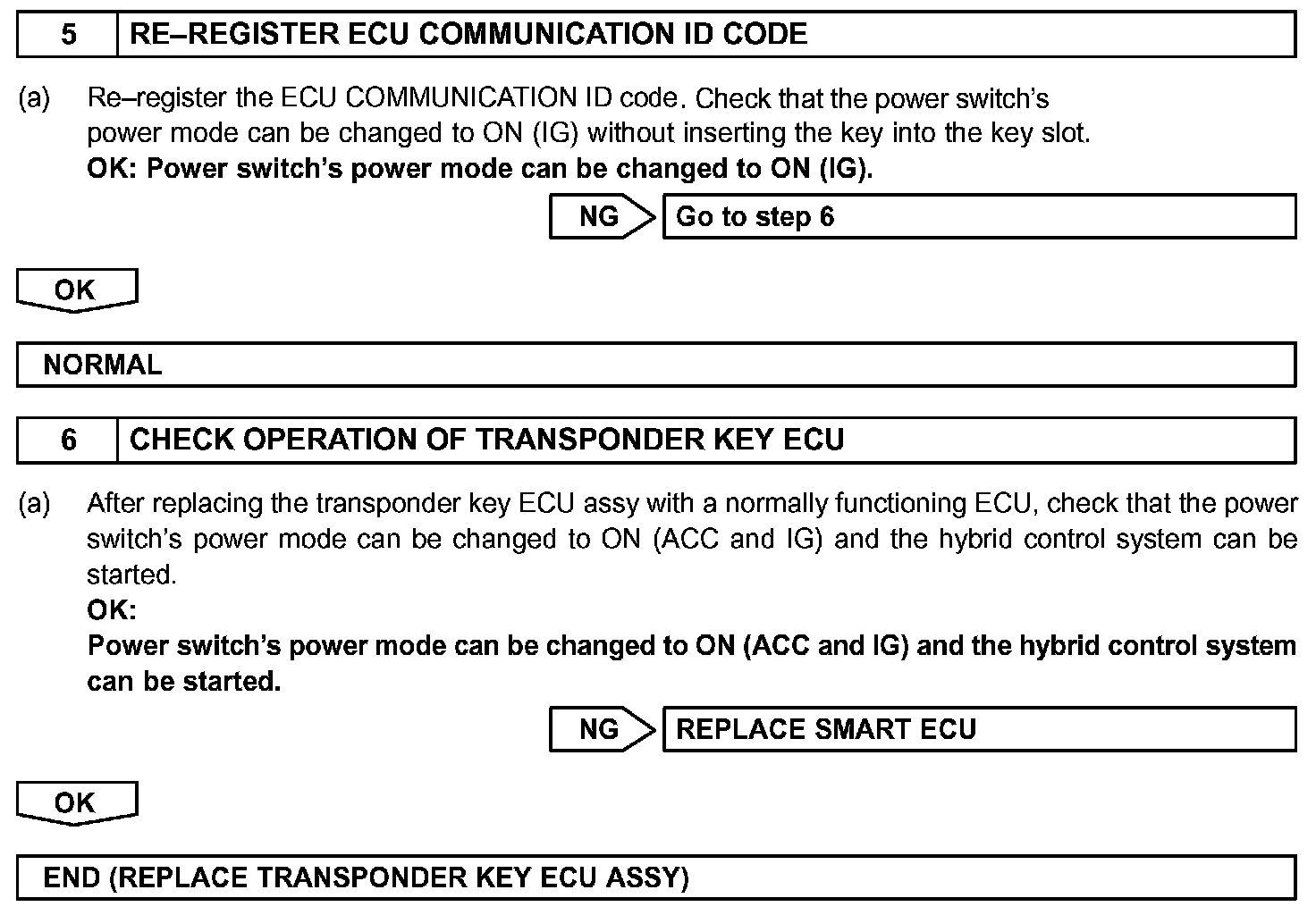

Step 5 - 6:

INSPECTION PROCEDURE
