Engine Immobilizer System (W/O Smart Entry System)

DTC B2784 ANTENNA COIL OPEN/SHORT

CIRCUIT DESCRIPTION

DTC Detection Condition:




This DTC detected when an antenna coil is open/short.

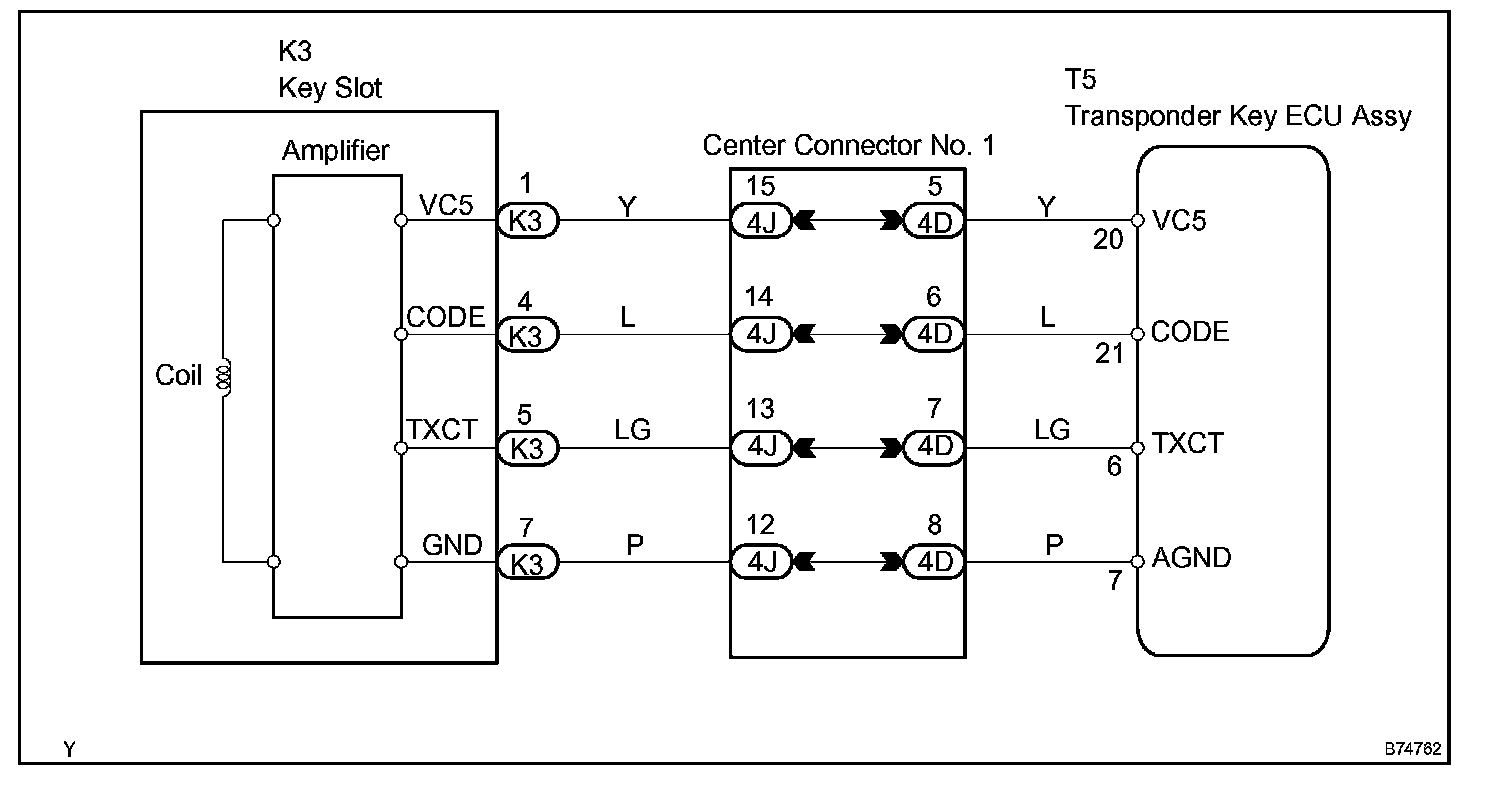

Wiring Diagram:

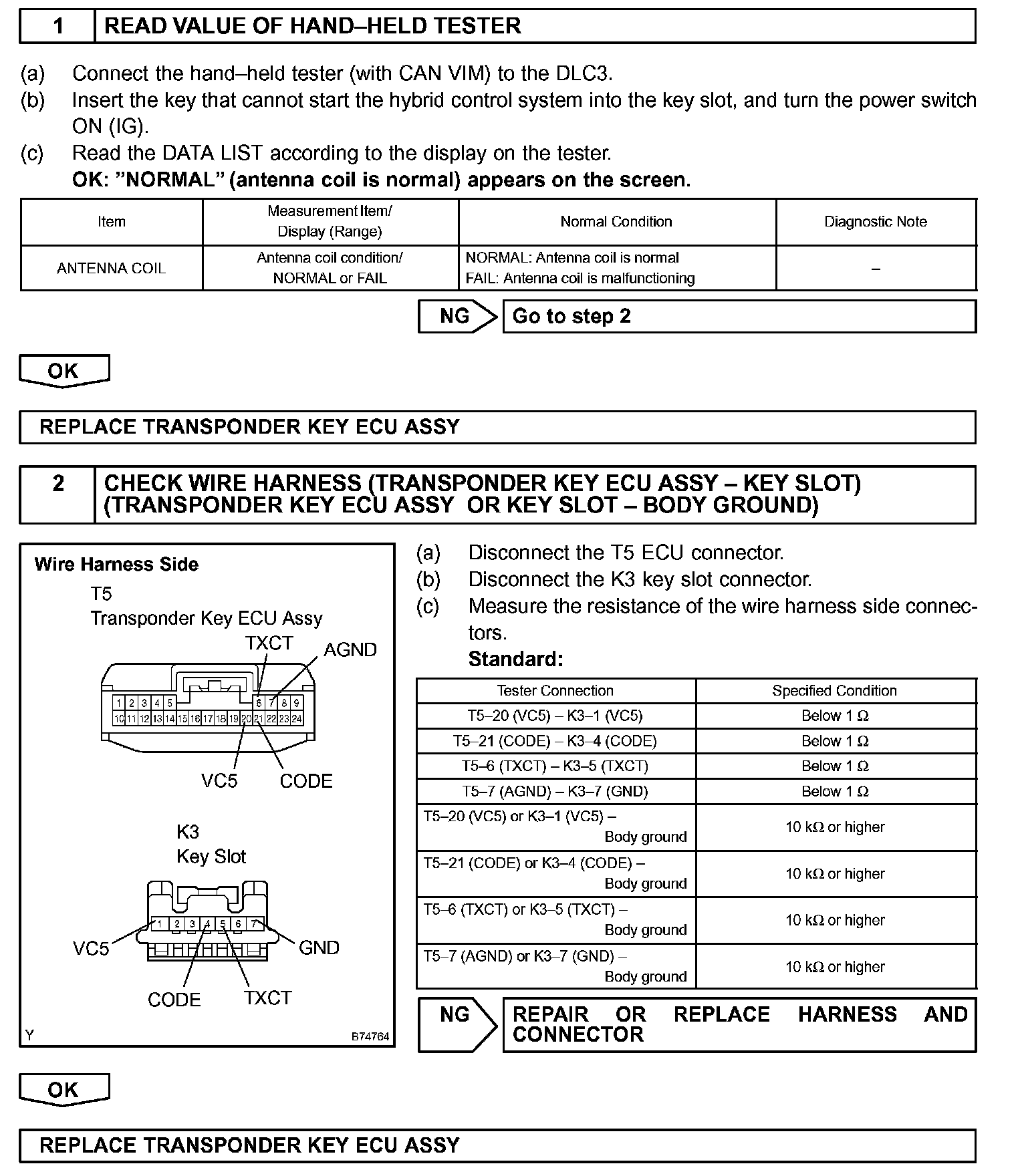

Step 1 - 2:




INSPECTION PROCEDURE
