B2785 - Engine Immobilizer System (W/O Smart Entry System)

DTC B2785 IGNITION SWITCH ON MALFUNCTION

CIRCUIT DESCRIPTION

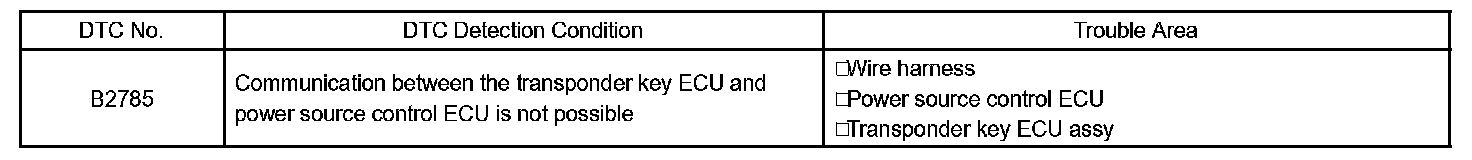

DTC Detection Condition:

This DTC is output if communication between the transponder key ECU and power source control ECU is not possible.

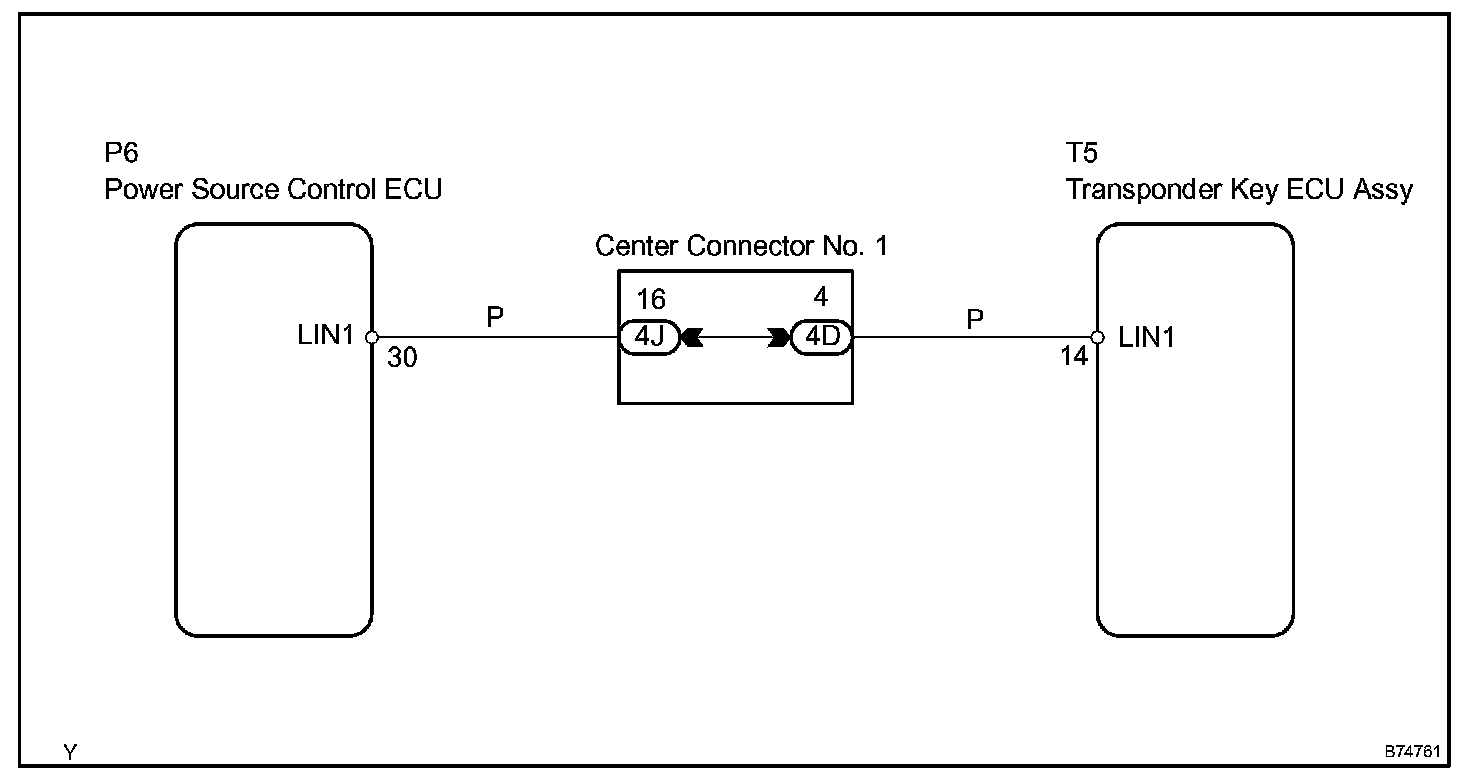

Wiring Diagram:

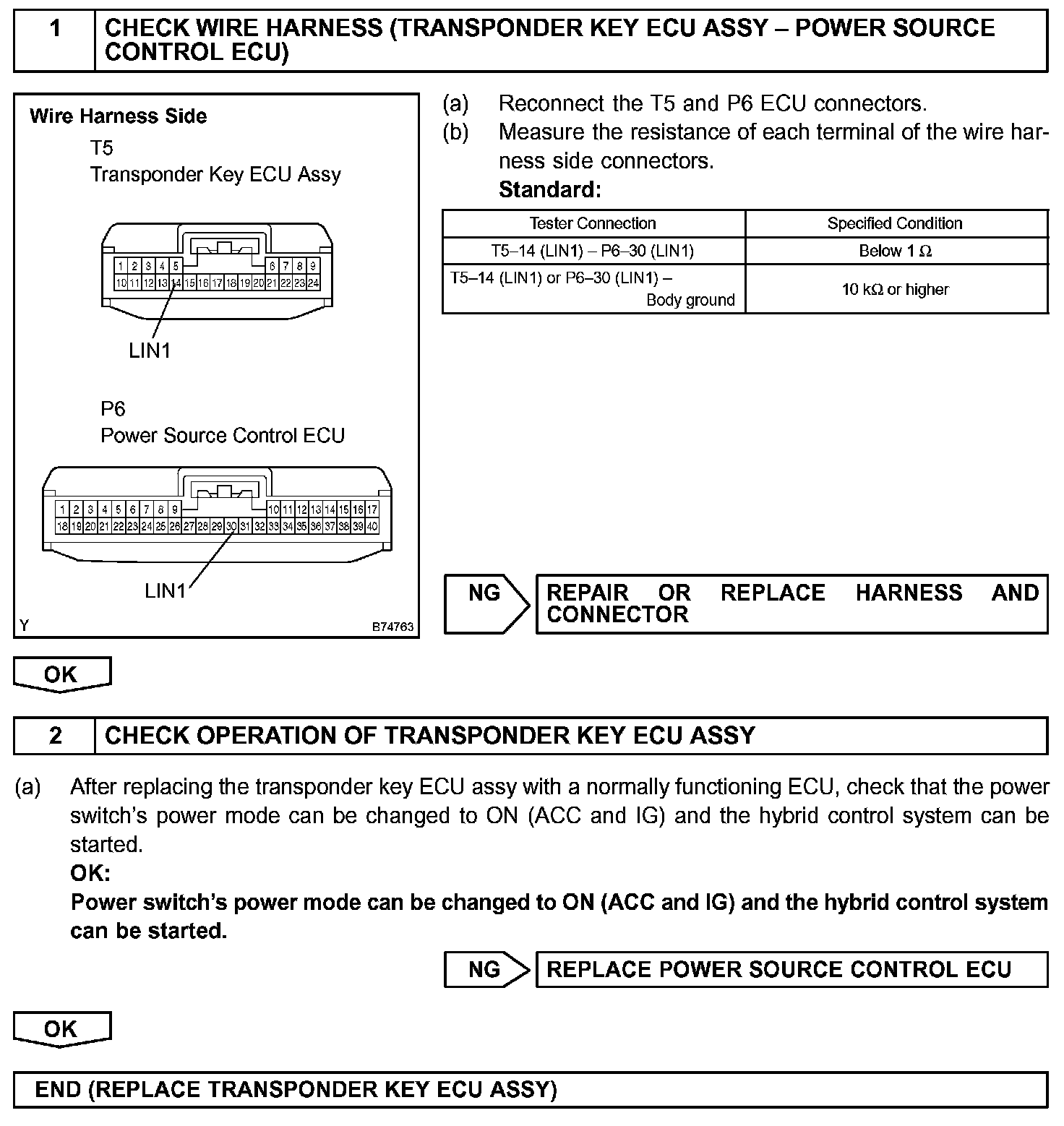

Step 1 - 2:

INSPECTION PROCEDURE
