C1202

DTC C1202 BRAKE FLUID LEVEL LOW

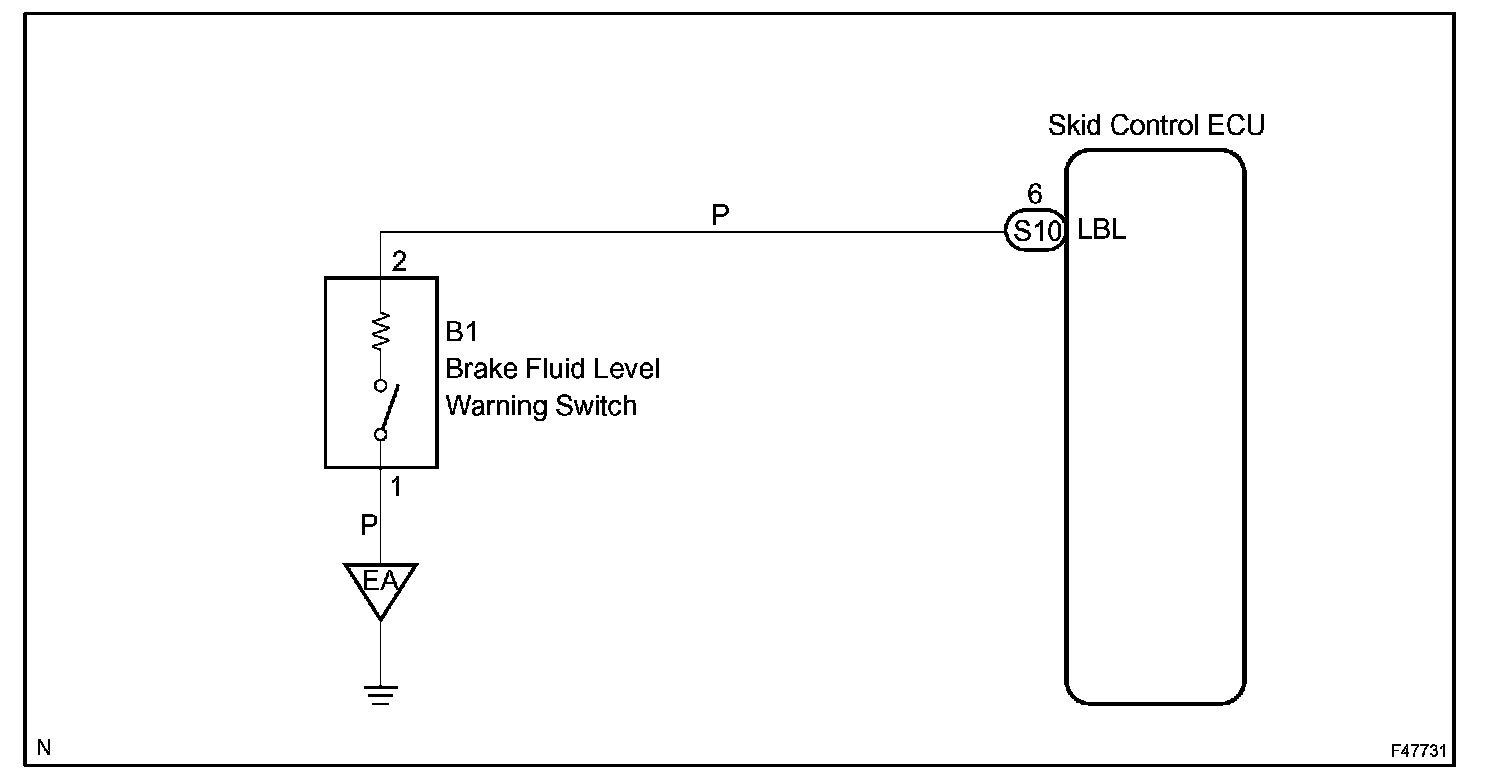

CIRCUIT DESCRIPTION

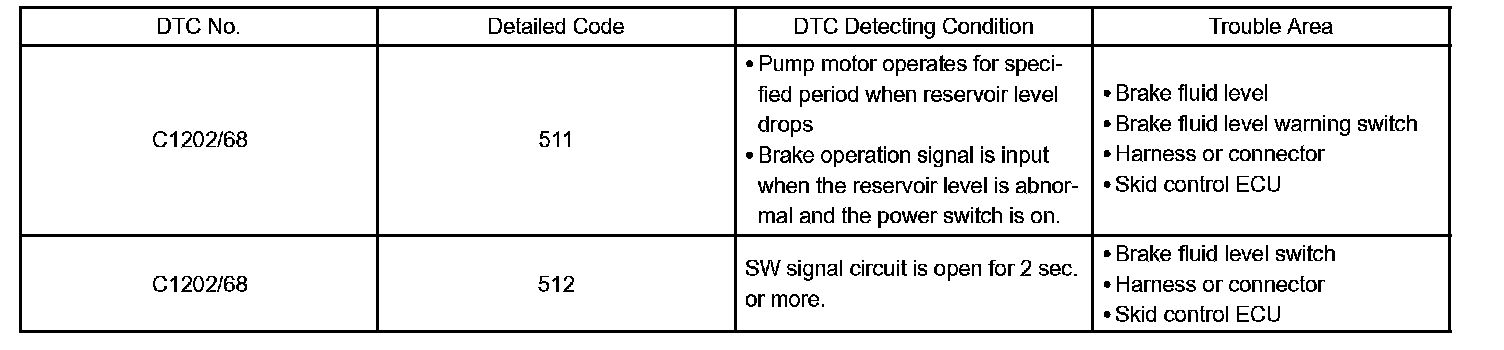

DTC Detecting Condition:

When a fluid level drop in the master cylinder reservoir is detected, the signal is input to the skid control ECU. When the DTC for the fluid level drop is memorized, the warning is canceled if the fluid level returns to normal and the other DTCs are not input.

Step 1 - 2:

Step 3 - 4:

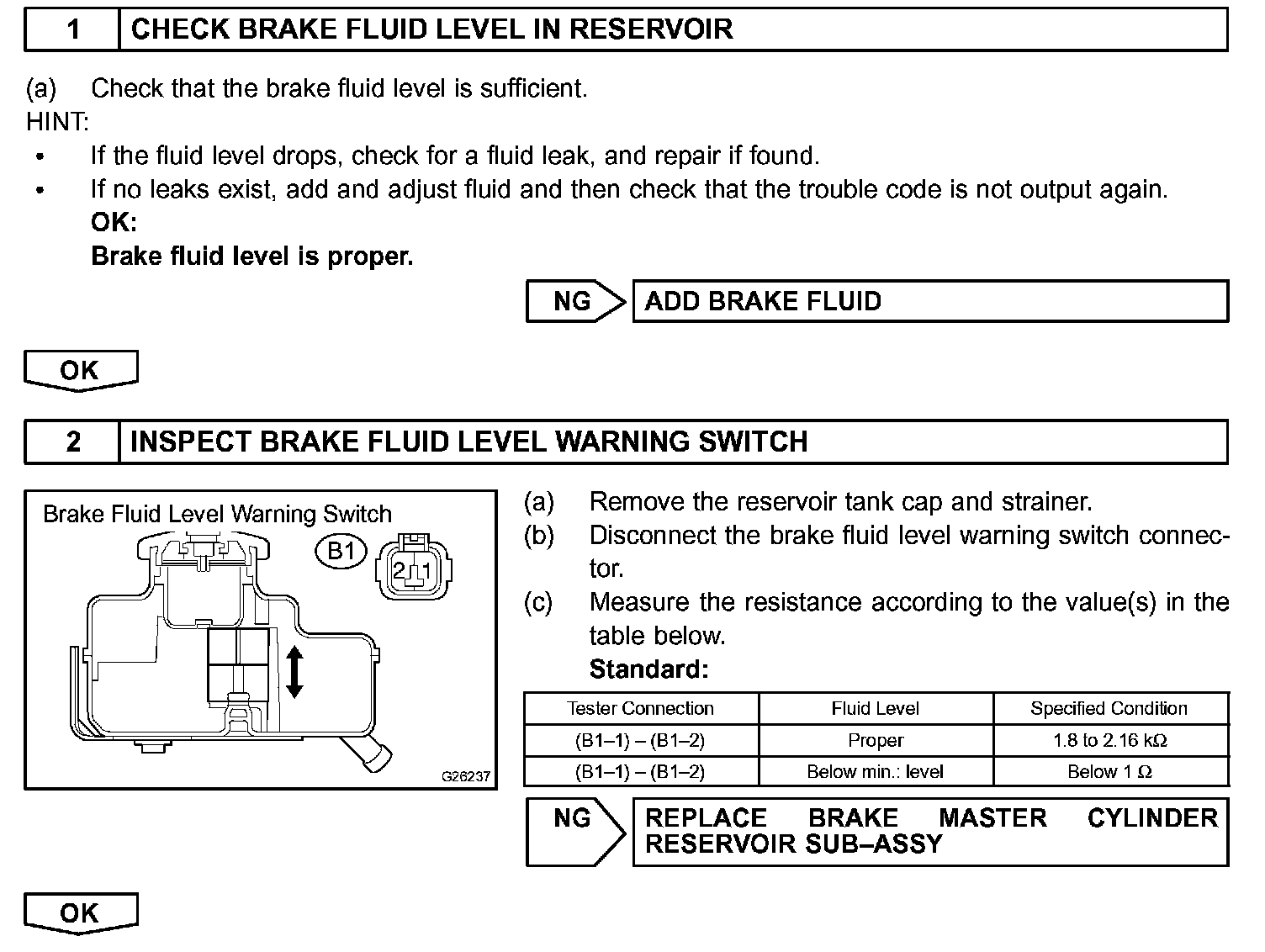

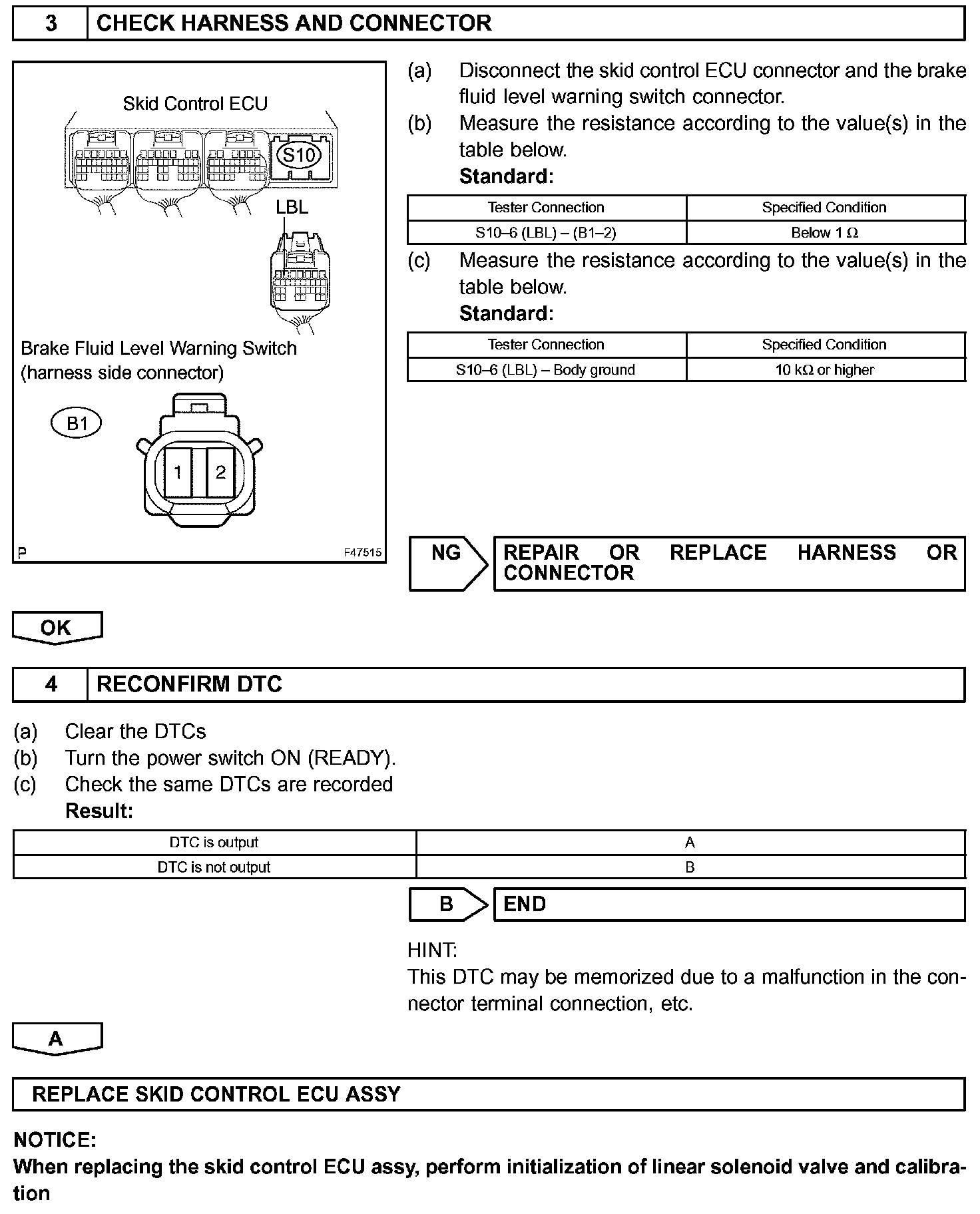

INSPECTION PROCEDURE
