C1300

DTC C1300 MALFUNCTION IN ECU

CIRCUIT DESCRIPTION

DTC Detecting Condition:

skid control ECU outputs this DTC if malfunctions are found in the circuit inside the computer by self diagnosis.

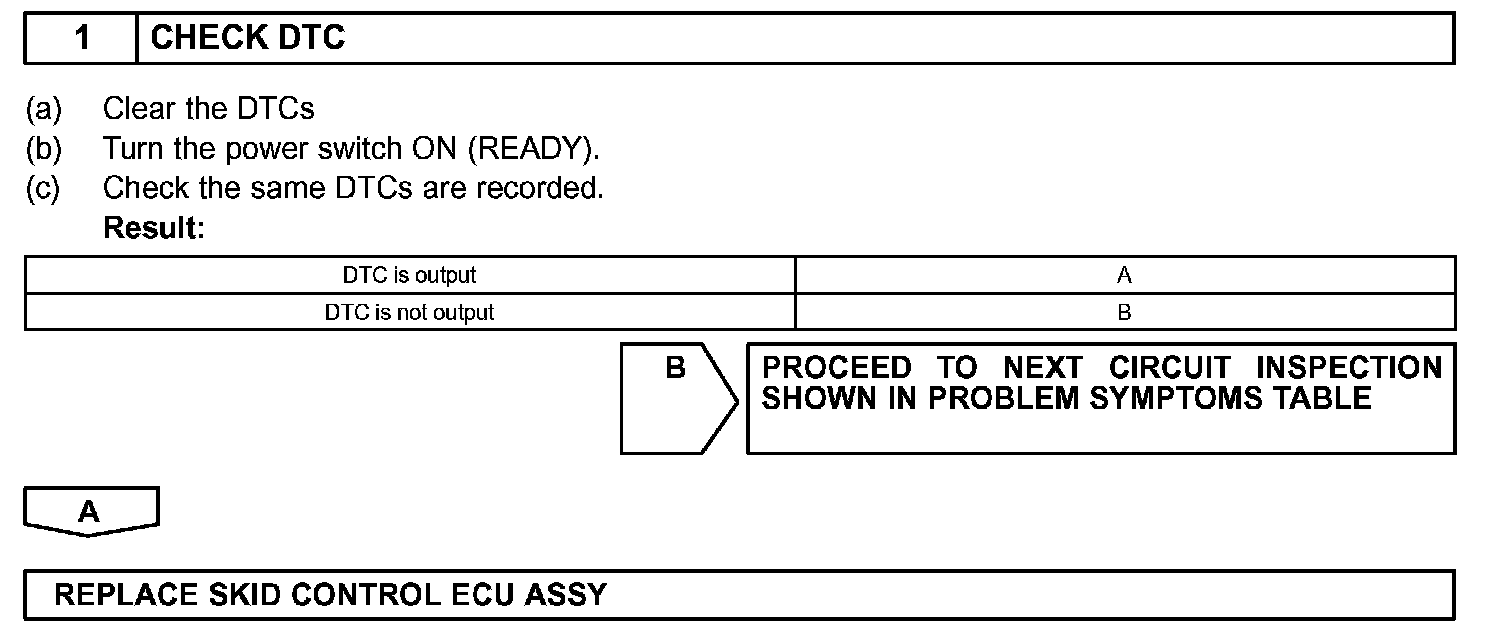

Step 1:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU assy, perform initialization of linear solenoid valve and calibration.
