C1377

DTC C1377 CAPACITOR MALFUNCTION

CIRCUIT DESCRIPTION

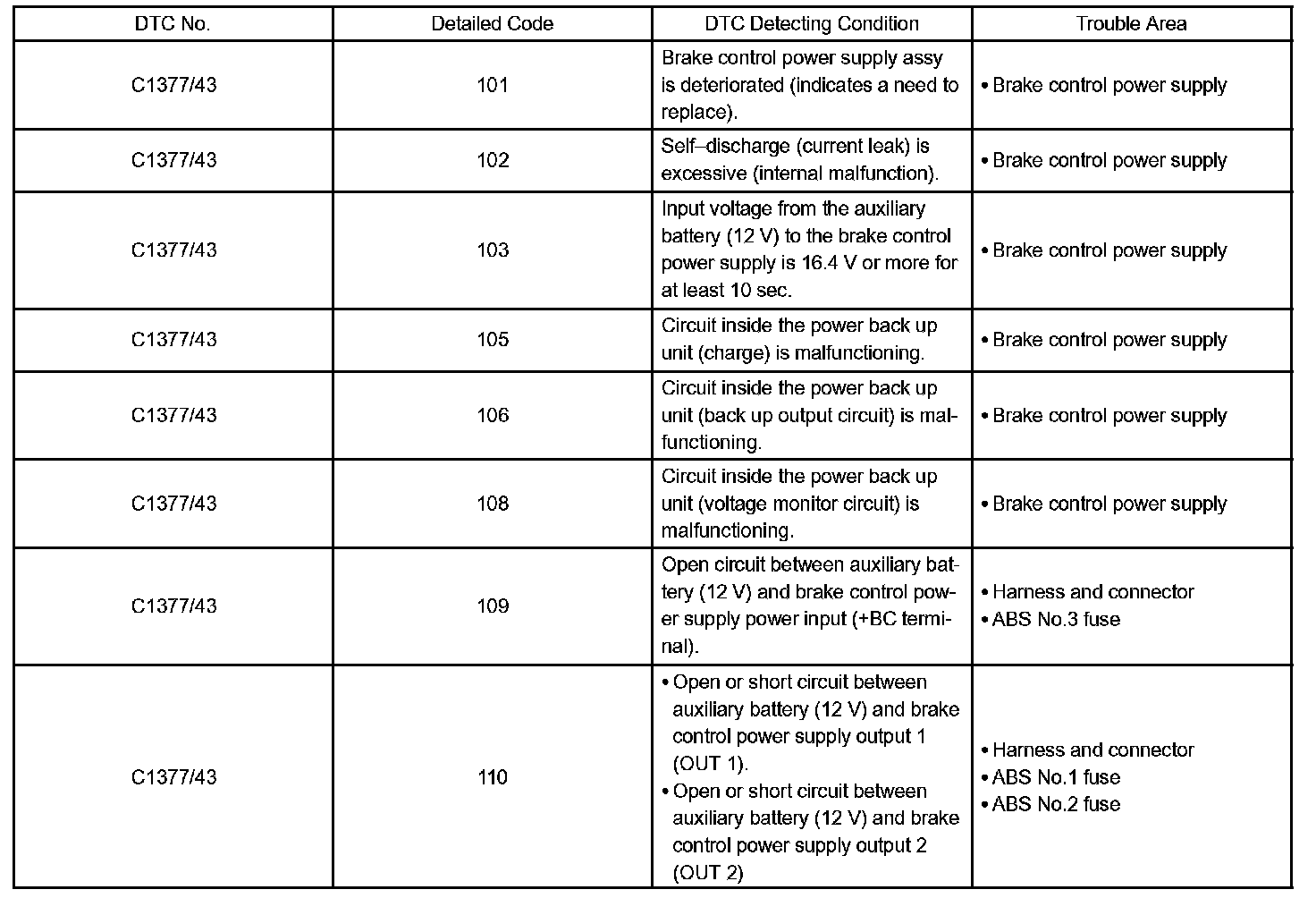

DTC Detecting Condition:

The brake control power supply assy (capacitor) provides auxiliary power for brake control when an auxiliary battery (12 V) voltage drops.

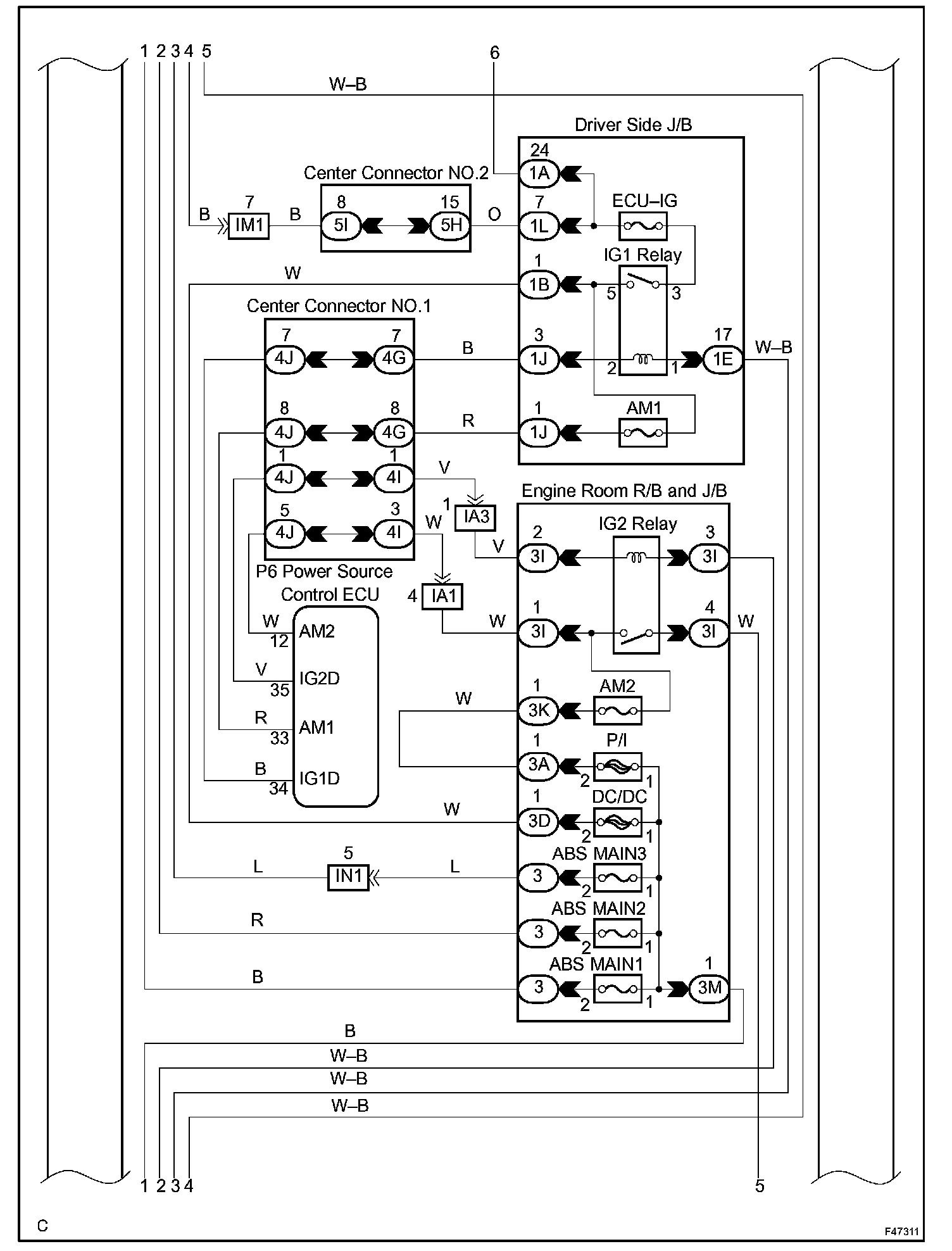

Wiring Diagram:

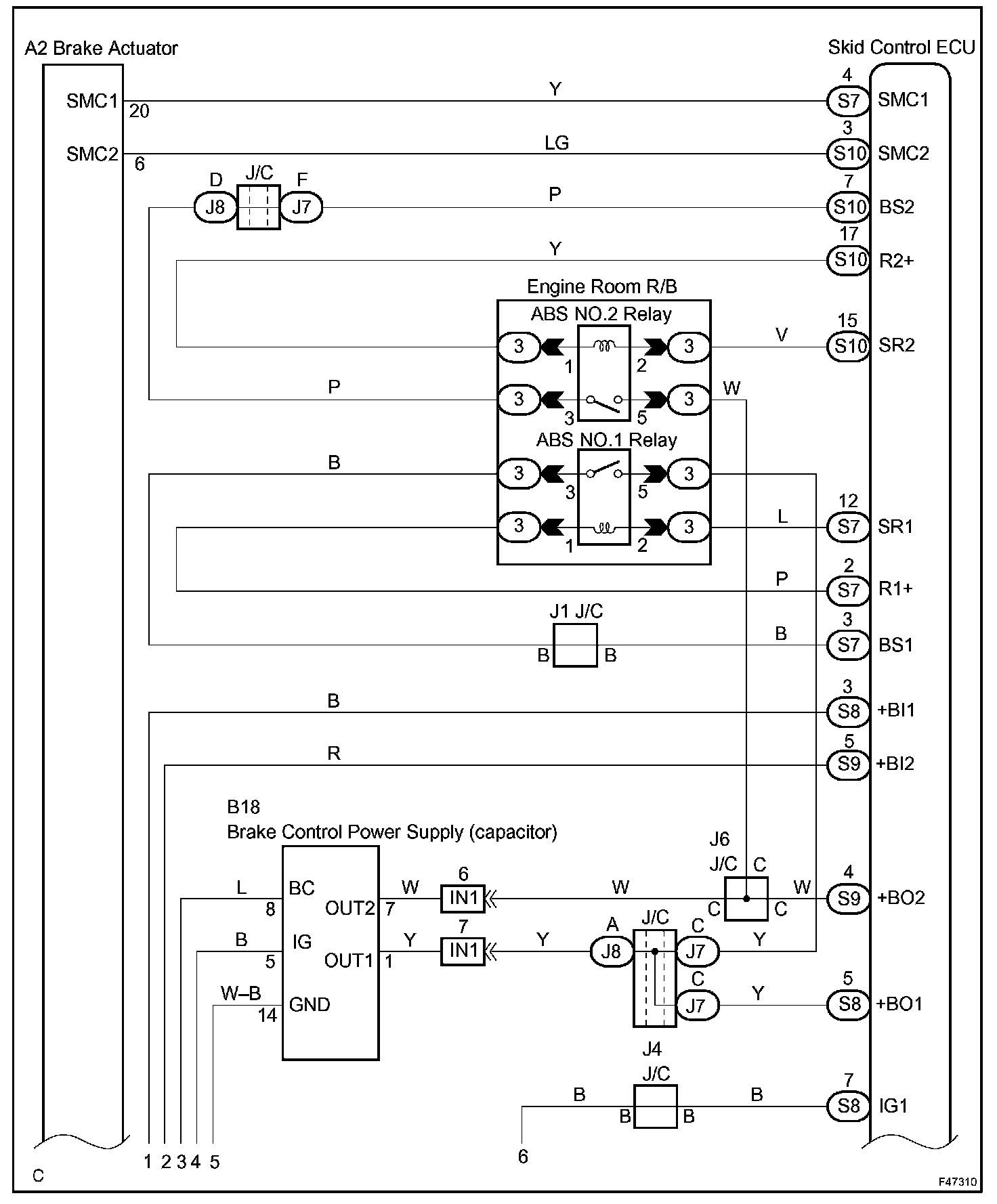

Wiring Diagram:

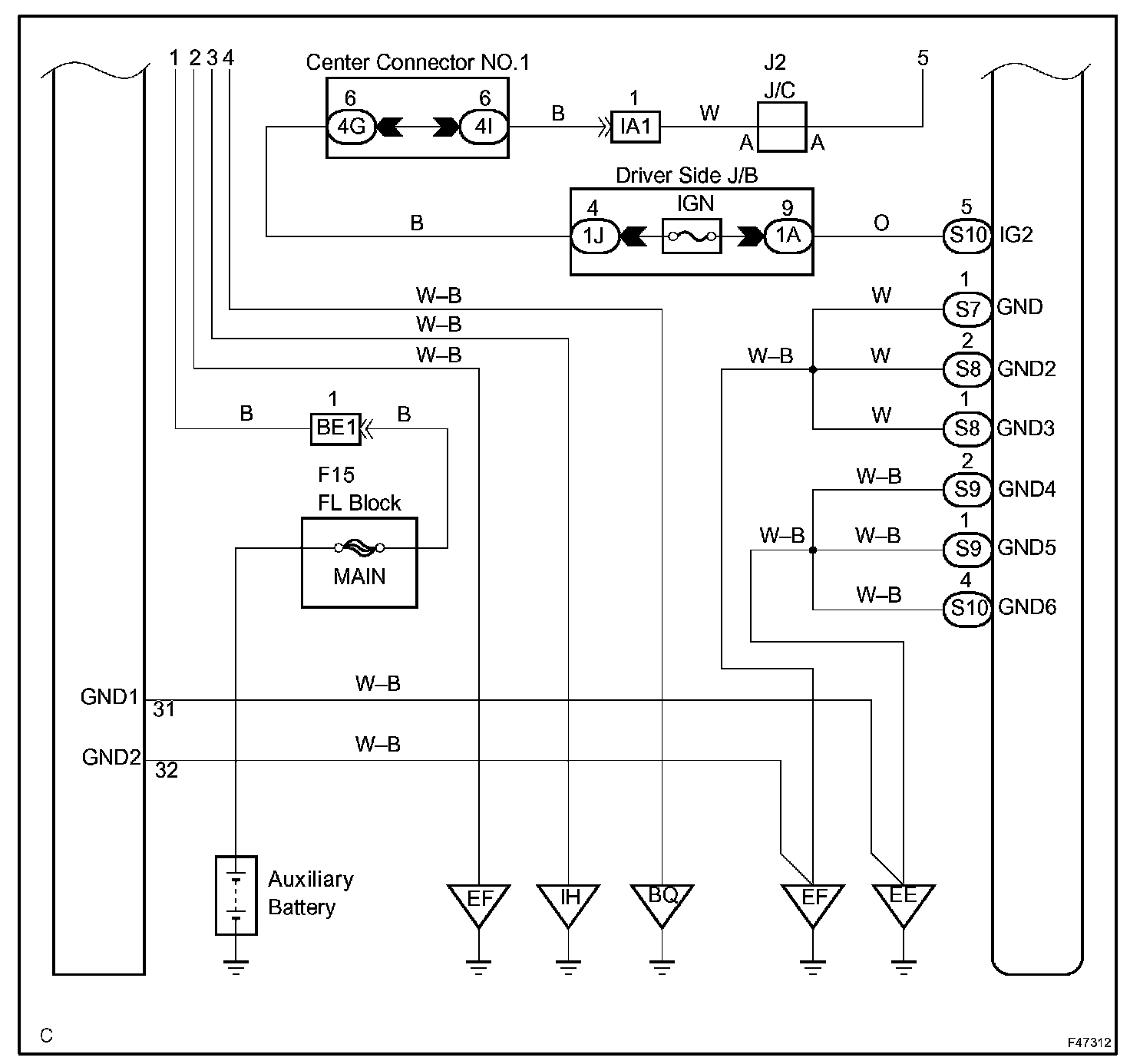

Wiring Diagram:

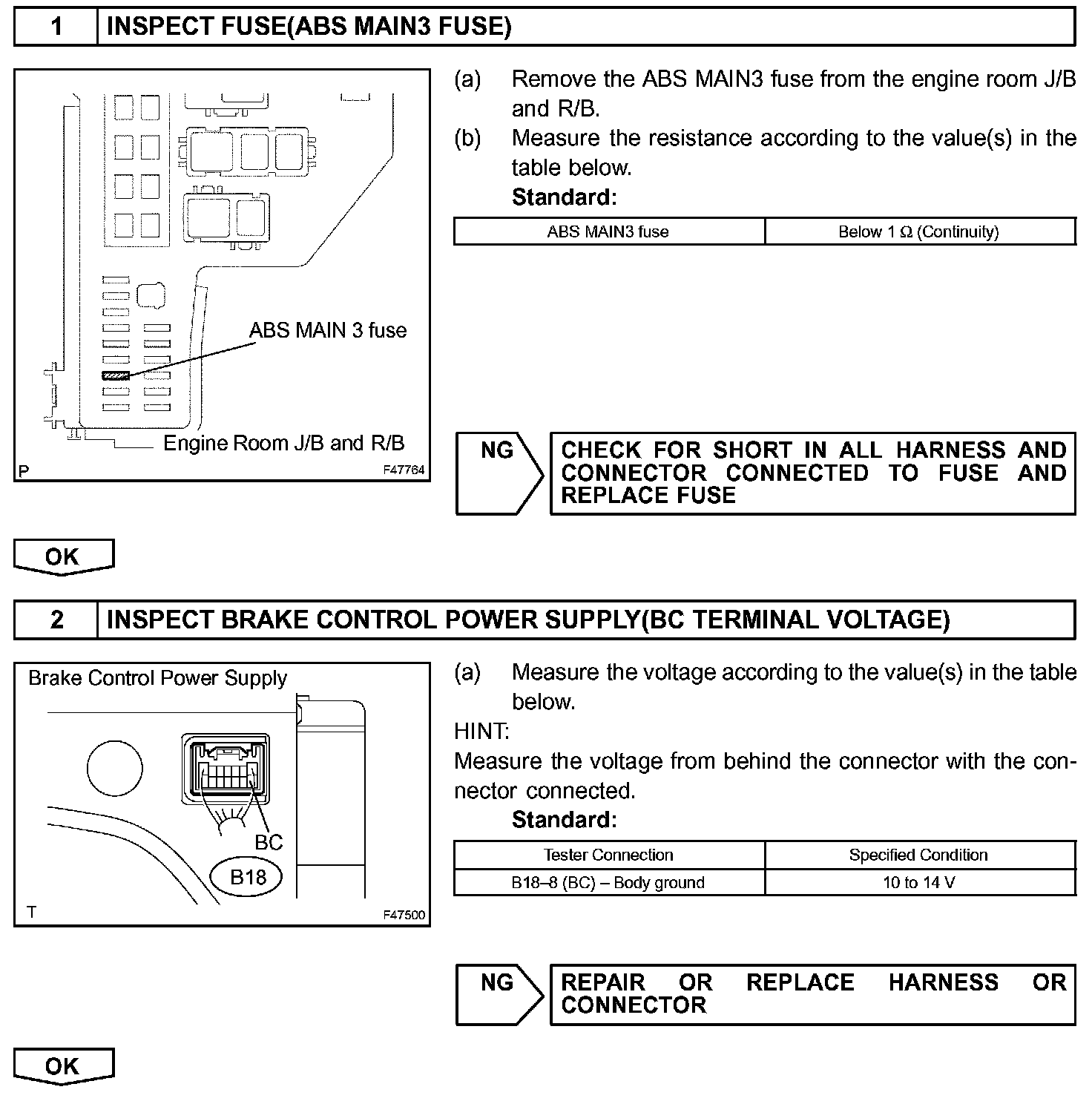

Step 1 - 2:

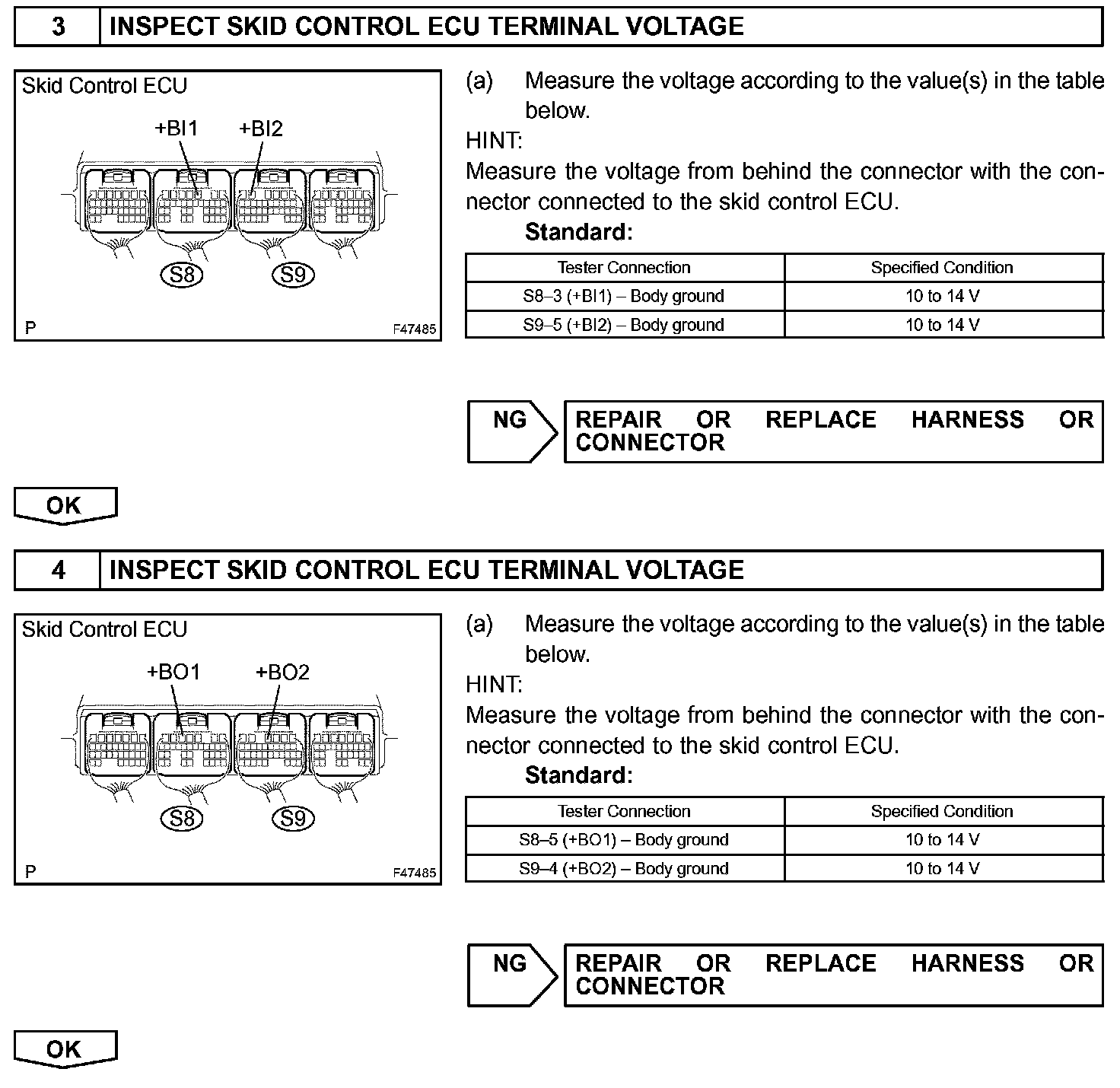

Step 3 - 4:

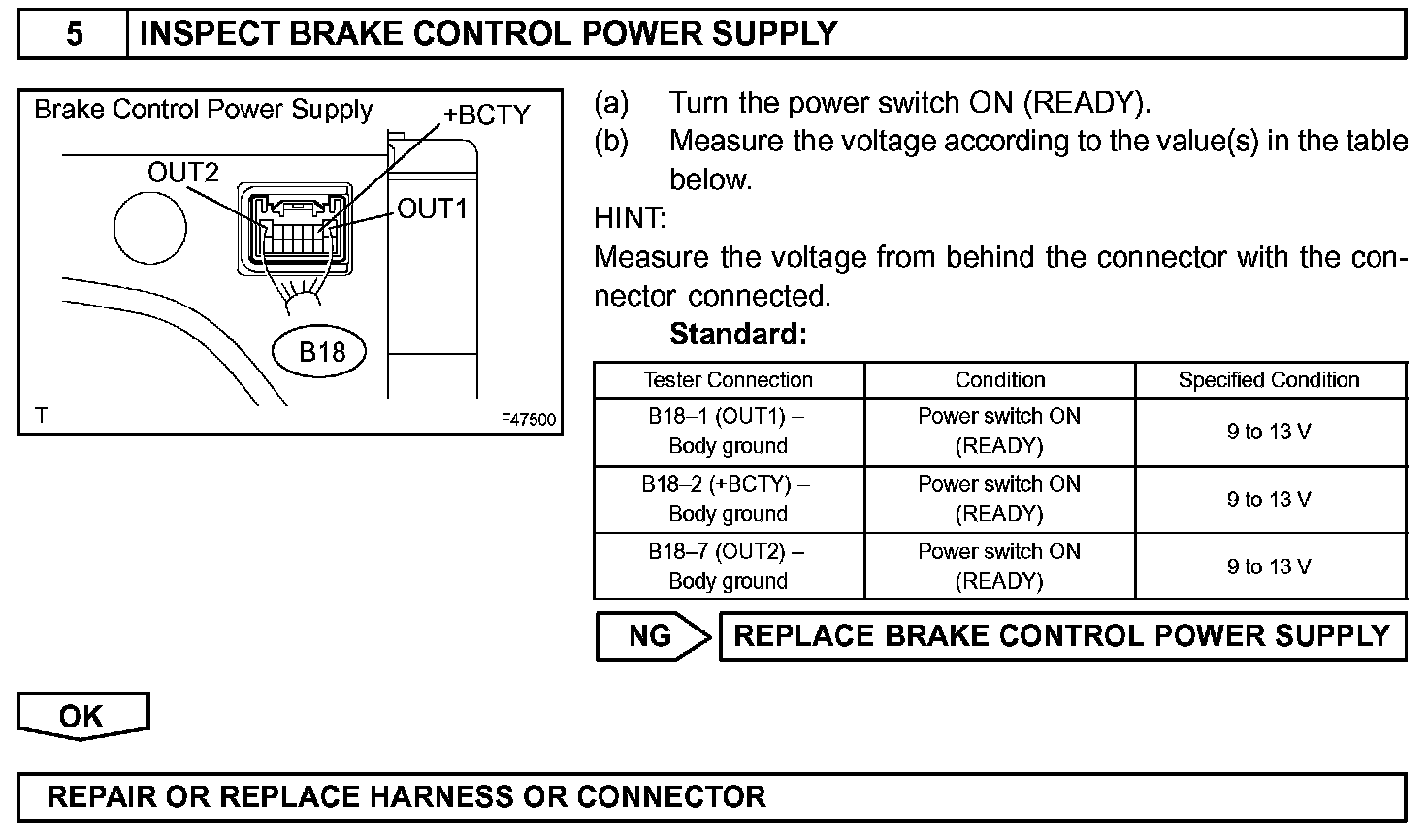

Step 5:

INSPECTION PROCEDURE
