C1513

DTC C1513 TORQUE SENSOR ABNORMAL

CIRCUIT DESCRIPTION

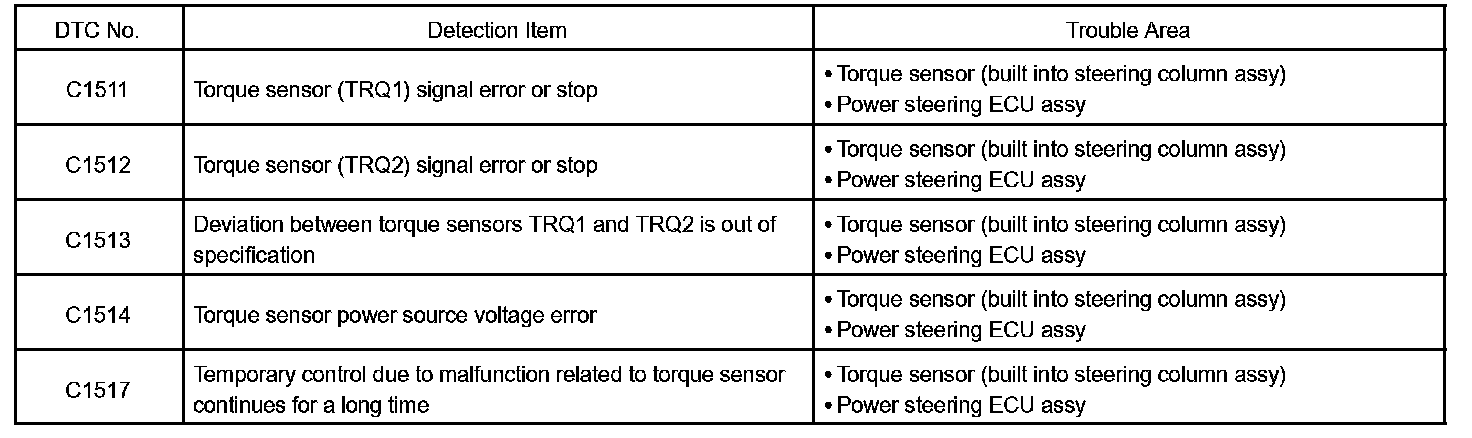

Detection Item:

The torque sensor converts rotation torque input to the steering wheel into an electrical signal and sends it to the ECU. Based on this signal, the ECU detects steering effort.

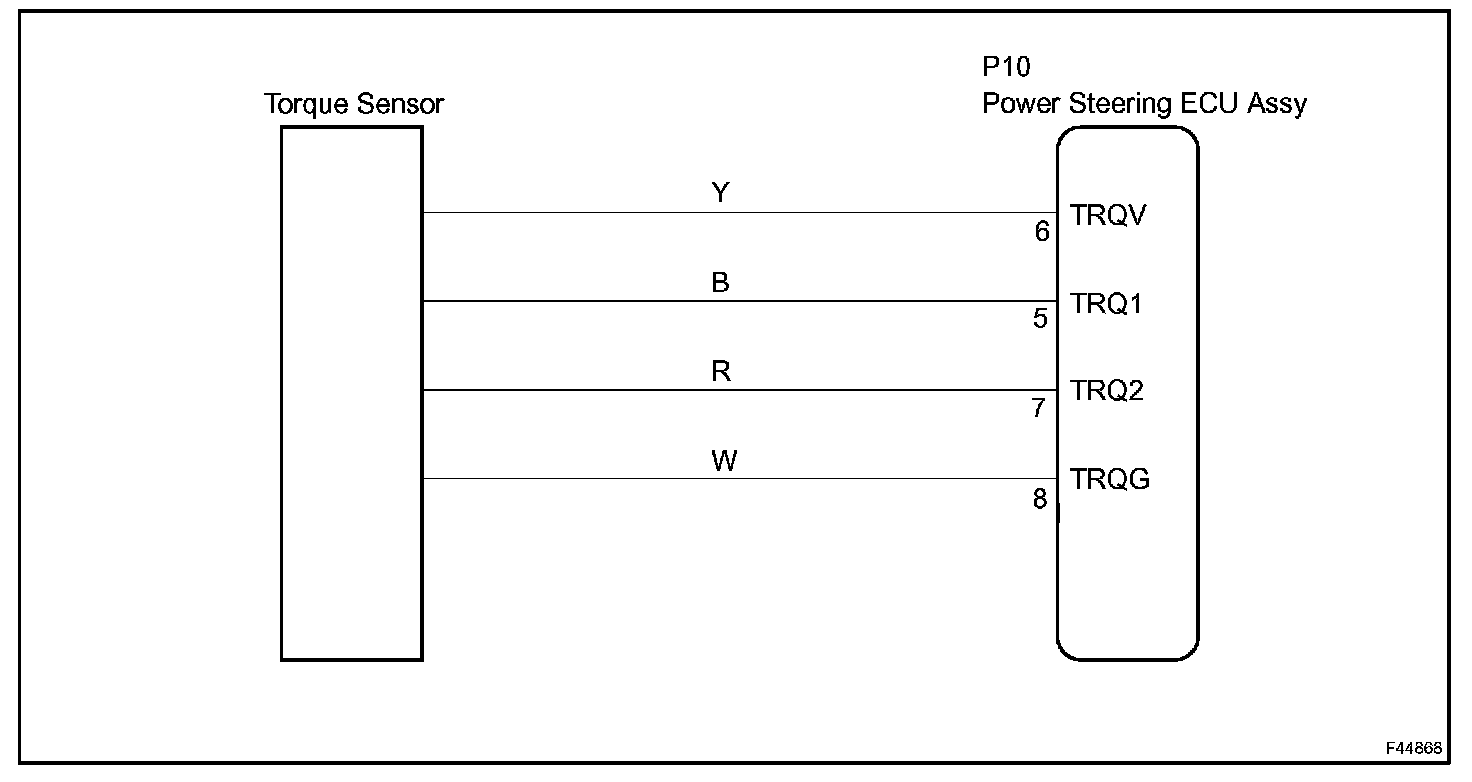

Wiring Diagram:

Step 1:

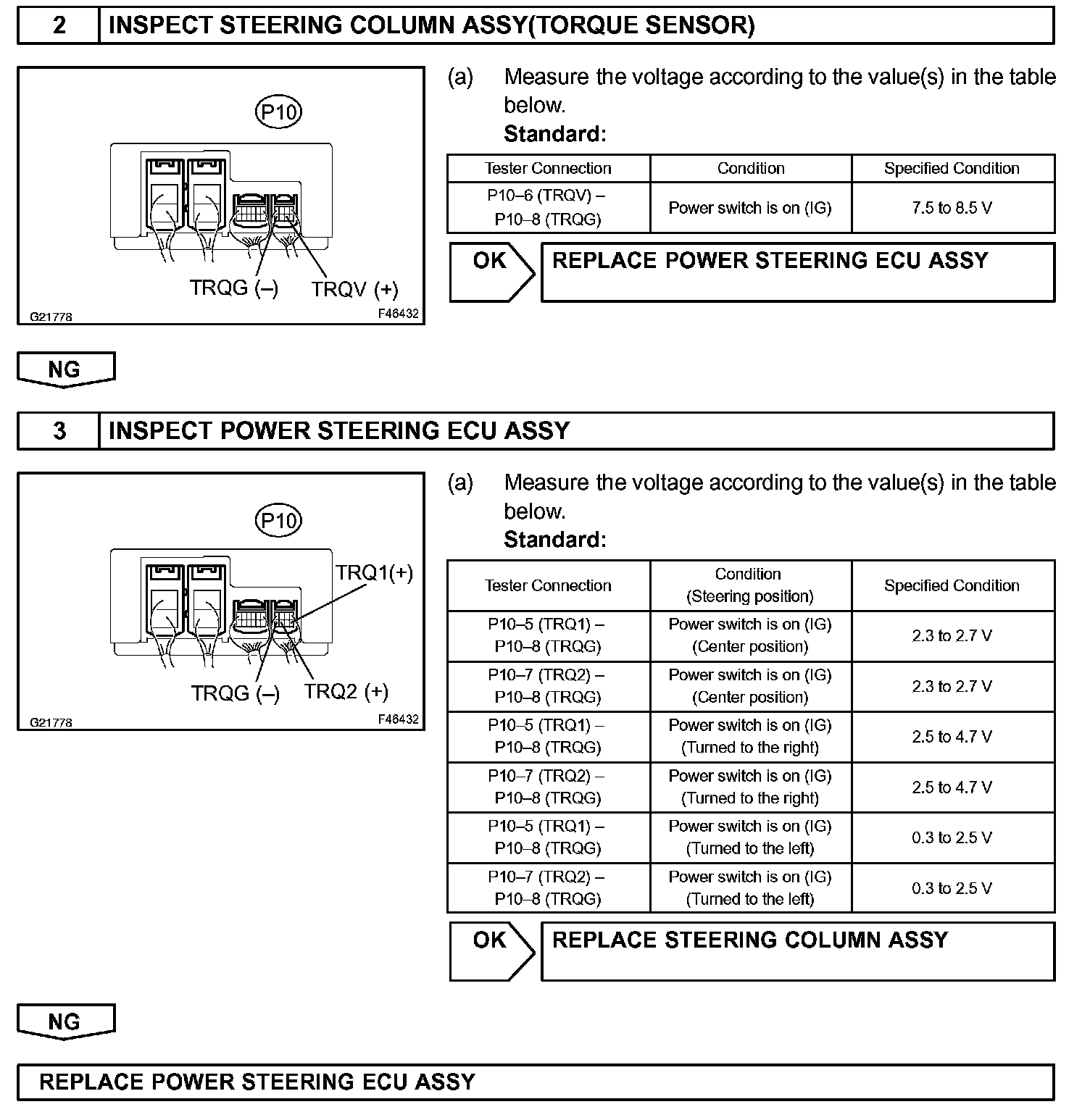

Step 2 - 3:

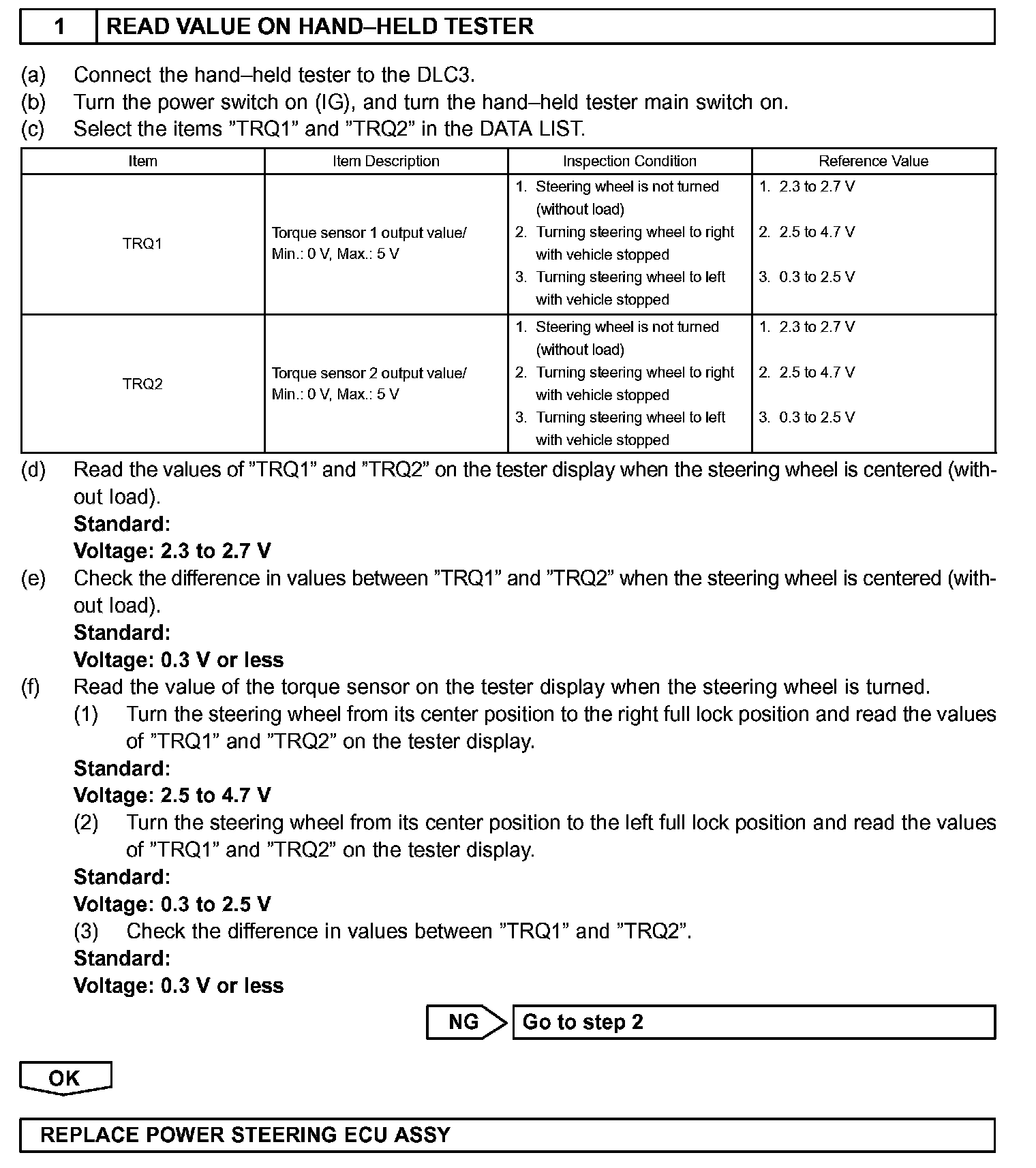

INSPECTION PROCEDURE
