C1516

DTC C1516 TORQUE SENSOR ZERO POINT ADJUSTMENT INCOMPLETE

CIRCUIT DESCRIPTION

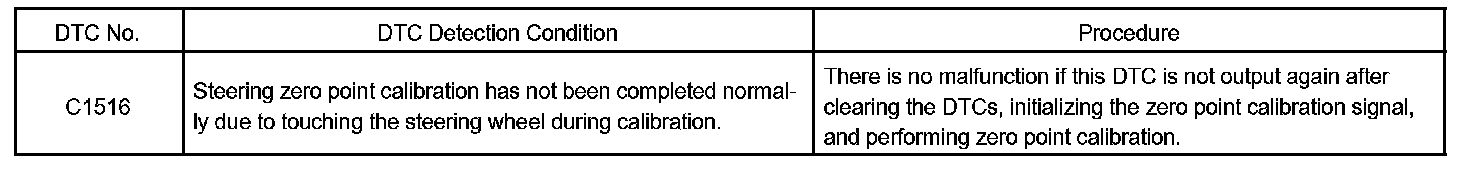

DTC Detection Condition:

This DTC does not indicate a malfunction. The power steering ECU assy outputs this DTC when it determines that torque sensor zero point calibration has not been completed normally.

Step 1 - 4:

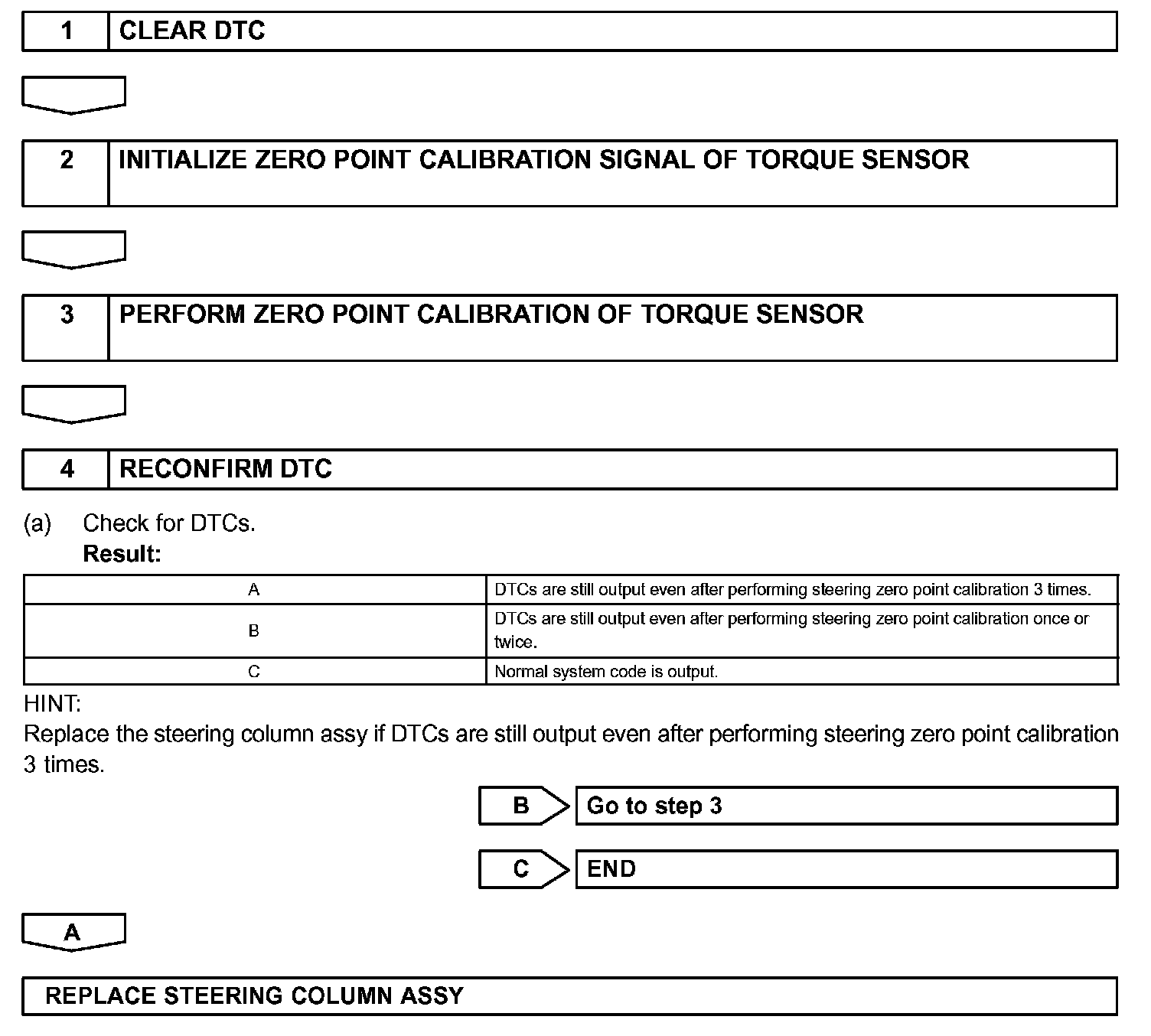

INSPECTION PROCEDURE
