C1524

DTC C1524 MOTOR ABNORMAL

CIRCUIT DESCRIPTION

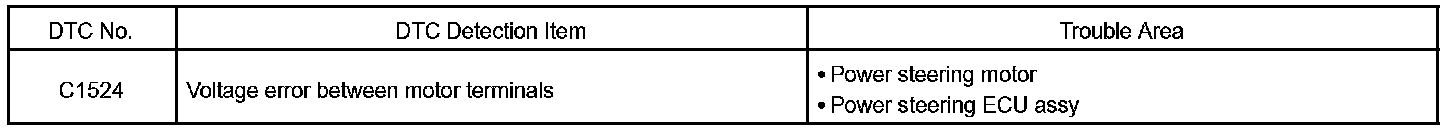

DTC Detection Item:

The power steering ECU assy supplies current to the power steering motor through this circuit.

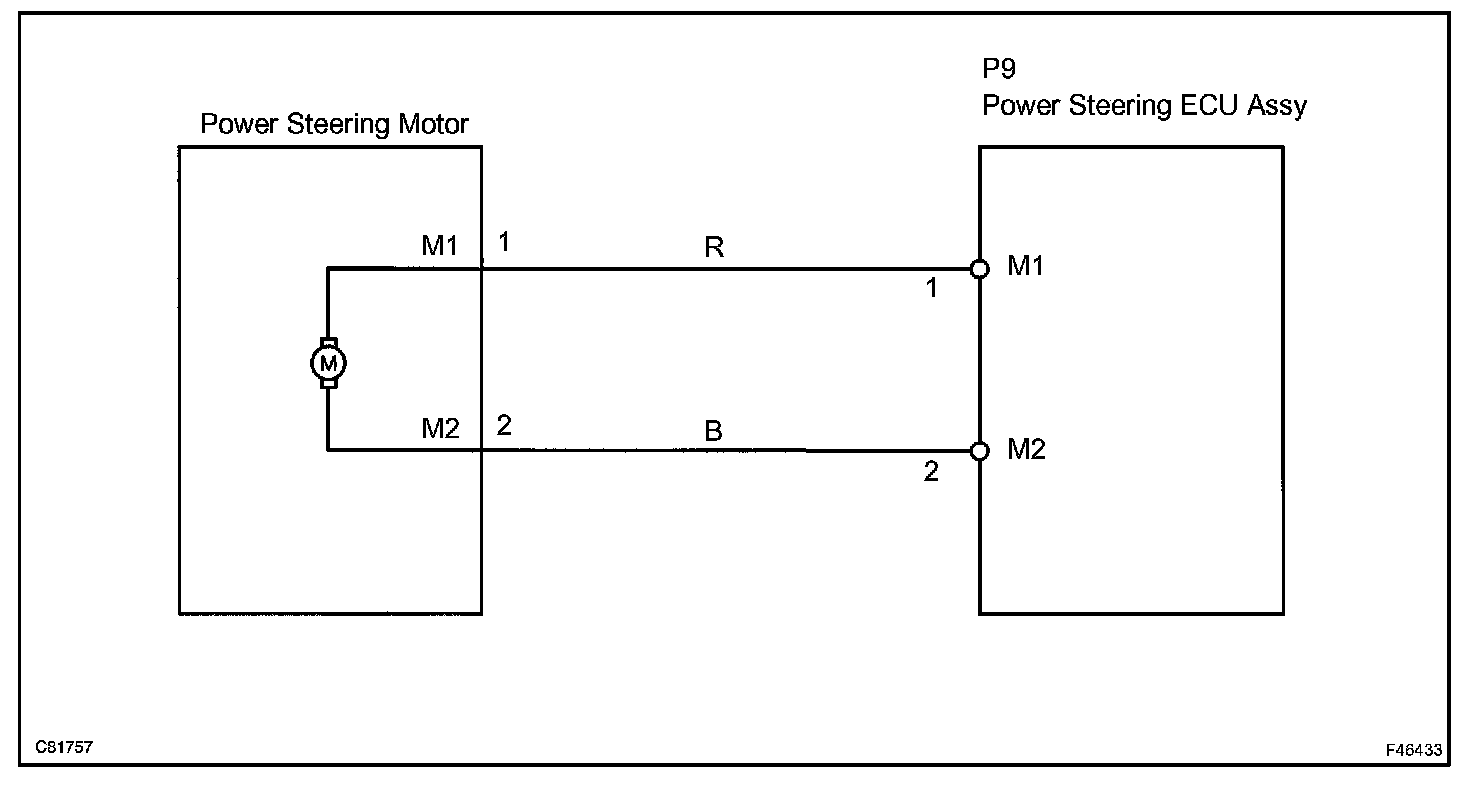

Wiring Diagram:

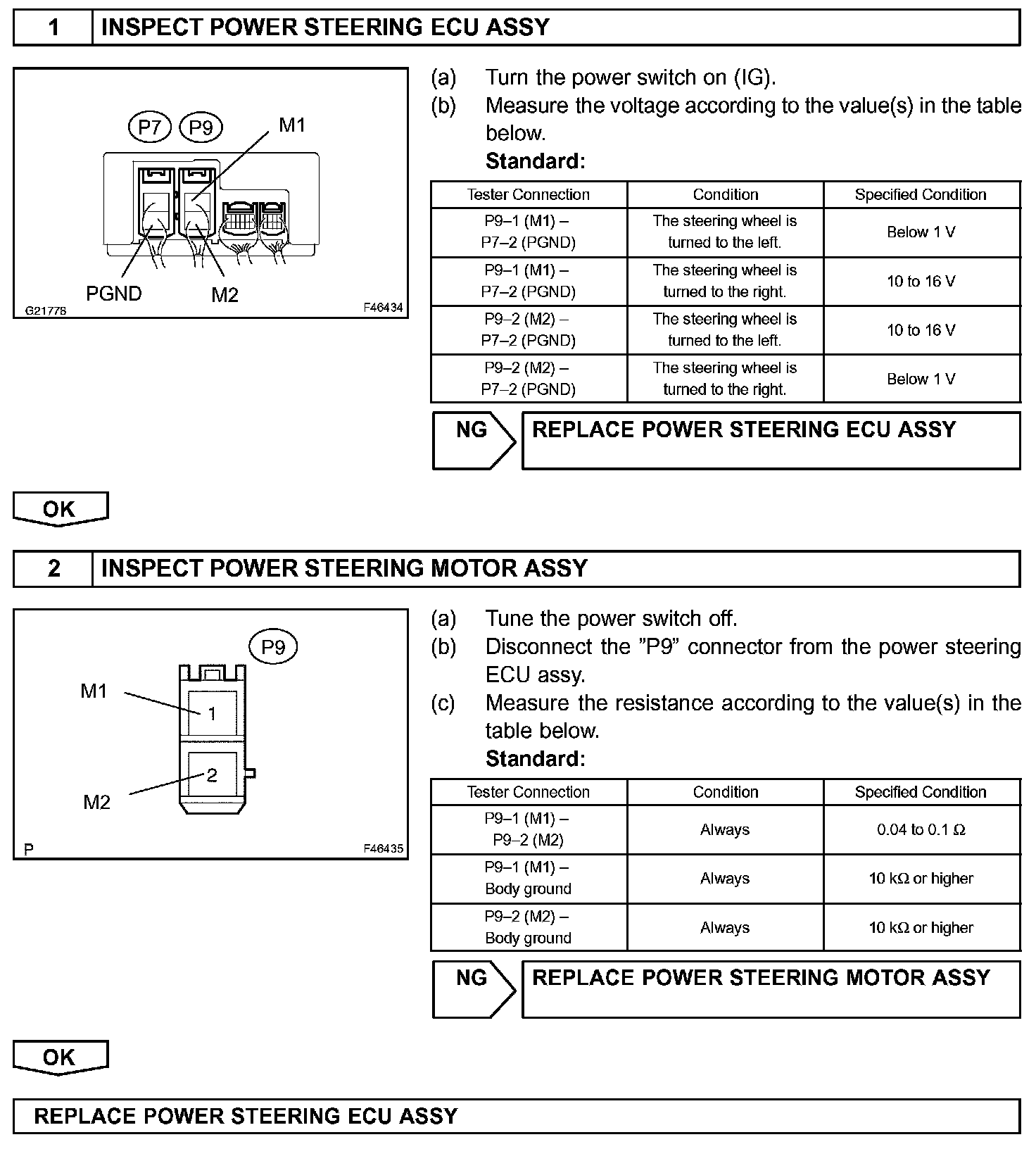

Step 1 - 2:

INSPECTION PROCEDURE
