C2318

DTC C2318 LOW VOLTAGE ERROR (POWER SUPPLY MALFUNCTION)

CIRCUIT DESCRIPTION

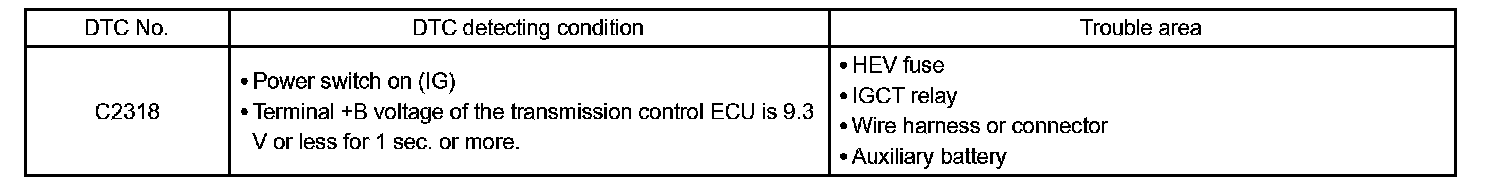

DTC Detecting Condition:

The auxiliary battery voltage is applied to terminal +B when the power switch is on (IG). The transmission control ECU outputs this DTC when the input voltage drops.

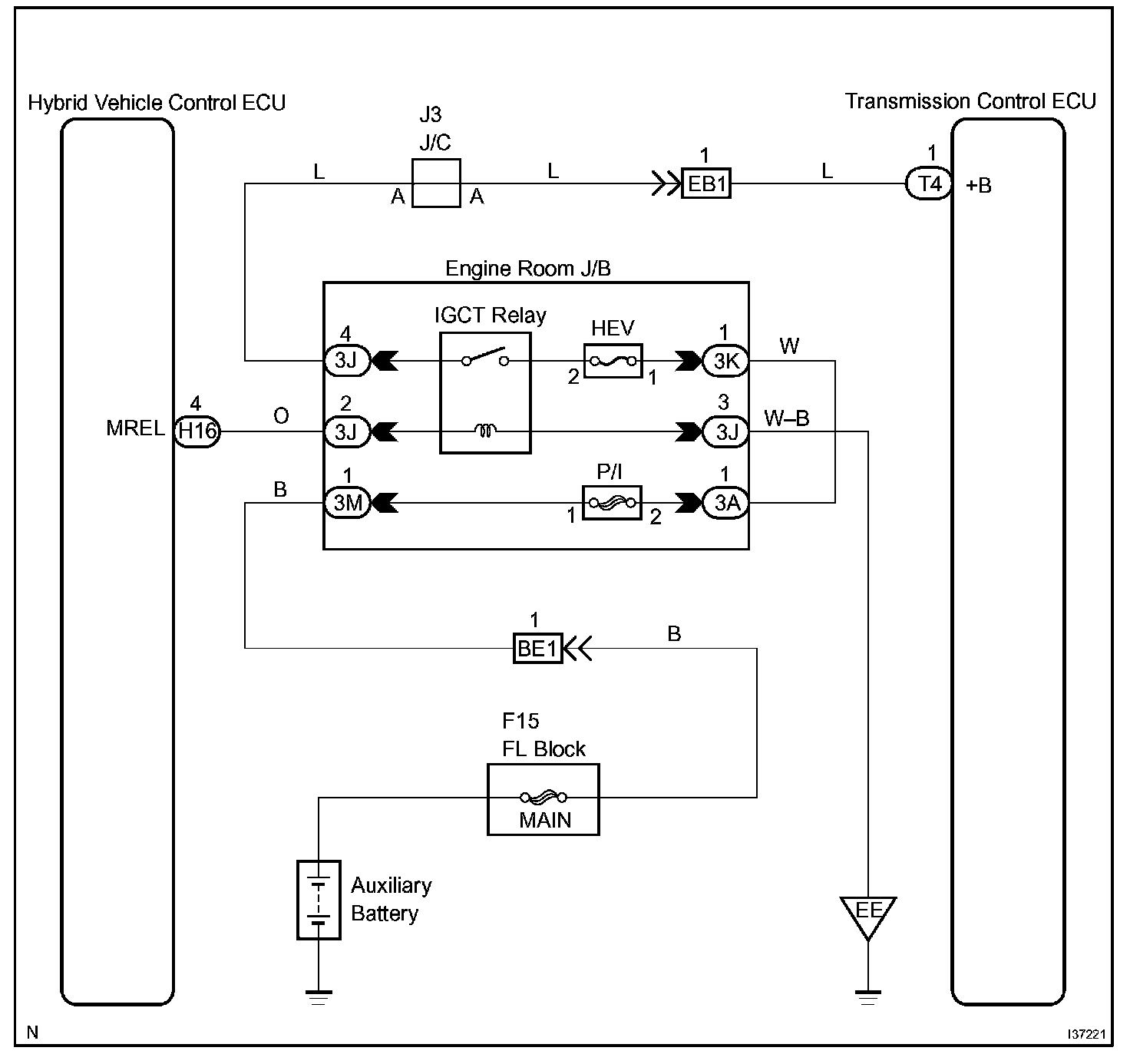

Wiring Diagram:

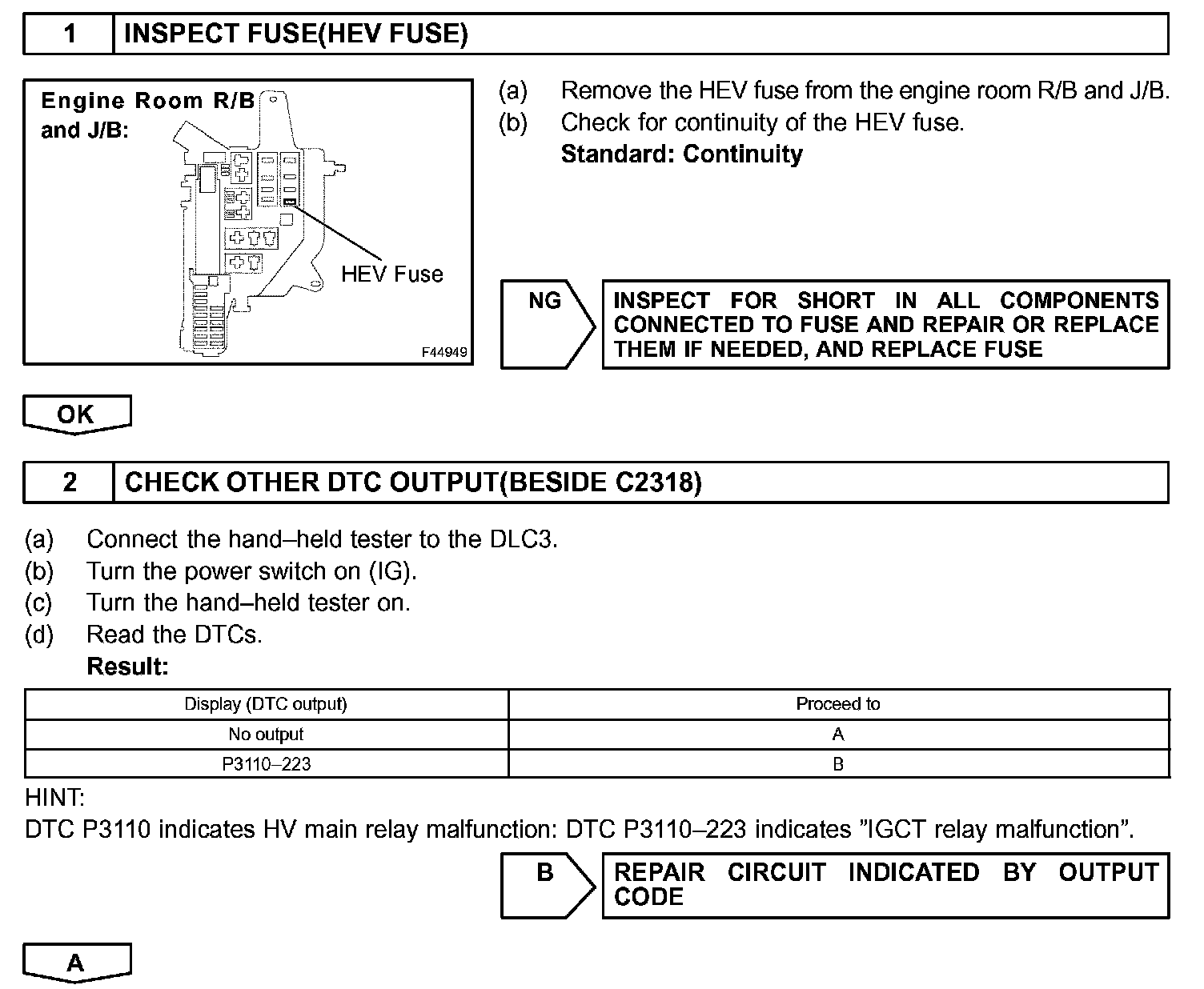

Step 1 - 2:

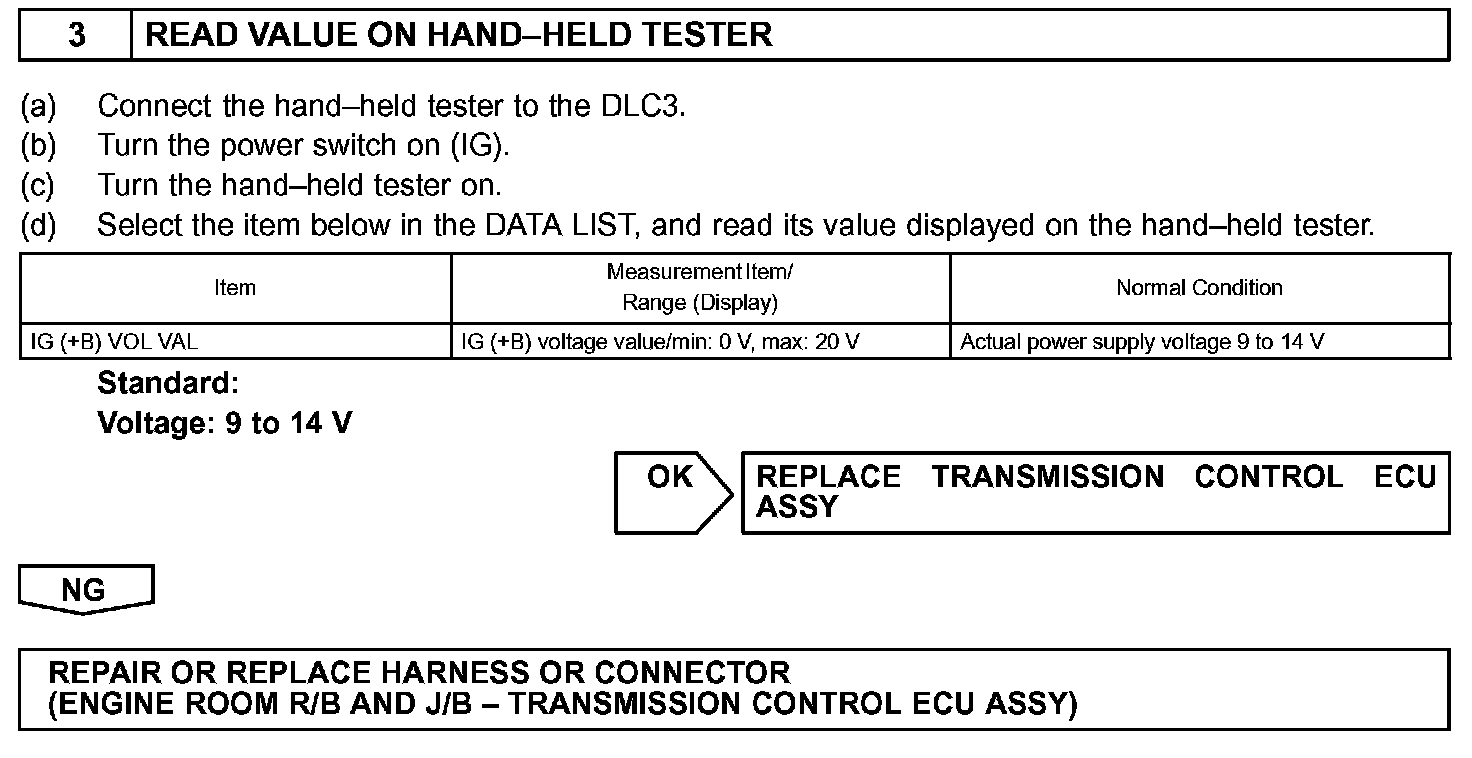

Step 3:

INSPECTION PROCEDURE
