ABS (Antilock Brake System)
DIAGNOSTIC TROUBLE CODE CHARTHINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective "DTC No." in the DTC chart.

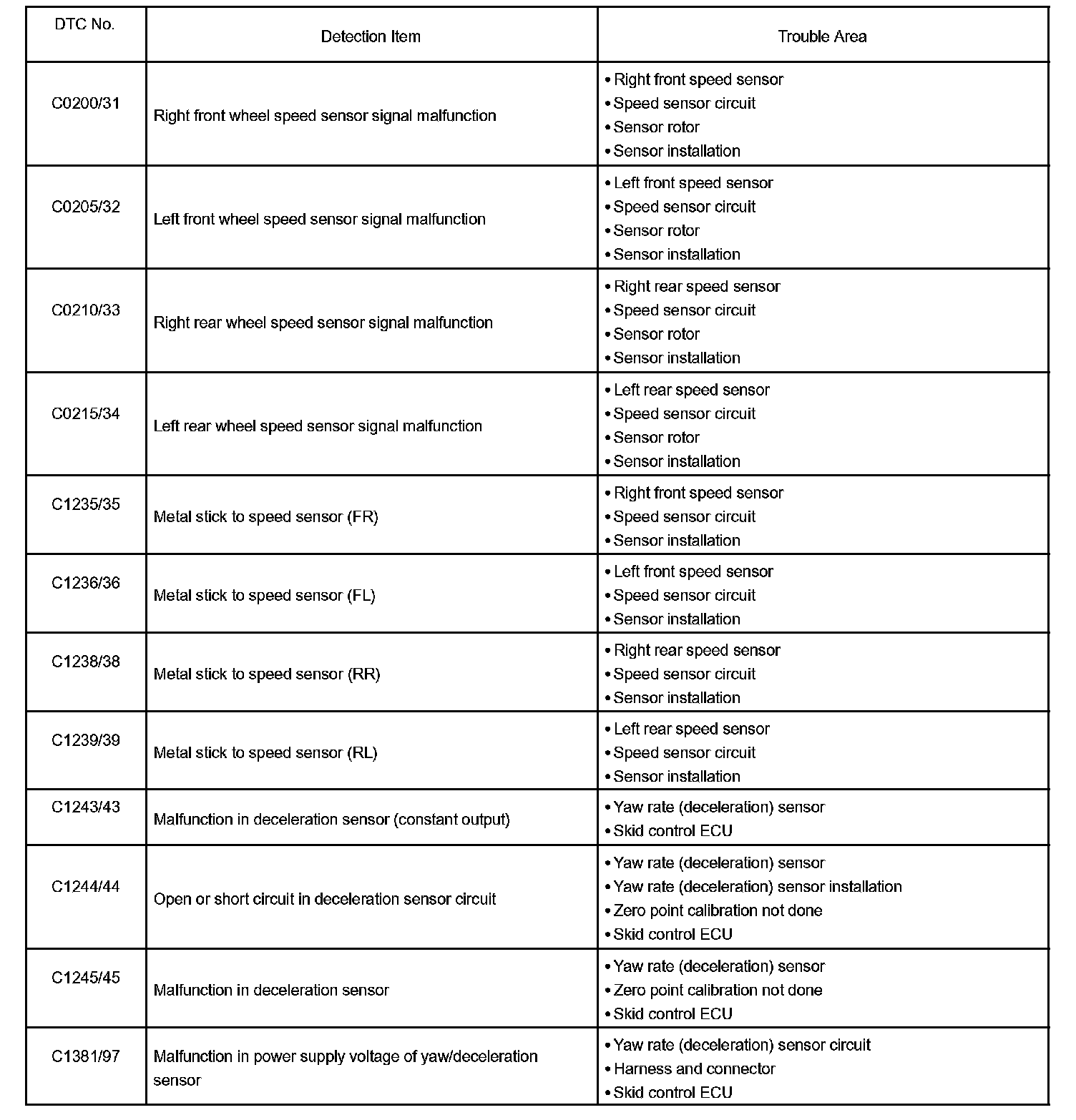

C0200/31 - C1381/97:
DTC chart of ABS
1. Drive the vehicle at the vehicle speed of 31 mph (50 km/h) and keep depressing the brake pedal strongly for approximately 3 seconds.
2. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
3. Clear the DTC.
HINT: In some cases, the hand-held tester cannot be used when ABS warning light remains on.

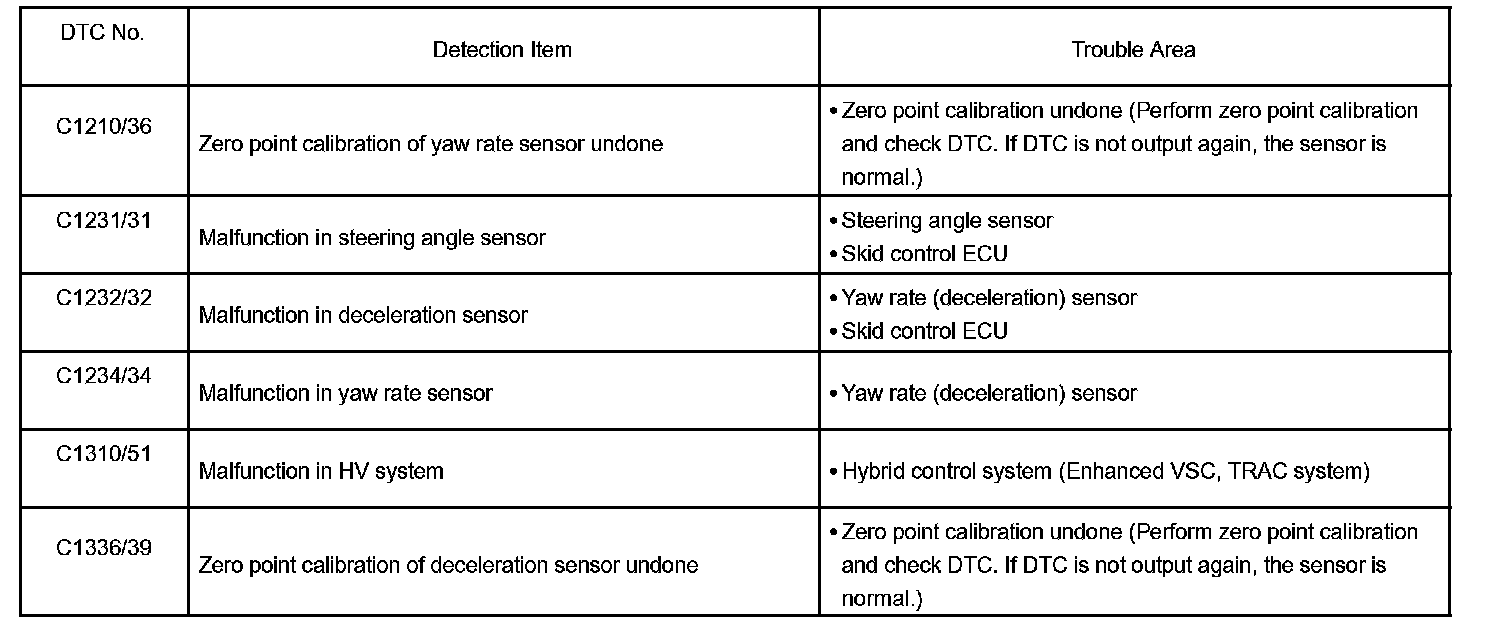

C1210/36 - C1336/39:
DTC chart of Enhanced VSC

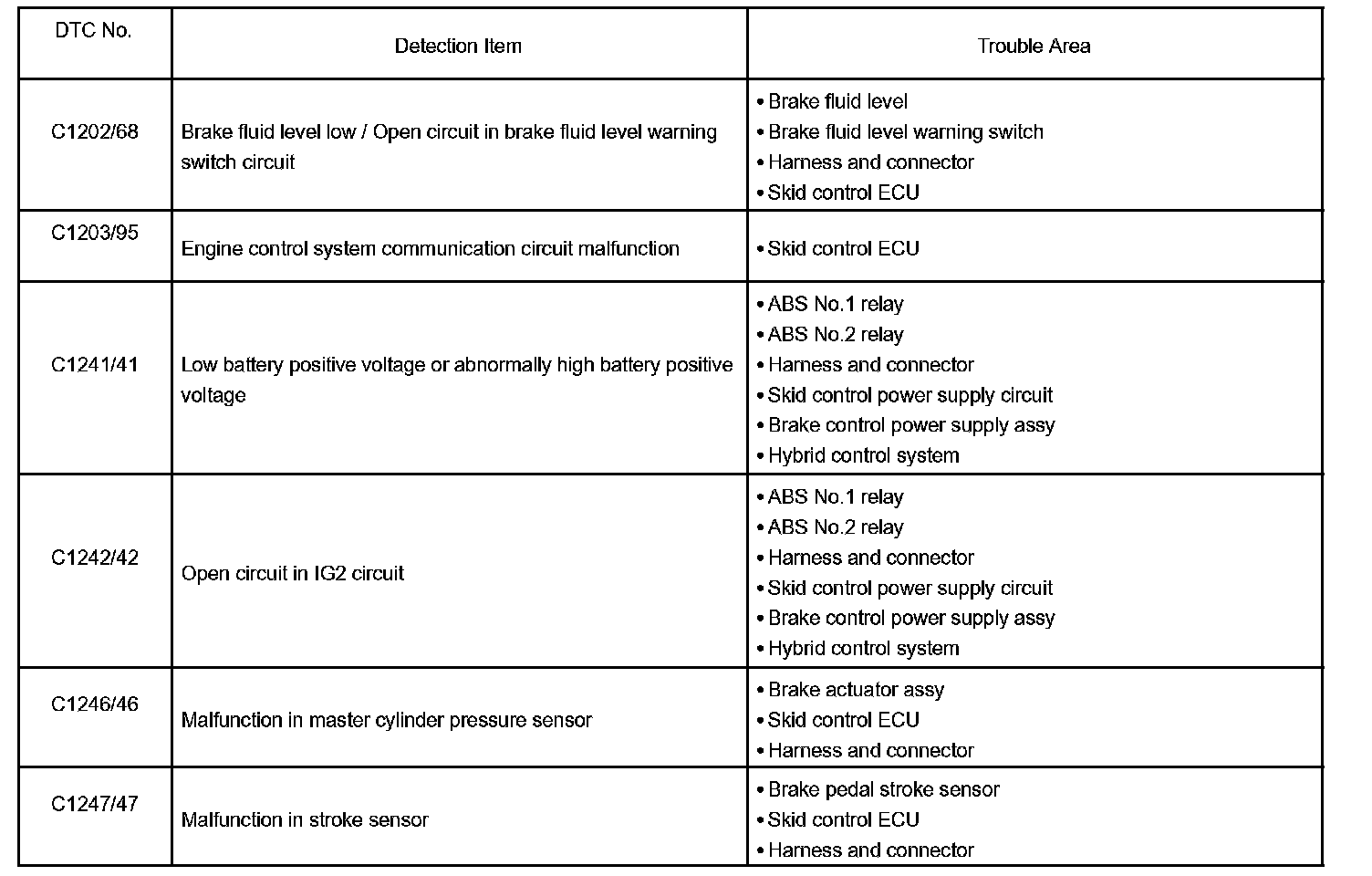

C1202/68 - C1247/47:

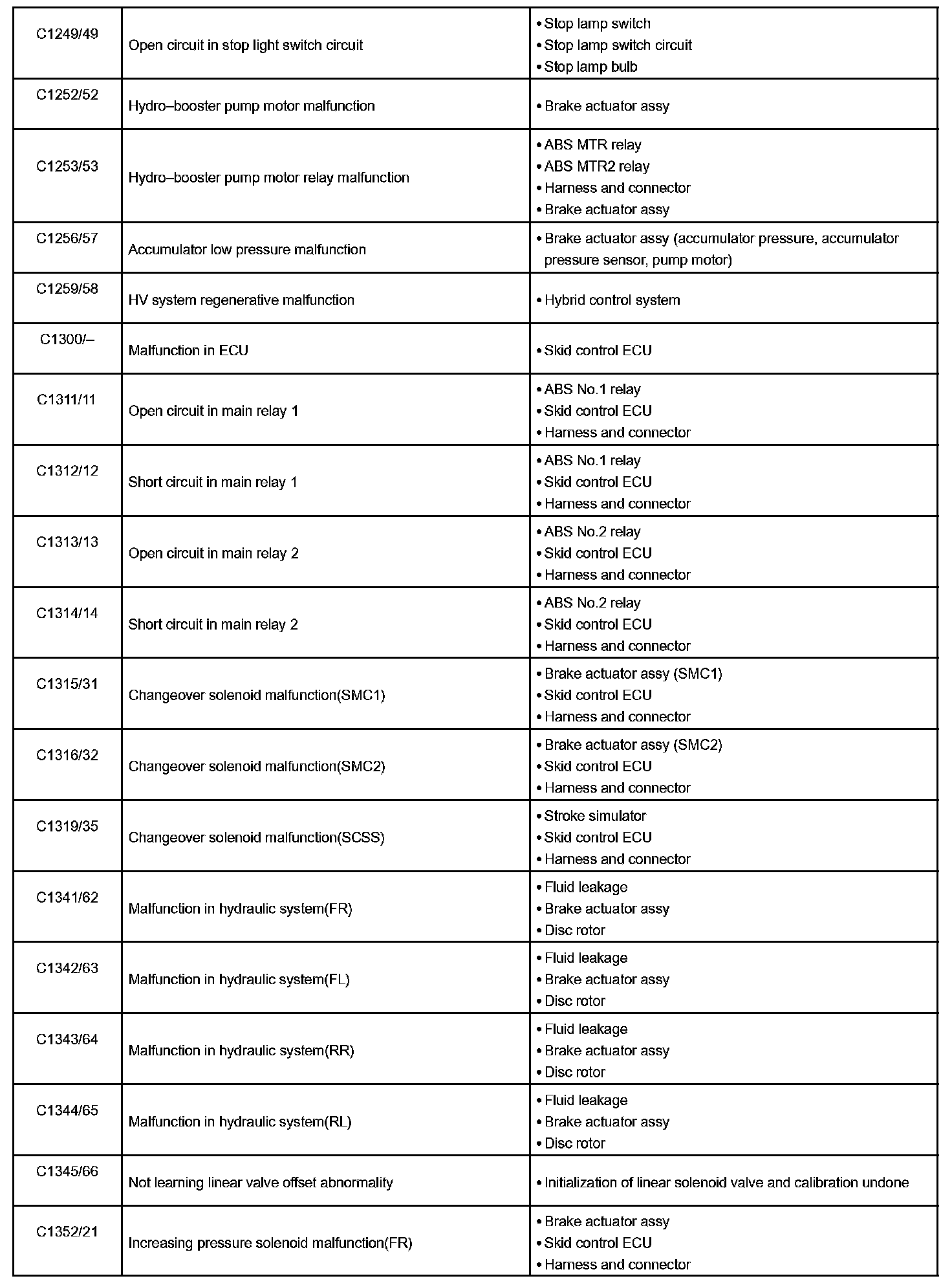

C1249/49 - C1352/21:

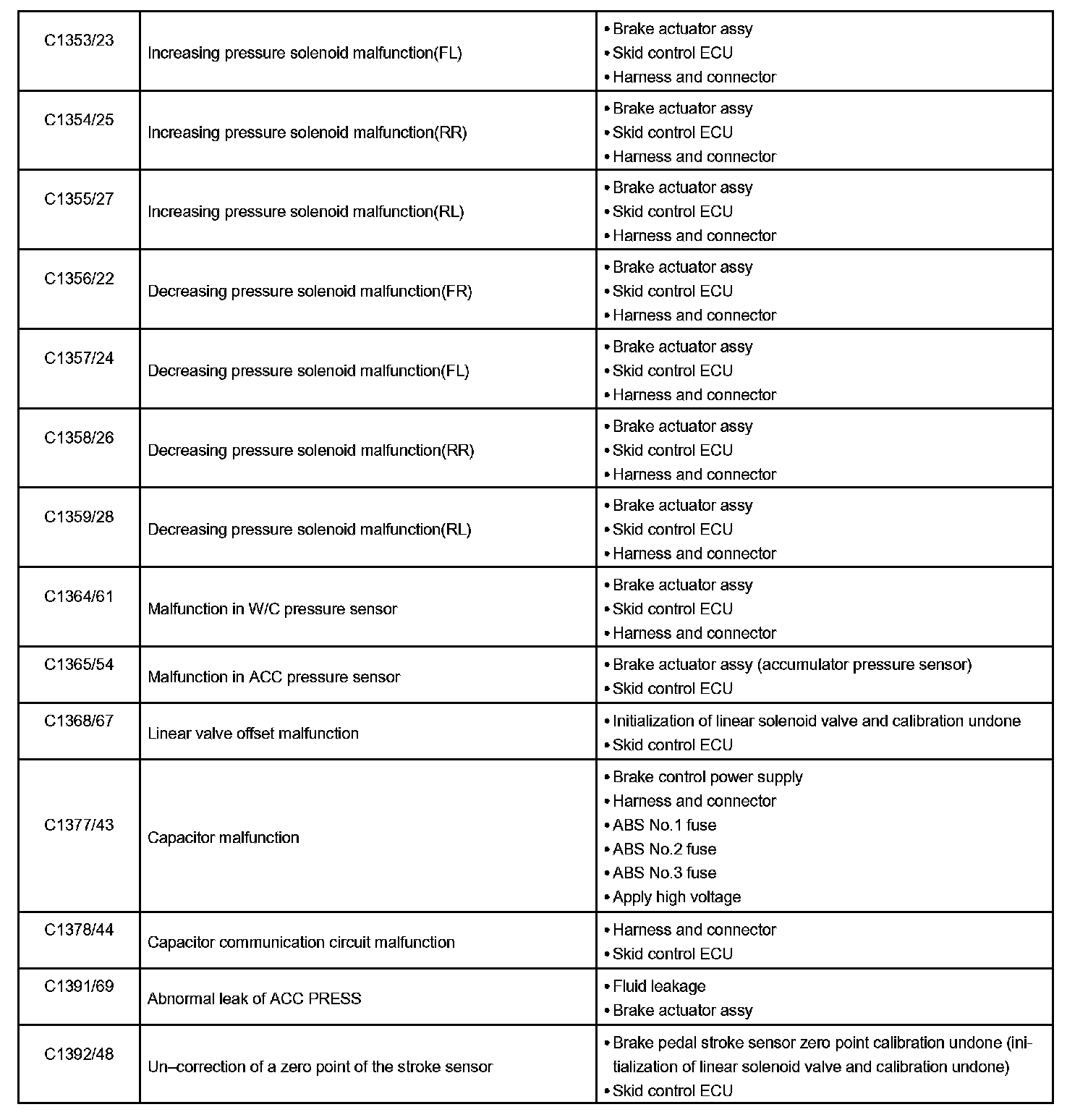

C1353/23 - C1392/48:
DTC Chart of ECB
C1271/71 - C0371/71:
DTC of TEST MODE
HINT: The code in this table are output only in TEST MODE.
