Engine Immobiliser System (w/ Smart Entry System)

DIAGNOSTIC TROUBLE CODE CHART

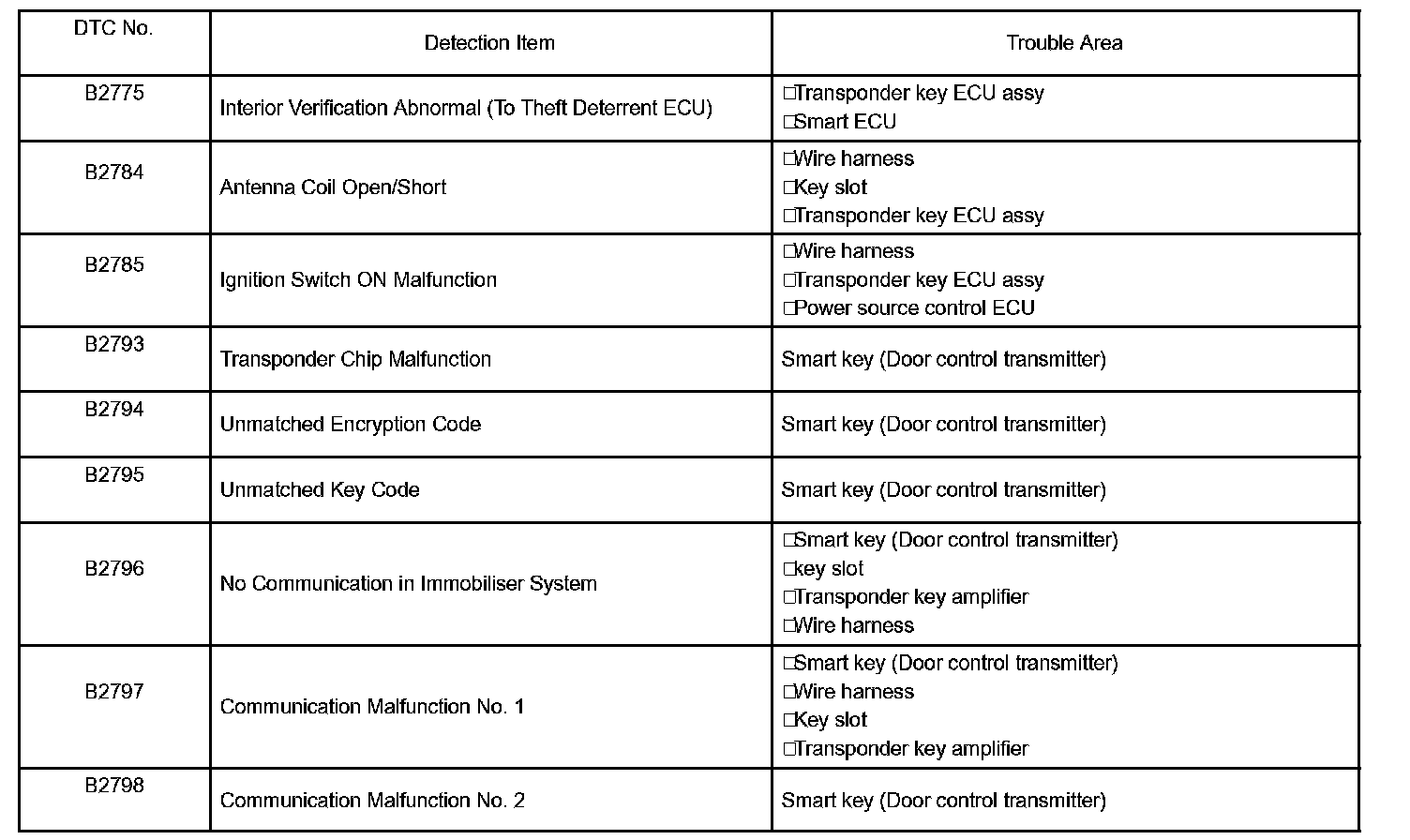

B2775 - B2798:

1. TRANSPONDER KEY ECU DTC CHART

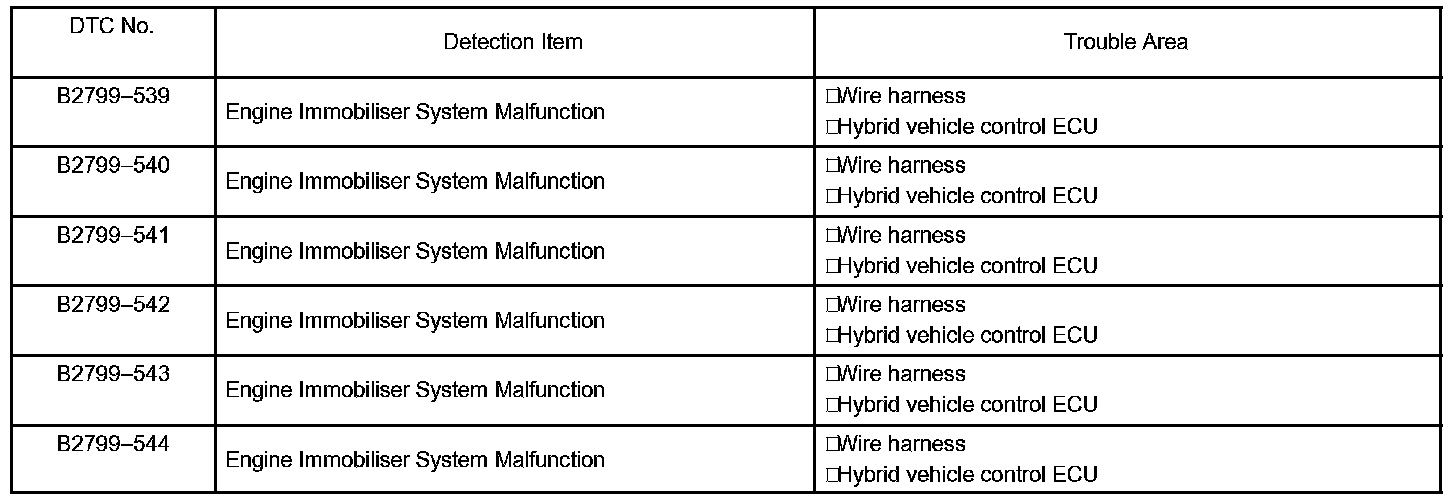

B2799:

2. HYBRID VEHICLE CONTROL ECU DTC CHART

NOTE: The DTCs for the immobilizer system are specified above. If the other codes are output, check the DTCs chart for the hybrid control system.
