Engine Immobiliser System (w/o Smart Entry System)

DIAGNOSTIC TROUBLE CODE CHART

B2784 - B2798:

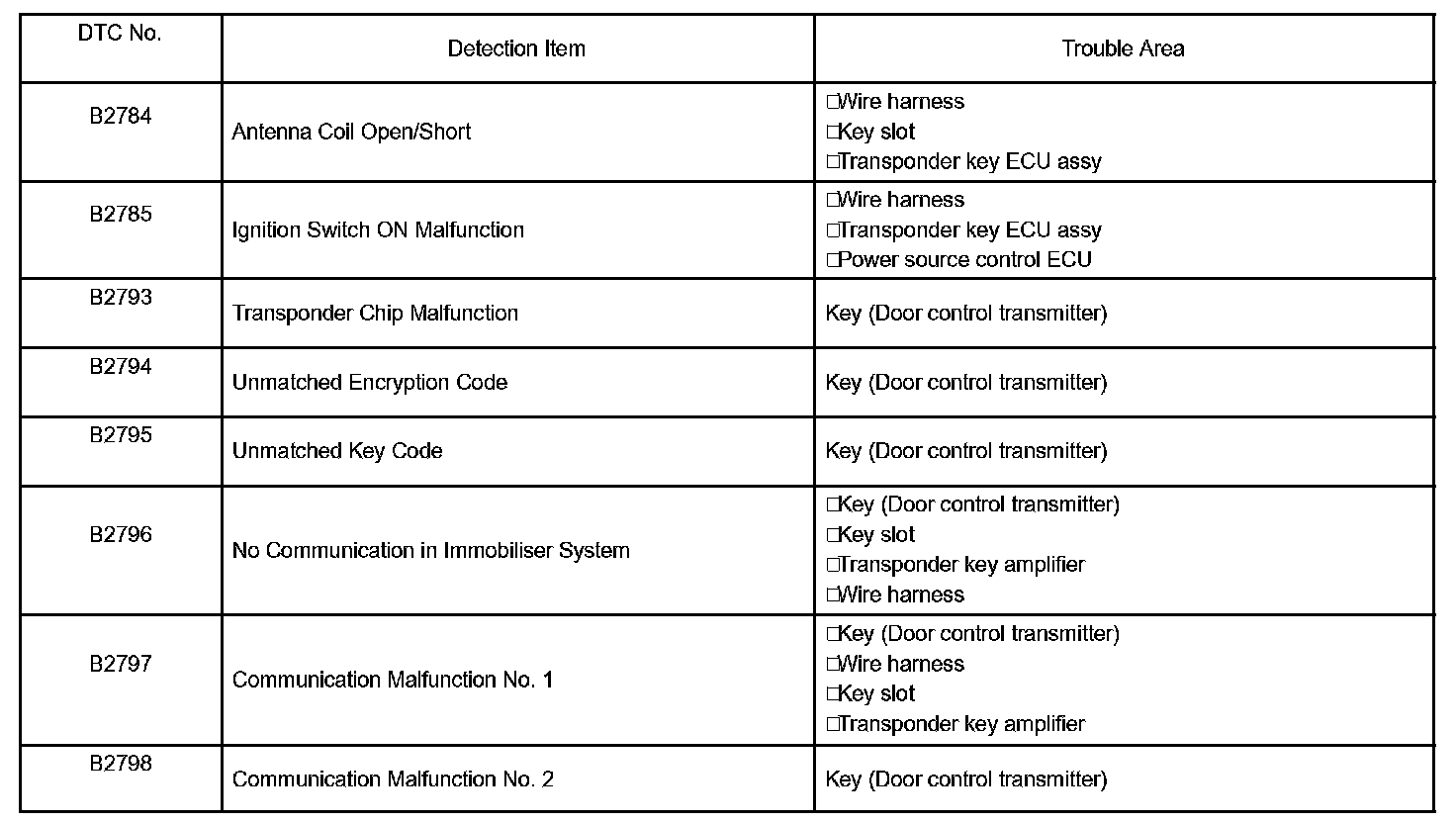

1. TRANSPONDER KEY ECU DTC CHART

B2799:

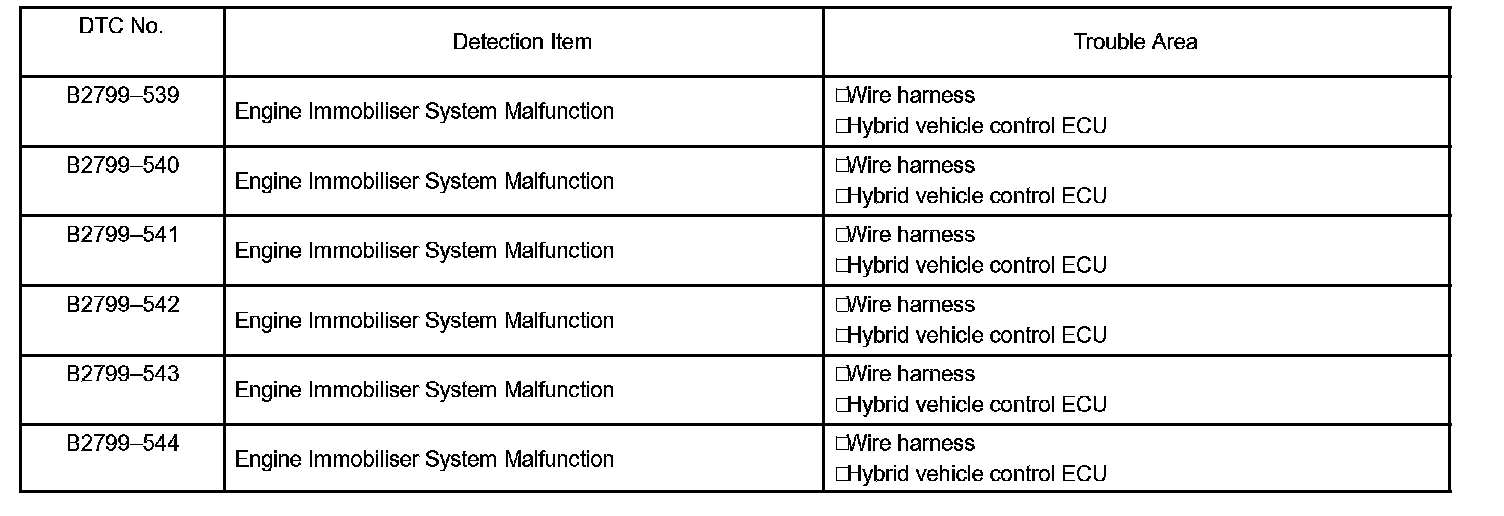

2. HYBRID VEHICLE CONTROL ECU DTC CHART

NOTE: The DTCs for the immobilizer system are specified above. If the other codes are output, check the DTCs chart for the hybrid control system.
