Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART






HINT:

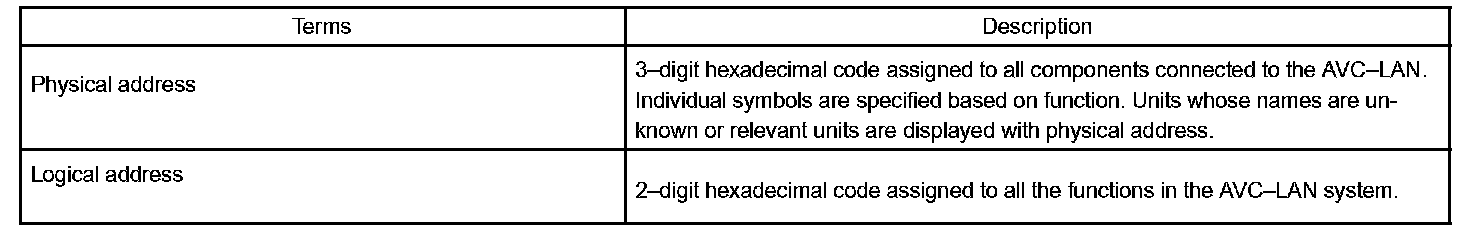

- Titles for each unit are stated in the following order: component name, (physical address) [DTC displayed name].
- For the DTC of a vehicle with a navigation system, refer to "NAVIGATION SYSTEM".

1. MULTI-DISPLAY (PHYSICAL ADDRESS: 110) [EMV]

21 - 22:

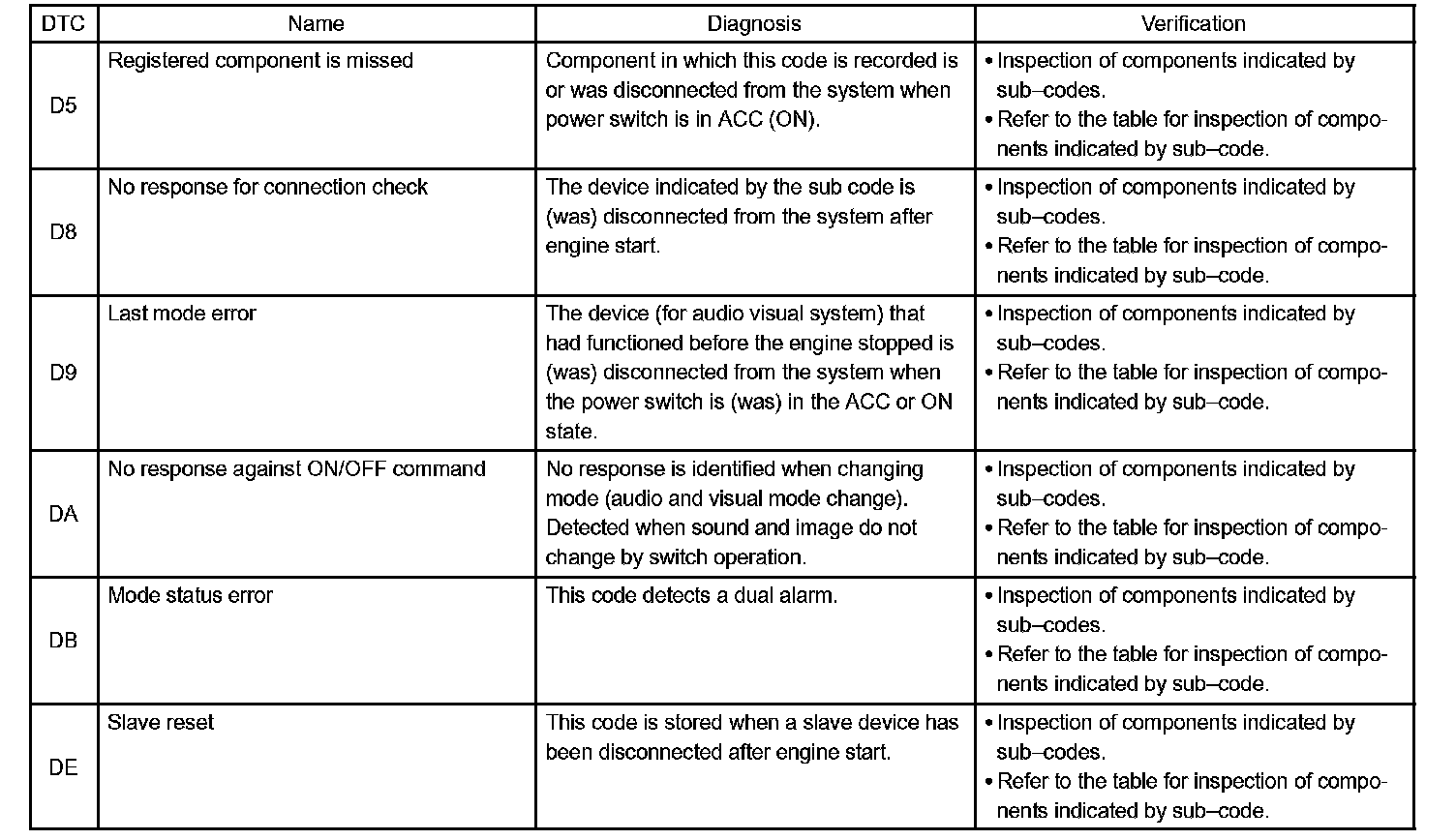

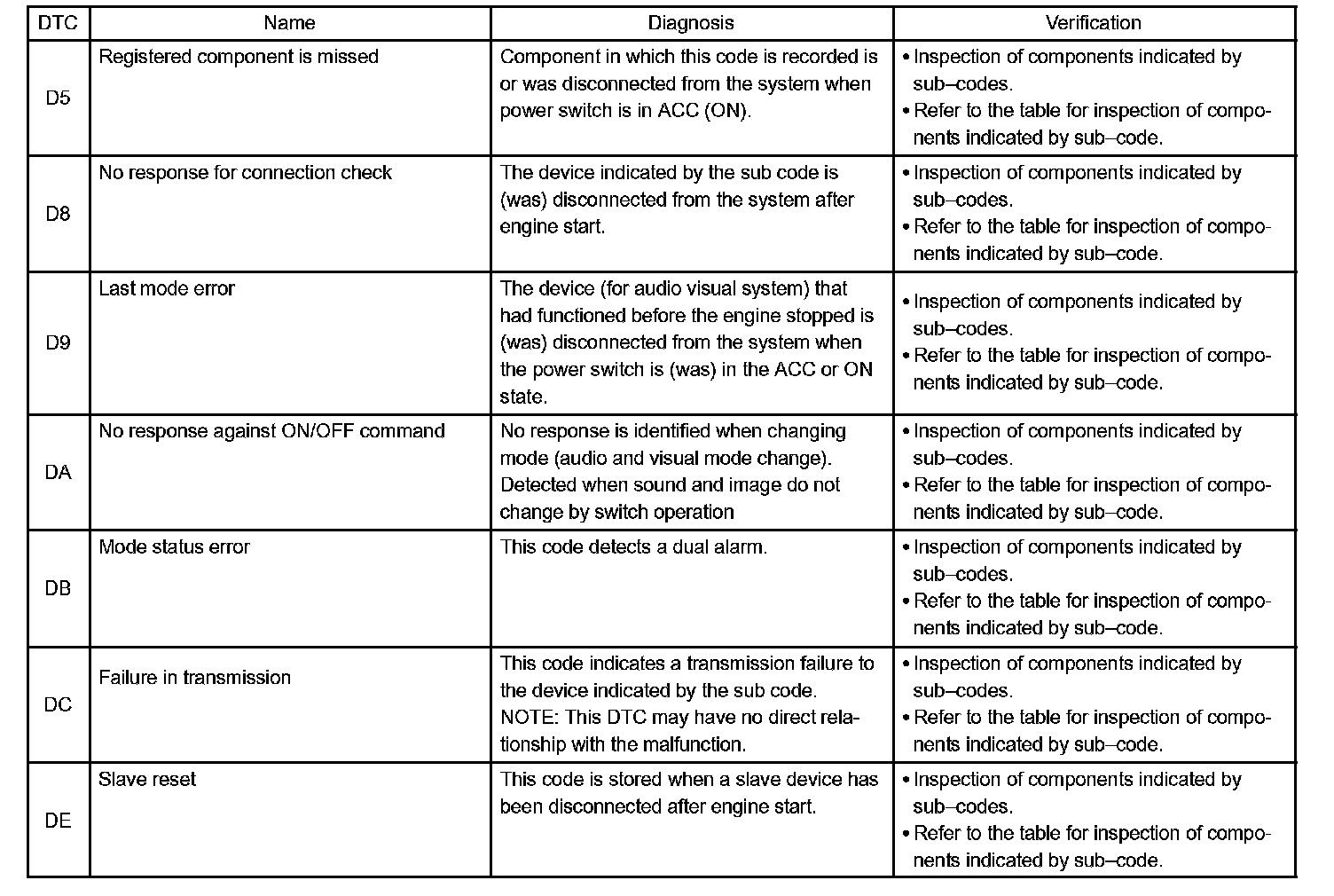

D5 - DE:

a. Logical address: 01 (Communication control)

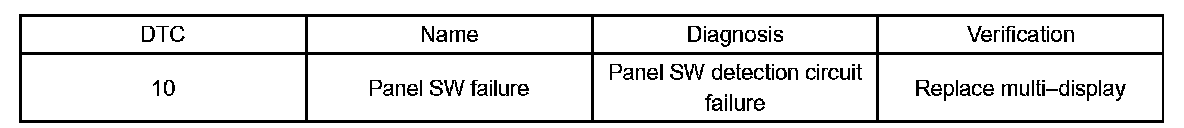

10:

b. Logical address: 21 (SW unit): 23 (SW with name unit): 24 (SW converting unit): 25 (command SW unit)

HINT: The numbers used to verify the cause of the problem are listed in order of probability in the verification column.

2. RADIO RECEIVER ASSY (PHYSICAL ADDRESS: 190) [AUDIO H/U]

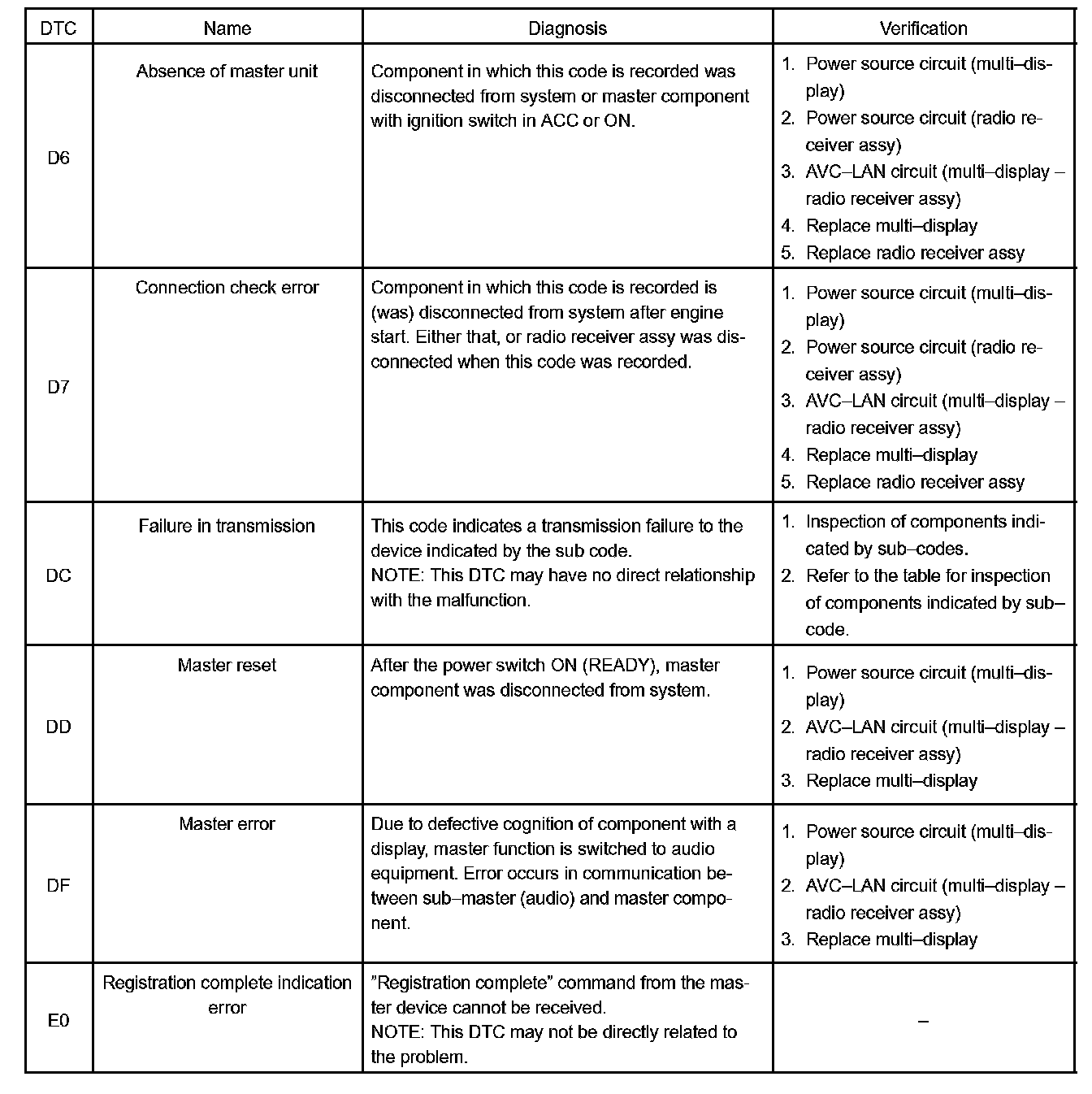

D6 - E0:

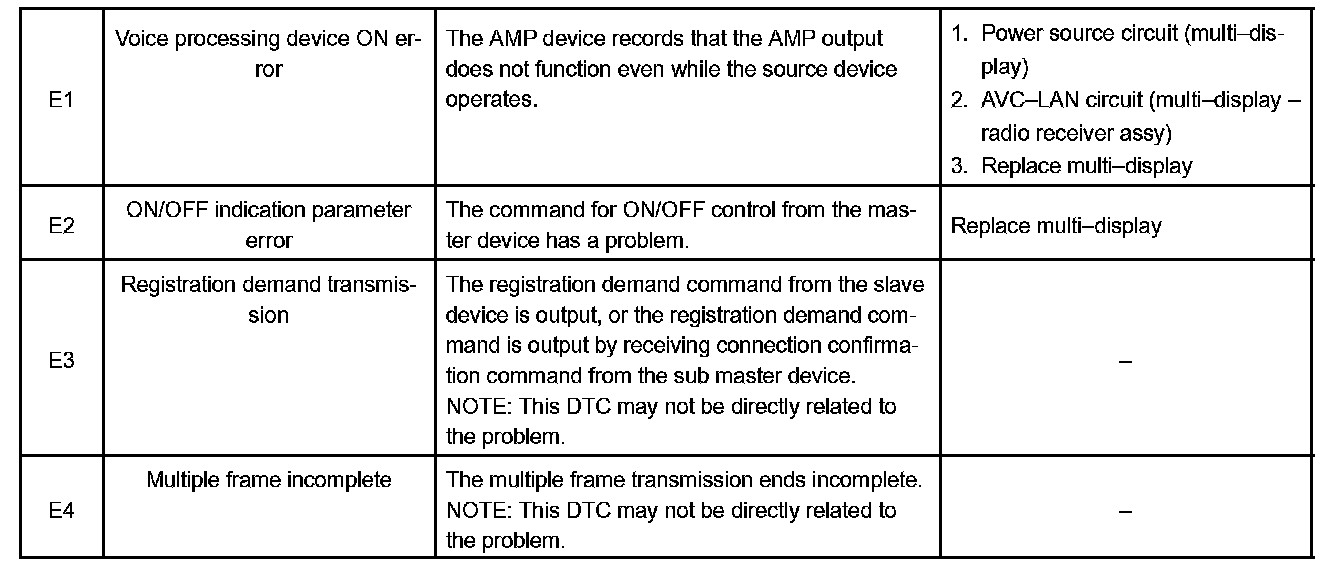

E1 - E4:

D5 - DE:

a. Logical address: 01 (Communication control)

HINT: The numbers used to verify the cause of the problem are listed in order of probability in the verification column.

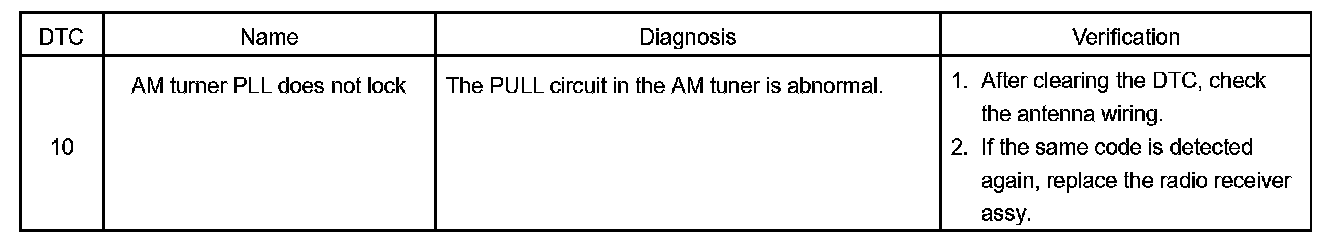

10:

11 - 45:

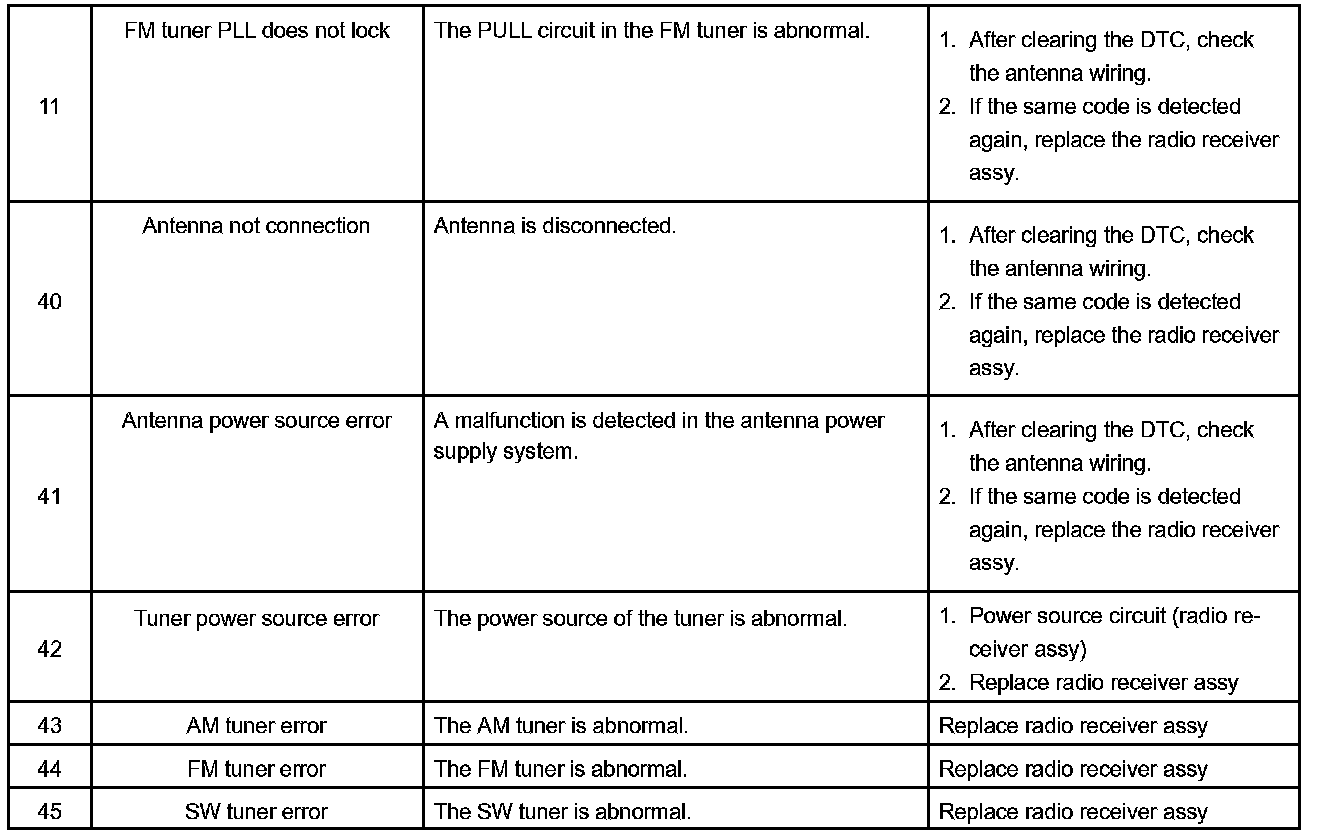

b. Logical address: 60 (Radio unit)

HINT: The numbers used to verify the cause of the problem are listed in order of probability in the verification column.

10 - 43:

45 - 52:

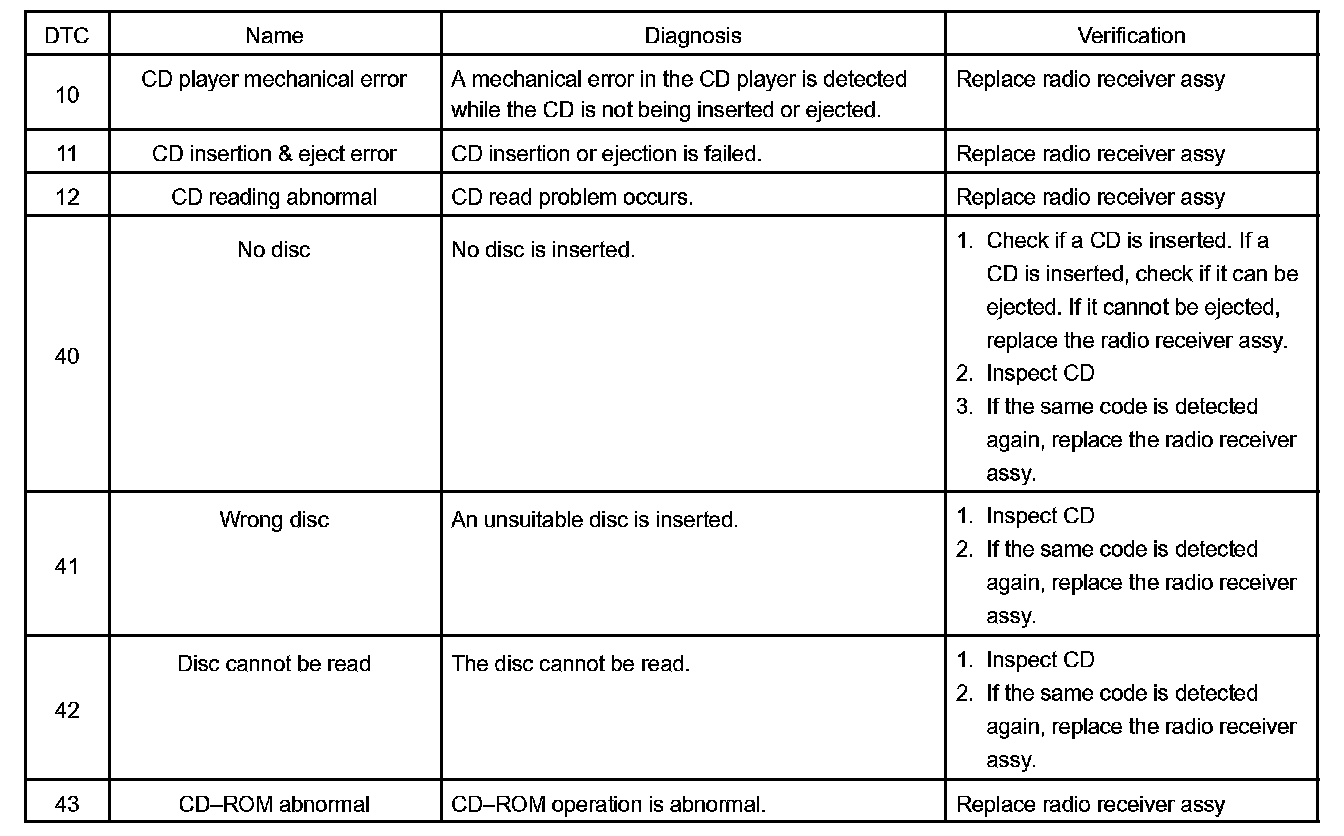

c. Logical address: 62 (CD unit): 63 (CD Changer unit)

HINT: The numbers used to verify the cause of the problem are listed in order of probability in the verification column.

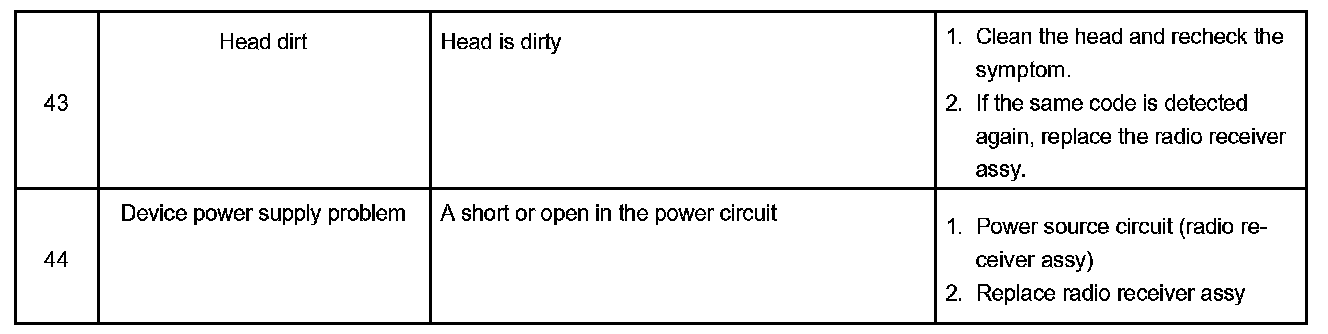

10 - 42:

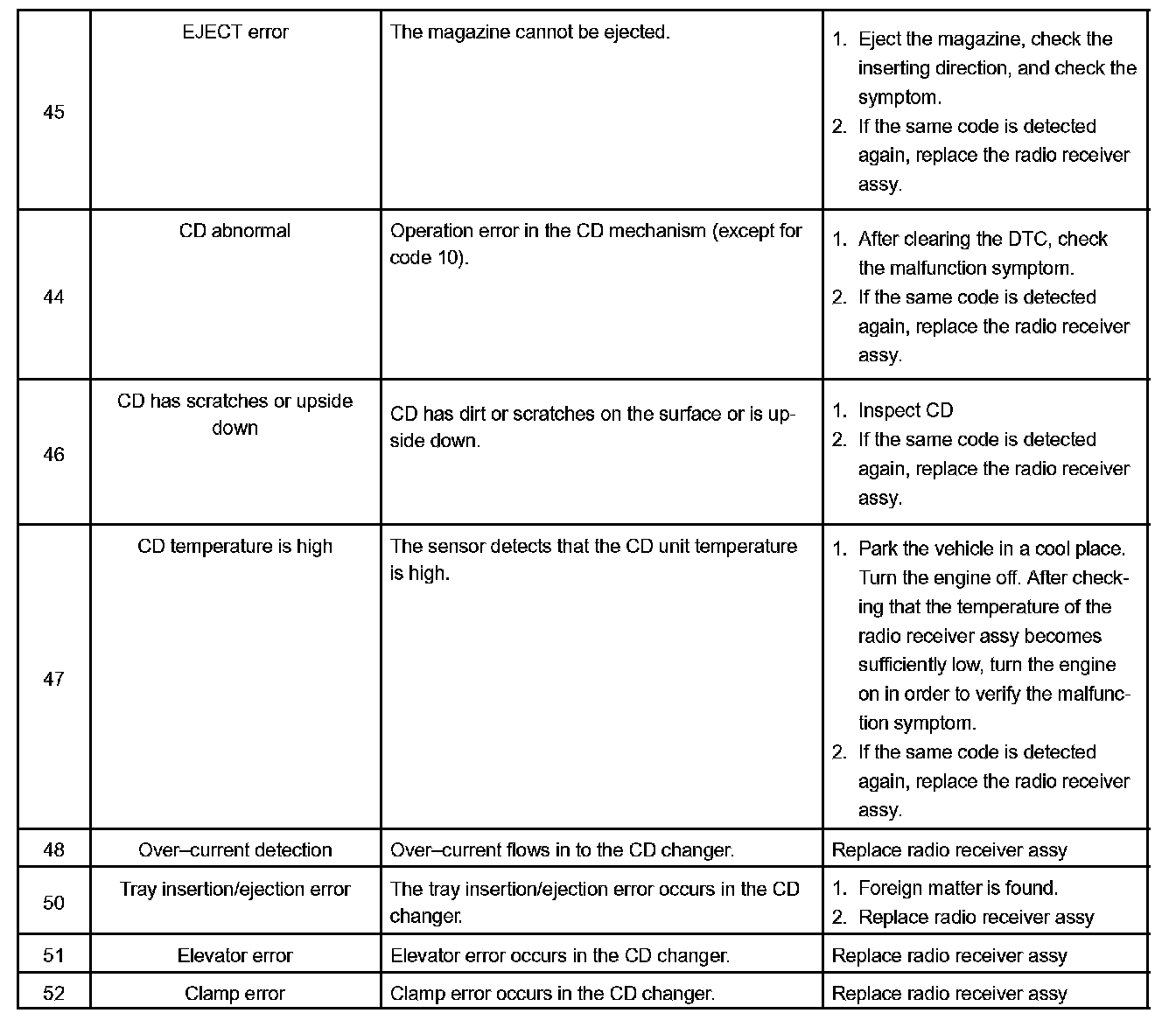

43 - 44:

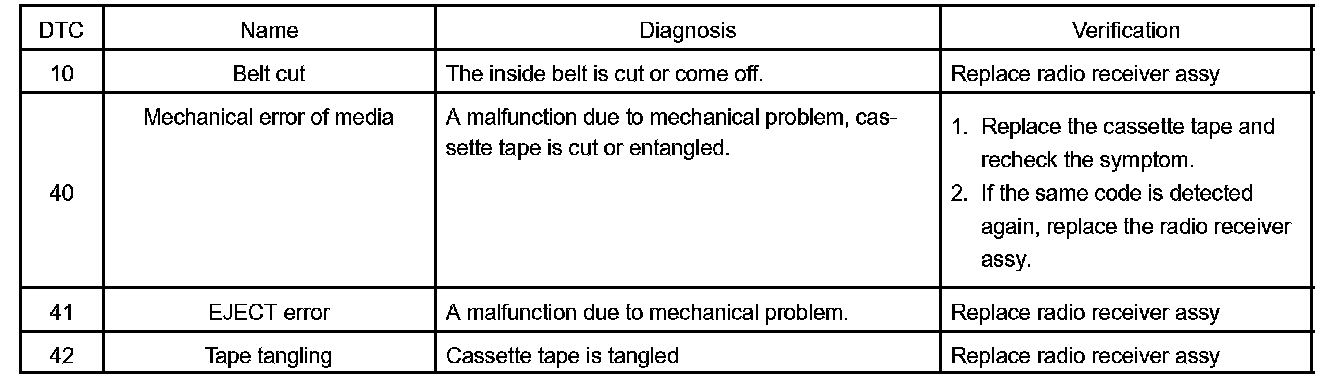

d. Logical address: 61 (Cassette unit):

HINT: The numbers used to verify the cause of the problem are listed in order of probability in the verification column.

3. GATEWAY ECU (PHYSICAL ADDRESS: 1C6) [G/W]

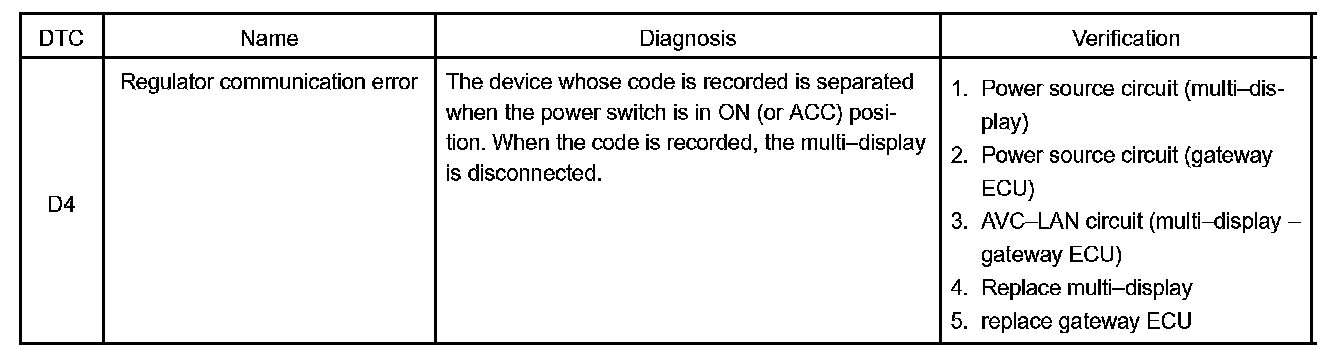

D4:

a. Logical address: 01 (Communication control)

HINT: The numbers used to verify the cause of the problem are listed in order of probability in the verification column.

4. STEREO COMPONENT AMPLIFIER ASSY (PHYSICAL ADDRESS: 440) [DSP AMP]

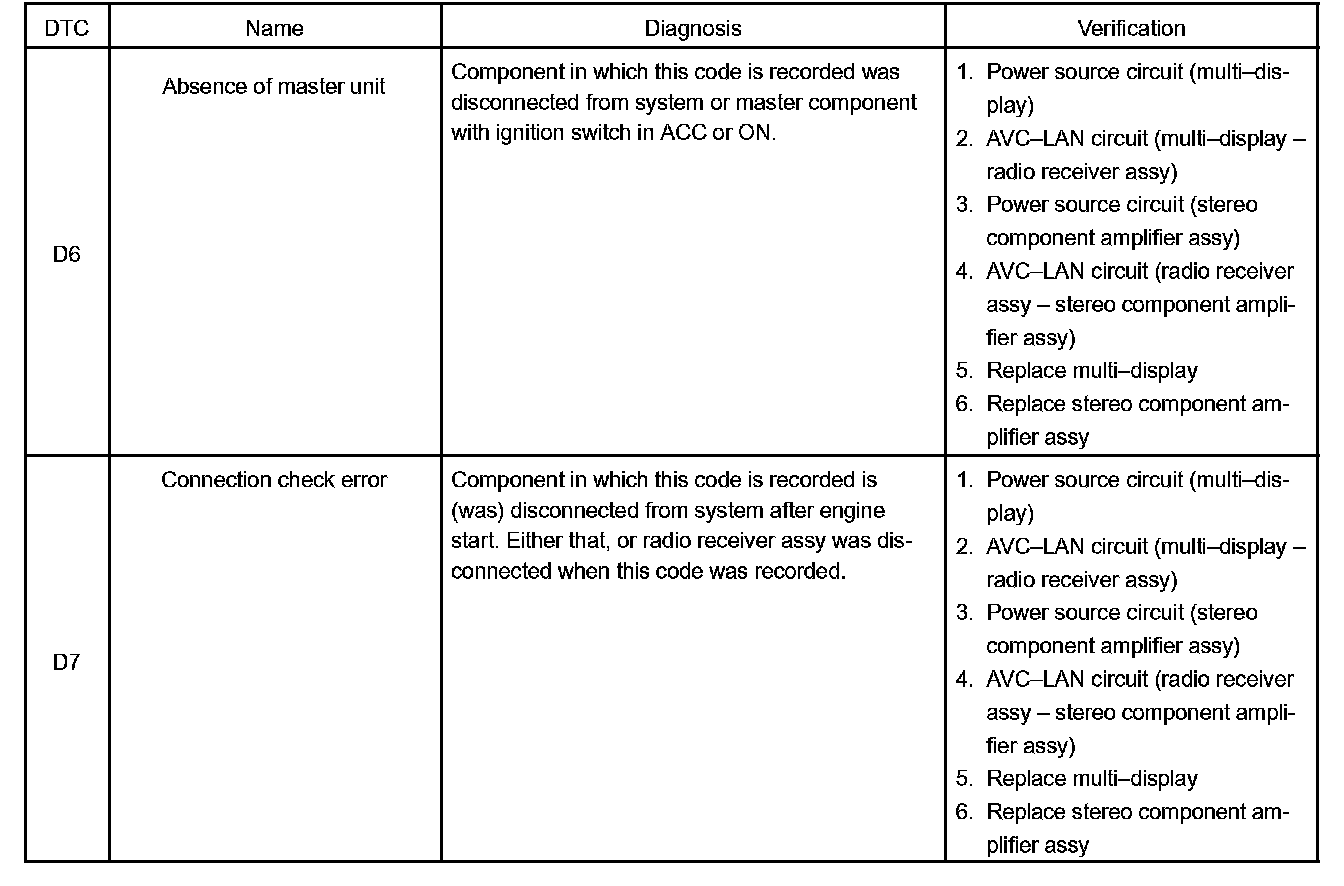

D6 - D7:

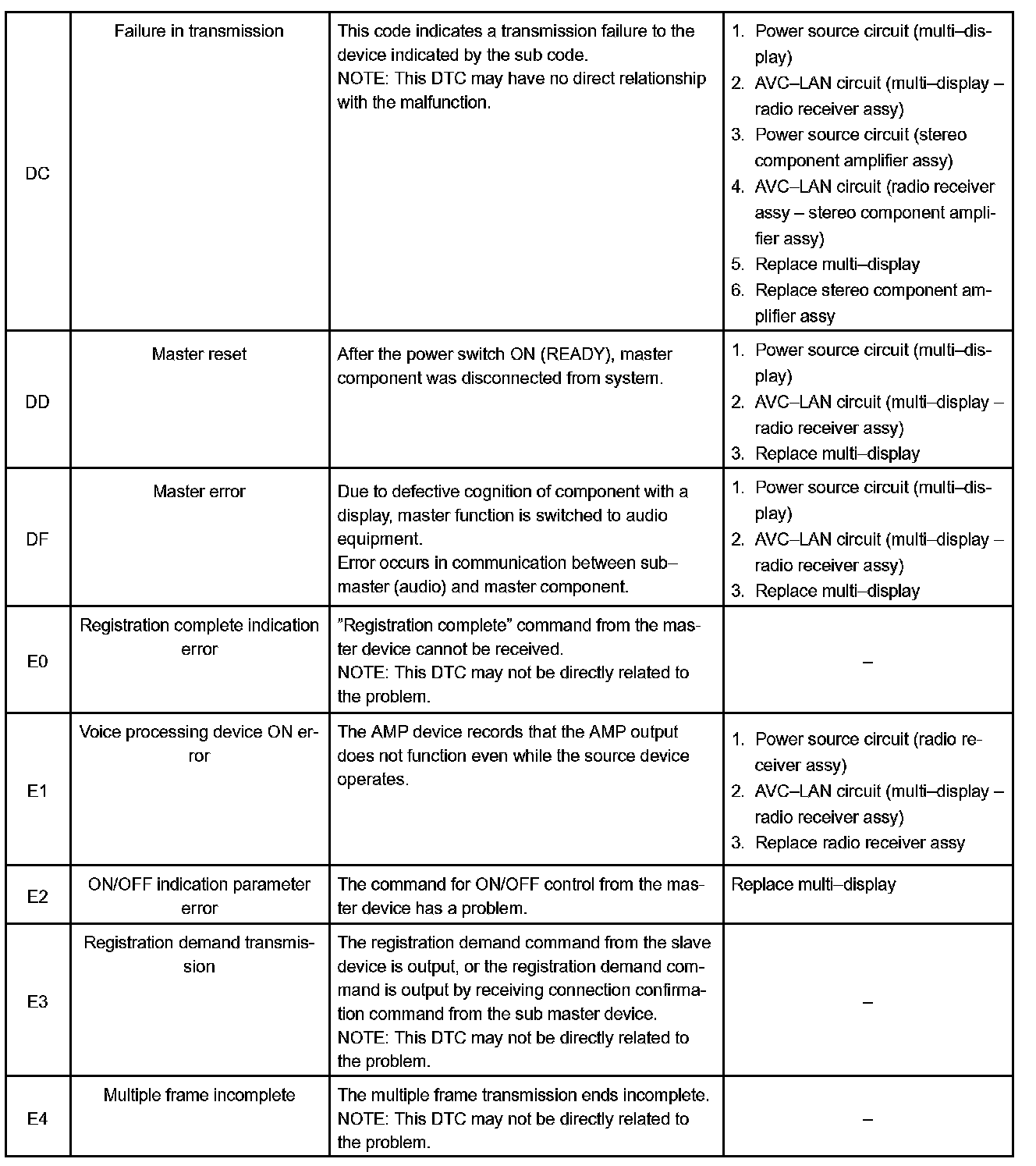

DC - E4:

a. Logical address: 01 (Communication control)

HINT: The numbers used to verify the cause of the problem are listed in order of probability in the verification column.

110 - 190:

106 - 440:

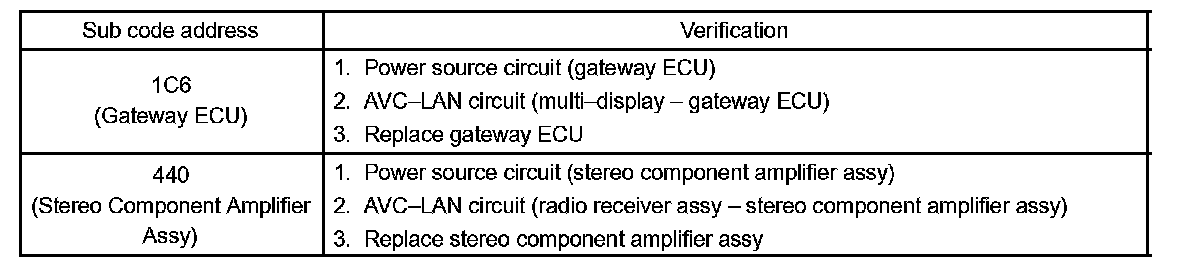

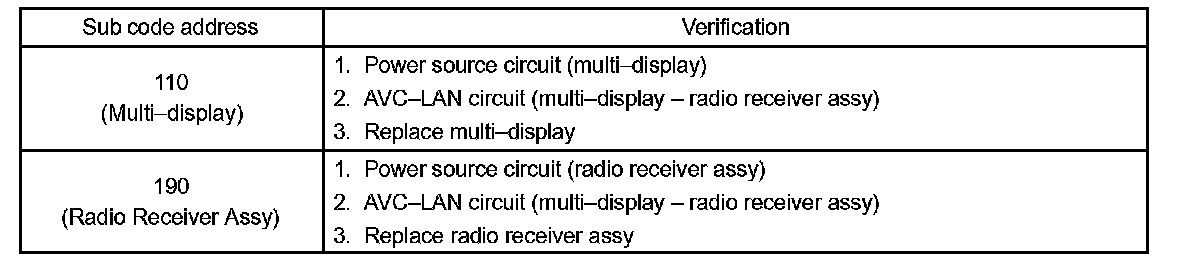

5. COMPONENT CHECK TABLE INDICATED BY SUB CODES

HINT: The numbers used to verify the cause of the problem are listed in order of probability in the verification column.
