Air Conditioning System

DTC 11 ROOM TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

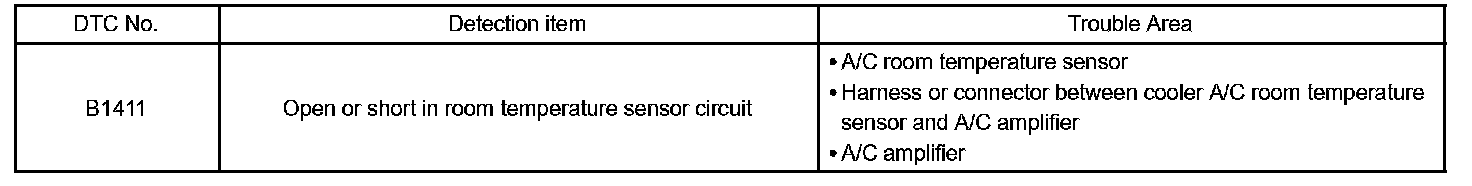

Detection Item:

The A/C room temperature sensor is installed in the instrument panel to detect the room temperature and control the heater and air conditioner "AUTO" function. The resistance of the A/C room temperature sensor changes in accordance with the room temperature. As the temperature decreases, the resistance increases. As the temperature increases, the resistance decreases.

The A/C amplifier applies voltage (5 V) to the A/C room temperature sensor and reads voltage changes as the resistance of the A/C room temperature sensor changes. This sensor also sends appropriate signals to the A/C amplifier. The room temperature sensor is integrated with the room humidity sensor.

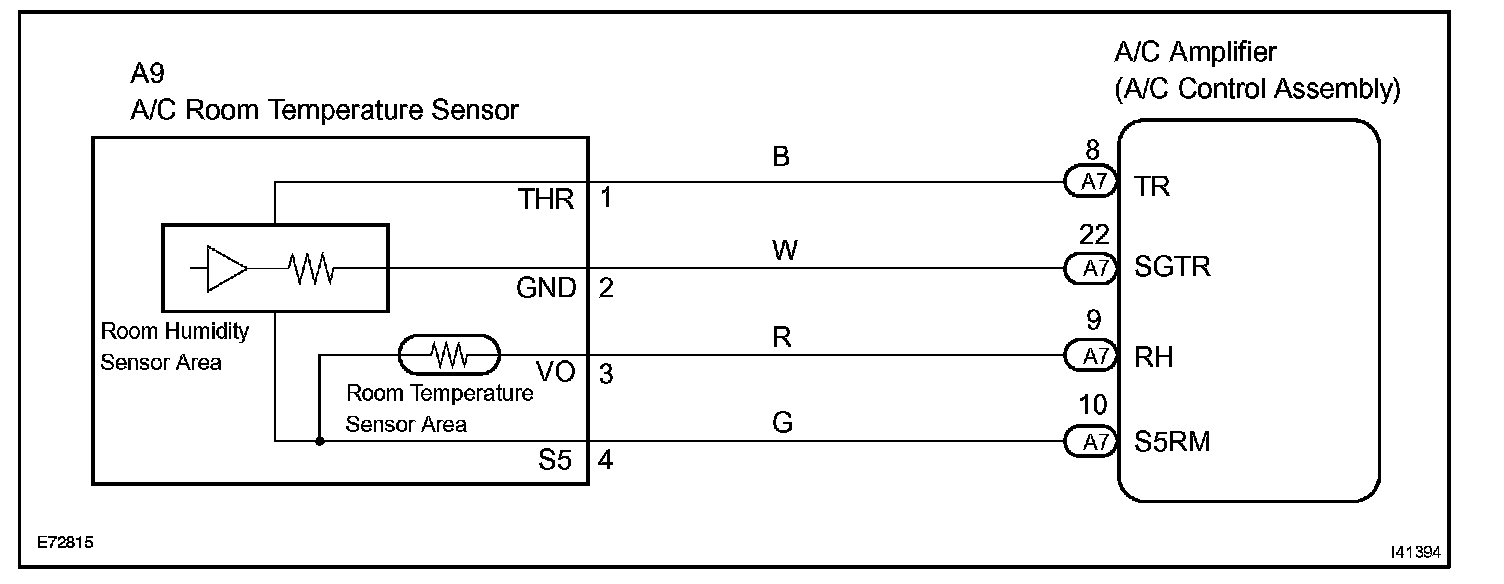

Wiring Diagram:

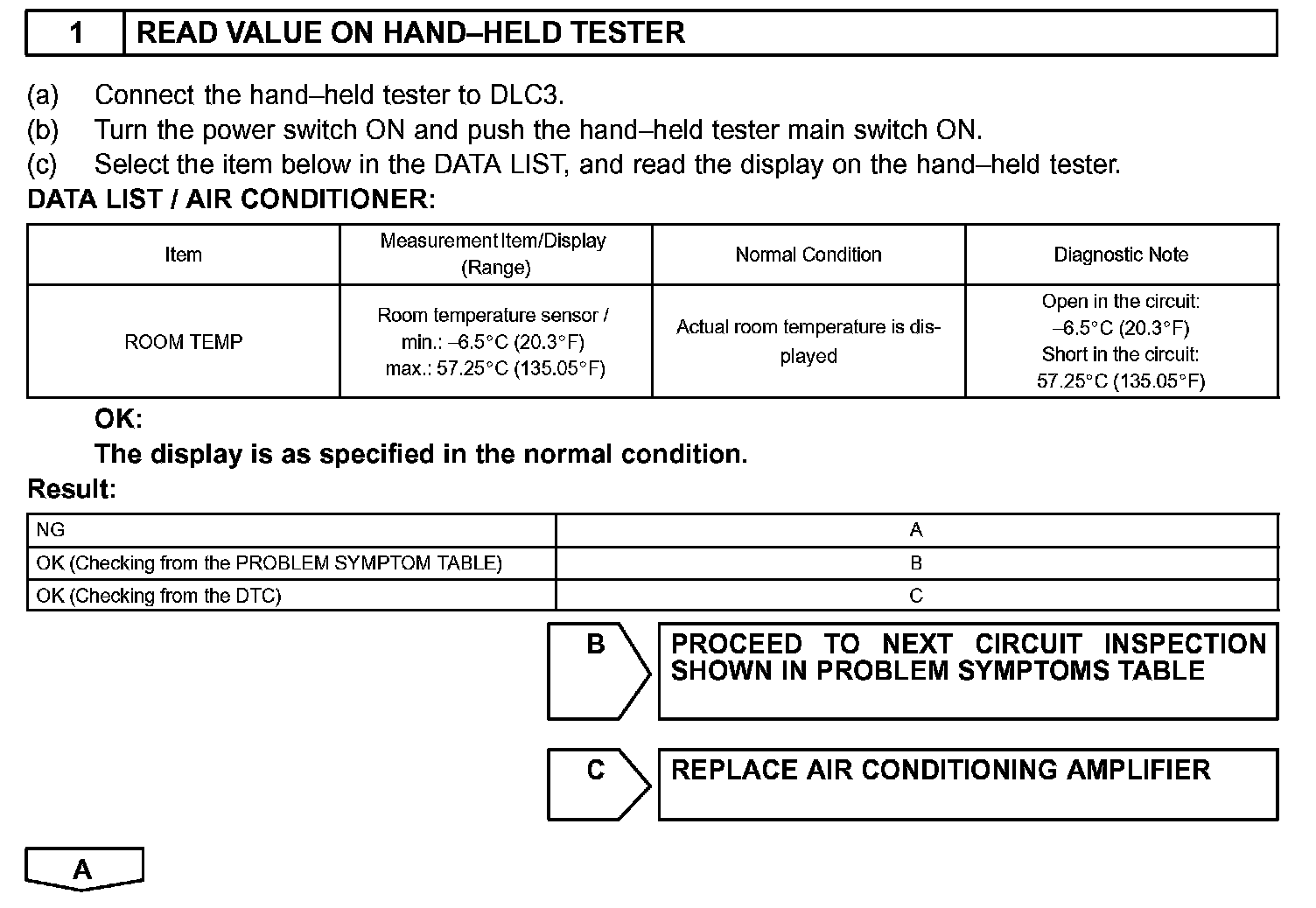

Step 1:

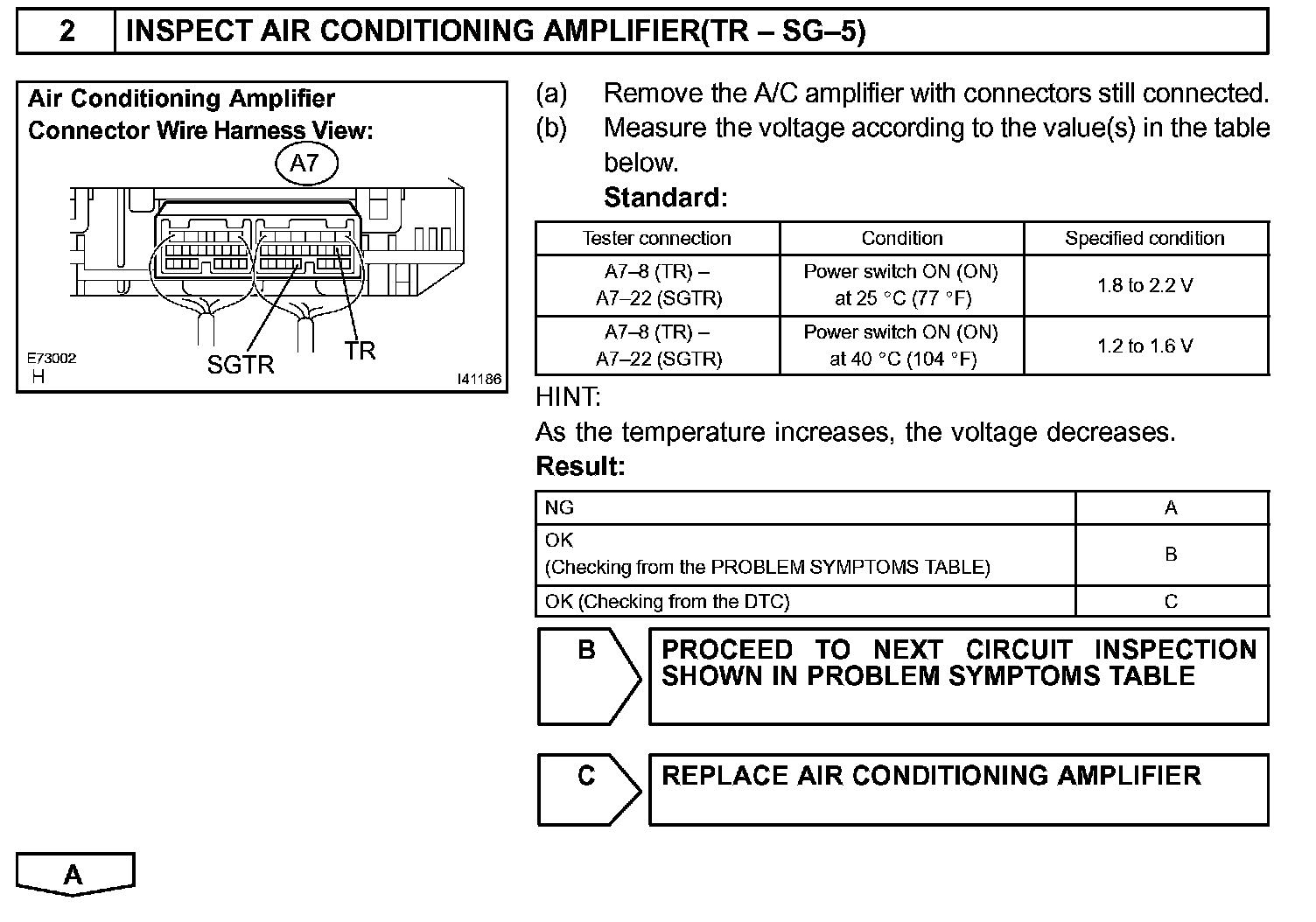

Step 2:

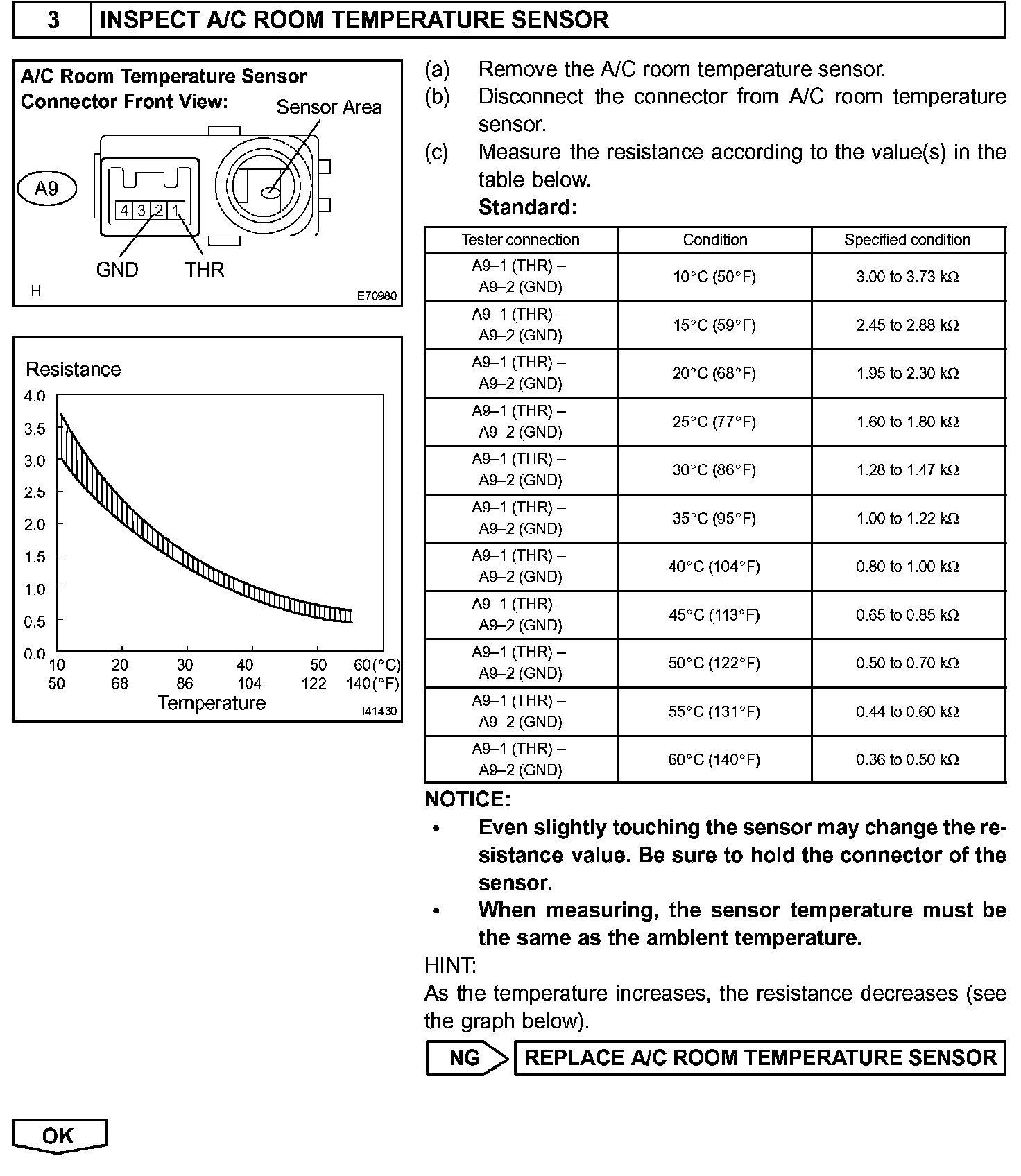

Step 3:

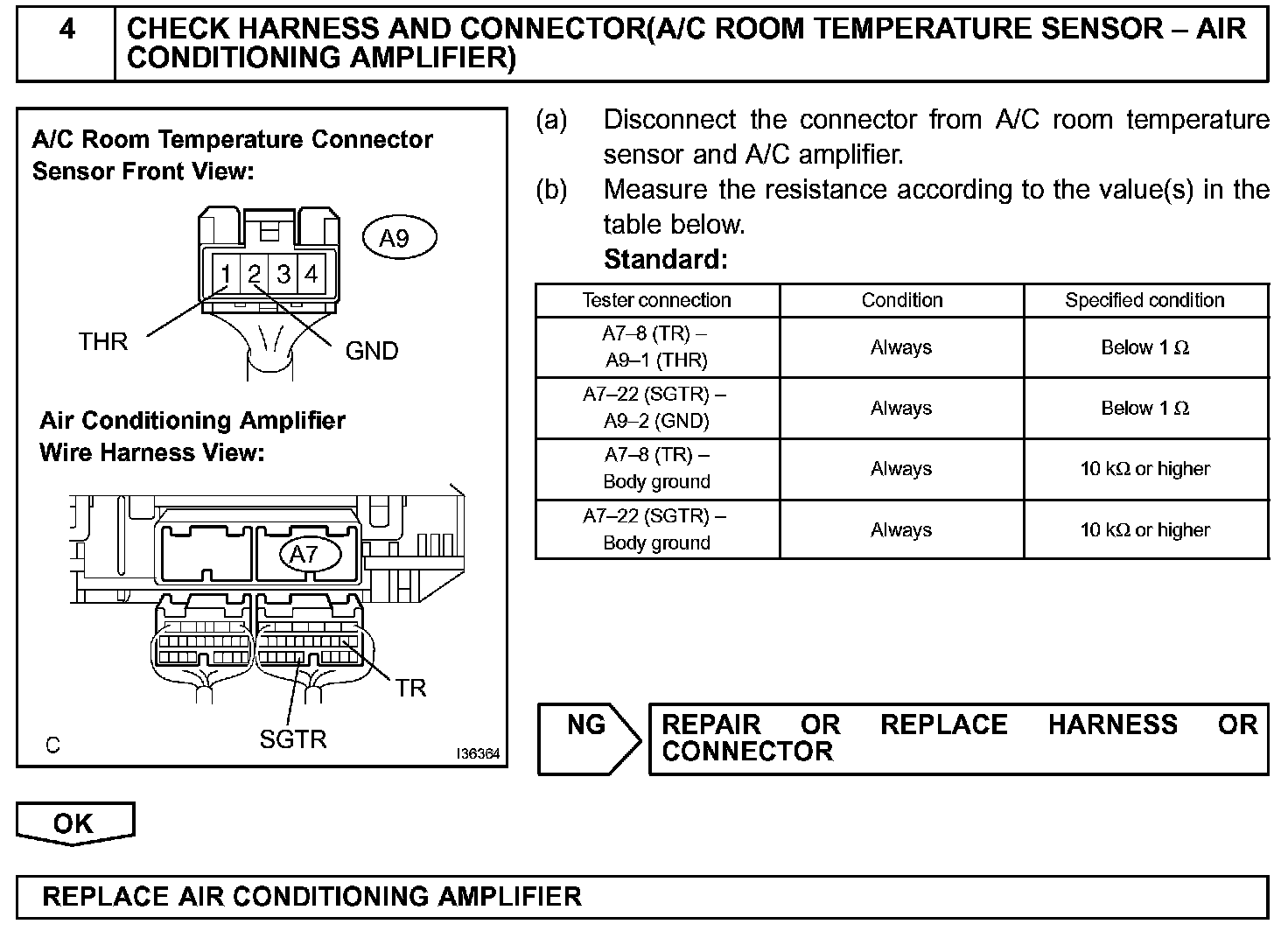

Step 4:

INSPECTION PROCEDURE
