Air Conditioning System

DTC 43 AIR OUTLET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

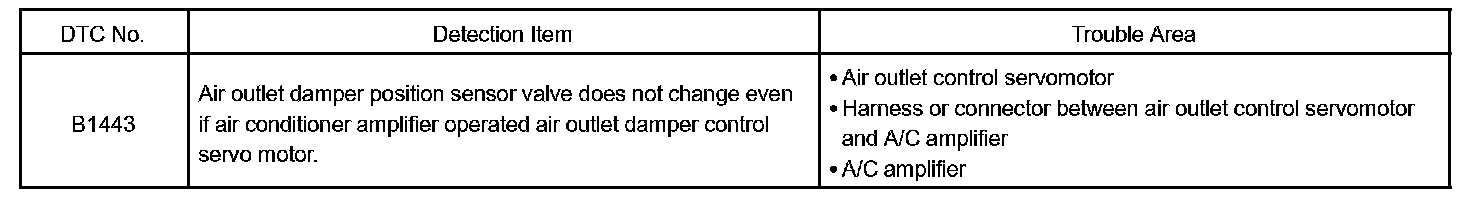

Detection Item:

This circuit turns the servomotor and changes each damper position by receiving the signals from the A/C amplifier assembly.

The air outlet damper servo switches the air outlet by rotating the motor (normal, reverse) with electrical power from the A/C amplifier. When the AUTO switch is on, the A/C amplifier changes the mode between "FACE", "BI-LEVEL" and "FOOT" according to the temperature setting.

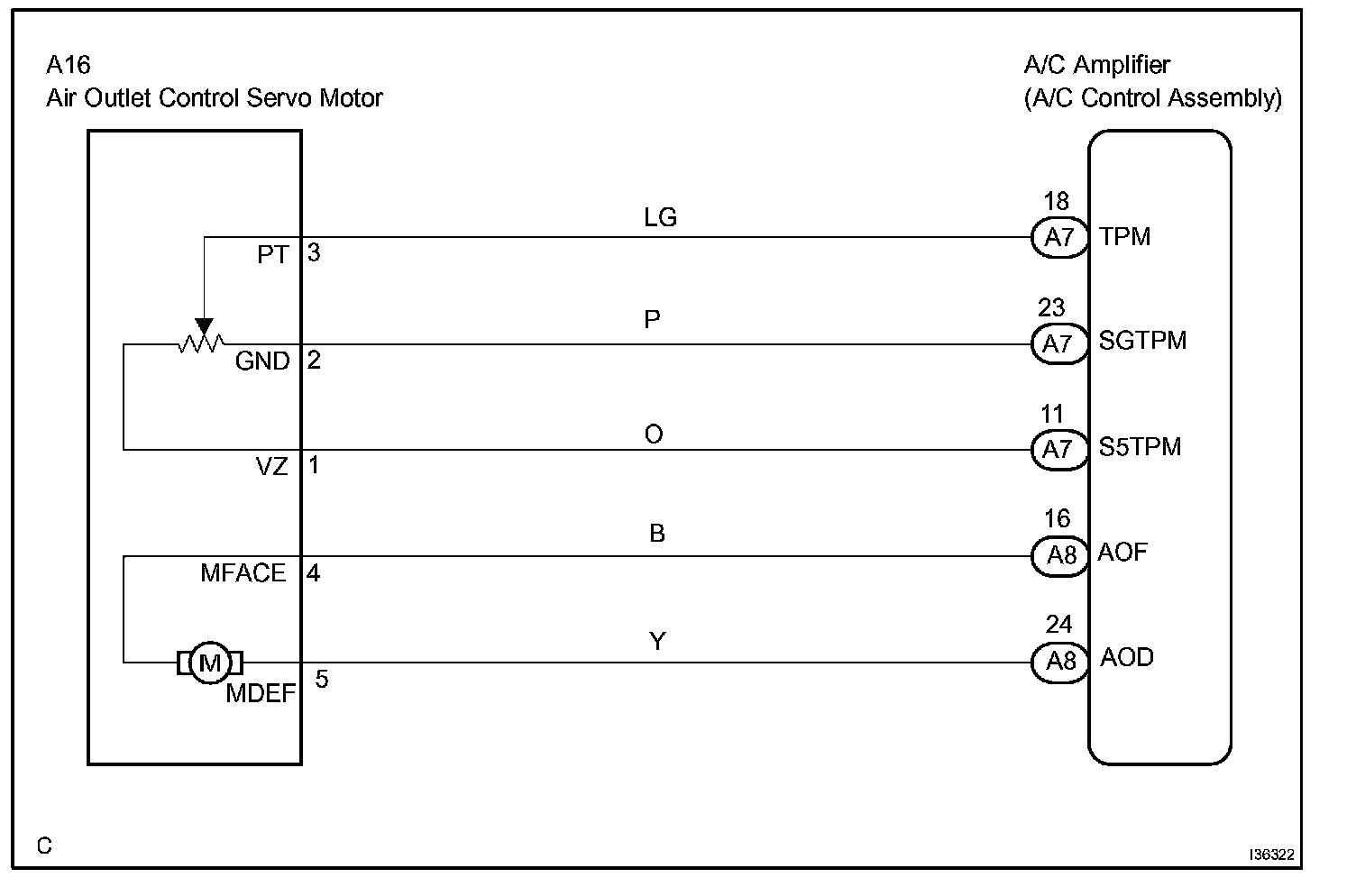

Wiring Diagram:

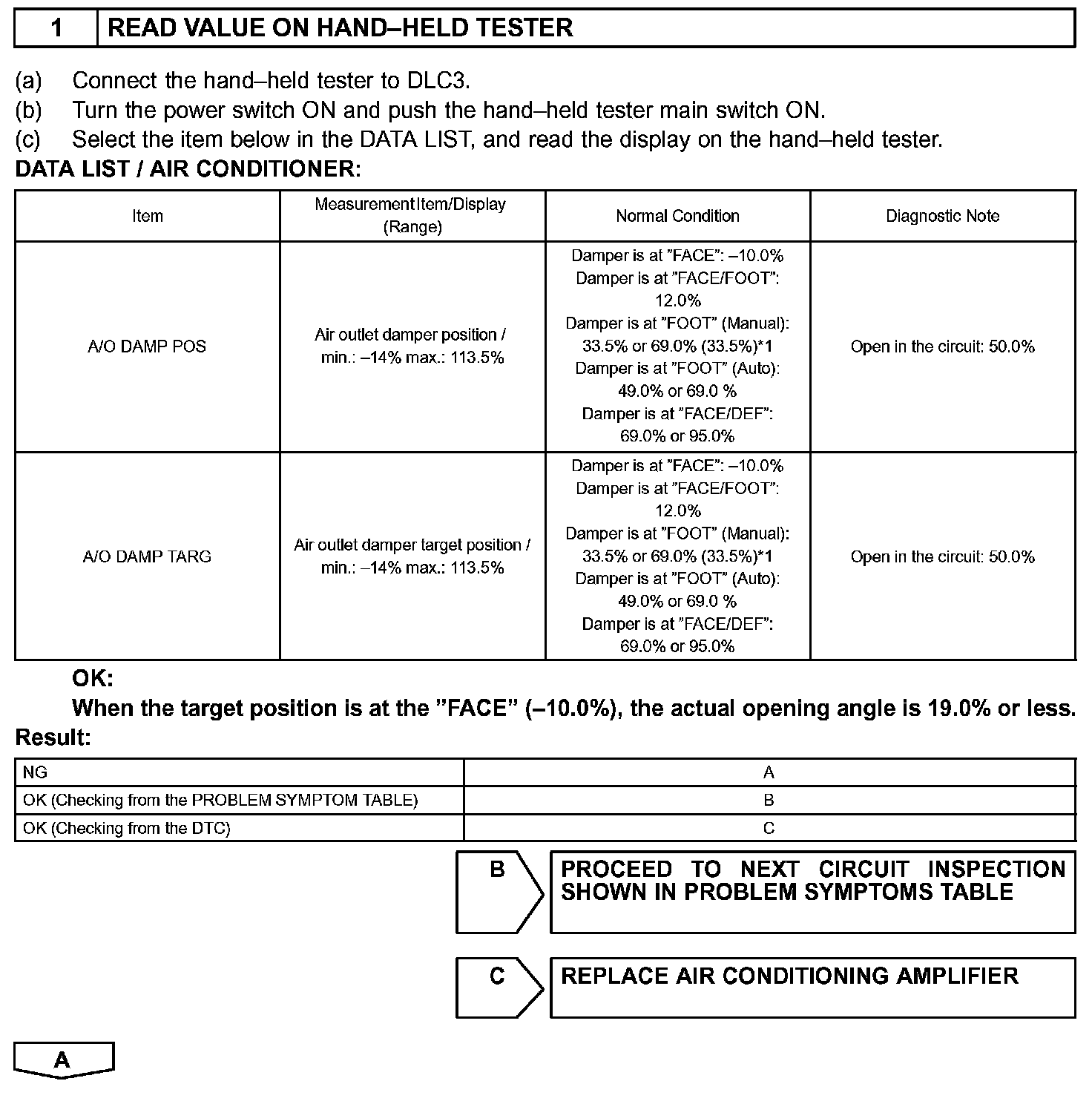

Step 1:

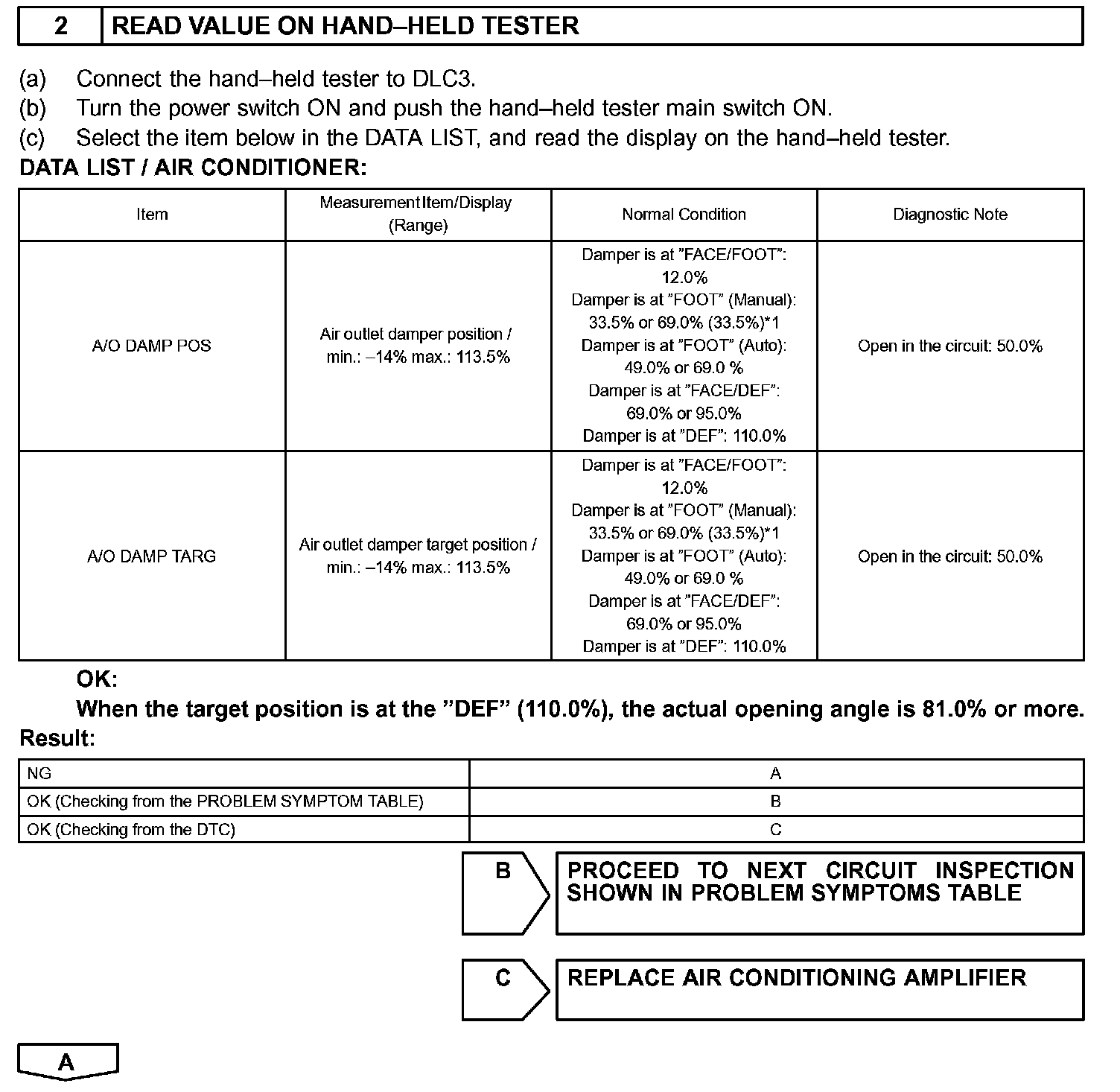

Step 2:

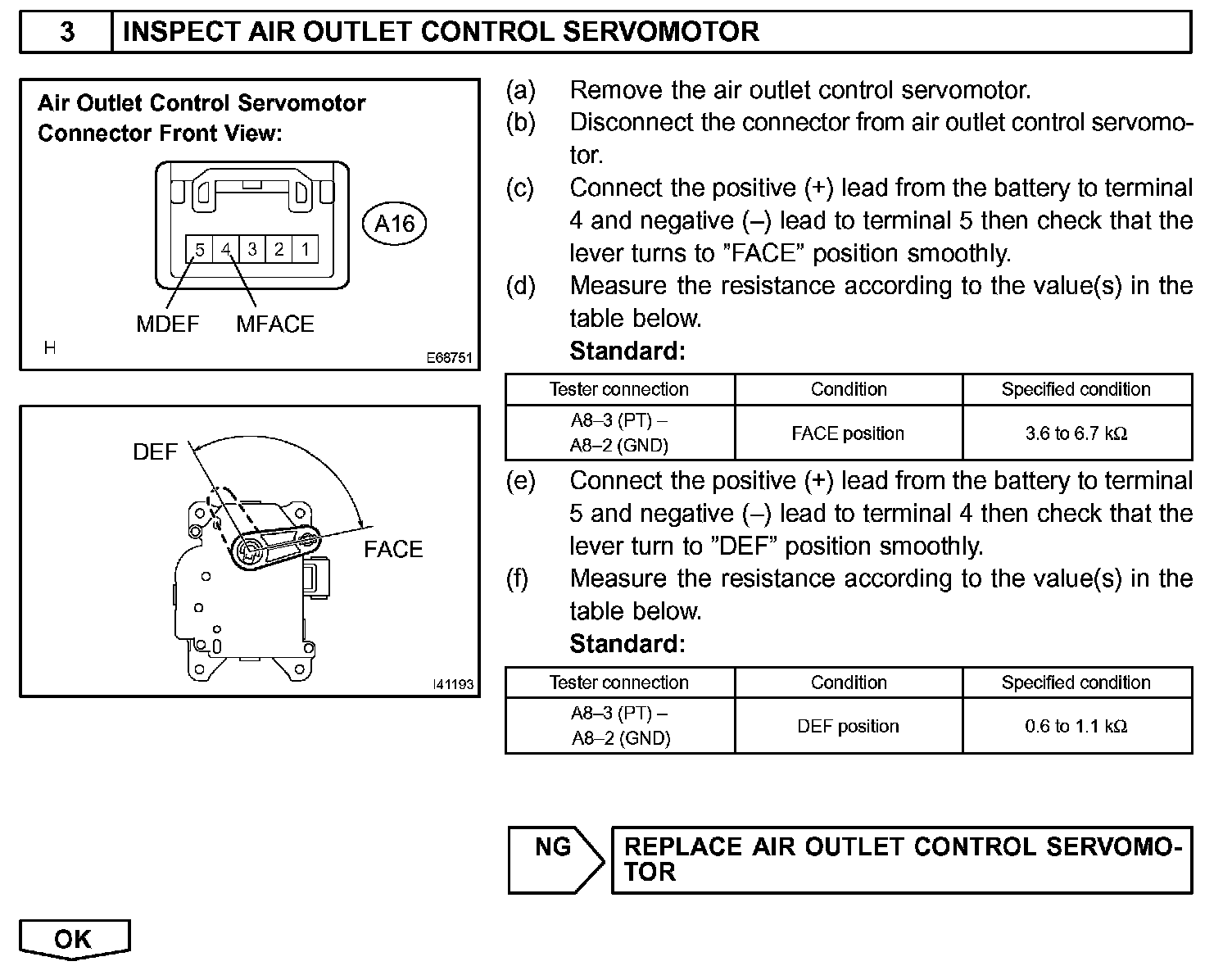

Step 3:

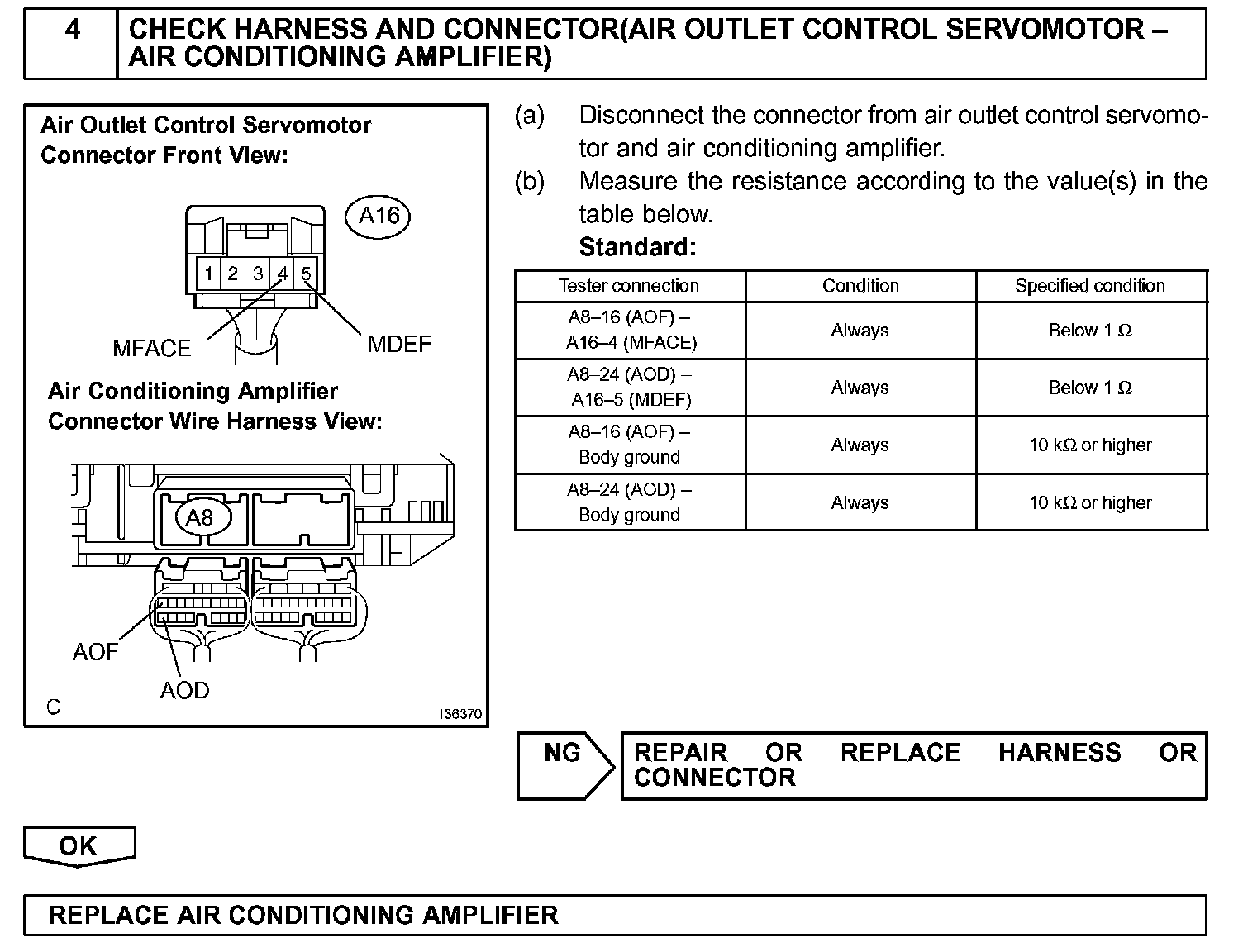

Step 4:

INSPECTION PROCEDURE
