DTC 47

DTC 47 MALFUNCTION IN STROKE SENSOR

CIRCUIT DESCRIPTION




The stroke sensor inputs the pedal stroke into the skid control ECU.

Wiring Diagram:

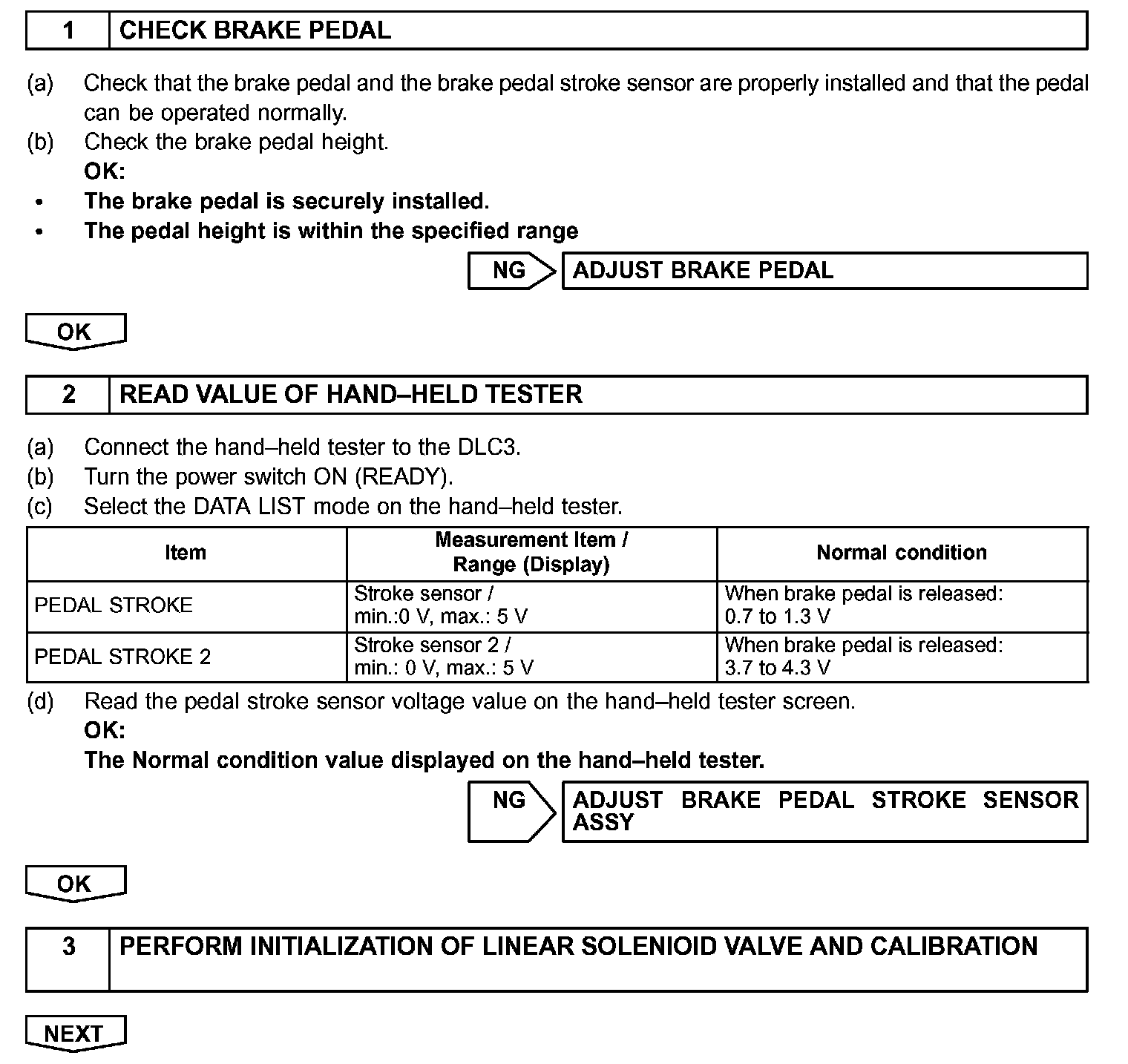

Step 1 - 3:

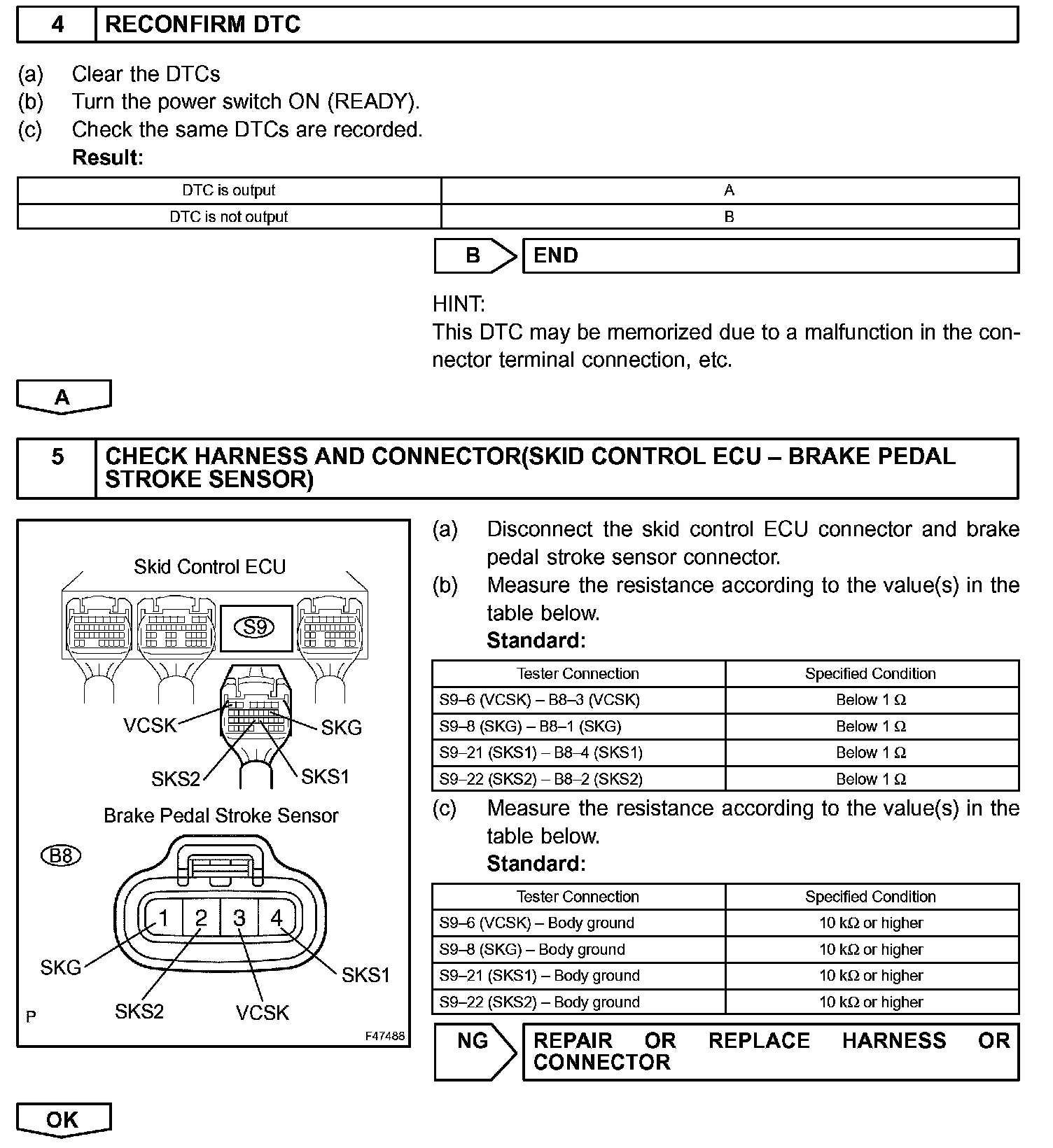

Step 4 - 5:

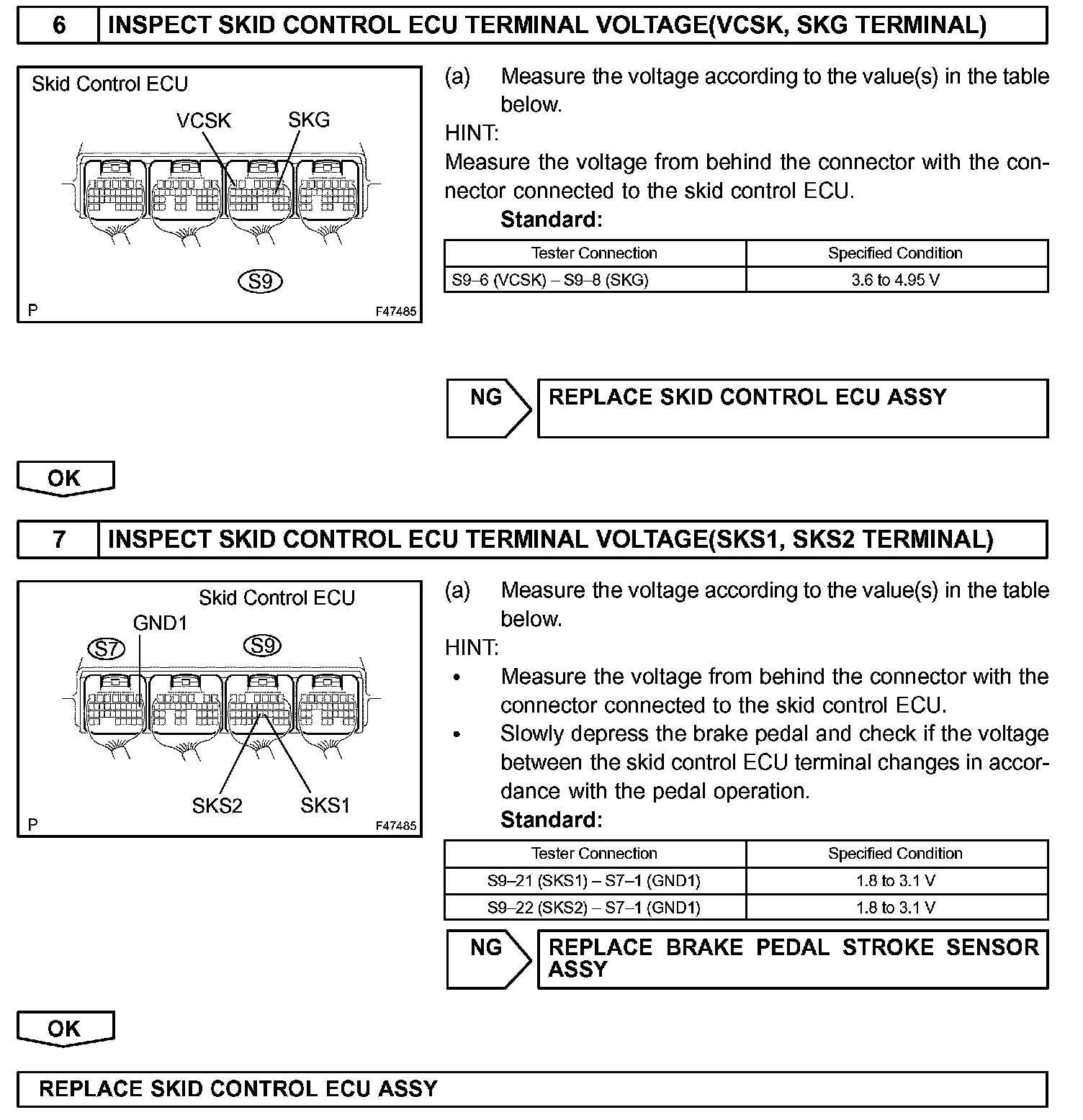

Step 6 - 7:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU assy, perform initialization of linear solenoid valve and calibration.
