Air Conditioning System

DTC 62 ROOM HUMIDITY SENSOR CIRCUIT

CIRCUIT DESCRIPTION

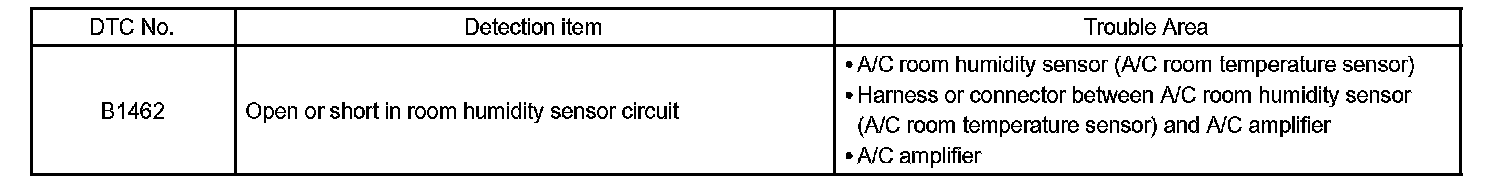

Detection Item:

The A/C room humidity sensor detects room humidity. The voltage of the A/C room humidity sensor changes in accordance with room humidity. The A/C amplifier reads changes in the A/C room humidity sensor. The A/C room humidity sensor is integrated with A/C room temperature sensor.

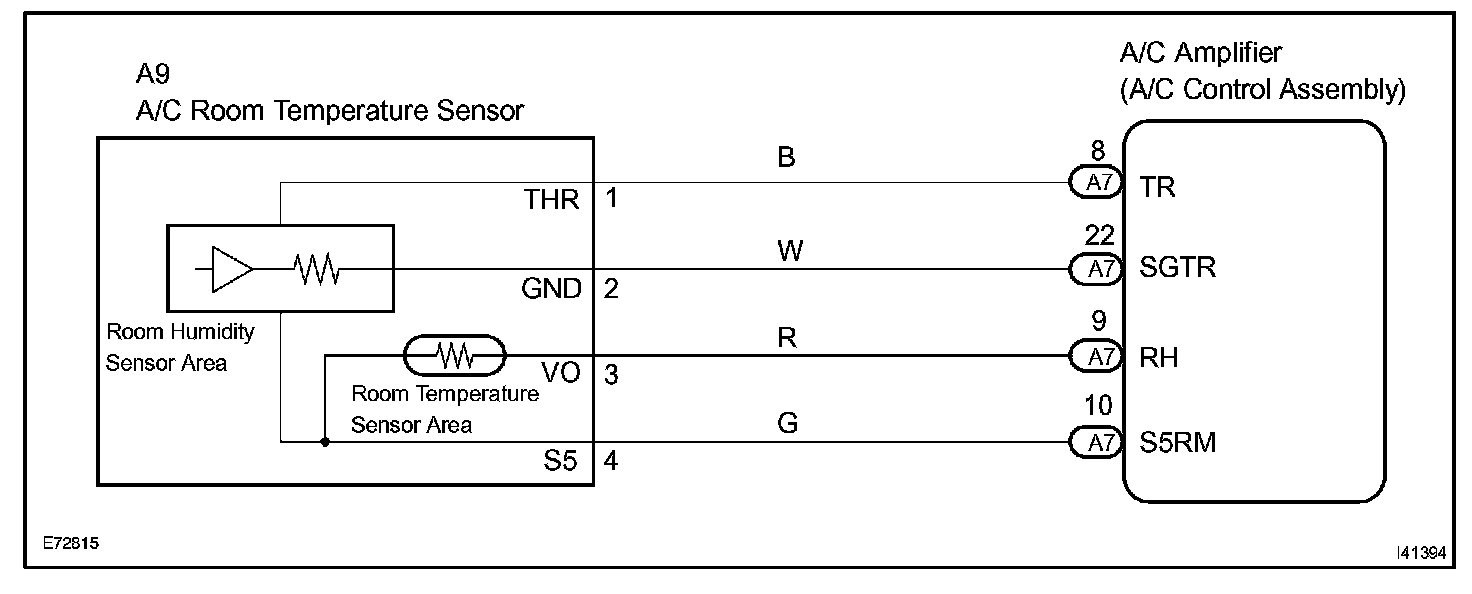

Wiring Diagram:

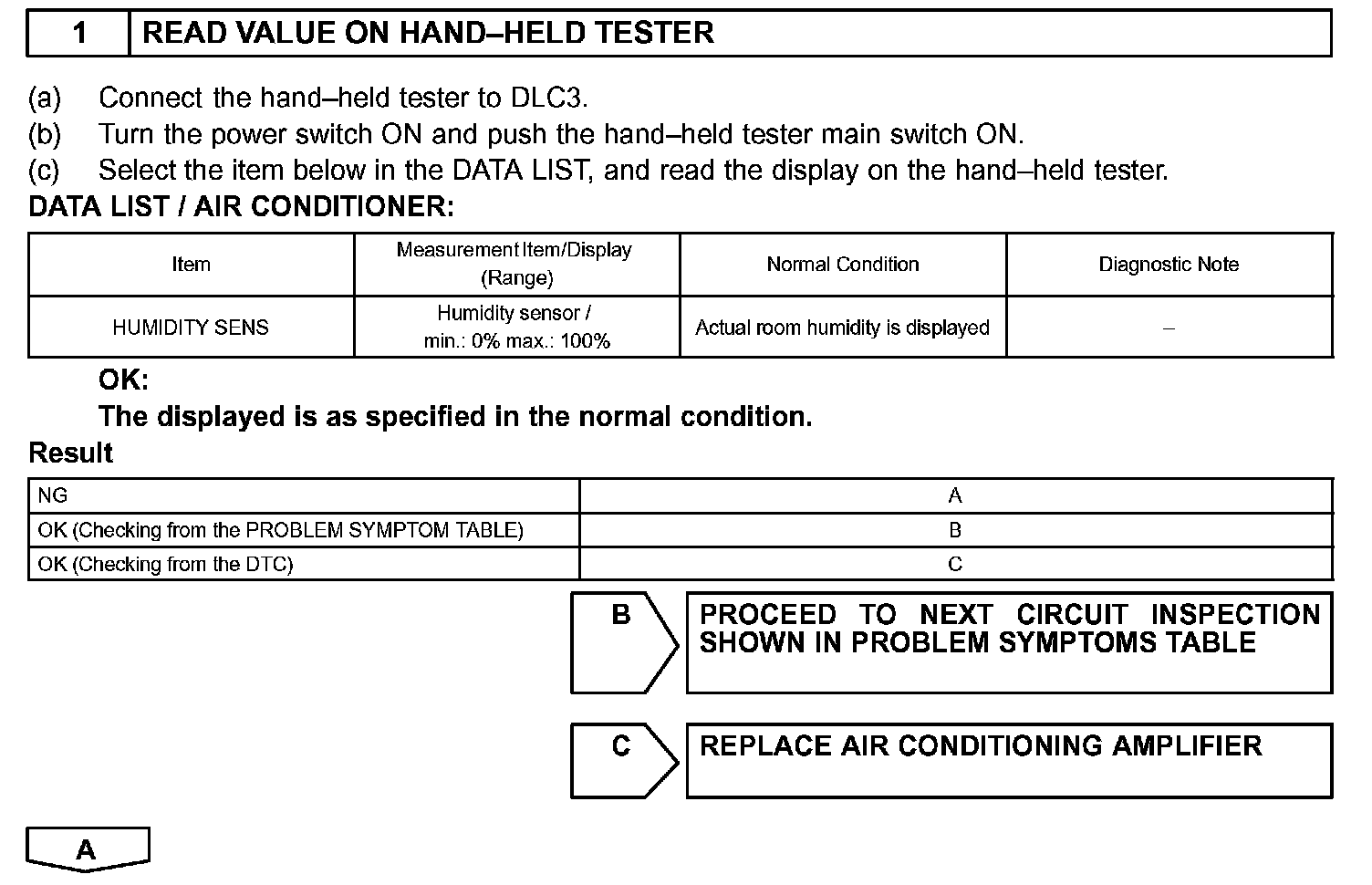

Step 1:

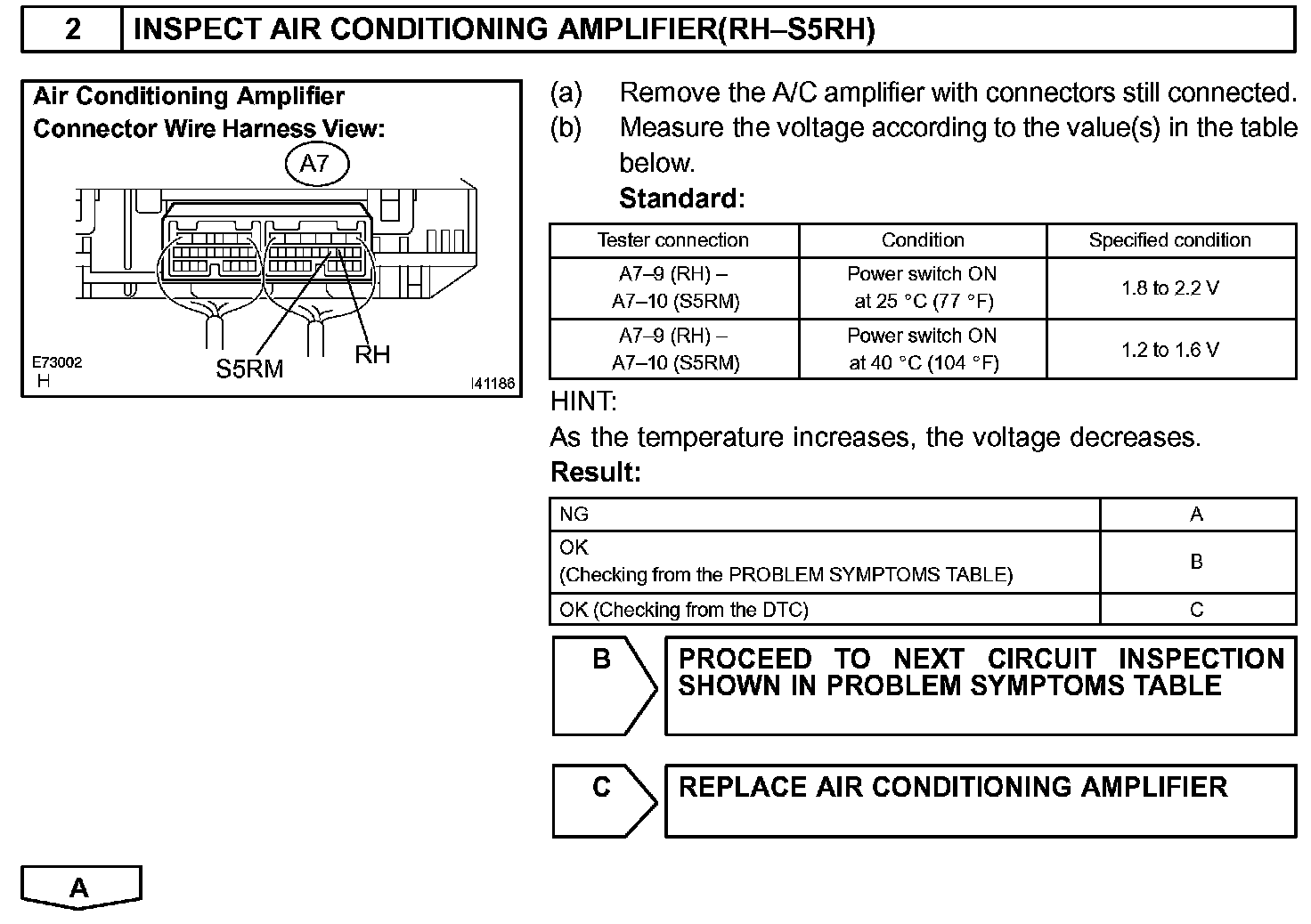

Step 2:

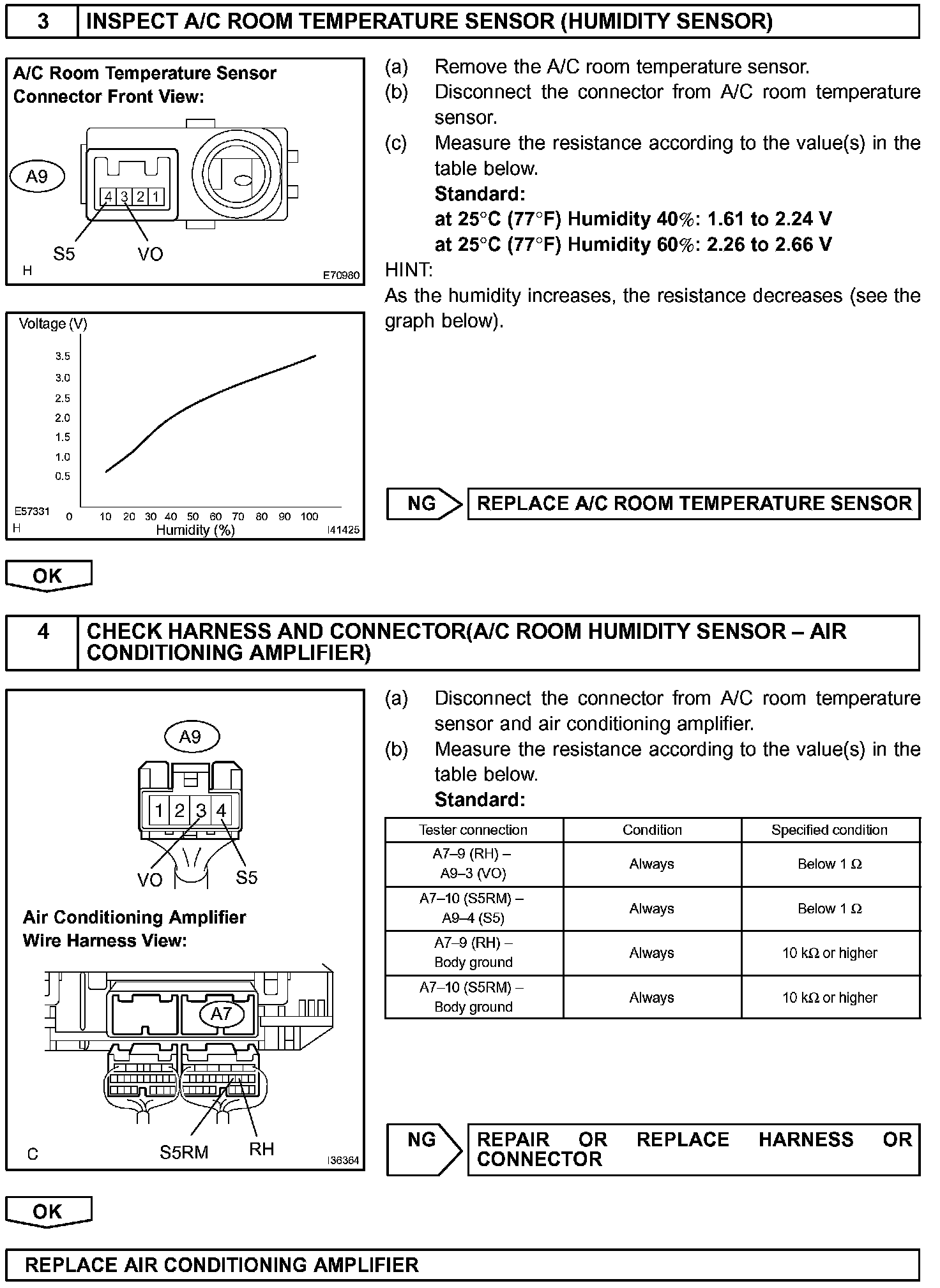

Step 3 - 4:

INSPECTION PROCEDURE
