Battery Energy Control Module

DTC 123 BATTERY ENERGY CONTROL MODULE

CIRCUIT DESCRIPTION

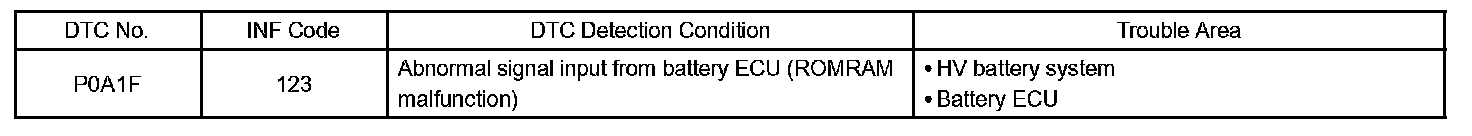

DTC Detection Condition:

Based on a malfunction signal received from the battery ECU, the HV control ECU alerts the driver and effects fail-safe control.

MONITOR DESCRIPTION

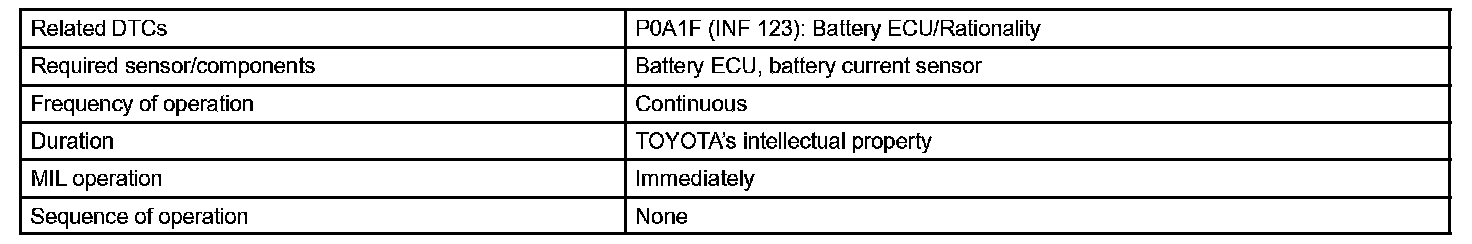

Monitor Strategy:

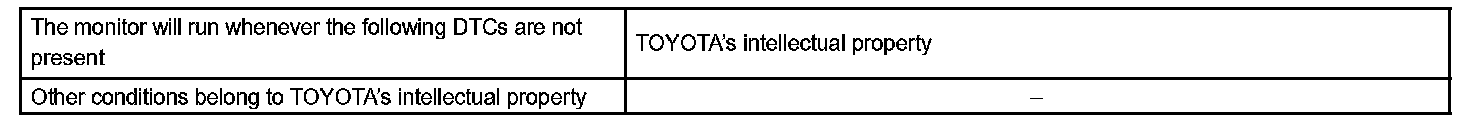

Typical Enabling Conditions:

Typical Malfunction Thresholds:

Component Operating Range:

Upon receiving an abnormal signal input from the battery ECU, the HV control ECU illuminates the MIL and sets a DTC.

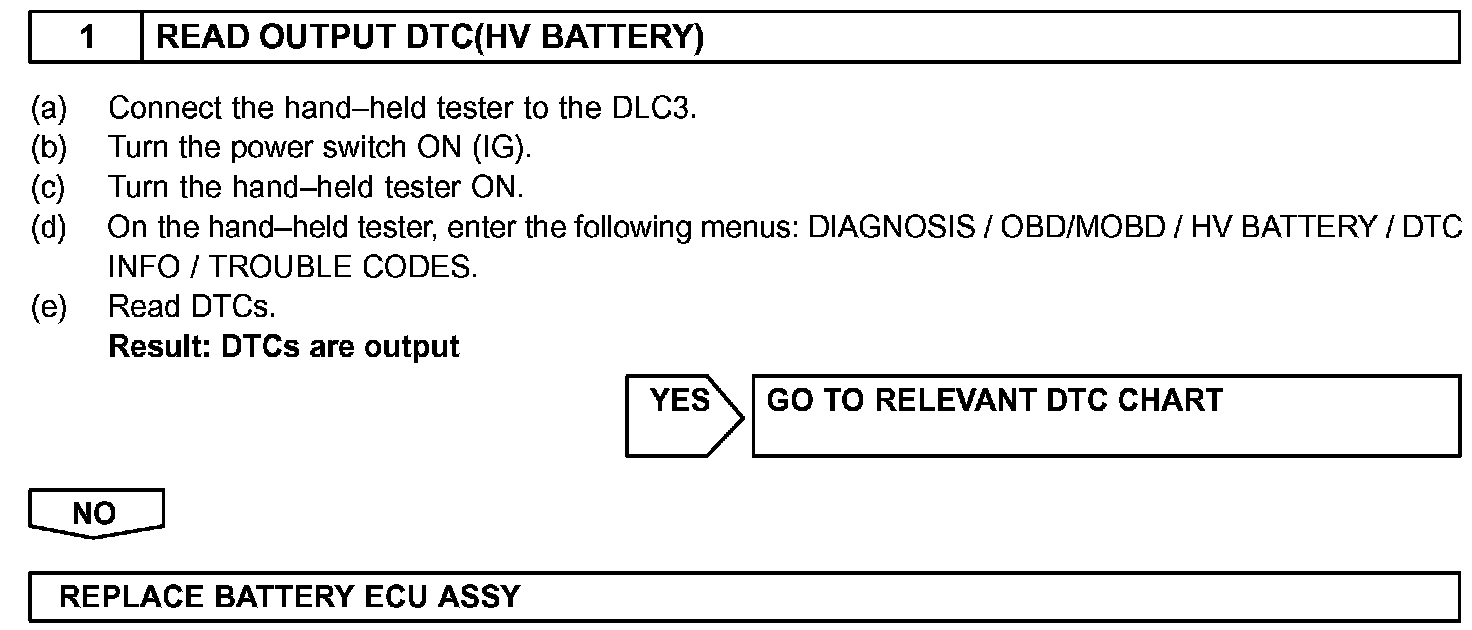

INSPECTION PROCEDURE

HINT: After repairing the malfunction, restart the system (to turn the READY lamp ON) and recheck the DTC.
