P0343

DTC P0343 CAMSHAFT POSITION SENSOR "A" CIRCUIT HIGH INPUT

CIRCUIT DESCRIPTION

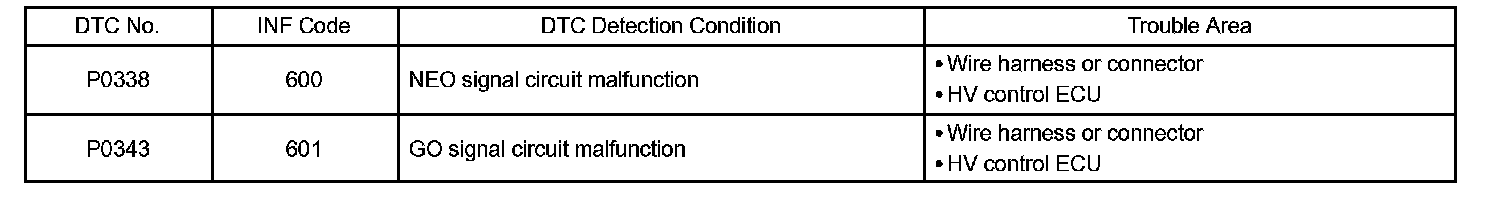

DTC Detection Condition:

If there is any malfunction in the communication values or pulse inputs, the HV control ECU detects it by comparing the following three speeds: the engine speed transmitted by the ECM via CAN (Controller Area Network) communication, the engine speed obtained through pulse inputs, and the engine speed calculated from the MG1 and MG2 speeds.

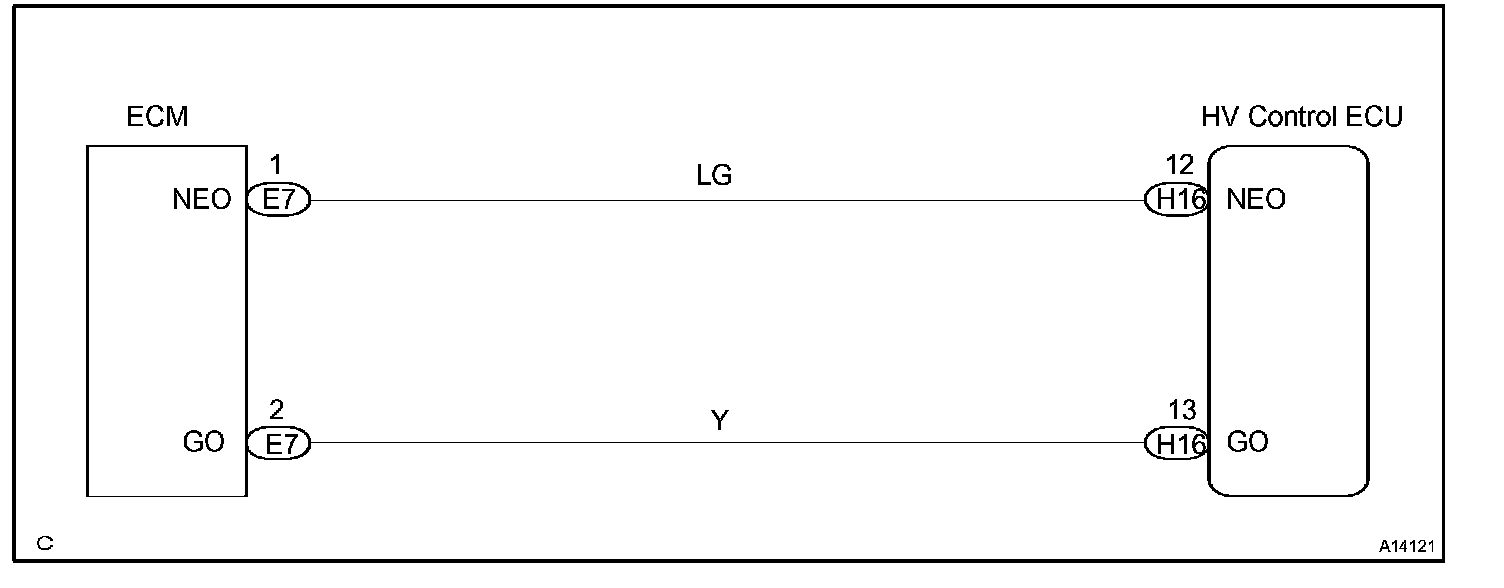

Wiring Diagram:

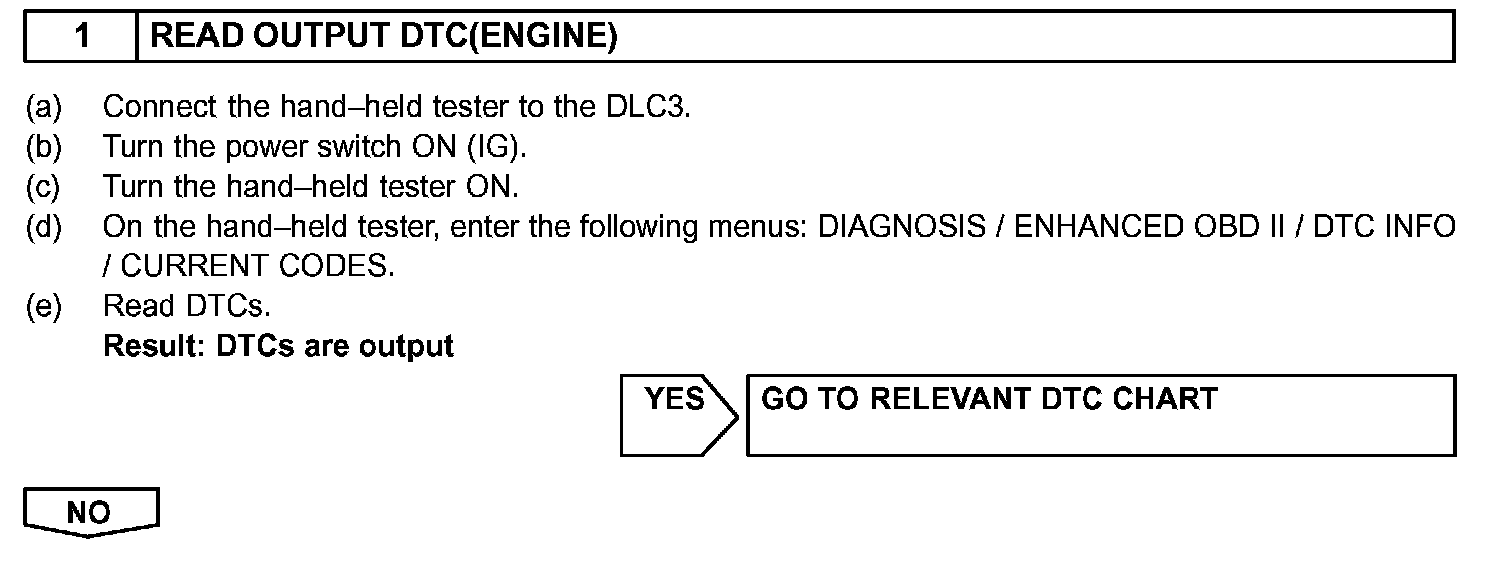

Step 1:

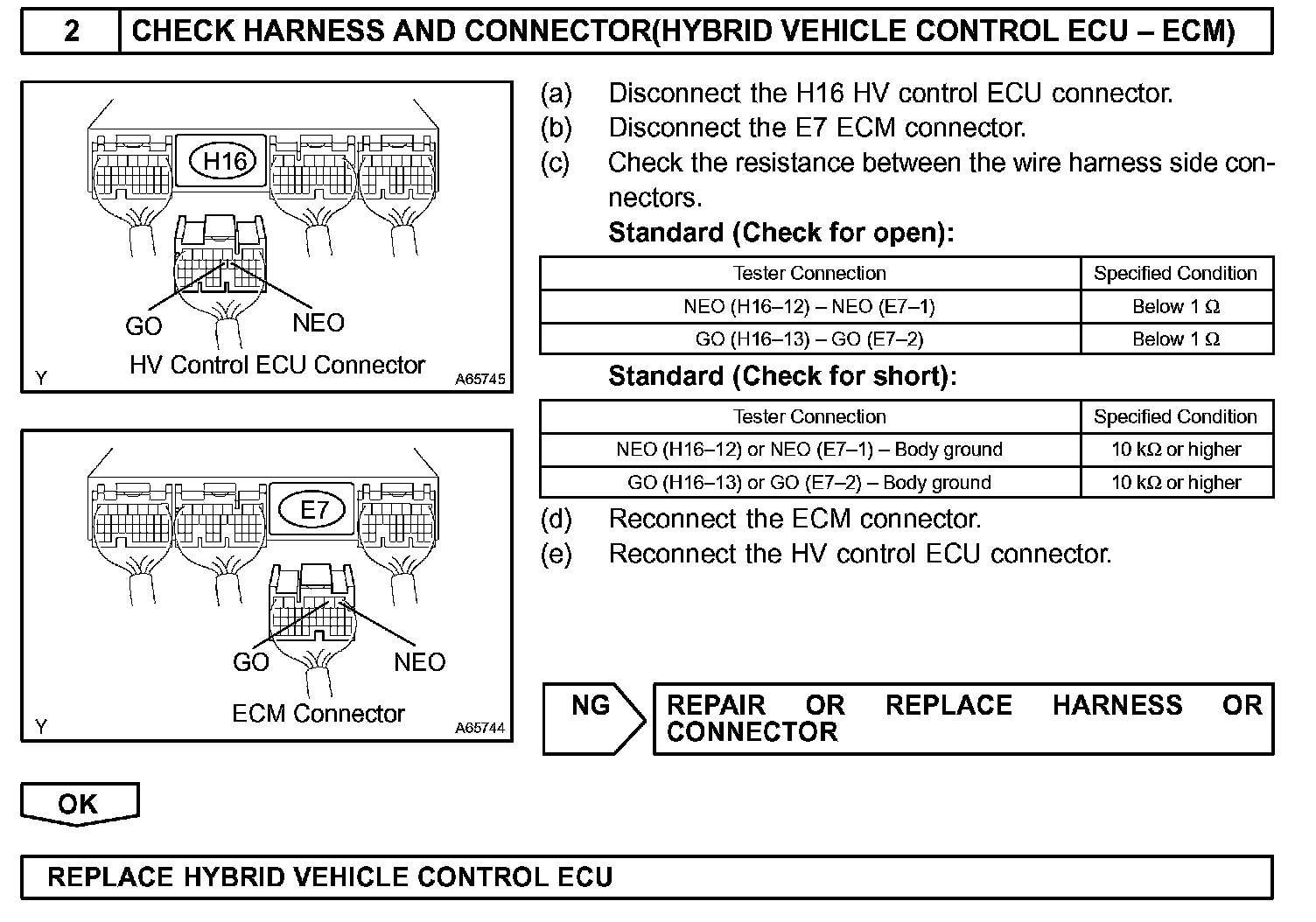

Step 2:

INSPECTION PROCEDURE
