Hybrid Vehicle Control System

DTC P0560 SYSTEM VOLTAGE

CIRCUIT DESCRIPTION

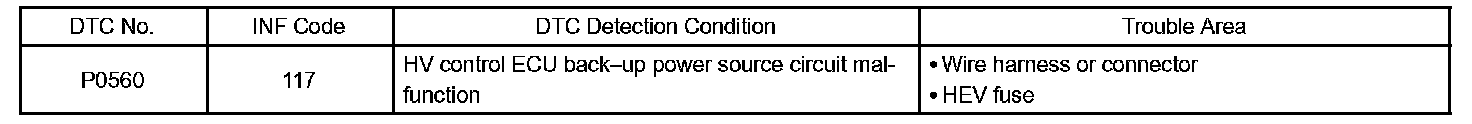

DTC Detection Condition:

Since the ECU back-up power source is used for DTCs and freeze frame data memory, the back-up power source (BATT) continues to be supplied to the HV control ECU even though the power switch is turned OFF.

MONITOR DESCRIPTION

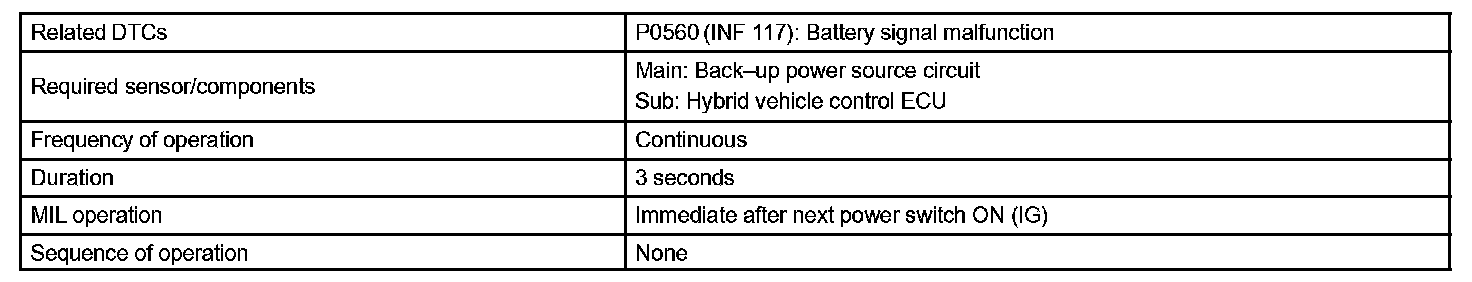

Monitor Strategy:

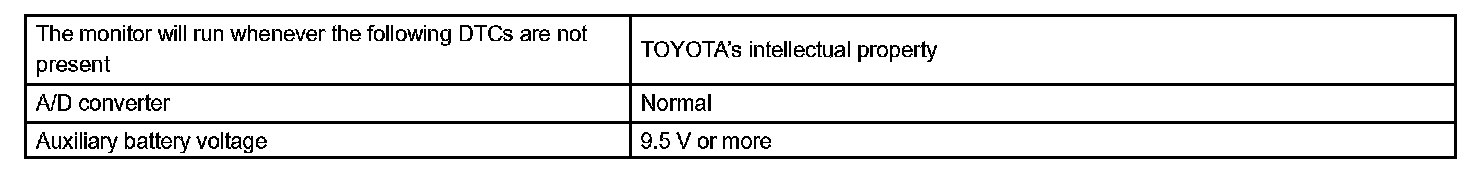

Typical Enabling Conditions:

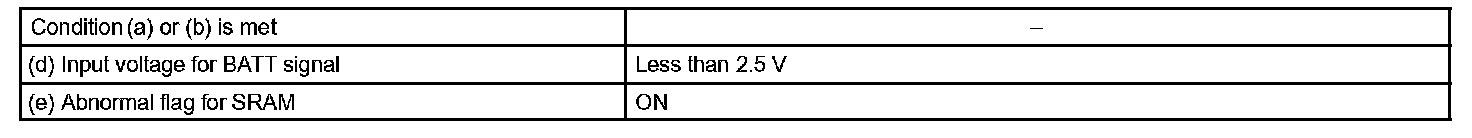

Typical Malfunction Thresholds:

Component Operating Range:

If 3 or more seconds have elapsed with a voltage of 3.3 V or less at the BATT terminal at the HV control ECU, the HV control ECU will determine that a malfunction has occurred in the back-up power supply system, and set a DTC. It will illuminate the MIL the next time the engine is started.

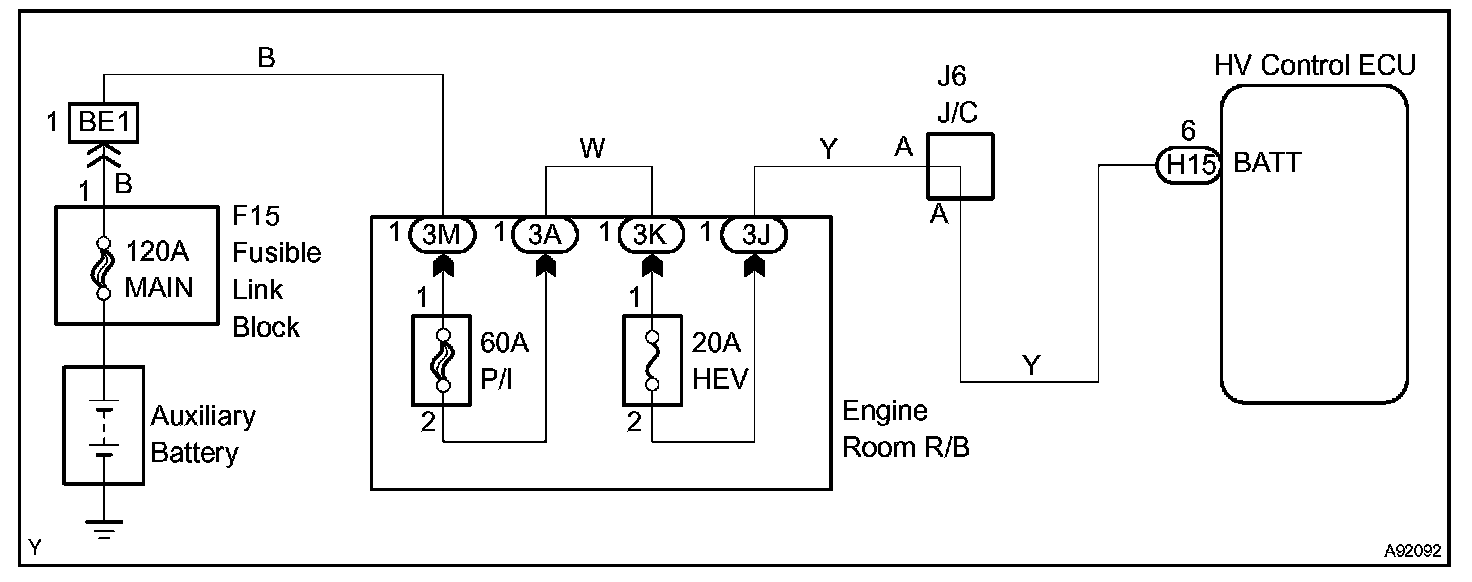

Wiring Diagram:

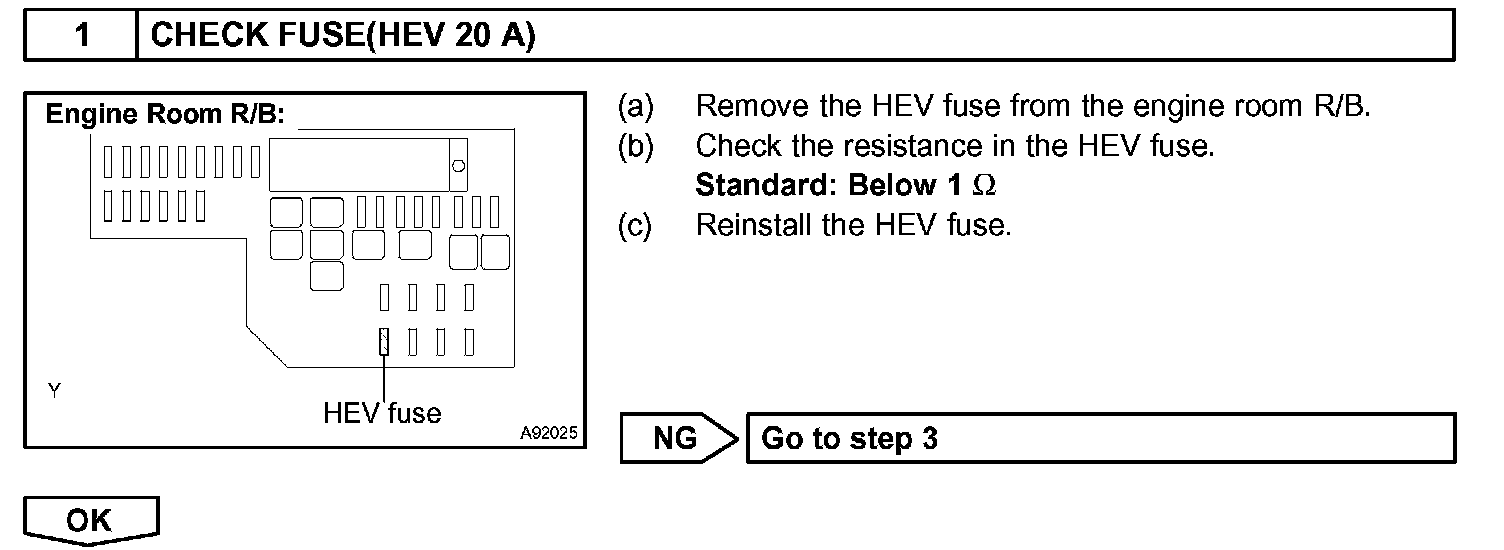

Step 1:

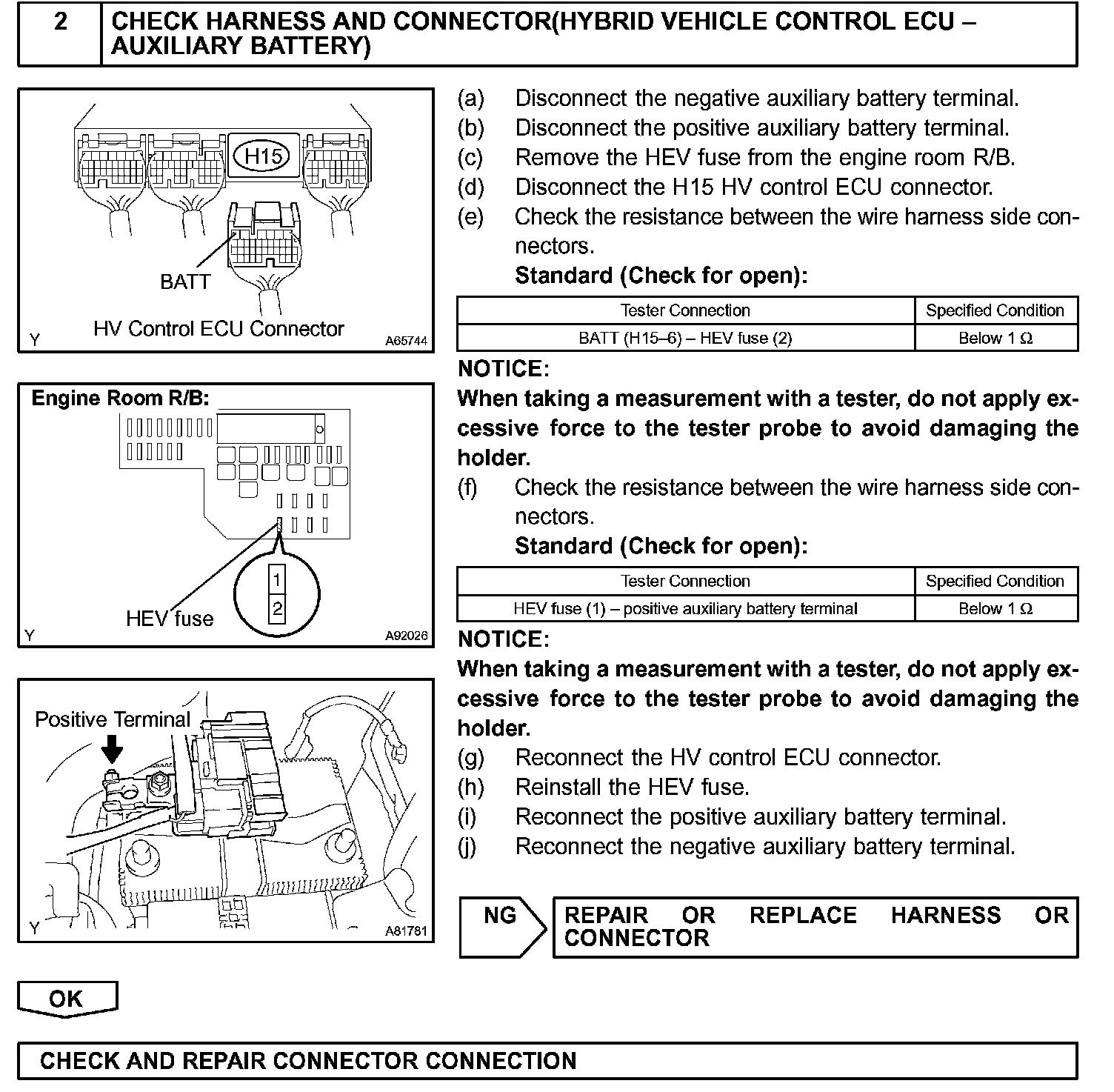

Step 2:

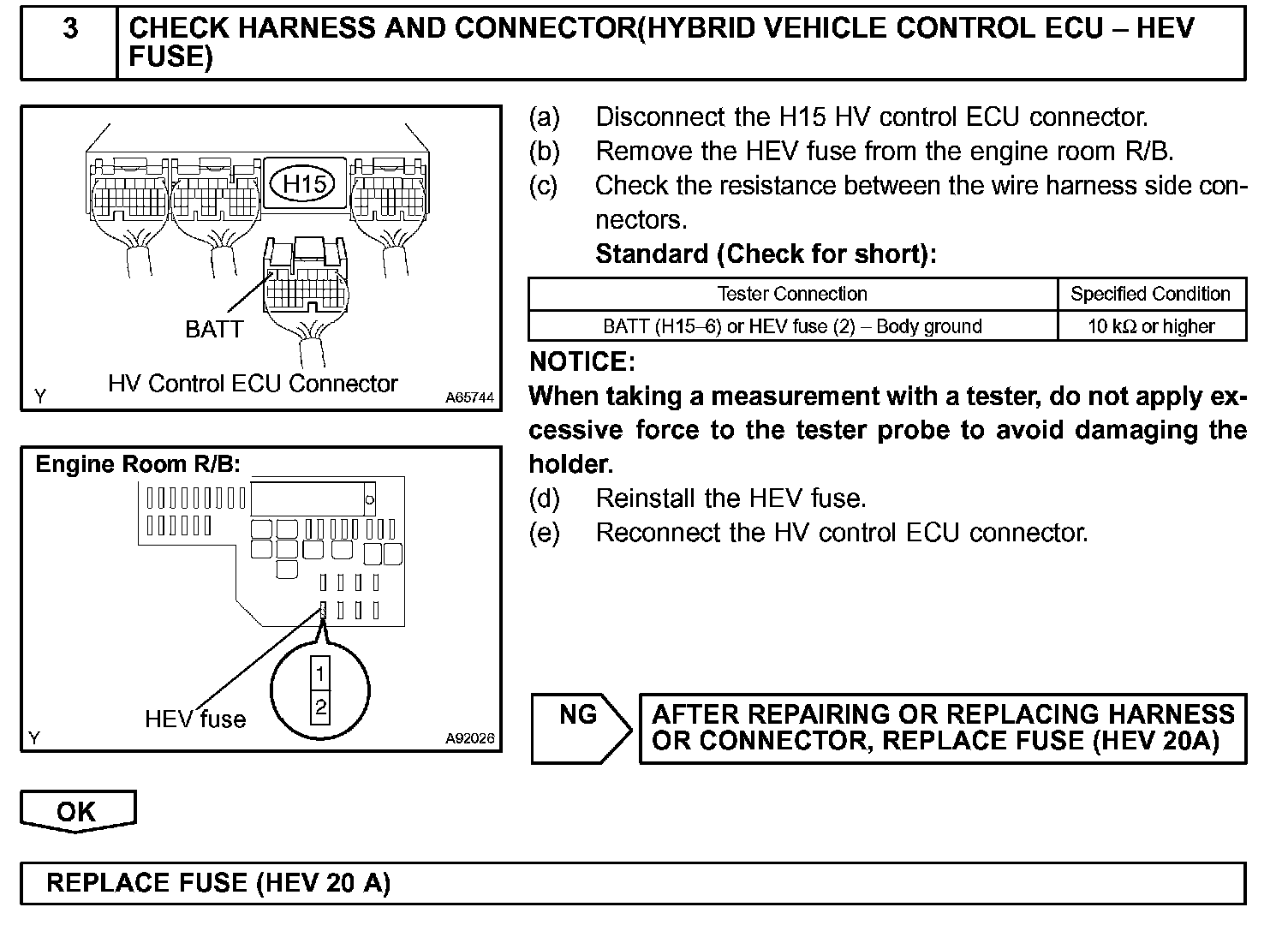

Step 3:

INSPECTION PROCEDURE
