Cruise Control System

DTC P0607 CONTROL MODULE PERFORMANCE

CIRCUIT DESCRIPTION

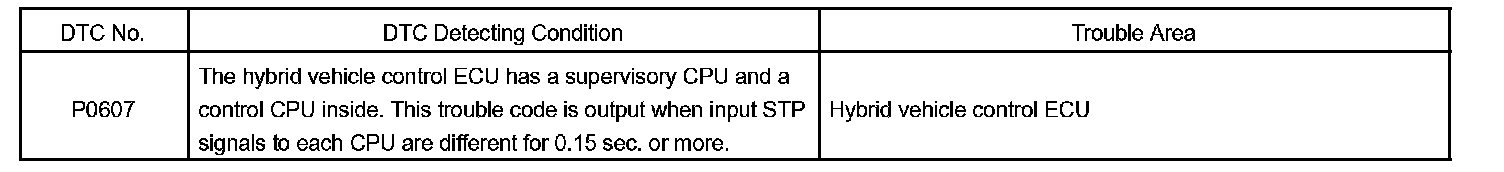

DTC Detecting Condition:

DTC 0607 is stored when an internal abnormality of the hybrid vehicle control ECU is detected.

HINT: If DTC P0607 is detected while the cruise control is in operation, the system clears the stored vehicle speed in the hybrid vehicle control ECU and cancels the cruise control operation. At the same time, the CRUISE main indicator light blinks to inform the driver of the malfunction.
When this trouble code is detected, fail-safe remains on until the power switch is turned off.

INSPECTION PROCEDURE

REPLACE HYBRID VEHICLE CONTROL ECU
