DTC 238

DTC P0A0F/238 ENGINE FAILED TO START

CIRCUIT DESCRIPTION

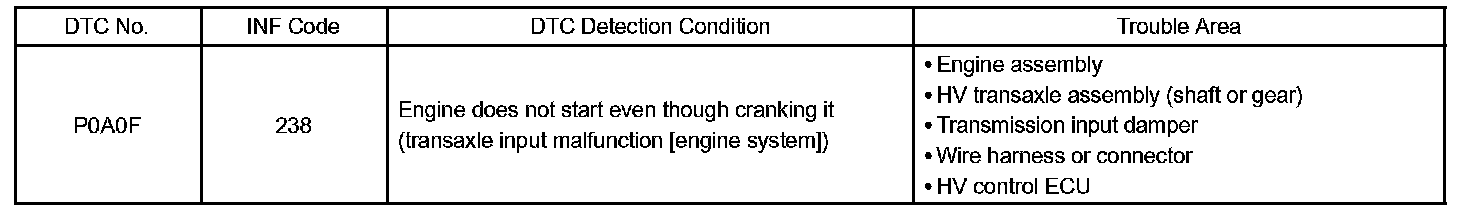

DTC Detection Condition:

The HV control ECU detects this DTC P0A0F/and effects fail-safe control if the engine or transaxle gear has seized
up, or foreign objects have been caught in either of them.

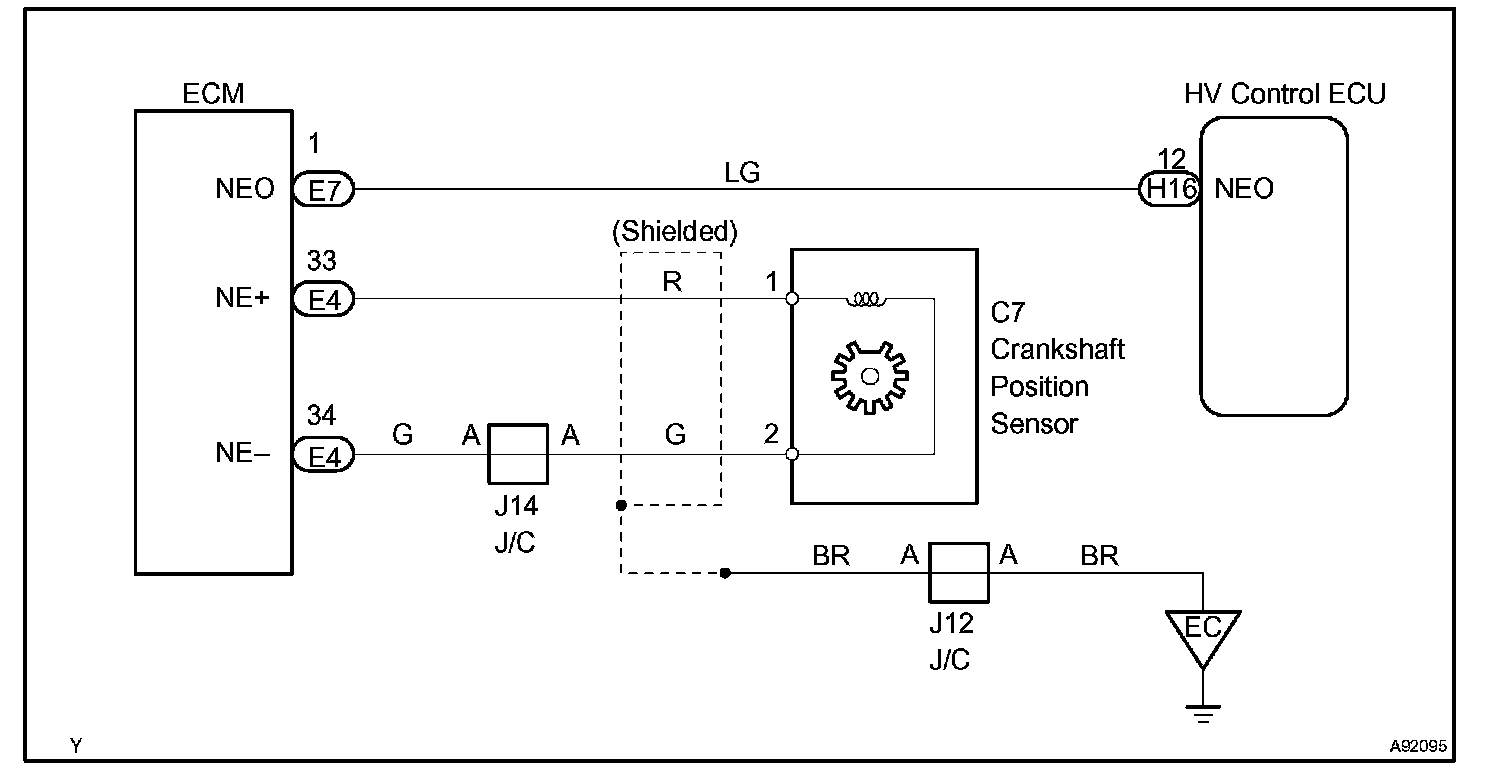

Wiring Diagram:

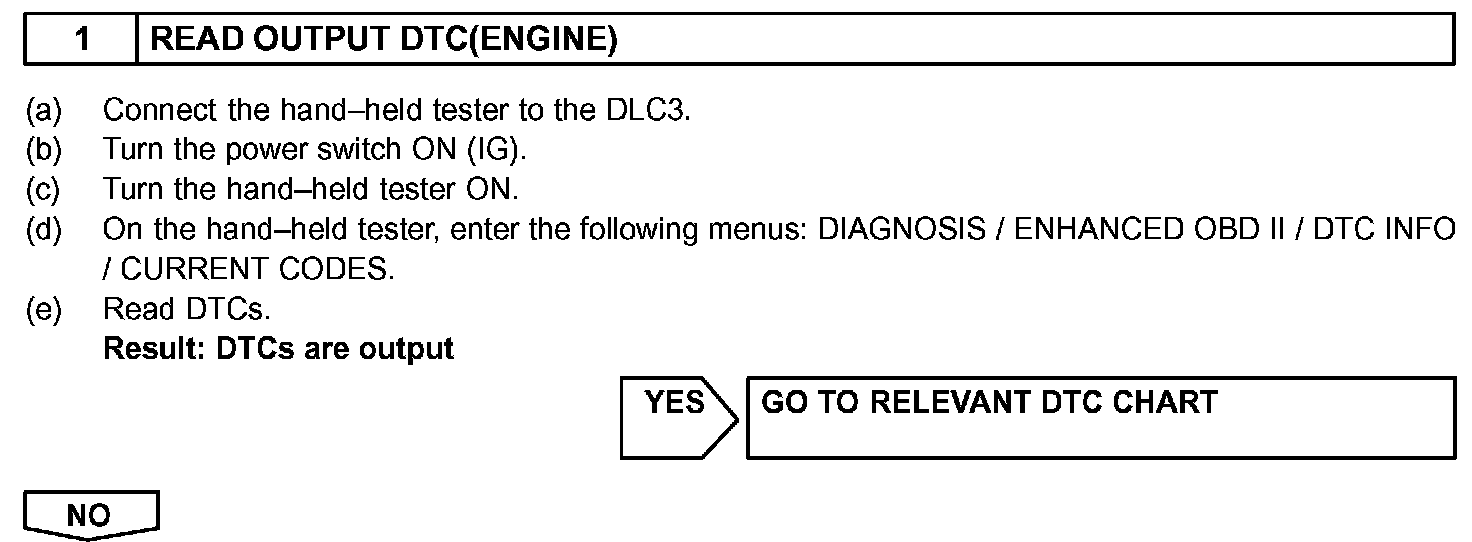

Step 1:

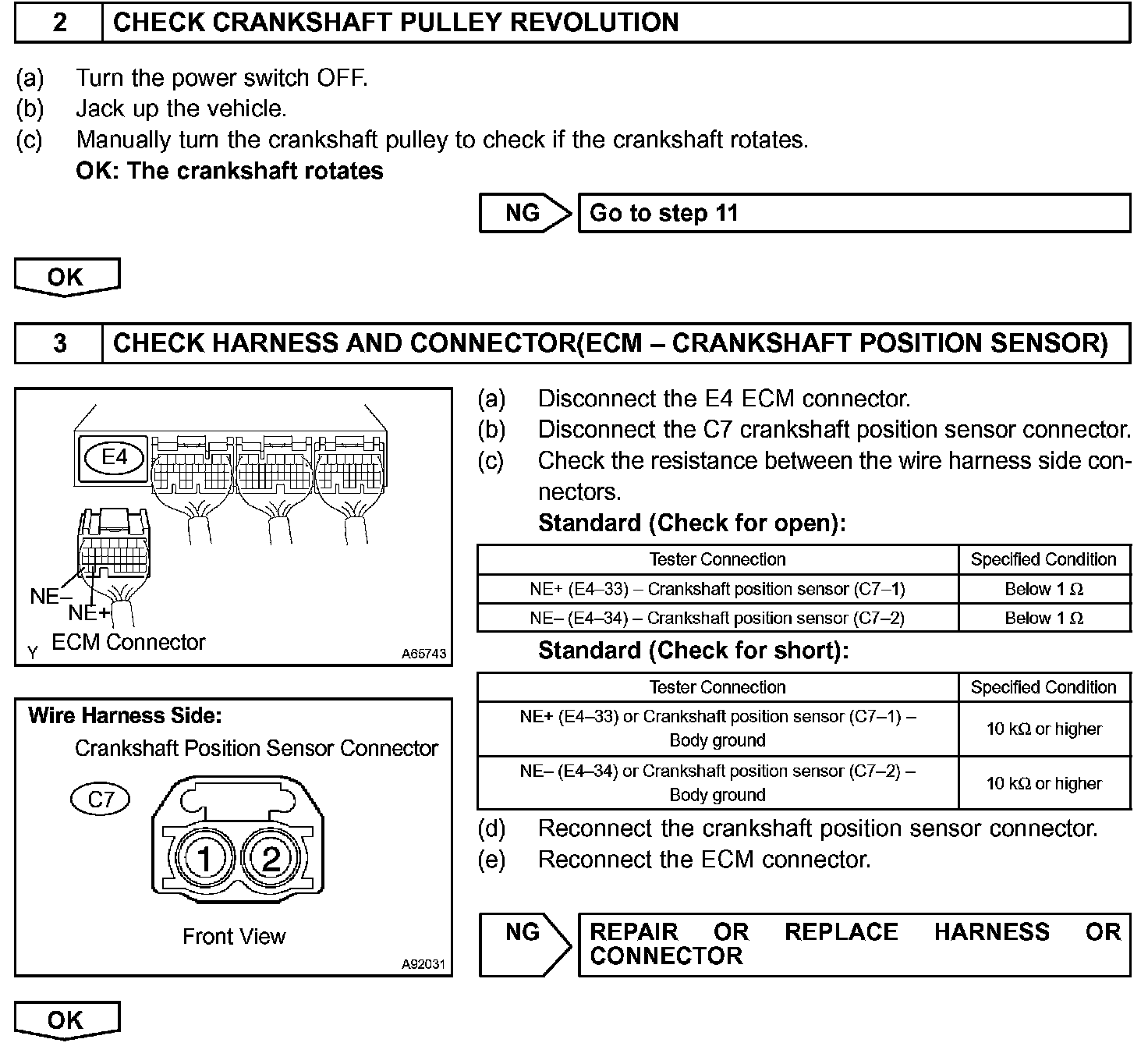

Step 2 - 3:

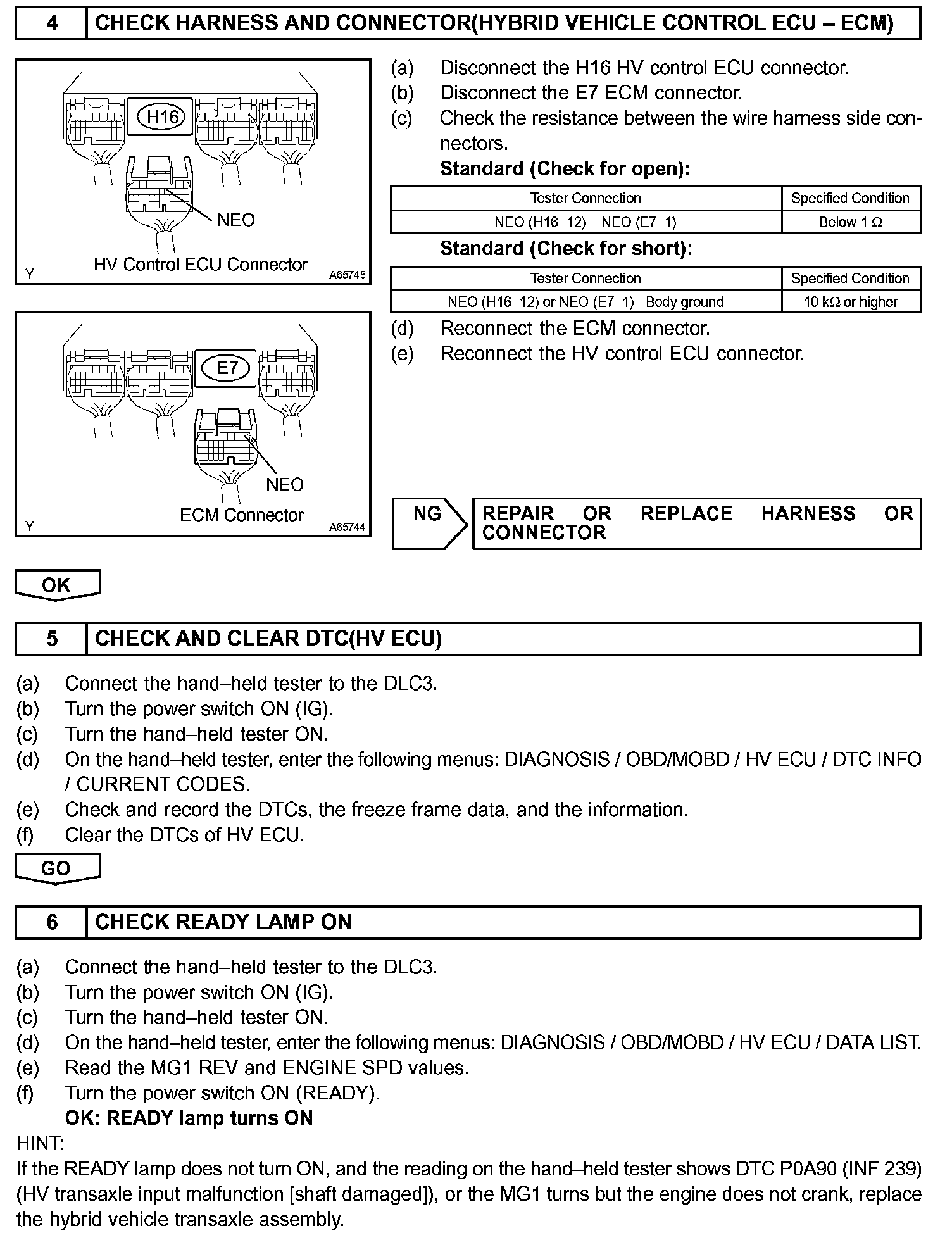

Step 4 - 6:

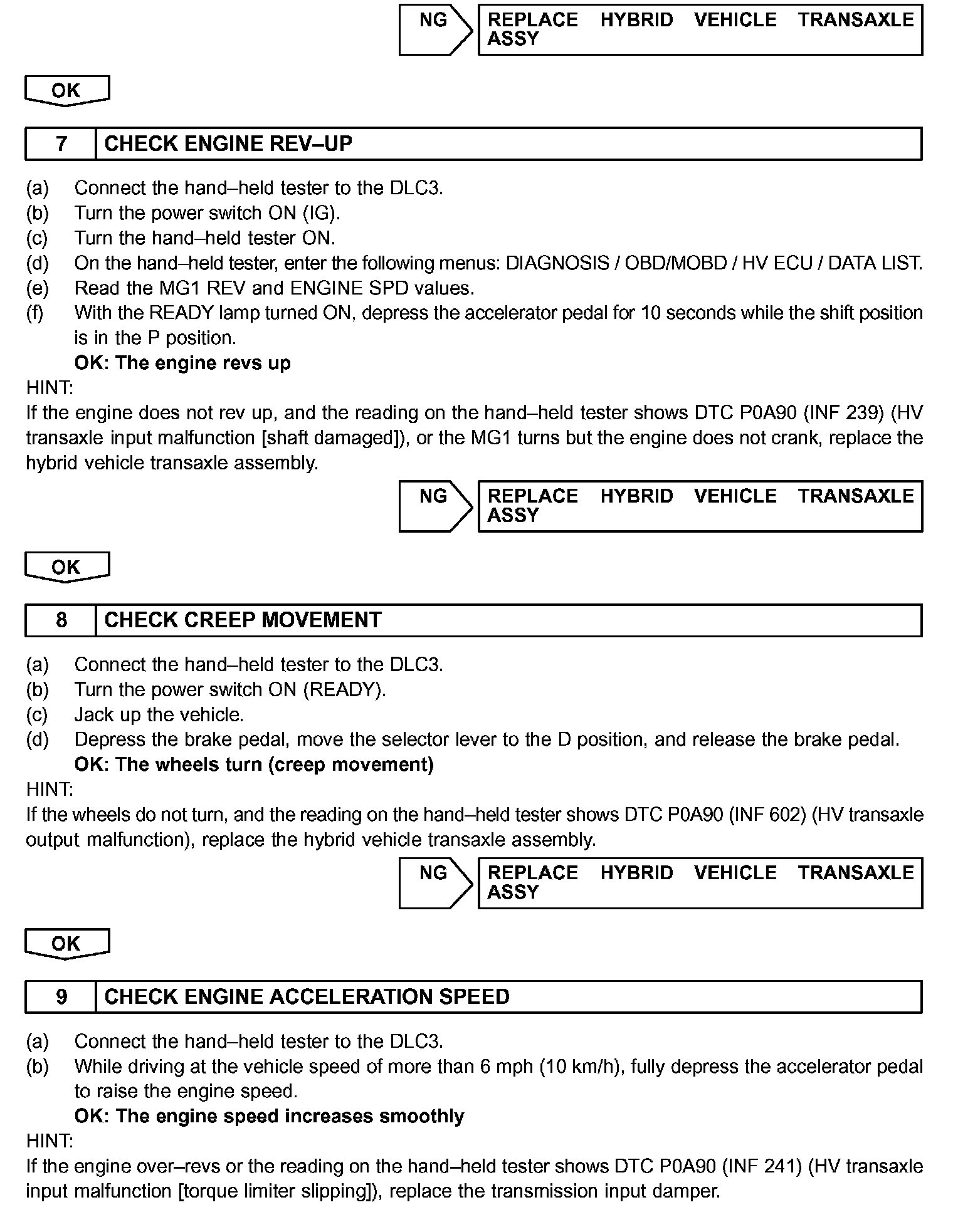

Step 7 (Continued) - 9:

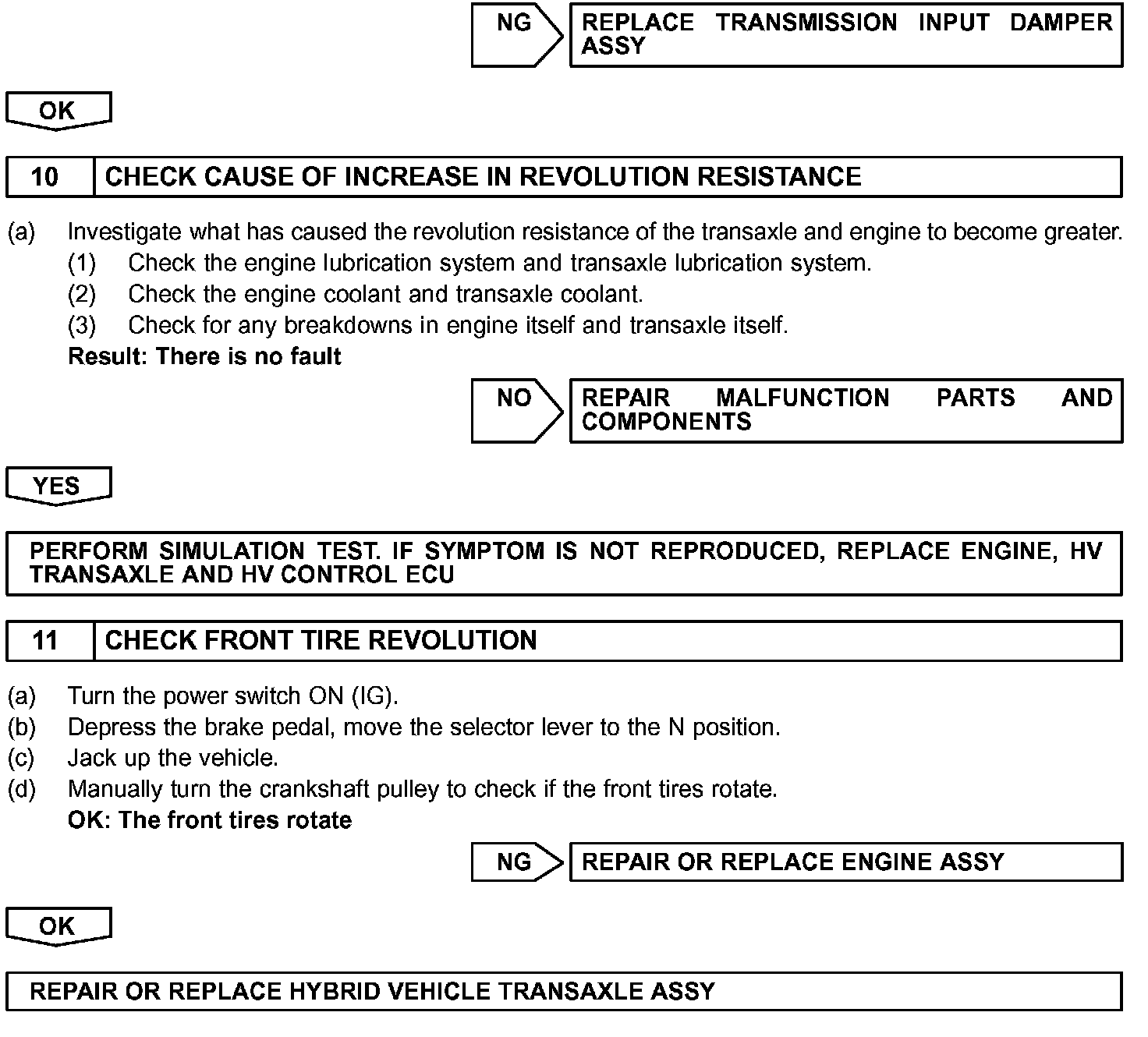

Step 10 (Continued) - 11:

INSPECTION PROCEDURE
