DTC 140

DTC P0A1D/140 HYBRID POWERTRAIN CONTROL MODULE

CIRCUIT DESCRIPTION

DTC Detection Condition:

The HV control ECU performs self-checks to detect an internal operating malfunction in the ECU.

MONITOR DESCRIPTION

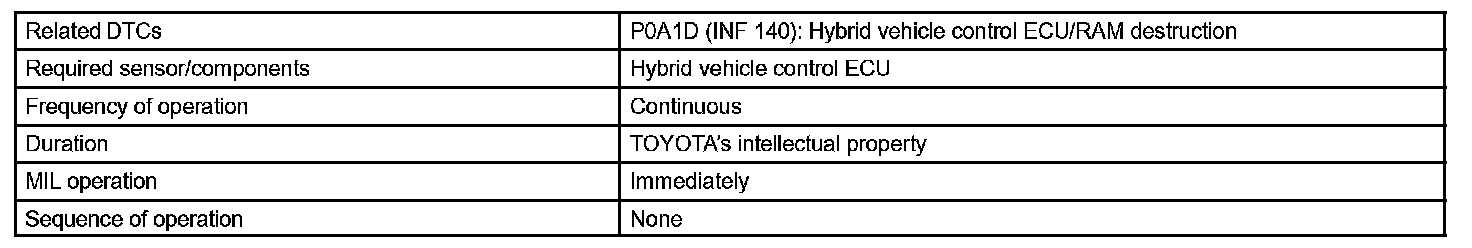

Monitor Strategy:

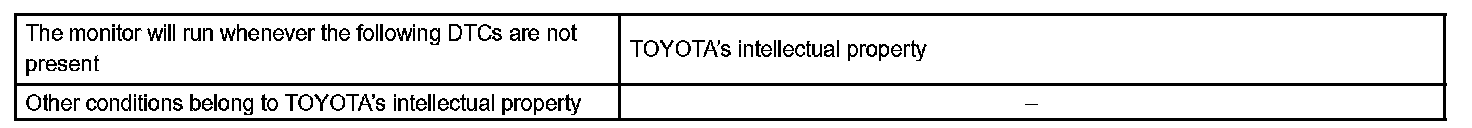

Typical Enabling Conditions:

Typical Malfunction Thresholds:

Component Operating Range:

The HV control ECU performs many diagnostic tests to verify proper operation of internal ECU systems. One of these tests checks for errors after a memory read/write diagnostic test. If the HV control ECU detects this malfunction inside of the ECU, it will illuminate the MIL and set a DTC.

INSPECTION PROCEDURE

If the above information (INF) code is present, replace the HV control ECU.

REPLACE HYBRID VEHICLE CONTROL ECU
