DTC 141

DTC P0A1D/141 HYBRID POWERTRAIN CONTROL MODULE

CIRCUIT DESCRIPTION

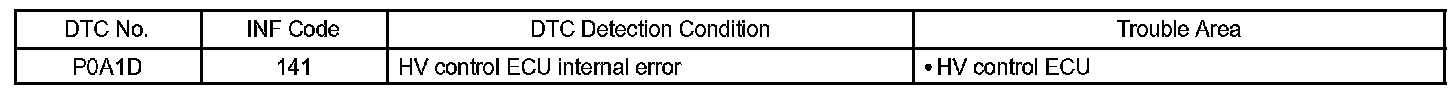

DTC Detection Condition:

The HV control ECU performs self-checks to detect an internal operating malfunction in the ECU.

MONITOR DESCRIPTION

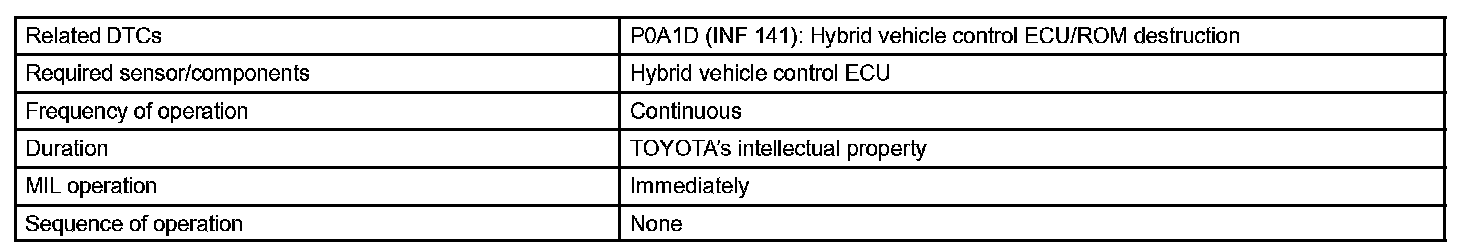

Monitor Strategy:

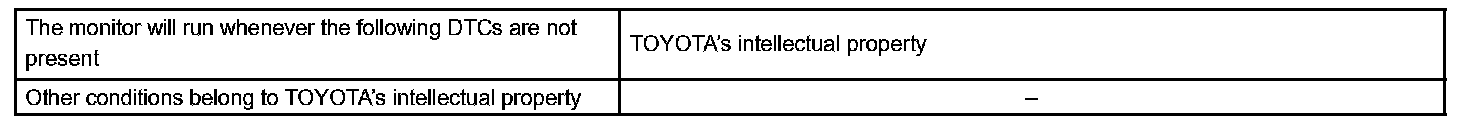

Typical Enabling Conditions:

Typical Malfunction Thresholds:

Component Operating Range:

The HV control ECU performs many diagnostic tests to verify proper operation of internal ECU systems. One of these tests checks for errors in the ROM (Read Only Memory) circuits of the HV control ECU. If the HV control ECU detects this malfunction inside of the ECU, it will illuminate the MIL and set a DTC.

INSPECTION PROCEDURE

If the above information (INF) code is present, replace the HV control ECU.

REPLACE HYBRID VEHICLE CONTROL ECU
