DTC 258

DTC P0A37/258 GENERATOR TEMPERATURE SENSOR CIRCUIT RANGE/PERFORMANCE

CIRCUIT DESCRIPTION

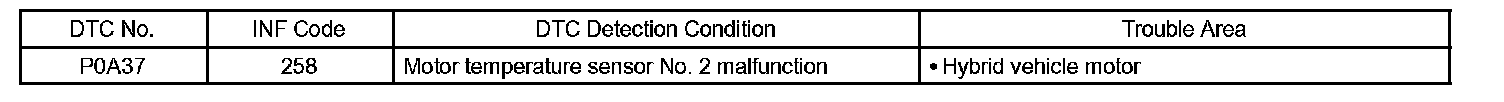

DTC Detection Condition:

The motor temperature sensor No. 2 detects the temperature of the transaxle fluid. The resistance of the thermistor installed in the motor temperature sensor No. 2 varies with the changes in the transaxle fluid temperature. The construction in the motor temperature sensor No. 2 and how it is connected to the HV control ECU are the same as those of the motor temperature sensor No. 1.




The resistance of the thermistor, which is enclosed in the motor temperature sensor No. 1, changes in accordance with the changes in the temperature of the motor. The lower the motor temperature, the higher the resistance of the thermistor. Conversely, the higher the temperature, the lower the resistance.
The motor temperature sensor No. 1 is connected to the HV control ECU. The power voltage of 5 V is supplied from the MMT terminal of the HV control ECU to the motor temperature sensor No. 1 via resistor R. Because resistor R and the motor temperature sensor No. 1 are connected in series, the resistance changes with the changes in temperature of the motor, which causes the MMT terminal voltage to also change. Based on this signal, the HV control ECU limits the load in order to prevent the motor from overheating. Furthermore, the HV control ECU checks the motor temperature sensor No. 1 for a wiring malfunction and the sensor for malfunction.

Based on the signal provided by the motor temperature sensor No. 2, the HV control ECU limits the load to prevent the motor from overheating. Furthermore, the HV control ECU checks the motor temperature sensor No. 2 for a wiring malfunction and the sensor for malfunction.

INSPECTION PROCEDURE

If the information (INF) code 258 is present, replace the hybrid vehicle motor.

HINT: The motor temperature sensor No. 2 is unavailable as an individual service part. Therefore, when replacing it, the hybrid vehicle motor must be replaced.

REPLACE HYBRID VEHICLE MOTOR ASSY
