P0A82

DTC P0A82 HYBRID BATTERY PACK COOLING FAN 1

CIRCUIT DESCRIPTION

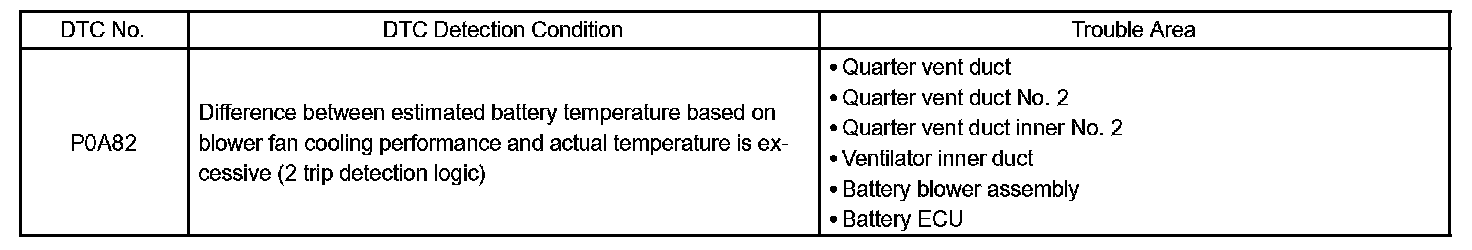

DTC Detection Condition:

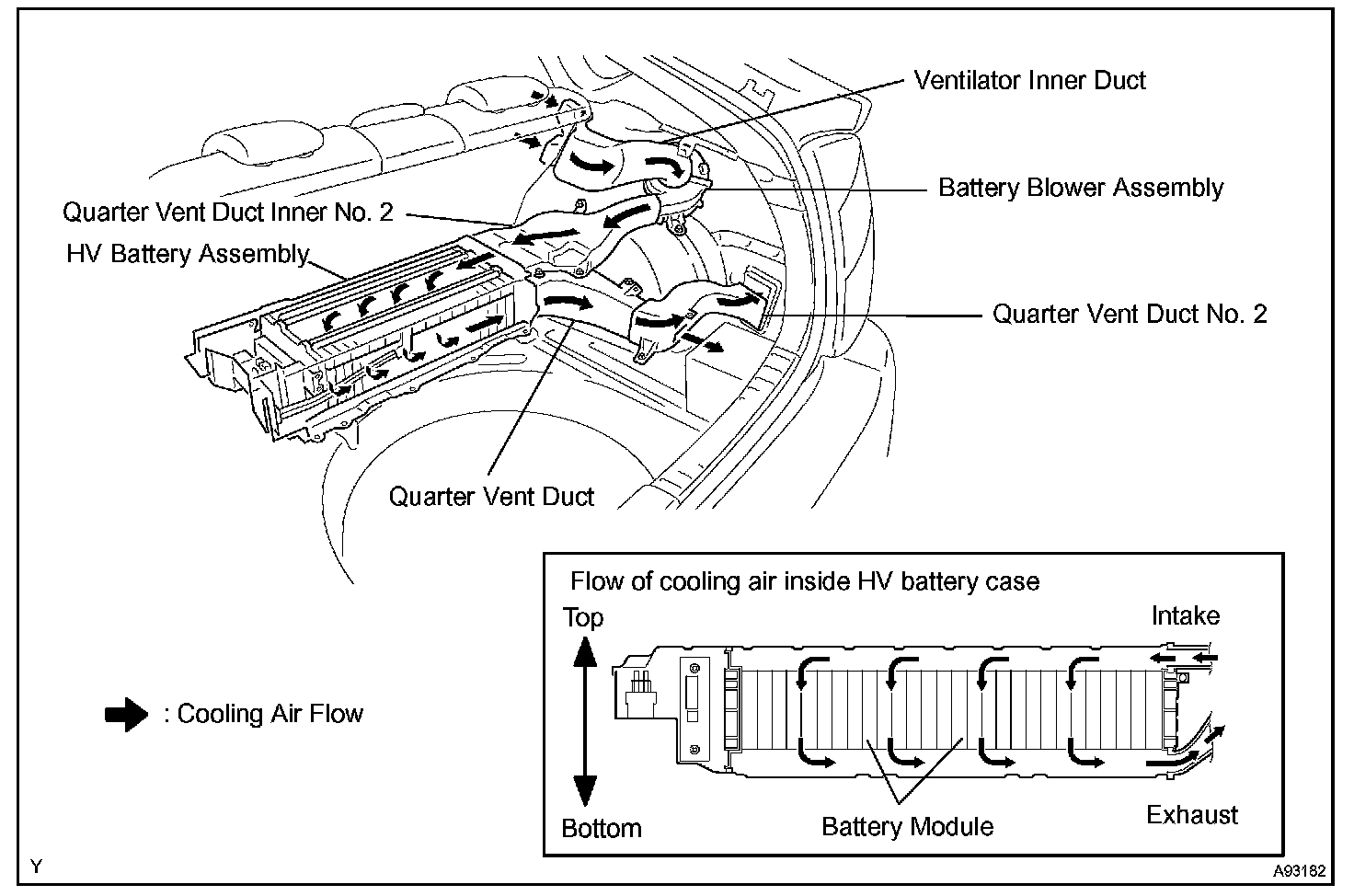

The cooling air flows into the inlet on the right of the rear seat and travels through an intake duct to the battery blower assembly on the right surface of the luggage compartment. Furthermore, the cooling air travels through an intake duct (which connects the battery blower assembly to the upper right surface of the HV battery assembly) and flows to the HV battery assembly.

The cooling air flows from the top to the bottom between the HV battery modules. After it has cooled the modules, it is discharged from the bottom right surface of the HV battery assembly. The exhaust air travels through an exhaust duct on the right surface of luggage compartment and is discharged into the cabin as well as outside of the vehicle.

The battery ECU uses battery temperature sensors in order to detect the temperature of the HV battery assembly. Based on the results of this detection, the battery ECU controls the battery blower assembly. (Thus, the battery blower assembly starts when the HV battery temperature rises to a predetermined level.)

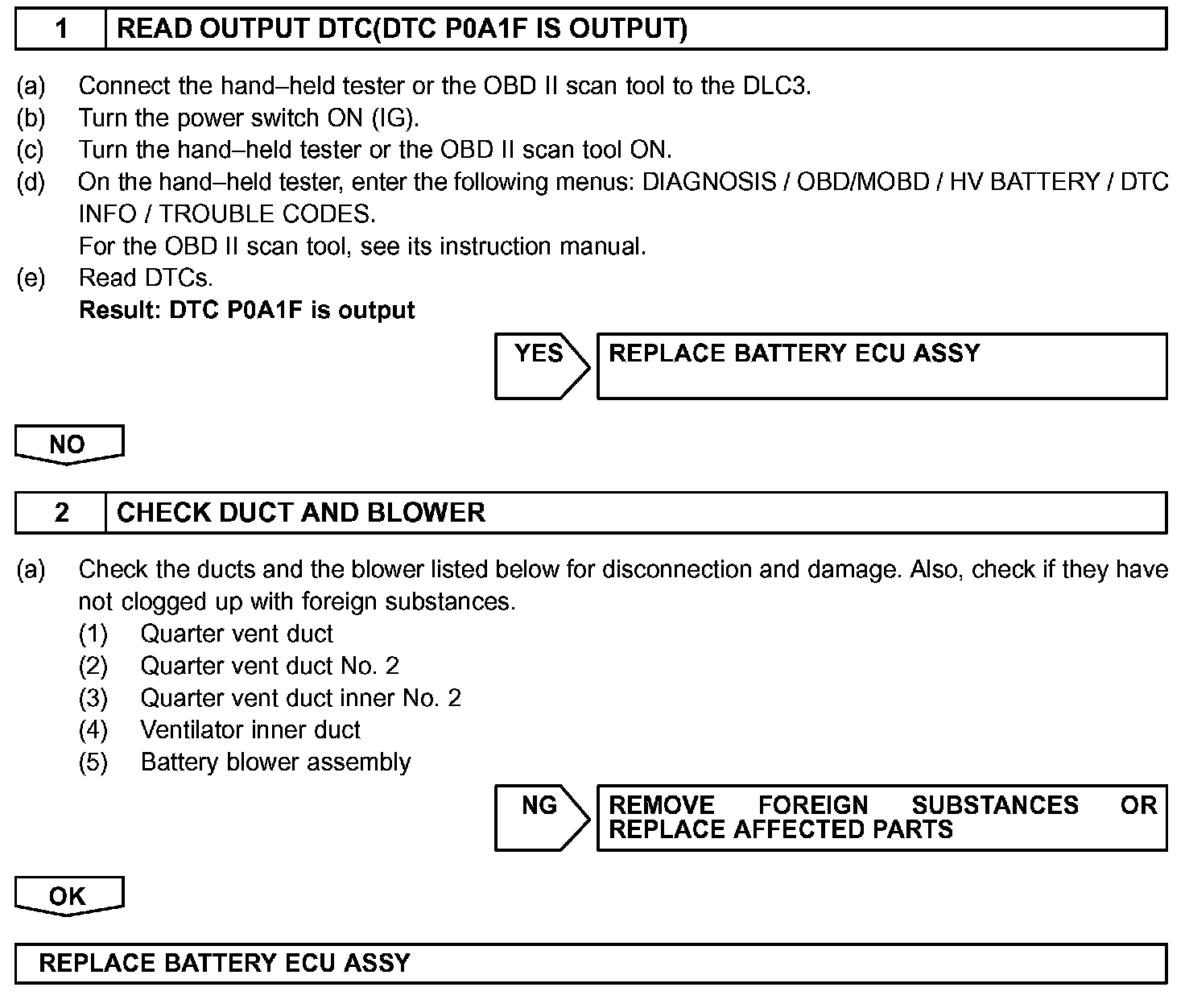

Step 1 - 2:

INSPECTION PROCEDURE
