DTC 389

DTC P3000/389 BATTERY CONTROL SYSTEM MALFUNCTION

CIRCUIT DESCRIPTION

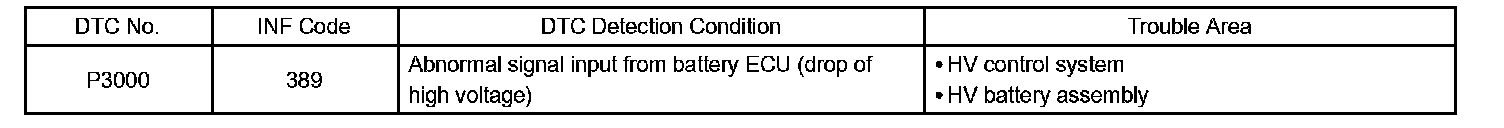

DTC Detection Condition:

Based on the malfunction signal received from the battery ECU, the system alerts the driver and effects fail- safe control.

This DTC is output if the HV battery is depleted or the HV control system has malfunction.

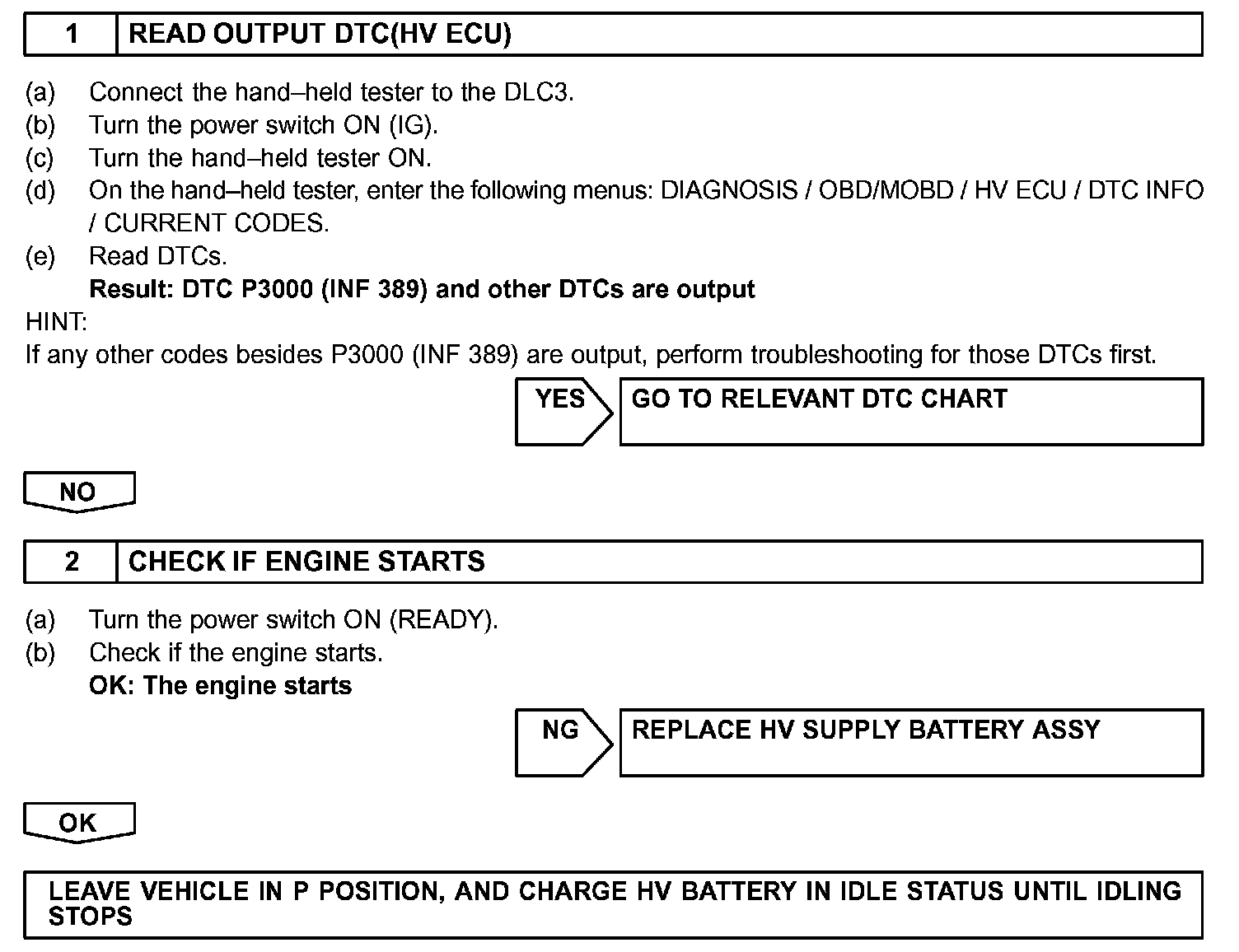

Step 1 - 2:

INSPECTION PROCEDURE
