DTC 213

DTC P3107/213 LOST COMMUNICATION WITH AIRBAG SYSTEM CONTROL MODULE

CIRCUIT DESCRIPTION

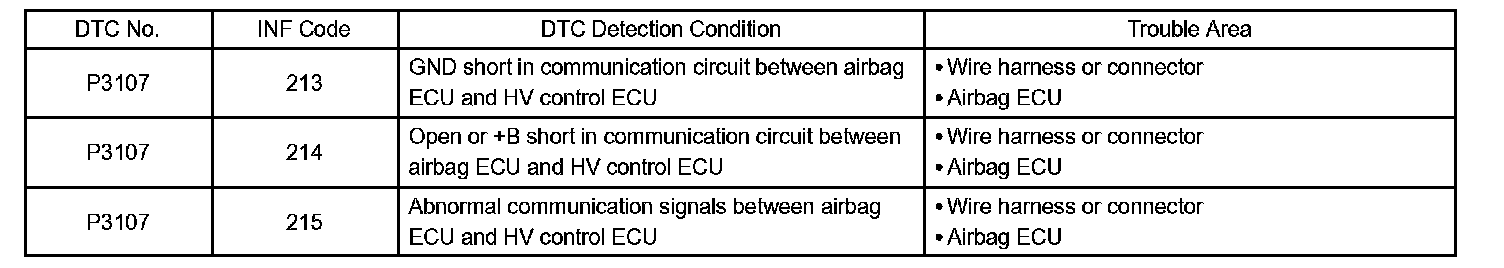

DTC Detection Condition:

The HV control ECU detects a malfunction of the collision signal circuit from the airbag ECU and gives warning to the driver.

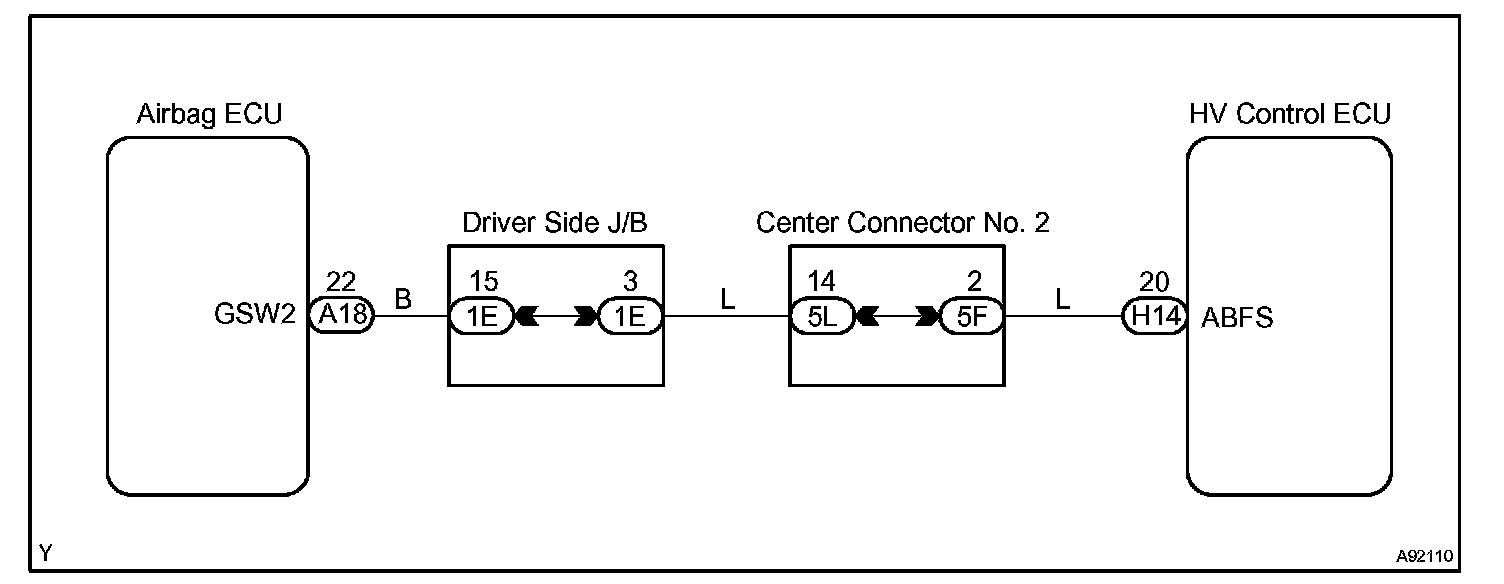

Wiring Diagram:

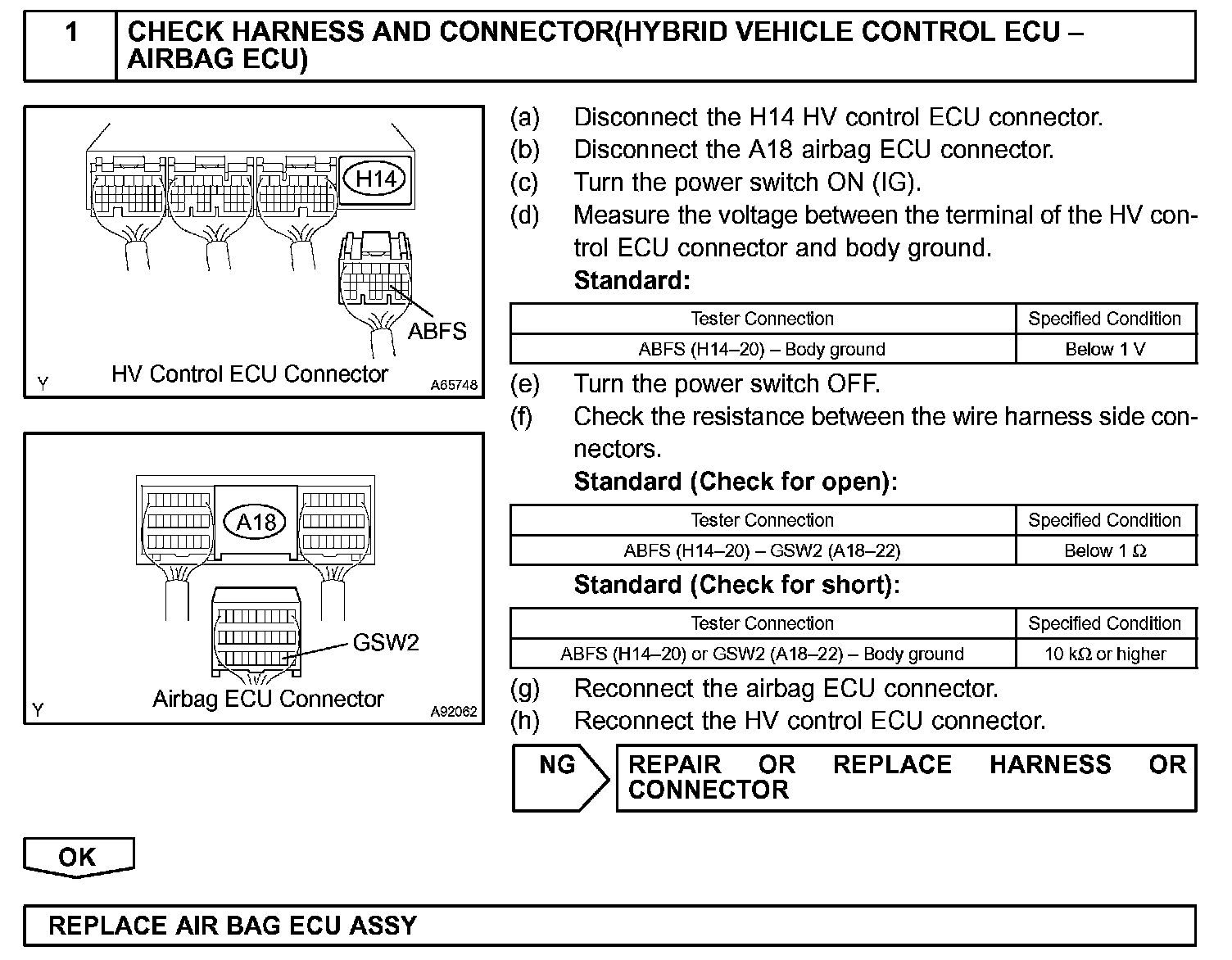

Step 1:

INSPECTION PROCEDURE
