DTC 538

DTC P3108/538 LOST COMMUNICATION WITH A/C SYSTEM CONTROL MODULE

CIRCUIT DESCRIPTION

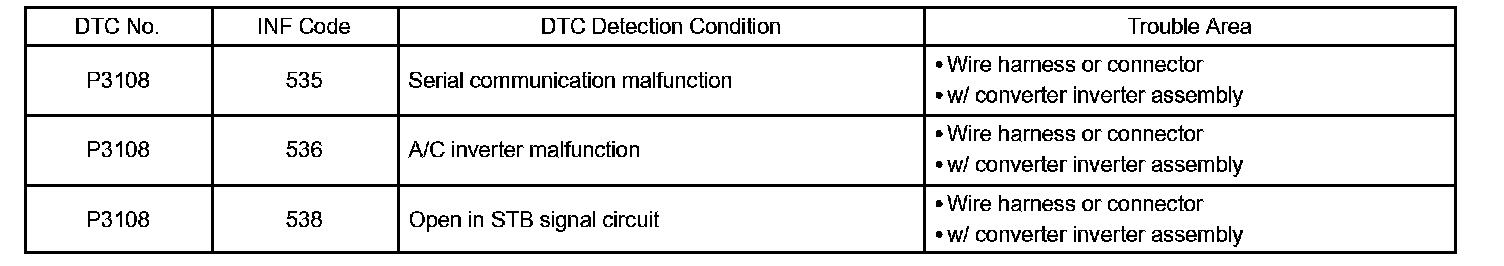

DTC Detection Condition:

The HV control ECU detects a wiring malfunction in the serial communication line of the A/C inverter.

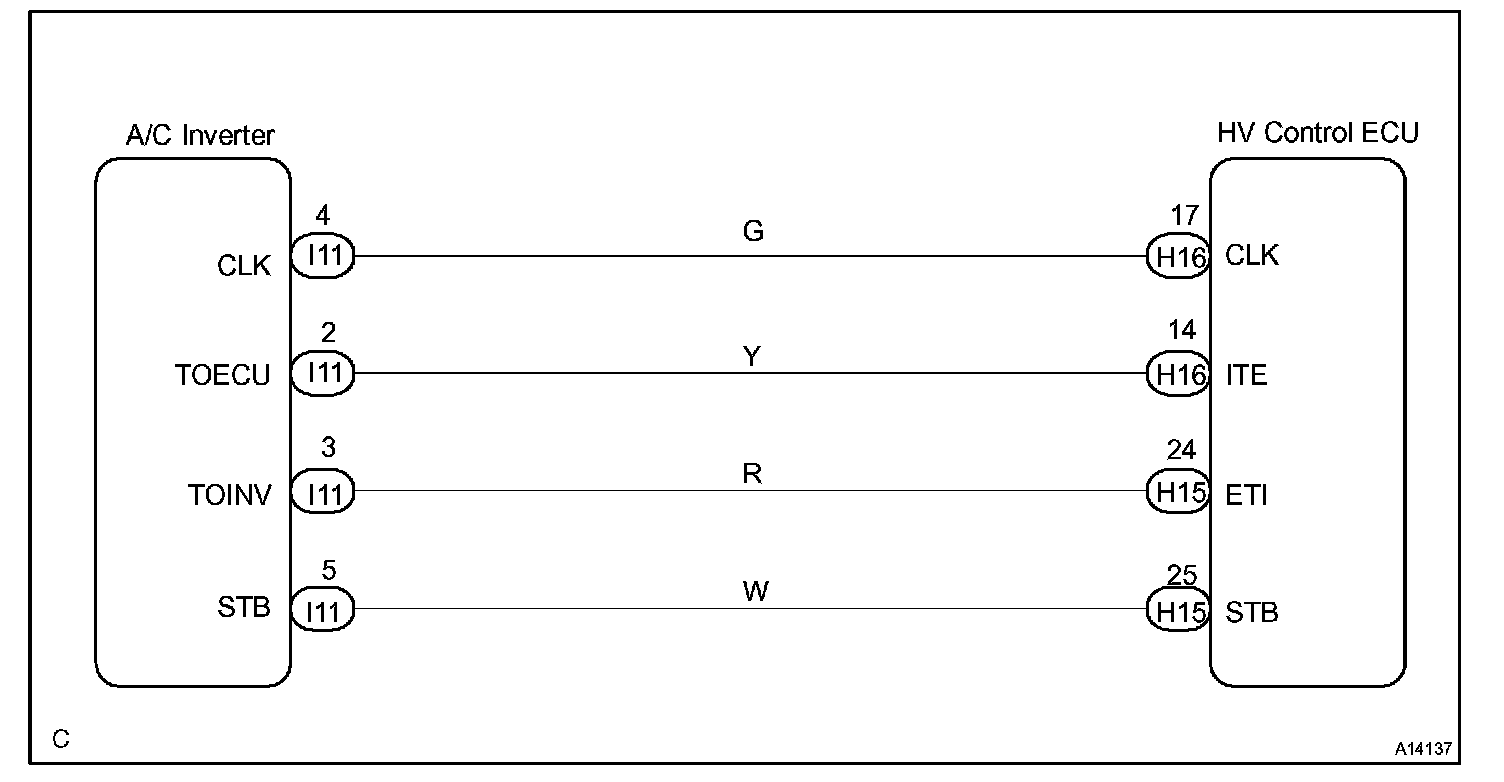

Wiring Diagram:

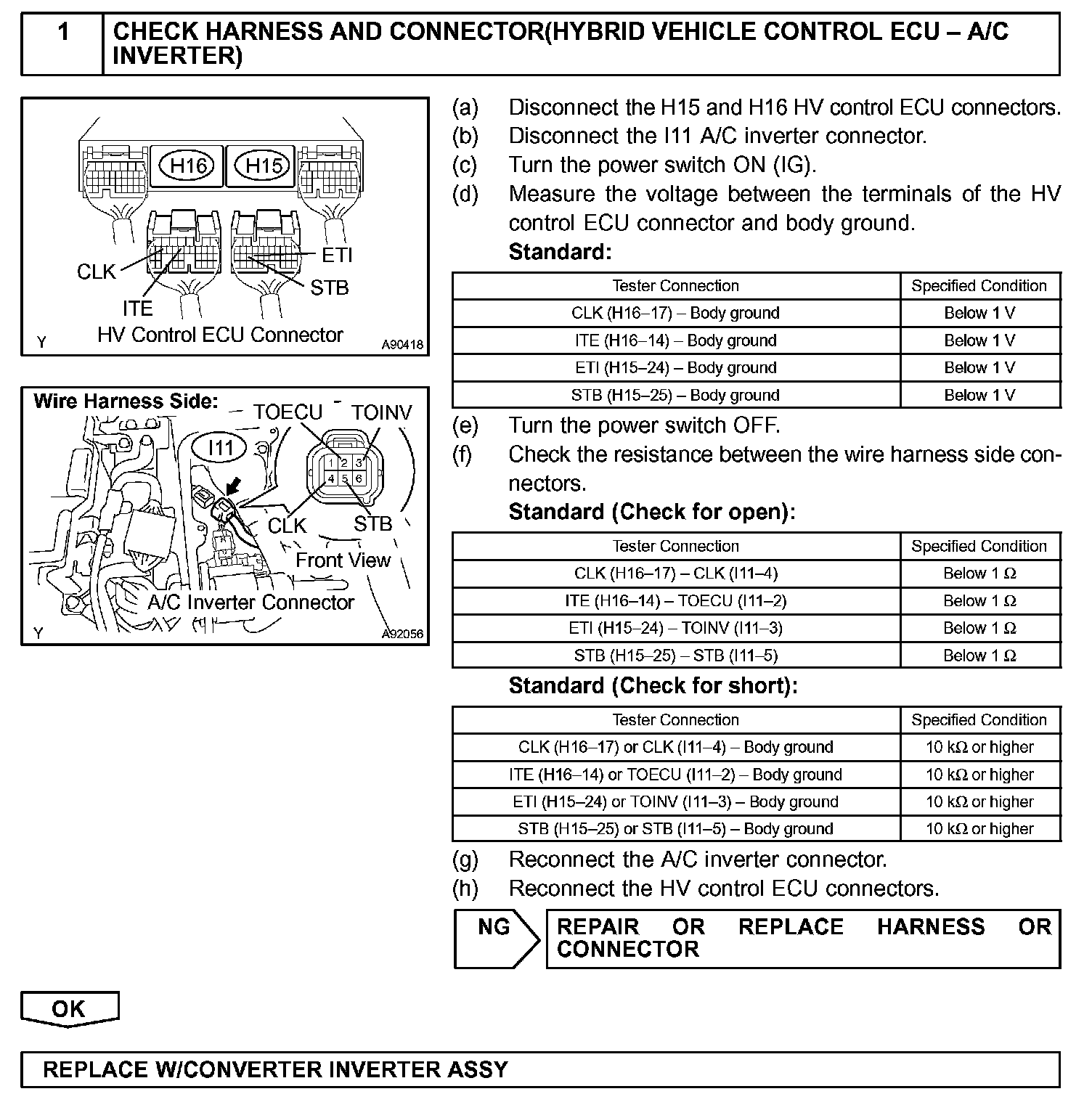

Step 1:

INSPECTION PROCEDURE
