U0121

DTC U0121 LOST COMMUNICATION WITH ANTI LOCK BRAKE SYSTEM (ABS) CONTROL MODULE

CIRCUIT DESCRIPTION

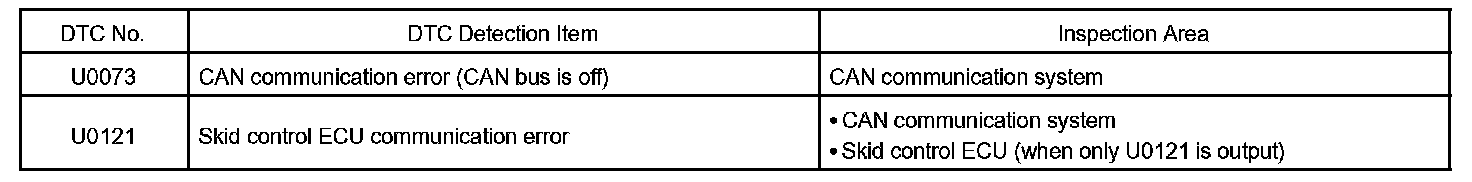

DTC Detection Item:

The power steering ECU assy receives signals from the skid control ECU (ECB ECU) via CAN communication.

HINT: When two or more DTCs starting with "U" are output simultaneously, inspect the connectors and wire harness of each ECU.

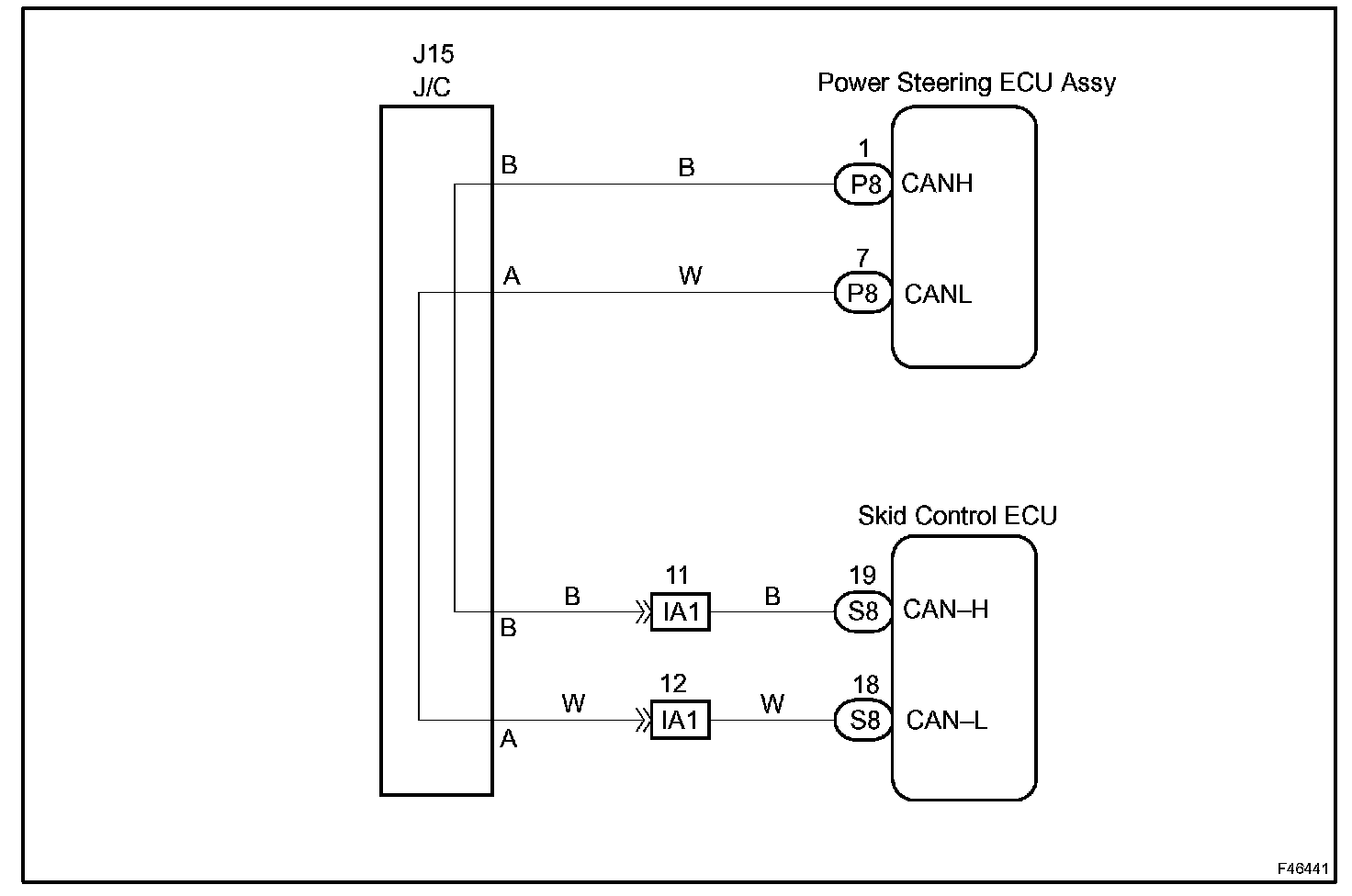

Wiring Diagram:

Step 1:

INSPECTION PROCEDURE
