HV Battery Control System

DTC U0293 LOST COMMUNICATION WITH HYBRID VEHICLE CONTROL SYSTEM

CIRCUIT DESCRIPTION

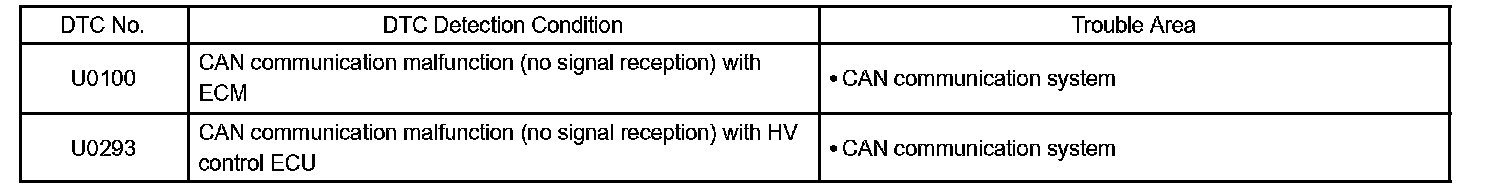

DTC Detection Condition:

The battery ECU receives signals from the HV control ECU, ECM, and gateway ECU via CAN (Controller Area Network) communication.

MONITOR DESCRIPTION

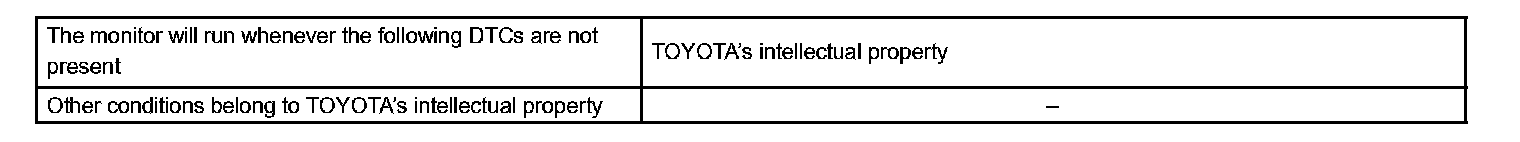

Typical Enabling Conditions:

Typical Enabling Conditions:

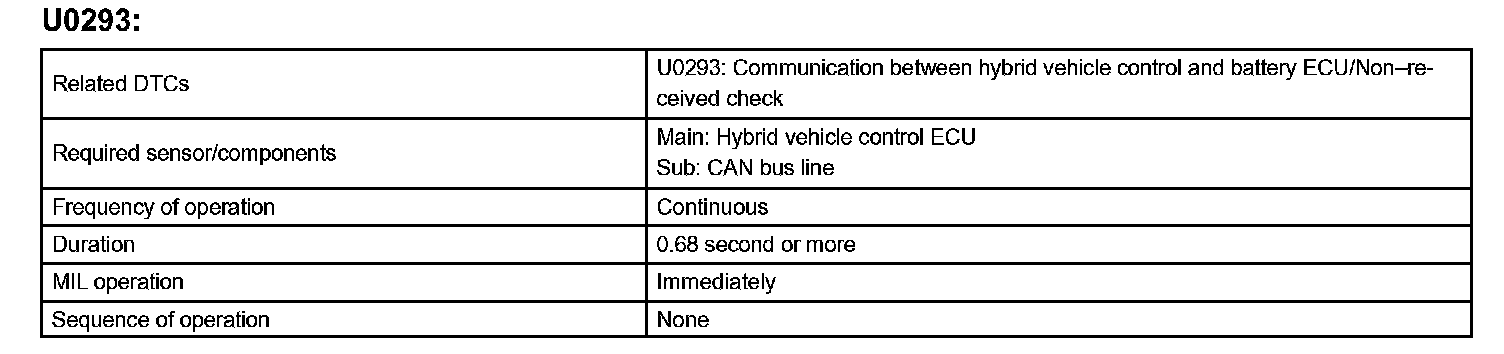

Typical Malfunction Thresholds:

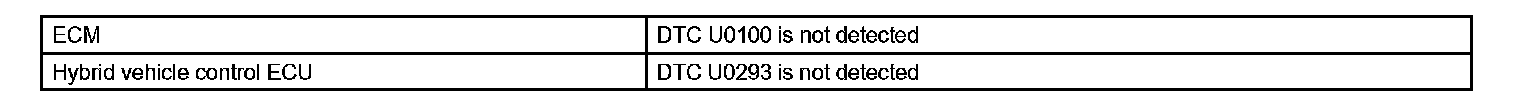

Component Operating Range:

If the battery ECU detects malfunction in the CAN communication with the ECM or HV control ECU, it illuminates the MIL and sets a DTC.

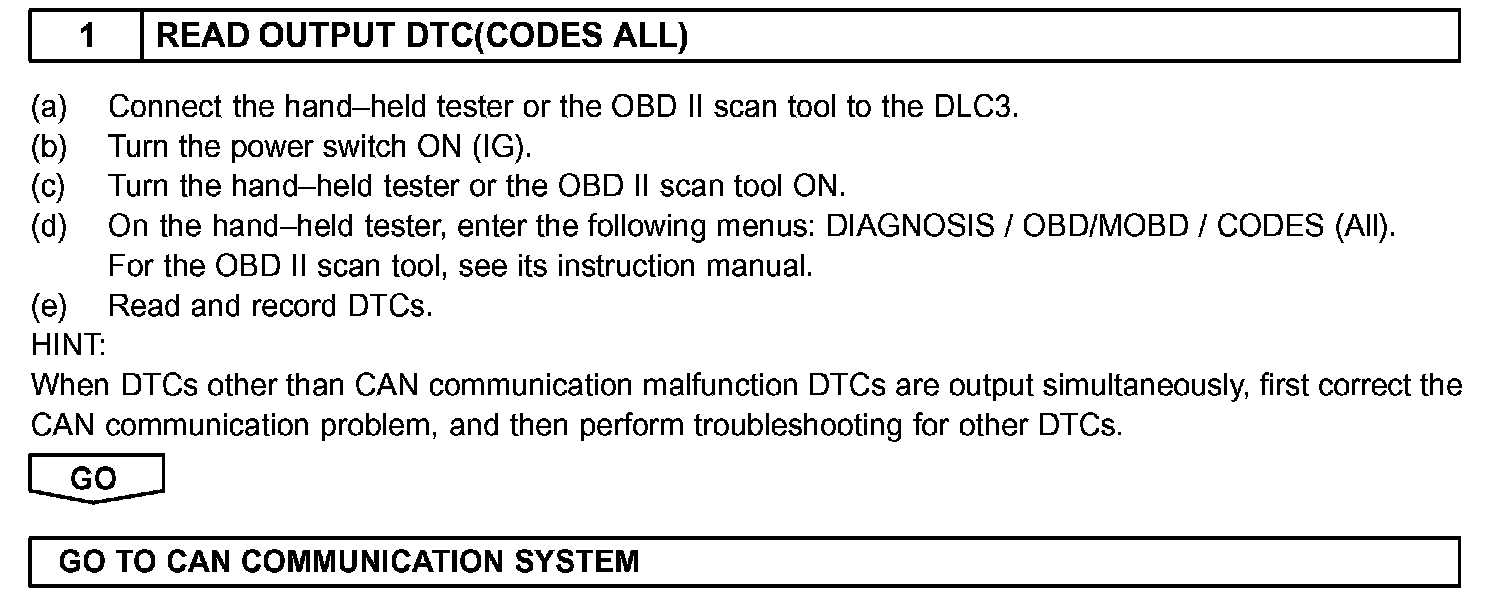

Step 1:

INSPECTION PROCEDURE
