Accessory Control Display: Service and Repair

Audio & Visual System:

MULTI-DISPLAY ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL REGISTER ASSY N0.3
2. REMOVE INSTRUMENT PANEL REGISTER ASSY N0.4




3. REMOVE MULTI-DISPLAY ASSY

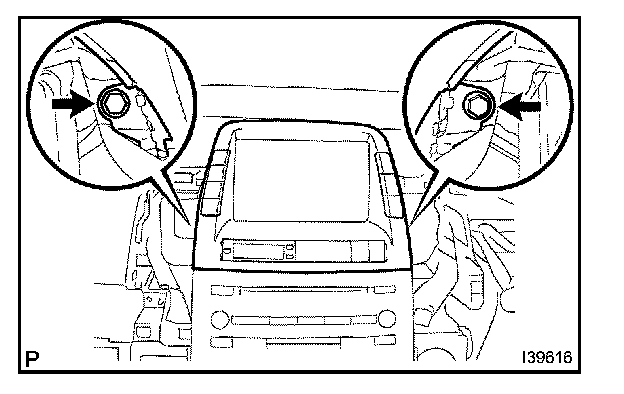

a. Remove the 2 bolts.
b. Disconnect the connector and remove the multi-display assy.
