Antenna, Navigation: Service and Repair

Audio & Visual System:

NAVIGATION ANTENNA ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY




2. REMOVE NAVIGATION ANTENNA ASSY

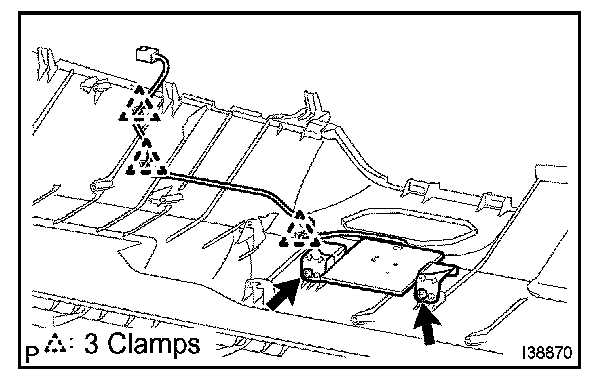

a. Remove the 2 screws and 3 clamps to remove the navigation antenna assy.

3. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
