Antenna Cord Sub-Assy

Audio & Visual System:






ANTENNA CORD SUB-ASSY REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE ROOF HEADLINING ASSY




2. REMOVE ANTENNA CORD SUB-ASSY
a. Disconnect each connector.

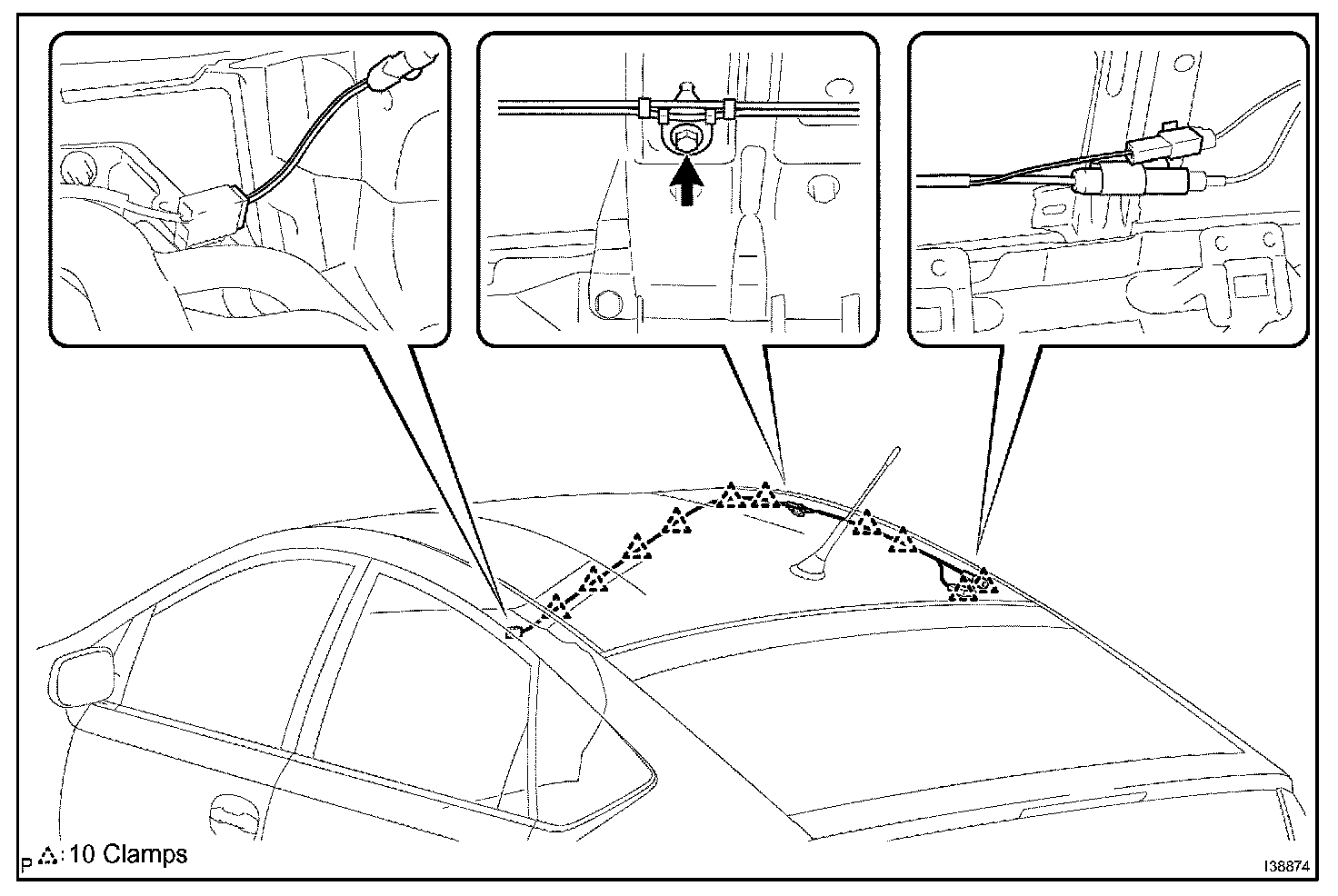

b. Remove the 10 clamps and earth bolt to remove the antenna cord sub-assy.




3. INSTALL ANTENNA CORD SUB-ASSY
a. Install the 10 clamps and bolt.

Torque: 7.0 Nm (71 kgf.cm, 62 in.lbf)

b. Connect each connector.

4. INSTALL ROOF HEADLINING ASSY
